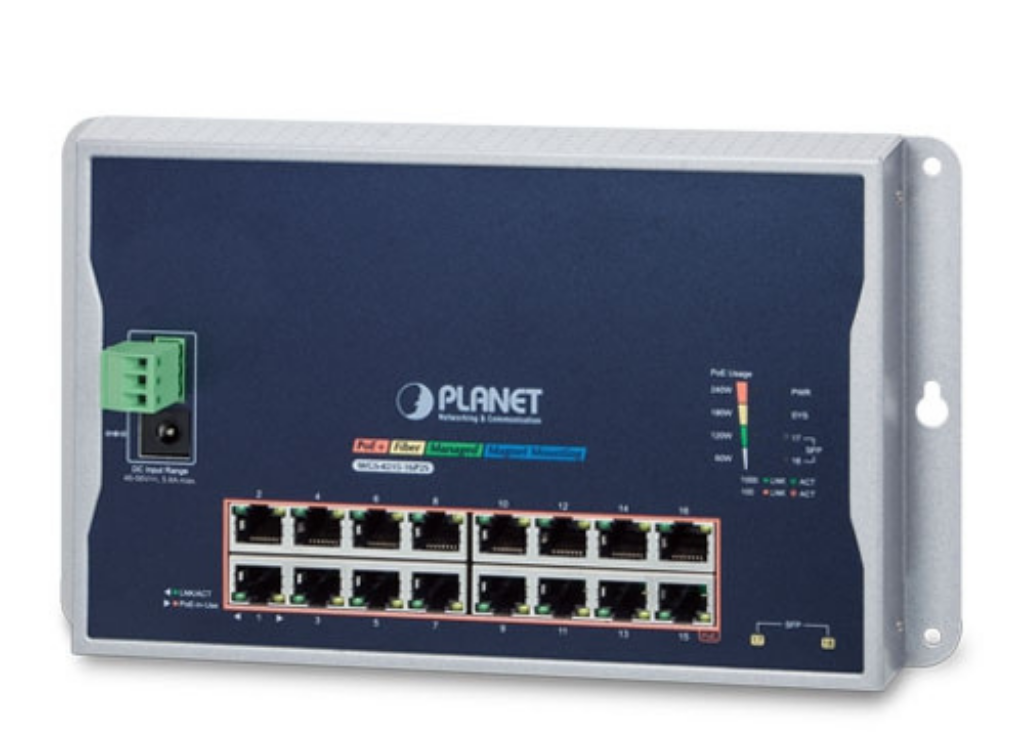

Planet Industrial 16-Port 10/100/1000T 802.3at PoE + 2-Port 100/1000X SFP Wall-mounted Managed Switch | WGS-4215-16P2S

Easily-deployed and Expanded Network
Designed to be installed in a wall enclosure or simply mounted on a wall in any convenient location, PLANET WGS-4215-16P2S, an innovative, Industrial 16-port 10/100/1000T 802.3at PoE + 2-port 100/1000X SFP Wall-mounted Managed Switch, offers IPv6/IPv4 dual stack management, intelligent Layer 2 management functions, and user-friendly interface. The WGS-4215-16P2S is able to operate reliably, stably and quietly in any environment without affecting its performance. With a total power budget of up to 240 watts for different kinds of PoE applications and featuring ultra networking speed and operating temperature ranging from -10 to 60 degrees C in a flat but rugged IP30 metal housing, the WGS-4215-16P2S is an ideal solution to meet the demand for the following network applications:

Building/Home automation network
Internet of things (IoT)
IP surveillance
Wireless LAN

Cybersecurity Network Solution to Minimize Security Risks
The WGS-4215-16P2S supports SSHv2 and TLS protocols to provide strong protection against advanced threats. It includes a range of cybersecurity features such as DHCP Snooping, IP Source Guard, dynamic ARP Inspection Protection, 802.1x port-based network access control, RADIUS and TACACS+ user accounts management, SNMPv3 authentication, and so on to complement it as an all-security solution.

Redundant Ring, Fast Recovery for Critical Network Applications
The WGS-4215-16P2S supports redundant ring technology and features strong, rapid self-recovery capability to prevent interruptions and external intrusions. It incorporates advanced ITU-T G.8032 ERPS (Ethernet Ring Protection Switching) technology, Spanning Tree Protocol (802.1s MSTP) into customer’s network to enhance system reliability and uptime in various environments.

Built-in Unique PoE Functions for Powered Devices Management
As it is the managed PoE switch for surveillance, wireless and VoIP networks, the WGS-4215-16P2S features the following special PoE management functions:

PD alive check
Scheduled power recycling
PoE schedule
PoE usage monitoring
PoE extension

Intelligent Powered Device Alive Check
The WGS-4215-16P2S can be configured to monitor connected PD (powered device) status in real time via ping action. Once the PD stops working and responding, the WGS-4215-16P2S will resume the PoE port power and bring the PD back to work. It will greatly enhance the network reliability through the PoE port resetting the PD’s power source and reducing administrator management burden.

Scheduled Power Recycling
The WGS-4215-16P2S allows each of the connected PoE IP cameras or PoE wireless access points to reboot at a specific time each week. Therefore, it will reduce the chance of IP camera or AP crash resulting from buffer overflow.

PoE Schedule for Energy Savings
Under the trend of energy saving worldwide and contributing to environmental protection, the WGS-4215-16P2S can effectively control the power supply besides its capability of giving high watts power. The “PoE schedule” function helps you to enable or disable PoE power feeding for each PoE port during specified time intervals and it is a powerful function to help SMBs or enterprises save power and budget. It also increases security by powering off PDs that should not be in use during non-business hours.

802.3at PoE+ Power and Ethernet Data Transmission Distance Extension
In the “Extend” operation mode, the WGS-4215-16P2S operates on a per-port basis at 10Mbps duplex operation but can support 20-watt PoE power output over a distance of up to 250 meters overcoming the 100m limit on Ethernet UTP cable. With this brand-new feature, the WGS-4215-16P2S provides an additional solution for 802.3at/af PoE distance extension, thus saving the cost of Ethernet cable installation.

Innovative Wall-mount Installation

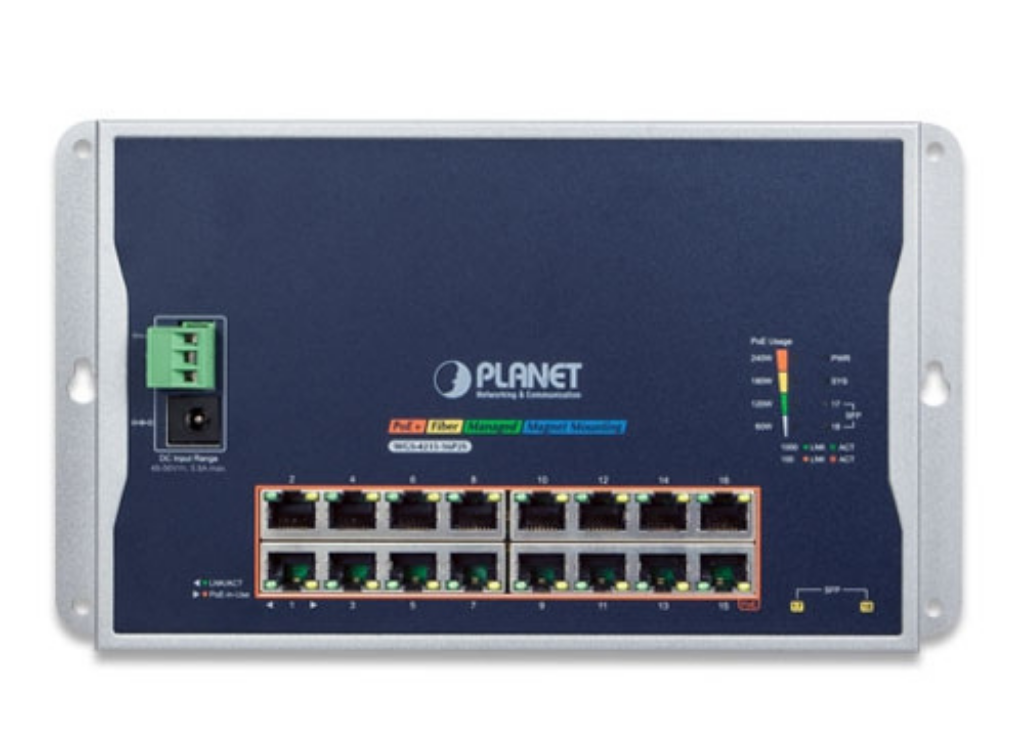

The WGS-4215-16P2S is specially designed to be installed in a narrow environment, such as wall enclosure. The compact, flat and wall-mounted design fits easily in any space-limited location. It adopts the user-friendly “Front Access” design, making the installing, cable wiring, LED monitoring and maintenance of the WGS-4215-16P2S placed in an enclosure very convenient for technicians. The WGS-4215-16P2S can be installed by fixed wall mounting, magnetic wall mounting or DIN rail, thereby making its usability more flexible.

Environmentally Hardened Design
With IP30, flat but rugged metal housing protection, the WGS-4215-16P2S provides a high level of immunity against electromagnetic interference and heavy electrical surges which are usually found on plant floors or in curb-side traffic control cabinets without air conditioning. Being able to operate under the temperature range from -10 to 60 degrees C, the WGS-4215-16P2S can be placed in almost any difficult environment.

IPv6/IPv4 Dual Stack Management
Supporting both IPv6 and IPv4 protocols, the WGS-4215-16P2S helps the SMBs to step in the IPv6 era with the lowest investment as its network facilities need not be replaced or overhauled if the IPv6 FTTx edge network is set up.

Robust Layer 2 Features
The WGS-4215-16P2S can be programmed for advanced switch management functions such as dynamic port link aggregation, 802.1Q VLAN, Q-in-Q VLAN, Multiple Spanning Tree Protocol (MSTP), Loop and BPDU Guard, IGMP Snooping, and MLD Snooping. Via the link aggregation, the WGS-4215-16P2S allows the operation of a high-speed trunk to combine with multiple ports such as a 4Gbps fat pipe, and supports fail-over as well. Also, the Link Layer Discovery Protocol (LLDP) is the Layer 2 protocol included to help discover basic information about neighboring devices on the local broadcast domain.

Efficient Traffic Control
The WGS-4215-16P2S is loaded with robust QoS features and powerful traffic management to enhance services to business-class data, voice, and video solutions. The functionality includes broadcast/multicast/unicast storm control, per port bandwidth control, 802.1p/CoS/IP DSCP QoS priority and remarking. It guarantees the best performance in VoIP and video stream transmission, and empowers the enterprises to take full advantage of the limited network resources.

Powerful Security
PLANET WGS-4215-16P2S offers comprehensive IPv4/IPv6 Layer 2 to Layer 4 Access Control List (ACL) for enforcing security to the edge. It can be used to restrict network access by denying packets based on source and destination IP address, TCP/UDP ports or defined typical network applications. Its protection mechanism also comprises 802.1X port-based user and device authentication, which can be deployed with RADIUS to ensure the port level security and block illegal users. With the protected port function, communication between edge ports can be prevented to guarantee user privacy. Furthermore, Port security function allows to limit the number of network devices on a given port. The network administrators can now construct highly-secure corporate networks with considerably less time and effort than before.

Friendly and Secure Management
For efficient management, the WGS-4215-16P2S is equipped with Command line, Web and SNMP management interfaces.

With the built-in Web-based management interface, the WGS-4215-16P2S offers an easy-to-use, platform-independent management and configuration facility.
For text-based management, it can be accessed via Telnet and the console port.
By supporting the standard SNMP protocol, the switch can be managed via any SNMP-based management software.
Moreover, the WGS-4215-16P2S offers secure remote management by supporting SSHv2, TLSv1.2 and SNMP v3 connections which encrypt the packet content at each session.

Flexibility and Long-distance Extension Solution
The two mini-GBIC slots built in the WGS-4215-16P2S support SFP auto-detection and dual speed as it features 100BASE-FX and 1000BASE-SX/LX SFP (Small Form-factor Pluggable) fiber transceivers to uplink to backbone switch and monitoring center in long distance. The distance can be extended from 550 meters to 2 kilometers (multi-mode fiber) and to 10/20/40/60/80/120 kilometers (single-mode fiber or WDM fiber). They are well suited for applications within the enterprise data centers and distributions.

Intelligent SFP Diagnosis Mechanism
The WGS-4215-16P2S supports SFP-DDM (Digital Diagnostic Monitor) function that can easily monitor real-time parameters of the SFP for network administrator, such as optical output power, optical input power, temperature, laser bias current and transceiver supply voltage.

Category	Specification
Hardware Specifications
Copper Ports	Sixteen 10/100/1000BASE-T RJ45 auto-MDI/MDI-X ports
PoE Inject Ports	Sixteen with 802.3at PoE+ injector function (Ports 1 to 16)
SFP/mini-GBIC Ports	Two 100/1000BASE-X SFP interfaces, supporting 100/1000Mbps dual mode
Reset Button	< 5 sec: System reboot <br> > 5 sec: Factory default
Connector	Removable 3-pin terminal block for power input <br> Pin 1/2 for Power (Pin 1: V+ / Pin 2: V-) <br> Pin 3 for earth ground <br> DC power jack with 2.1mm central pole
Power Requirements	48~~54V DC, 5.8A (max.) terminal block power input <br> 48~~54V DC, 5.8A (max.) DC jack power input
Note	The two power input interfaces don’t support power redundant function.
Power Consumption/ Dissipation	Max. 276 watts/941 BTU
Dimensions (W x D x H)	245 x 140 x 24.4 mm
Weight	929g
Enclosure	IP30 metal case

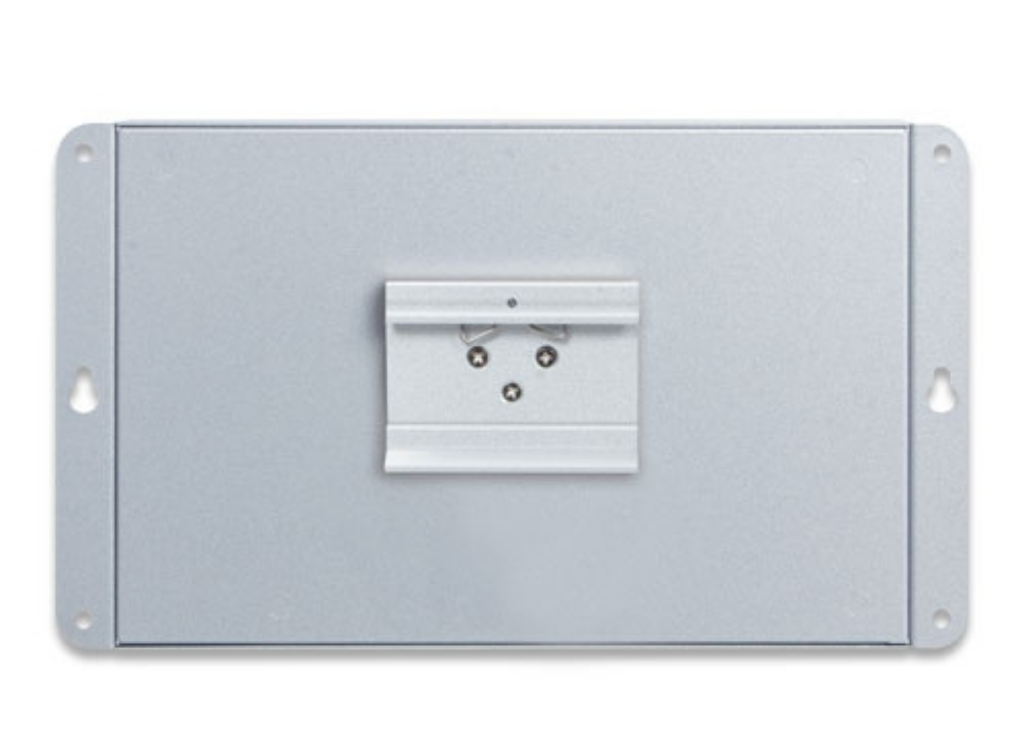

Installation	Fixed wall mount, magnetic wall mount or DIN rail
ESD Protection	Contact Discharge 6KV DC <br> Air Discharge 8KV DC
LED	Power LED: <br> Power (Green) <br> PoE Port (Ports 1 to 16): <br> PoE-in-Use (Amber) <br> LNK/ACT (Green) <br> 100/1000X SFP Ports (Port 17 to 18): <br> 1000 LNK/ACT (Green) <br> 100 LNK/ACT (Amber)
Switch Specifications
Switch Architecture	Store-and-Forward
Switch Fabric	36Gbps/non-blocking
Switch Throughput@64 bytes	26.78Mpps @64 bytes
MAC Address Table	8K entries
Shared Data Buffer	4.1 megabits
Flow Control	IEEE 802.3x pause frame for full duplex <br> Back pressure for half duplex
Jumbo Frame	10Kbytes
Power over Ethernet
PoE Standard	IEEE 802.3af/802.3at Power over Ethernet PSE
PoE Power Supply Type	End-span
PoE Power Output	IEEE 802.3af Standard: <br> Per port 48V~~54V DC (depending on the power supply), max. 15.4 watts <br> IEEE 802.3at Standard: <br> Per port 50V~~54V DC (depending on the power supply), max. 36 watts
Power Pin Assignment	1/2(+), 3/6(-)
PoE Power Budget	240 watts (depending on power input)
Max. Number of Class 2 PDs	16
Max. Number of Class 3 PDs	16
Max. Number of Class 4 PDs	9
PoE Management Functions
PoE Management	PD Alive Check <br> Scheduled Power Recycling <br> PoE Schedule <br> PoE Usage Monitoring <br> PoE Extension
Enhanced PoE Mode	Standard/Legacy/Force
Active PoE Device Live Detection	Yes
PoE Power Recycling	Yes, daily or predefined schedule
PoE Schedule	4 schedule profiles
PoE Extend Mode	Yes, max. up to 250 meters
Layer 2 Functions
Port Mirroring	TX/RX/Both <br> Many-to-1 monitor <br> Up to 4 sessions
VLAN	802.1Q tagged VLAN <br> 802.1ad Q-in-Q tunneling (VLAN stacking) <br> Voice VLAN <br> Protocol VLAN <br> Private VLAN (Protected port) <br> GVRP <br> Management VLAN <br> Up to 256 VLAN groups, out of 4094 VLAN IDs
Link Aggregation	IEEE 802.3ad LACP and static trunk <br> Supports 8 groups with 8 ports per trunk
Spanning Tree Protocol	IEEE 802.1D Spanning Tree Protocol (STP) <br> IEEE 802.1w Rapid Spanning Tree Protocol (RSTP) <br> IEEE 802.1s Multiple Spanning Tree Protocol (MSTP) <br> STP BPDU guard, BPDU filtering and BPDU forwarding
IGMP Snooping	IPv4 IGMP (v2/v3) snooping <br> IGMP querier <br> Up to 256 multicast groups
MLD Snooping	IPv6 MLD (v1/v2) snooping, up to 256 multicast groups
QoS	8 mapping IDs to 8 level priority queues <br> Port Number <br> 802.1p priority <br> DSCP/IP precedence of IPv4/IPv6 packets <br> Traffic classification based, strict priority and WRR <br> Ingress/Egress Rate Limit per port bandwidth control
Ring	Supports ERPS, and complies with ITU-T G.8032 <br> Recovery time < 450ms
Security Functions
Access Control List	IPv4/IPv6 IP-based ACL/MAC-based ACL <br> IPv4/IPv6 IP-based ACE/MAC-based ACE <br> Max. 256 ACL entries
Port Security	IEEE 802.1X – Port-based authentication <br> Built-in RADIUS client to co-operate with RADIUS server <br> RADIUS/TACACS+ user access authentication
MAC Security	IP-MAC port binding <br> MAC filter <br> Static MAC address, max. 256 static MAC entries
Enhanced Security	DHCP Snooping and DHCP Option82 <br> STP BPDU guard, BPDU filtering and BPDU forwarding <br> DoS attack prevention <br> ARP inspection <br> IP source guard
Management Functions
Basic Management Interfaces	Web browser <br> Telnet <br> SNMP v1, v2c
Secure Management Interfaces	SSHv2, TLSv1.2, SNMPv3
Switch Management	Firmware upgrade by HTTP/TFTP protocol through Ethernet network <br> Configuration upload/download through HTTP/TFTP <br> LLDP protocol <br> SNTP <br> PLANET Smart Discovery Utility <br> PLANET NMS System/CloudViewer
Event Management	Remote/Local Syslog <br> System log
SNMP MIBs	RFC 1213 MIB-II <br> RFC 1215 Generic Traps <br> RFC 1493 Bridge MIB <br> RFC 2674 Bridge MIB Extensions <br> RFC 2737 Entity MIB (Version 2) <br> RFC 2819 RMON (1, 2, 3, 9) <br> RFC 2863 Interface Group MIB <br> RFC 3635 Ethernet-like MIB <br> RFC 3621 Power Ethernet MIB
Standards Conformance
Regulatory Compliance	FCC Part 15 Class A, CE
Stability Testing	IEC 60068-2-32 (free fall) <br> IEC 60068-2-27 (shock) <br> IEC 60068-2-6 (vibration)
Standards Compliance	IEEE 802.3 10BASE-T <br> IEEE 802.3u 100BASE-TX/100BASE-FX <br> IEEE 802.3z Gigabit SX/LX <br> IEEE 802.3ab Gigabit 1000BASE-T <br> IEEE 802.3x Flow Control and Back Pressure <br> IEEE 802.3ad Port Trunk with LACP <br> IEEE 802.1D Spanning Tree Protocol <br> IEEE 802.1w Rapid Spanning Tree Protocol <br> IEEE 802.1s Multiple Spanning Tree Protocol <br> IEEE 802.1p Class of Service <br> IEEE 802.1Q VLAN Tagging <br> IEEE 802.1x Port Authentication Network Control <br> IEEE 802.1ab LLDP <br> IEEE 802.3af Power over Ethernet <br> IEEE 802.3at Power over Ethernet Plus <br> IEEE 802.3az Energy Efficient Ethernet (EEE) <br> RFC 768 UDP <br> RFC 783 TFTP <br> RFC 793 TCP <br> RFC 791 IP <br> RFC 792 ICMP <br> RFC 2068 HTTP <br> RFC 1112 IGMP v1 <br> RFC 2236 IGMP v2 <br> RFC 3376 IGMP v3 <br> RFC 2710 MLD v1 <br> RFC 3810 MLD v2 <br> ITU G.8032 ERPS Ring
Environment
Operating	Temperature: -10 ~ 60 degrees C <br> Relative Humidity: 5 ~ 95% (non-condensing)
Storage	Temperature: -40 ~ 85 degrees C <br> Relative Humidity: 5 ~ 95% (non-condensing)
Accessories
Standard Accessories	Quick Installation Guide x 1 <br> 3-pin Terminal Block Connector x 1 <br> Wall-mounted Kit x 1 <br> DIN-rail Kit x 1 <br> Magnet Kit x 1 <br> RJ45 Dust Cap x 16 <br> SFP Dust Cap x 2
