Elo 3204L 32" Full HD TFT LCD PCAP Touchscreen Display | E103164

SKU: E103164
Elo 3204L 32" Full HD TFT LCD PCAP Touchscreen Display | E103164 Elo Interactive Touchscreen Display Elo
Availability:
Out of stock
Sold out

£845.59 (Excl. VAT)

- £1,014.71 (Inc. VAT)
£845.59 - £845.59
- - £1,014.71
Availability:
Out of stock
payment-icons
Download Product Datasheet i
Trade pricing for verified resellers, proforma issued on official company letterhead for PO processing.
Education & Public Sector Pricing available for schools, universities, NHS, and government organisations. Contact our Public Sector Team on 020 8191 9223 or email info@screenmoove.com.
  • Display Size32"
  • Touch Capabilities40pt multi-touch
  • Net Weight10.9 kg
  • Operating SystemNone
  • VESA Patterns400x400
  • Panel TypeTFT Panel
  • ResolutionFull HD (1080p)
  • Screen TypeFlat
  • Response Time8ms
  • Screen Ratio16:9
  • Brightness320 cd/m2
  • Operating Hours24/7

Book a Free Product Demo

Remote or on-site. No obligation.

Integrator or Installer?

Trade pricing, volume discounts, same-day collection.

Request a Trade Account

Education & Public Sector Solutions

Exclusive pricing, flexible terms, and dedicated support for schools, universities, NHS, and government organisations.

Create an Account Email Public Sector Team
Official Purchase Orders We accept formal POs with VAT-compliant invoicing for all verified institutions.
Contract & Volume Discounts Competitive rates for multi-site, long-term, or framework-based deployments.
Dedicated Account Management Single point of contact for lead times, coordination, and sourcing.
Flexible 30-Day Terms Available to verified schools, councils, and government bodies.
  • Description
  • Specifications
  • Downloads

  • Elo 3204L 32" Interactive Touch Display | Full HD | PCAP | E103164 – Commercial-Grade 24/7 Touchscreen

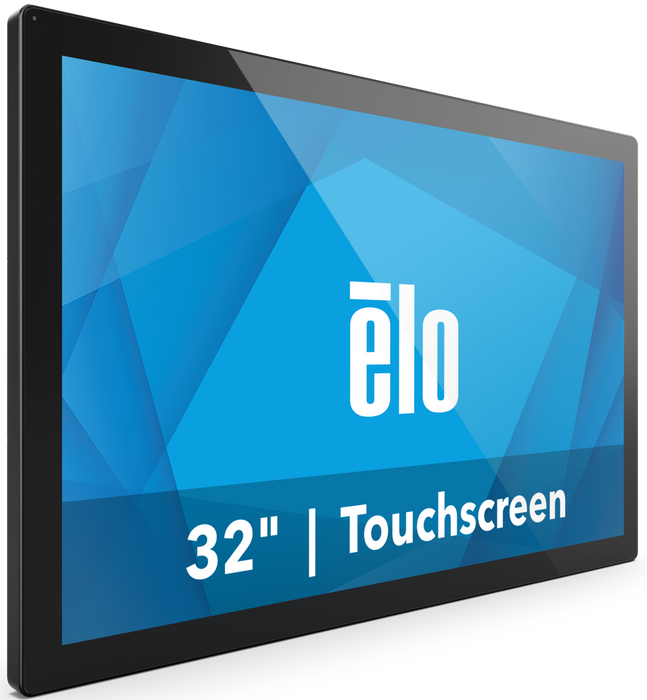

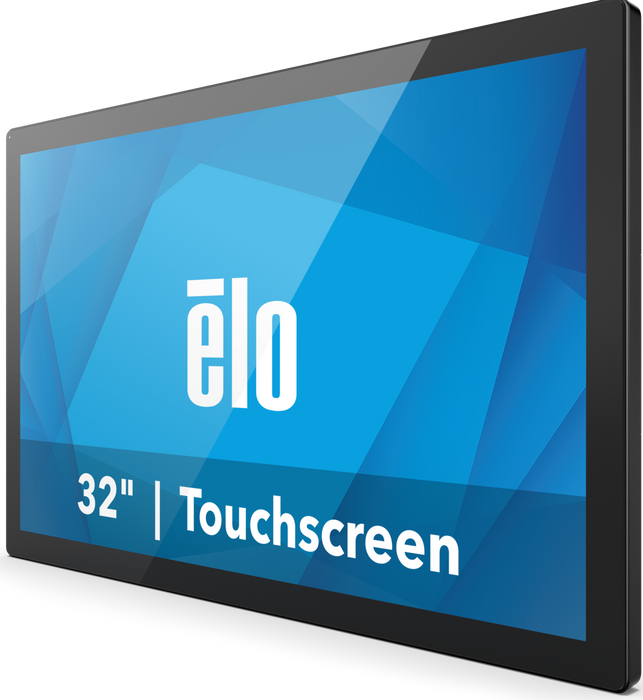

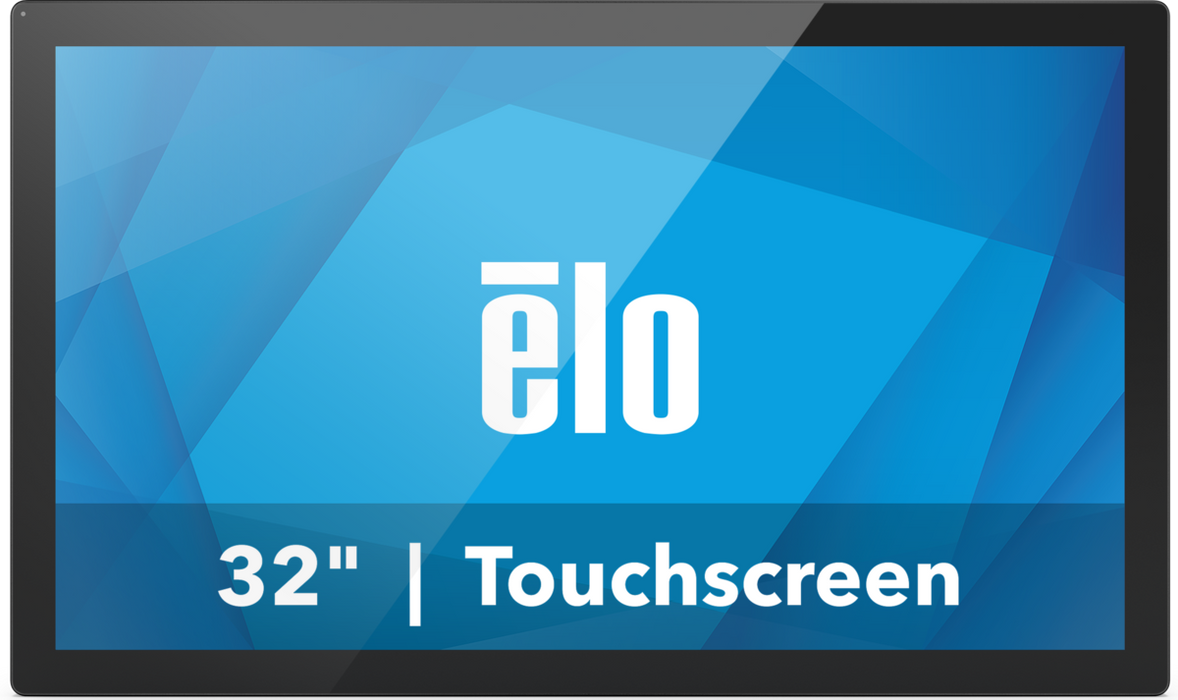

    3204L 32" | Interactive Display
    Elevate your applications with Elo's 3204L 32-inch touch screen monitor that brings interactivity to any setting. With support for up to 40 simultaneous touches, lightning-fast responsiveness, and anti-friction glass, Elo's 3204L prioritizes the user experience. And by combining the touch display with the Elo Backpack or a Brightsign player, you can effortlessly convert this display into a versatile, life-sized 32-inch tablet.


    E103164

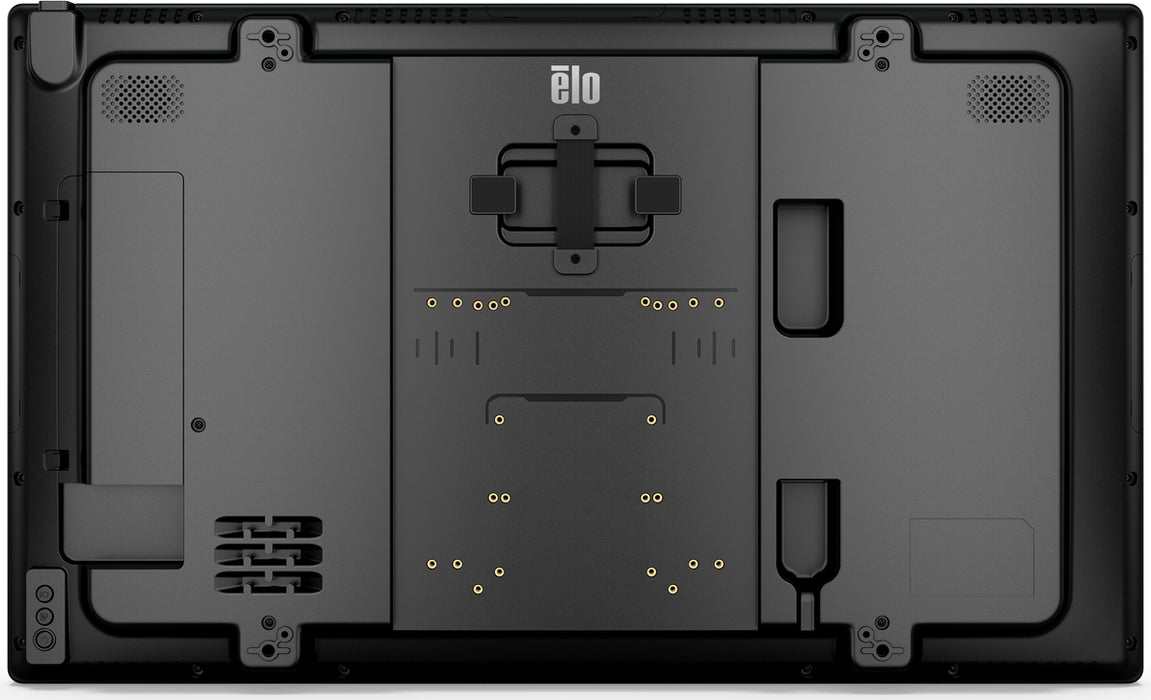

    The back of your display never looked so clean. | Remote device management enabled with EloView.
    With the addition of the integrated IoT control, you can easily manage your device settings with EloView, Crestron or your preferred MDM solution via provided APIs.

    E103164


    Find the perfect digital signage display for your applications, with sizes ranging from 32 inches to 55 inches. | Connect your accessories to the edge. With up to 1.2 Amps, you can easily run four Elo Edge Connect peripherals at one time.


    E103164


    Whether you're enhancing your retail environment with endless aisle, engaging customers with easy to use self-service kiosks, guiding visitors with interactive wayfinding or helping doctors and patients interact in the hospital, the 3204L digital signage display offers a sleek, minimalistic design engineered to withstand the demands of continuous commercial use.

    Touch Thru Glass Enabled with PCAP
    With touch thru capability, Elo's TouchPro® PCAP interactive displays can be mounted behind a mirror, in a counter or in a fully encased kiosk for added durability or aesthetics.

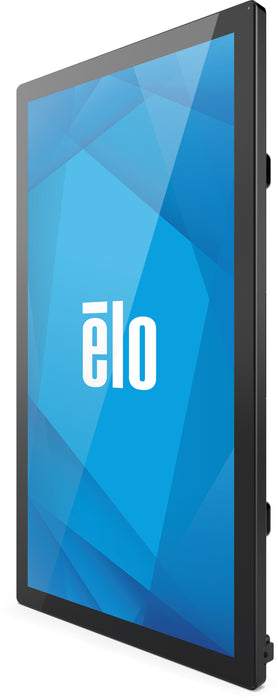

    Versatile mounting options for commercial interactive displays.
    Our commercial-grade interactive displays can be mounted in landscape, portrait and tabletop orientations, providing optimal flexibility for mounting to a wall, in a kiosk or tabletop.


    E103164


    Designed for the demands of commercial environments.
    Built for 24/7 use in high-traffic environments with UL-60950 and IK-07 compliance, Elo's 3204L delivers the reliability and durability businesses need even in the most demanding conditions. With the addition of extended product life cycles and global certifications, you can trust in the long-term performance and suitability of the 3204L for diverse international markets.

    Get peace of mind with EloCare.℠
    EloCare delivers service and support from the people who know your Elo products best. And as part of the three-year standard warranty for large format digital signage displays, Elo offers complimentary advance unit replacement to cover you in the unfortunate event your device requires service.

    Quality that is built to last.
    We engineer each product with a goal that goes beyond meeting expectations; we aim to exceed them. By integrating our technology into your operations, you are partnering with us - and as your partner, we are committed to delivering reliable products so you can focus on growth and innovation, confident in the knowledge that we stand behind our products, ready to support you every step of the way.

  • Feature Description
    Model / Part Number 3204L – TouchPro PCAP (clear with anti-friction) – E103164
    Enclosure Color Black
    Touch Technology & Capacity PCAP (TouchPro® Projected Capacitive) – 40 touch with Palm Rejection & Touch Thru capability
    Touch Thru Supports up to 6 mm glass / 3 mm plastic with up to 2 touches; supports gloves up to 1.4 mm
    Touch Interface USB-C
    Diagonal Size 31.5" diagonal, Active matrix TFT LCD (LED)
    Active Area 27.5" × 15.47" / 698.4 mm × 392.9 mm
    Aspect Ratio 16:9
    Resolution 1920 × 1080 @ 60 Hz (FHD)
    Other Supported Resolutions 640×480 @60Hz; 800×600 @56/60Hz; 1024×768 @60Hz; 1280×720 @60Hz; 1280×960 @60Hz; 1280×1024 @60Hz; 1920×1080 @50/60Hz
    Viewing Angle Horizontal: ±89° (178° total) / Vertical: ±89° (178° total)
    Number of Colors 8-bit (16.7 million)
    Brightness (typical) LCD Panel: 400 nits; PCAP: 320 nits
    Response Time (typ.) 8 ms
    Contrast Ratio 3000:1
    Compute Mounting Options Elo Backpack 4; Intel NUC (100 mm × 100 mm VESA plate); BrightSign XT/XD/XC/HD Series Player
    Built-in IoT Control EloView (Elo Cloud) supported; Crestron Connected V2 supported
    On-Screen Display (OSD) Let’s Get Started (Language, Time, Time Zone); Video Source Select (HDMI-1/HDMI-2/DisplayPort/USB-C); Video Settings (Port Discovery, Brightness, Contrast, Black Level, Sharpness, Aspect Ratio); Color Settings (Color Temp, Color Sensor, User Preset, Picture Modes, HDMI Full Range); Audio (Output, Mute, Volume); Information (Monitor, Temperature, IoT status, Error, Help); Power (Loss Behavior, Lock, Energy Saving, Status Light, HDMI CEC); Time (Set, On/Off Schedule); OSD Settings (Recall Defaults, Timer, Language, Lock, Portrait Rotation, Touch Through, Tabletop); Configuration (Source Port Lock; FW Update via OTA/USB). See user manual for full details.
    I/O Ports 2× HDMI 1.4; USB-C (touch + video); USB-A (Wi-Fi adapter only); RJ45 (IoT LAN); RJ45 (optional OSD remote); DisplayPort 1.2; 3.5 mm TRS jack (RS232/MDC); 3.5 mm audio headphones out; 4× Elo Edge Connect Micro USB 2.0
    Control Buttons Power; Video Source Selection; OSD
    Video Interfaces 2× HDMI (Type-A, HDCP-capable); DisplayPort 1.2 (HDCP-capable); USB-C (HDCP-capable)
    Sync Frequency Ranges Horizontal (FHD): 30–70 kHz; Vertical (frame rate): 24–64 Hz
    Headphone Output 3.5 mm TRS jack
    Speakers 2 × 5 W stereo speakers
    Power (Input/Output) Input connector: IEC 60320-C13; Input: 100–240 VAC 50/60 Hz; Output connector (bypass to backside device): IEC 60320-C14; AC outlet short cable (C14→C5) rating: 100V/2A (200 W), 220V/2A (440 W)
    Maximum Operating Time 24 hours/day
    Power Consumption (Typical) On: 44 W; Sleep: 1.43 W; Off: 0.29 W
    Dimensions (W×H×D) 30.07" × 18.04" × 1.95" / 763.7 mm × 458.1 mm × 49.6 mm
    Shipping Box Dimensions 35.62" × 26.77" × 6.30" / 905 mm × 680 mm × 160 mm
    Weight (Unpackaged) 26.17 lbs / 10.9 kg
    Weight (Packaged) 33.75 lbs / 15.28 kg
    Operating Temperature Portrait/Landscape/Tilt (≤15°): 0°C to 40°C / 32°F to 104°F; Tabletop: 0°C to 35°C / 32°F to 95°F
    Storage Temperature −20°C to 60°C / −4°F to 140°F
    Humidity Operating: 20%–80%; Storage: 10%–95% (38.7°C max wet bulb)
    Mounting Options VESA 400 × 400 mm, M6
    Sealability Touchscreen sealed to bezel; touchscreen sealed to LCD
    MTBF 50,000 hours demonstrated
    Warranty 3-year with AUR included
    Extended Service Options 4-yr warranty + AUR – E740135; 5-yr warranty + AUR – E740330; 3-yr warranty + OSE – E740527*; 4-yr warranty + OSE – E740728*; 5-yr warranty + OSE – E740918* (*Continental US only)
    Regulatory UL 62368-1; FCC/CEC (US); cUL, IC (Canada); CB (IEC/EN60950-1 + IEC/EN62368-1); CE (Europe); VCCI (Japan); RCM (Australia); CCC/CEL, China RoHS (China); NOM (Mexico); IK07 and UL60950 ball drop test
    Energy Star 8.0
    Other Features Ambient Light Sensor (auto color match), Auto Wake; OTA firmware upgrade
    What’s in the Box 3204L Interactive Display; Quick Install Guide; AC(in) power cables: C13→NA, C13→EU/KR, C13→UK; AC(out) power cable C14→C5 (0.3 m, PSE certified); USB Type-C↔Type-C (1 m); Energy labels (1× EU EEI, 2× UK EEI); 4× M4×6 mm flat-head screws (for BrightSign players)
    IDS Optional Accessories 2D Barcode Scanner (SE4107) – E245047; 2D Barcode Scanner (SE2707) – E393160; Fingerprint Scanner – E134286; Stand for IDS – E722153; Wired OSD Remote – E483757; Wall Mount Kit – E721949; Replacement Cable Kit – E285277; Elo Backpack® 4 (Value) – E393754; Elo Backpack® 4 (Standard) – E393359; RFID – E673037; 4K Conference Camera – E988153; Wi-Fi Adapter Kit – E131942; 1.8 m HDMI 2.0 Cable – E951189; 1.8 m RS232 Cable – E959434; 1.8 m USB Type-A→Type-C Cable – E951381; 1.8 m DisplayPort→DisplayPort Cable – E582895; Elo 1 m USB Type-C Cable Kit – E802914
  • Description Downloads
    Elo 3204L 32" Full HD TFT LCD PCAP Touchscreen Monitor | E103164 DataSheet Download
    Elo 3204L 32" Full HD TFT LCD PCAP Touchscreen Monitor | E103164 User Manual Download
    Elo 3204L 32" Full HD TFT LCD PCAP Touchscreen Monitor | E103164 Quick Installation Guide Download
