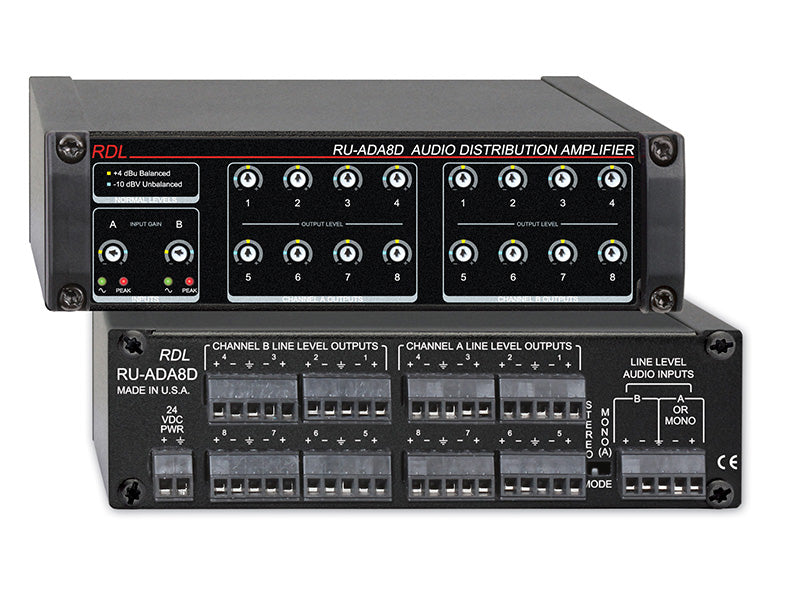

Radio Design Labs RU-ADA8D | 8-Channel Stereo / 16-Channel Mono Audio Distribution Amplifier
The RU-ADA8D is an eight channel stereo audio distribution amplifier with input and output gain adjustments and input level metering. The module may be operated in mono to provide up to sixteen distributed mono signals. The inputs and outputs are connected on rear-panel detachable terminal blocks.
Each of the two line level inputs accepts either a balanced or an unbalanced signal. Each input is equipped with a front panel INPUT GAIN trimmer. Input signal levels between -14 dBV unbalanced and +9 dBu balanced may be set to the proper operating level as indicated by a dual-LED VU meter. This assures ample headroom at all normal operating levels. The maximum input level is +25 dBu.
A rear-panel switch selects between stereo and mono operation. In the mono position, input A (left) is used to drive all 16 output channels. When the module is used in a monaural system, only input A must be wired.
Audio outputs are isolated from each other and may be wired balanced or unbalanced. Each of the outputs is provided with a front panel screwdriver adjusted OUTPUT LEVEL control. Relative to a balanced +4 dBu output level, this gain potentiometer allows an adjustment range from -9 dB to +6 dB. Relative to an unbalanced -10 dBV output, each output potentiometer allows an adjustment from -3 dB to +12 dB.
The RU-ADA8D offers exceptional headroom, very low distortion, excellent crosstalk isolation, wide flat frequency response and extremely low noise with very high common-mode signal rejection. It provides exceptional audio performance for the most critical applications in a professional audio environment.
The RU-ADA8D operates from 24 Vdc connected through a rear-panel detachable terminal block.
Features
Stereo Audio Distribution with 8 Outputs
Mono Audio Distribution with 16 Outputs
Front-Panel Input Level Trimmers
Dual-LED VU Meter for Each Input Channel
Front-Panel Output Level Trimmers
Inputs and Outputs on Rear Panel Detachable Terminal Blocks
Exceptional Audio Quality for the Most Demanding Applications
Dimensions
-
Feature Description Inputs (2) Stereo (A/left and B/right) on detachable terminal block Input Impedance 20 kΩ balanced or 10 kΩ unbalanced Input Level +4 dBu balanced (nominal), +25 dBu max; -10 dBV unbalanced Input Gain Adjustments (2) -5 dB to +15 dB (rel. +4 dBu balanced); -3 dB to +17 dB (rel. -10 dBV unbalanced) Input Metering (2) Dual-LED VU Meter for Input A and Input B Mono Mode Rear-panel switch-selectable (input A feeds all 16 outputs) Outputs (16) Stereo, A (8), B (8) on detachable terminal blocks Output Impedance 150 Ω balanced; 75 Ω unbalanced Output Level +4 dBu balanced (nominal), +24 dBu max; -10 dBV unbalanced Output Level Adjustments (16) -9 dB to +6 dB (rel. +4 dBu, balanced); -3 dB to +12 dBu (rel. -10 dBV, unbalanced) Frequency Response 10 Hz to 165 kHz (±0.25 dB); 10 Hz to 35 kHz (±0.01 dB) THD+N < 0.0025% (20 Hz to 20 kHz) Headroom > 20 dB (above +4 dBu input or output) Noise < -92 dB (below +4 dBu output, 20 Hz to 20 kHz) Crosstalk < -85 dB (20 Hz to 1 kHz); <-70 dB (1 kHz to 20 kHz) CMRR > 90 dB (100 Hz) Ambient Operating Environment 0° C to 50° C Power Requirement Ground referenced, 24 Vdc @ 140 mA (idle), 170 mA (max.) Case Dimensions 5.75" W x 1.65" H x 3.54" D; 3.9" D with connectors Package Type Cardboard Box Tariff Code 8543.70.9860 WEEE Weight 1.34 lbs. Package Dimensions 6 x 6 x 2.625 in. Shipping Weight 1.585 lbs. -
Description Downloads Radio Design Labs Audio Distribution Amplifier | RU-ADA8D DataSheet Download
