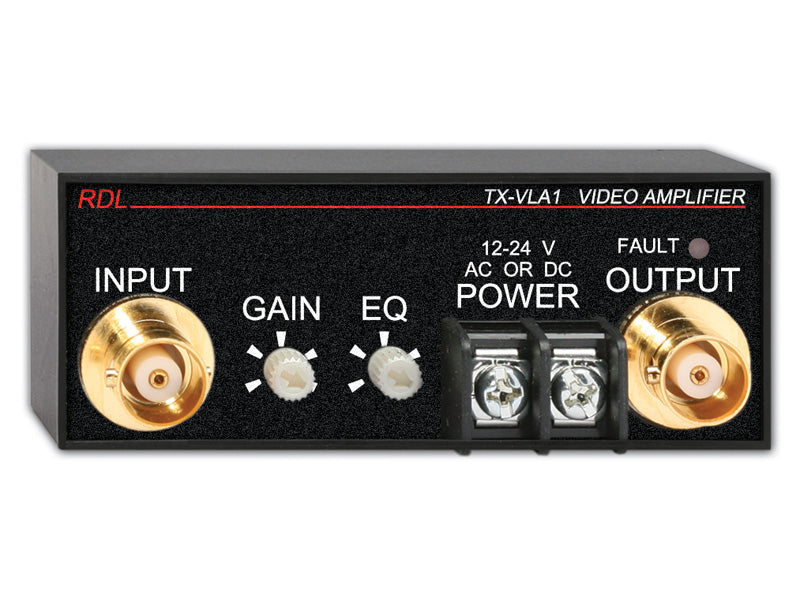

RDL TX-VLA1 Video Line Amplifier | Adjustable Gain & EQ | Long-Distance Signal Boost
The TX-VLA1 is the ideal choice in installations where video signals are being fed into long cables, or where a low video signal needs to be amplified. The unique power supply input allows the TX-VLA1 to be powered from a wide variety of existing ac or dc power sources.
Security or surveillance cameras are frequently located significant distances from monitoring or recording equipment. Cable losses produce a decrease in the overall video level. High frequency attenuation in the cable produces additional loss of higher frequency components of the video signals. These combined losses result in degradation of color signals, and decreased resolution in monochrome images. The TX-VLA1 can be located right at the camera and adjusted to compensate for both losses. GAIN and EQ may be adjusted on the TX-VLA1 to drive video cables as long as 2000 feet (600 meters).
The TX-VLA1 is supplied with a chart showing recommended beginning settings of GAIN and EQ for various lengths of cable. The settings may then be further fine tuned for an optimum, high-quality video transmission.
Features
Boost Video Levels
Adjustable Video Level
Adjustable Equalization
Drive Long Video Lines
Video Amplifier Powered from Available Voltage Sources
High-Quality Video in Small Size
NTSC or PAL
Dimensions
-
Feature Description Input 75 Ω, BNC, Ground-referenced Input Level 1 V p-p video Gain Unity to +5 dB (adjustable) Bandwidth 10 MHz Equalization Adjustment Flat to +4 dB @ 3.58 MHz (adjustable)
Flat to +7 dB @ 5 MHz (adjustable)Equalization Curve Optimized at each setting for flattest response of video signal components without square-wave overshoot Residual Noise < -65 dB (referenced to 1 V p-p) Output 75 Ω source terminated, BNC, Ground-referenced Ambient Operating Environment -10°C to 50°C Power Requirement Ground-referenced 12–33 VDC or 12–24 VAC @ 30 mA Package Type Cardboard Box WEEE Weight 0.215 lbs. Shipping Weight 0.275 lbs. Tariff Code 8543.70.9860 Package Dimensions 2 × 2 × 4 in. -
