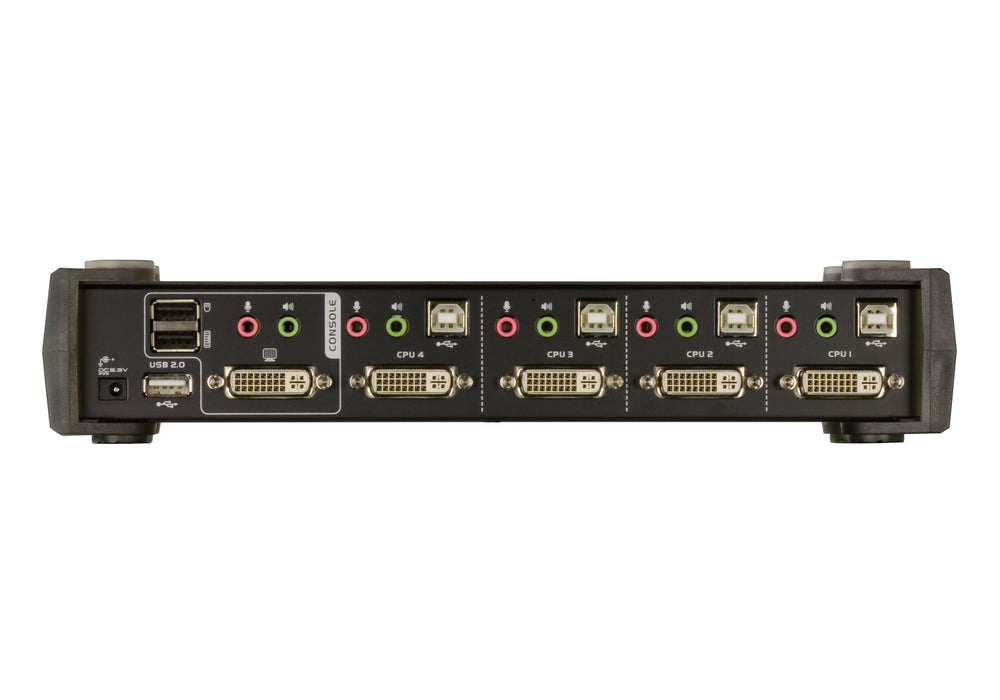

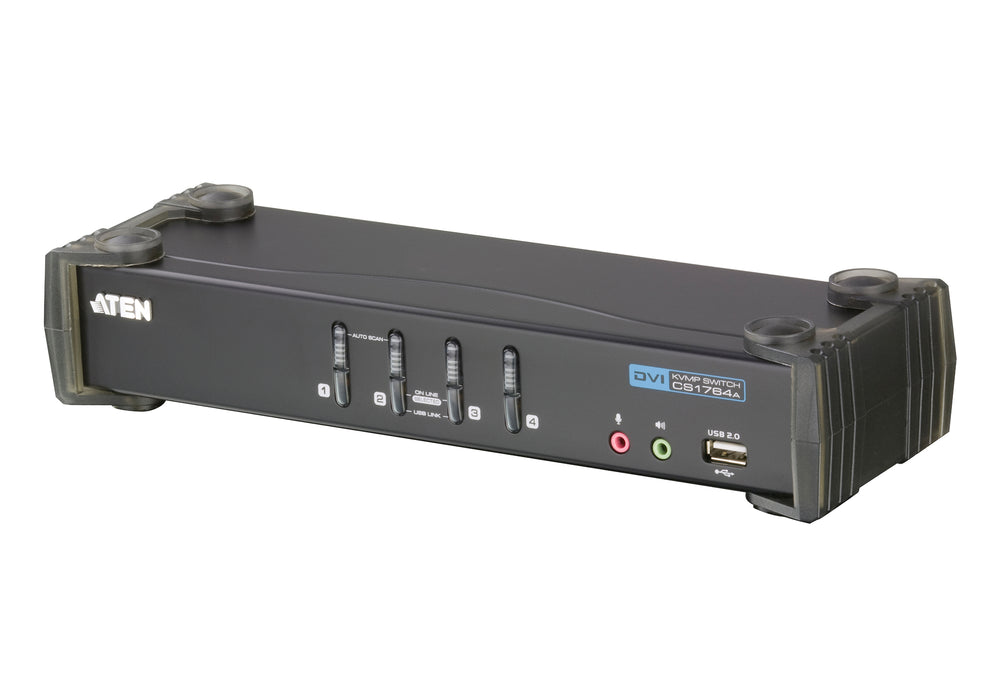

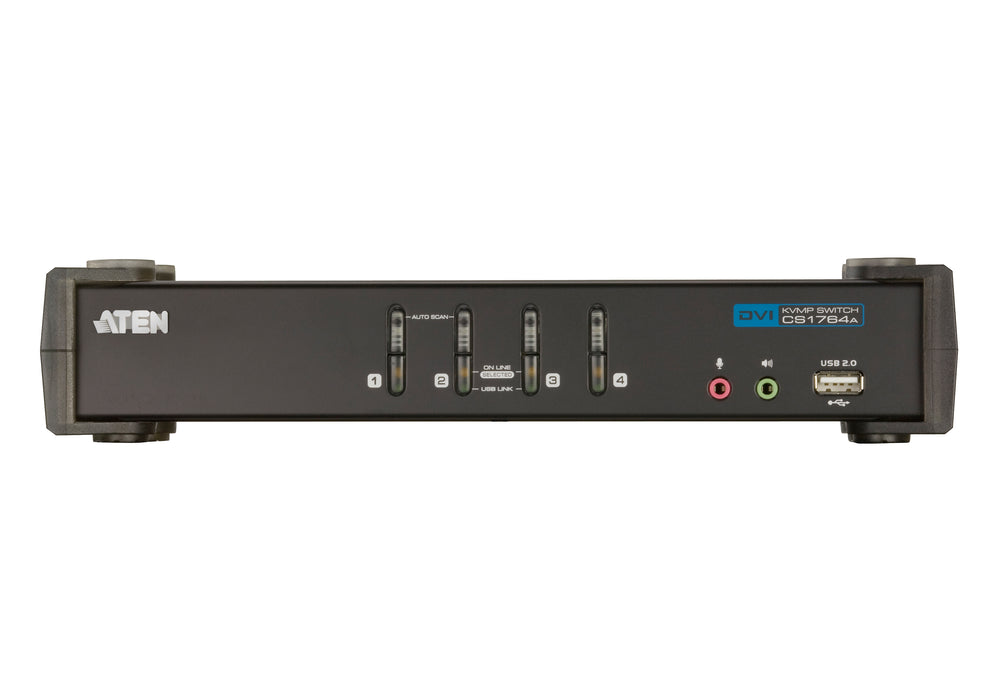

Aten 4-Port USB DVI KVM Switch with Audio - CS1764A-AT-E

SKU: CS1764A-AT-E
Aten 4-Port USB DVI KVM Switch with Audio - CS1764A-AT-E Aten KVM Switches Aten
Availability:
Only 1 left at this price!
Save £134.81 Save £134.81

£216.60 (Excl. VAT)

- £259.92 (Inc. VAT)
£216.60 - £216.60
- - £259.92
Availability:
Only 1 left at this price!
  • Visa
  • Mastercard
  • American Express
  • Apple Pay
  • Google Pay
  • Paypal
  • Shop Pay
  • Klarna
  • Bank Transfer (BACS)
Trade pricing for verified resellers, proforma issued on official company letterhead for PO processing.
Education & Public Sector Pricing available for schools, universities, NHS, and government organisations. Contact our Public Sector Team on 020 8191 9223 or email info@screenmoove.com.
  • Description
  • Specifications
  • Downloads

  • Aten 4-Port USB DVI KVM Switch with Audio - CS1764A-AT-E

    The CubiQ™ CS1764A USB 2.0 DVI KVMP™ Switch charts a revolutionary new direction in KVM (Keyboard, Video, Mouse) switch functionality by combining a 4 port KVM switch with a 2 port USB 2.0 hub at the same time as it provides an interface for a digital monitor (DVI).
    1 x CS1764A USB 2.0 DVI KVMP™ Switch
    4 x 2L-7D02U USB DVI-D Single Link KVM Cables (1.8m)
    1 x 0AD8-1605-24M1 Power Adapter
    1 x User Instructions


    Superior video quality – 1920 x 1200

    Computer selection via front panel pushbuttons, hotkeys, and mouse

    DVI digital and analog monitor support – fully compliant with the DVI specifications

    Multiplatform support – Windows, Linux, Mac, and Sun

  • Design
    Hot keys Yes
    Housing material Metal
    LED indicators Yes
    Product colour Black
    Push button Yes
    Display
    Built-in display No
    Legal Information
    UNSPSC Code 43211601
    Operational conditions
    Operating relative humidity (H-H) 0 - 80%
    Operating temperature (T-T) 0 - 50 °C
    Storage relative humidity (H-H) 0 - 80%
    Storage temperature (T-T) -20 - 60 °C
    Package dimensions
    Depth (package,cm) 32.5 cm
    Gross Weight (Package, kg) 2.42 kg
    Height (package,cm) 21 cm
    Width (package,cm) 9.8 cm
    Packaging content
    Manual Yes
    Quick installation guide Yes
    Performance
    DDC2B support Yes
    HD type WUXGA
    Maximum resolution 1920 x 1200 Pixels
    Scan interval 1/5/99 Second
    Video bandwidth 60 Hz
    Ports & interfaces
    Audio connections Yes
    Console ports 3.5mm headphone/3.5mm mic/DVI-I/USB A
    Console USB ports quantity 4
    DC-in jack Yes
    DVI-I ports quantity 4
    Headphone outputs 6
    Keyboard port type USB
    Mouse port type USB
    Number of computers controlled 4
    Number of microphone inputs 6
    USB 2.0 Type-B ports quantity 4
    USB connector type USB Type-A/USB Type-B
    USB hub Yes
    Video port type DVI-I
    Power
    DC input voltage 5.3 V
    Power consumption (typical) 4.8 Watt
    Power source DC
    Product dimensions
    Net Weight (Product, kg) 0.1 kg
    Product Depth 8.8 cm
    Product Height 5.55 cm
    Product Width 27 cm
    Vendor information
    Brand Name Aten
    Warranty 2 Year(s)
  • Description Downloads
    Product Sheet Downloads
Aten 4-Port USB DVI KVM Switch with Audio - CS1764A-AT-E
