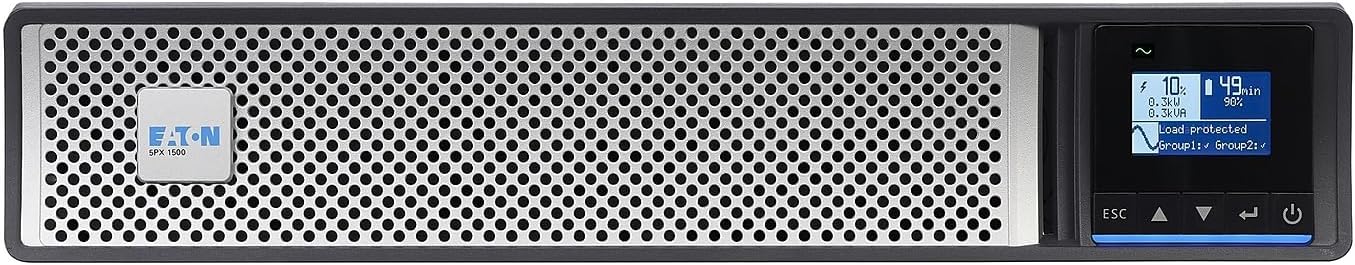

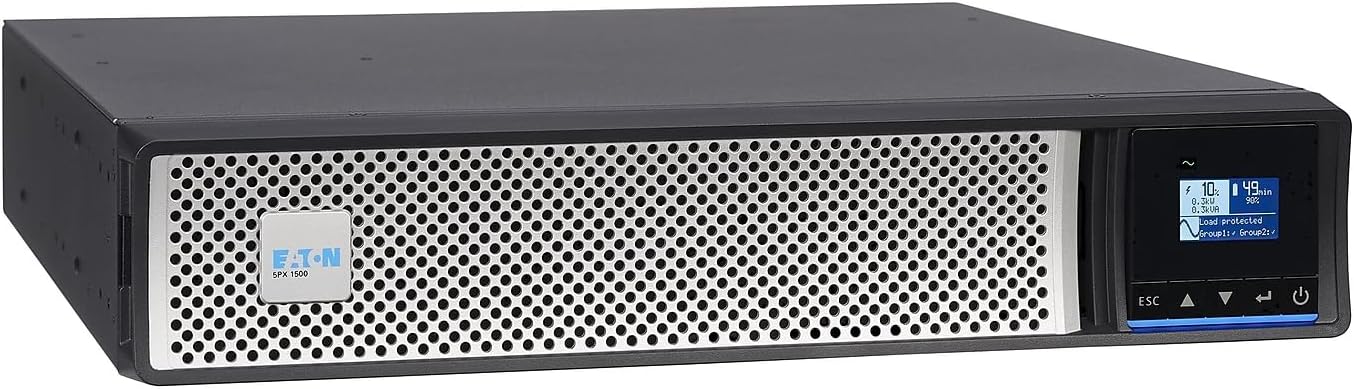

Eaton 5PX G2 UPS Uninterruptible Power Supply
Introducing the latest addition to Eaton's 5 series UPS line, the Eaton 5PX G2 rackmount and tower UPS provides the maximum power possible at each power rating. The 5PX G2 UPS has power ratings ranging from 1 to 3 kVA, with low and high voltage options and offers up to four optional external battery modules for extra runtime. The 5PX G2 UPS has reduced depth to conserve space allowing for high desnisty wallmount rack options, with the 2 to 3 kVA models.
Join the list to be first to know about the new Eaton 5PX G2 UPS.
5PX G2 UPS features include
Deployment simplified
The 5PX G2 UPS offers mass UPS firmware upgrades without dropping the load and provides an easy startup configuration wizard simplifying your UPS setup process.
Runtime
Increased standard runtime by at least 25% on 1.5 and 2 kVA models compared to the orginal 5PX UPS
Stay connected, securely
Reduce risk of intrusion with the optional Gigabit Network Card (NETWORK-M2), which is the first UPS connectivity device to meet both UL and IEC cybersecurity standards
Enhanced surge protection
The 5PX G2 provides enhanced surge protection keeping your branch offices and IT closets equiment safe -
Feature Description Product Name Eaton 5PX G2 UPS Catalog Number 5PX1500RTG2 UPC 743172105776 Product Length/Depth 17.6 in Product Height 3.4 in Product Width 17.2 in Product Weight 50.7 lb Warranty 3 years on electronics, 3 years on batteries with registration Compliances CE Marked, REACH Certifications CULus, RoHS, NOM, ENERGY STAR certified, IEC 62040-1 Battery Management ABM technology (3-stage charging extends battery life by 50% and provides advance warning for replacement) Battery Replacement User replaceable Battery Type Sealed, lead-acid Extended Battery Capability Add up to 4 extended battery modules (EBM). Part number 5PXEBM48RTG2 Electrical Output (8) 5-15R, Line-interactive, 1440 W, 1440 VA Electrical Input Input connection: 5-15P, Input cord length: 10 ft, Input nominal voltage: 120V, Nominal frequency: 50/60 Hz, Input power factor: 1 Communications Expansion slot, Software compatibility with Brightlayer Data Centers suite, User interface: LCD graphical display BTU Rating Online: 106, Battery: 699 Special Features UPS ship-in-rack option available with RK4PRS 4-post rail kit for easier setup Form Factor Rack/tower Rack Size 2U Efficiency 98% Package Contents 5PX1500RTG2 UPS, Tower pedestal feet, Four-post rail kit, Quick start guide, Safety guide, USB cable, RS-232 cable Warranty and Support Standard 3-year factory warranty with registration; Extended service plans available -
Description Downloads Eaton 5PX G2 UPS Uninterruptible Power Supply | 5PX1500RTG2 DataSheet Downloads
