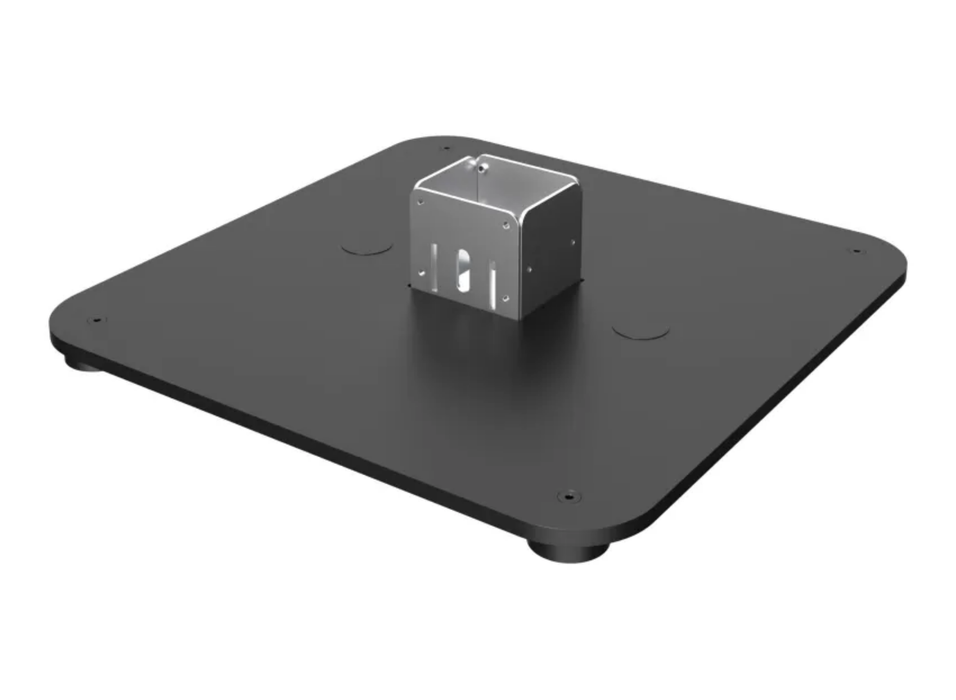

Elo E989512 Wallaby™ Pro Self-Service Mounting Component (Base Plate)
SKU: E989512
£183.16 (Excl. VAT)
- Description
- Specifications
- Downloads
-
Modular Design for Every Self-Service Environment
The Wallaby™ Pro is changing the industry
by making it easier than ever to configure
interactive self service solutions.
Choose from
wall, counter
and floor models.
Engineered with configurations to
fit any space, the modular design is
perfect for retail, restaurants,
hospitality, healthcare and
corporate environments.Add a 22-, 24- or 27-inch
touchscreen display.
Power your self service kiosk with the I-Series all-in-one or pair
your choice of touchscreen monitor with a compute device.
*Display sold separately. Supports portrait orientations only.
Make it single-sided
or double sided.
Add a backer board.
Elevate your self serve solution by
adding a custom branded backer board
that easily connects to the back of the
stand or ceiling pole.Add a ceiling pole.
Route cabling upwards using the
ceiling pole to minimize the impact on
your current footprint.
Easy access to
key components.
The Wallaby Pro Self Service Stands
offer concealed housing for a power strip,
power bricks, a compute device and cables
– all with easy access to key components.
*Power bricks and power strip included. Compute device sold separately.
Add a printer.
Connect accessories
to the edge.
Elo Edge Connect™ offers an expansive
lineup of accessories that seamlessly attach
to the edge of the display including -
EMVs, barcode scanners, status lights,
cameras, RFID, MSR, fingerprint scanner
and more.
Customize your
self service solution!
From wrapping the backer board and
adding your logo to branding the front
with your choice of color, the Wallaby Pro
can be customized to fit your business. -
Part Number(s) Wallaby Pro Countertop Stand - E989127
Wallaby Pro Floor Stand - E989314 + E989512
Wallaby Pro Double-sided Floor Stand - E989314 + E989314 + E989705
Wallaby Pro Wall-mounted Stand - E989127 + E990079Enclosure Color Black/Silver Display Compatibility (portrait only) 22" Android I-Series 4
22" Windows I-Series 2
2402L
2403LM
2702L
2703LMCompute Compatibility Backpack 4 (Android)
ECMG4 (Windows 10)
Intel NUC (max 127x127x51mm, 94mm mount)
3rd Party PCs (max 127x127x51mm, 75mm or 100mm VESA)EMV Cradle Compatibility Verifone MX915/M400 - E458992*
Verifone MX925 - E352169*
Verifone P400 - E990282
Ingenico RP457C (BT) – E710930
Ingenico RP457C (Audio) – E586981
Ingenico LANE3000 - E990468
LANE5000 - E996512
LANE7000 - E990654
Ingenico iSC250 - E458992*
Ingenico RP757 – E920661*
Ingenico iPP350/iPP320/iPP315 - E458797*
MagTek eDynamo – E375343
Square Terminal - E458992*Printer Compatibility Epson TM-T88
Epson M30
Epson EU-m30
Epson L90
Star TSP654
Star TSP100
Star mC-Print3
Bixolon SRP-350
Bixolon SRP-350 Plus IIIOptional Accessories Wall mount kit - E990079
Assist button kit - E284334
Signage kit - E991255
Backer board kit (floor/counter) - E990854
Backer board kit (double-sided) - E990151
Ceiling pole kit - E989893
Android Expansion Module - E809509
Double-sided base - E989705Dimensions (mm/inch) Countertop: 738x300x277mm (29.06"x11.81"x10.91")
Floor: 1448x480x450mm (57.01"x18.90"x17.72")
Double-sided: 1448x510x572mm
Floor base: 480x450x98mm
Top: 1422x249x184mm
Double base: 572x510x98mm
Ceiling pole: 3303x137x122mm
Signage kit: 1200x400x6mm
Backer board: 1250x300x6mm
Wall mount: 723x249x212mm
Assist button: 185x182x46mmShipping Box Dimensions (mm/inch) Countertop: 835x415x410mm
Floor base: 580x565x190mm
Floor top: 1515x325x370mm
Double base: 705x595x200mm
Ceiling pole: 1665x215x225mm
Signage: 1365x485x125mm
Backer board: 1365x485x125mm
Wall mount: 725x215x145mm
Assist button: 265x255x135mmWeight (Unpackaged) Countertop: 18.50kg
Floor: 42.90kg
Base: 14.90kg
Top: 28.00kg
Double base: 19.50kg
Ceiling pole: 5.40kg
Signage: 5.20kg
Backer board: 4.20kg
Double backer: 3.30kg
Wall mount: 2.10kg
Assist button: 0.19kgWeight (Packaged) Countertop: 21.50kg
Floor base: 16.20kg
Floor top: 31.50kg
Double base: 20.89kg
Ceiling pole: 6.64kg
Signage: 6.06kg
Backer board: 5.00kg
Double backer: 4.36kg
Wall mount: 2.70kg
Assist button: 0.49kgOperating Temperature 0°C to 40°C / 32°F to 104°F
With ECMG4: 0°C to 35°C / 32°F to 95°FStorage Temperature -20°C to 60°C / -4°F to 140°F Humidity Operating: 20%–80%
Storage: 10%–90%Warranty 2-year ADA Compliant Yes What's in the Box (Countertop Stand E989127) 1x Countertop Stand
1x Assembly Instructions
Power Cables (NA/EU/UK)
3x 0.3m C13–C14
3x 0.3m C5–C14
1x 0.35m IEC C14 for ECMG4
2x Wi-Fi Extension Cables
4x Printer Paper Chutes
1x Filler Plate
1x ADA Plate (keypad sold separately)What's in the Box (Floor Stand Top E989314) 1x Floor Stand Top
1x Assembly Instructions
Power Cables (NA/EU/UK)
3x 0.3m C13–C14
3x 0.3m C5–C14
1x 0.35m IEC C14 for ECMG4
2x Wi-Fi Extension Cables
4x Printer Paper Chutes
1x Filler Plate
1x ADA Plate (keypad sold separately)What's in the Box (Floor Stand Base E989512) 1x Base Plate
2x Wheel Assemblies
6x M5x6 Wheel Mount Screws
8x M5x10 Socket Head Screws
4x M5x10 Flat Head ScrewsStands, Mounts & Kits Power Strip 4 Plug - E765397
NA 4.5M Power Cable - E765604
EU 5M Power Cable - E765812
UK 5M Power Cable - E766006
AU 4.5M Power Cable - E766208
0.3M Adapter C13–C14 - E766391
0.3M Adapter C5–C14 - E766592
0.35M Adapter C14 - E766781
Wallaby Pro Merchant Display Kit - E801367 -
