Digitus Full HD 1080p 120 m Over Network Cable HDMI KVM Extender | DS-55202
SKU: DS-55202
£151.62 (Excl. VAT)
- Description
- Specifications
- Downloads
-
Digitus Full HD 1080p 120 m Over Network Cable HDMI KVM Extender
Extends the HDMI signal to up to 120 m and offers the possibility of controlling the keyboard and mouse via USB on the receiver unit
- Extends the maximum length for HDMI cable to up to 120 m via a simple network cable
- Extension of the signal (unlimited distance) over the existing local network infrastructure (over IP connection)
- Highest supported video resolution: 1080p / 60 Hz
- Supports KVM function - convenient control of mouse and keyboard via USB on the receiver unit
- Supports LAN-standard 802.3 Ethernet 10/100/100 Mbps
- LED activity indicator for function, keyboard and mouse

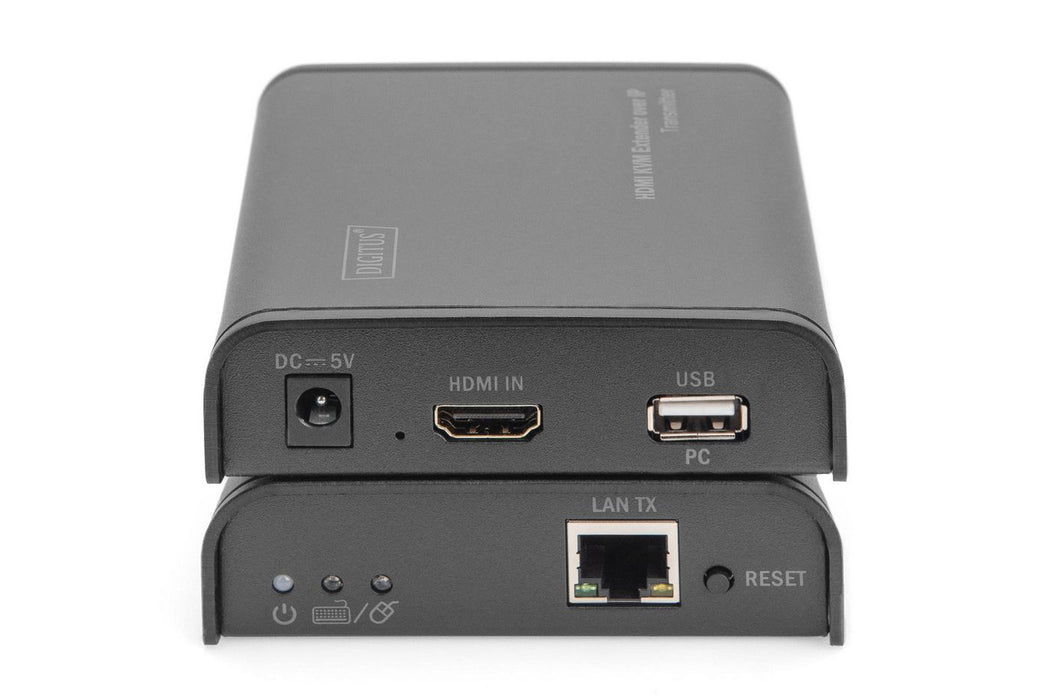

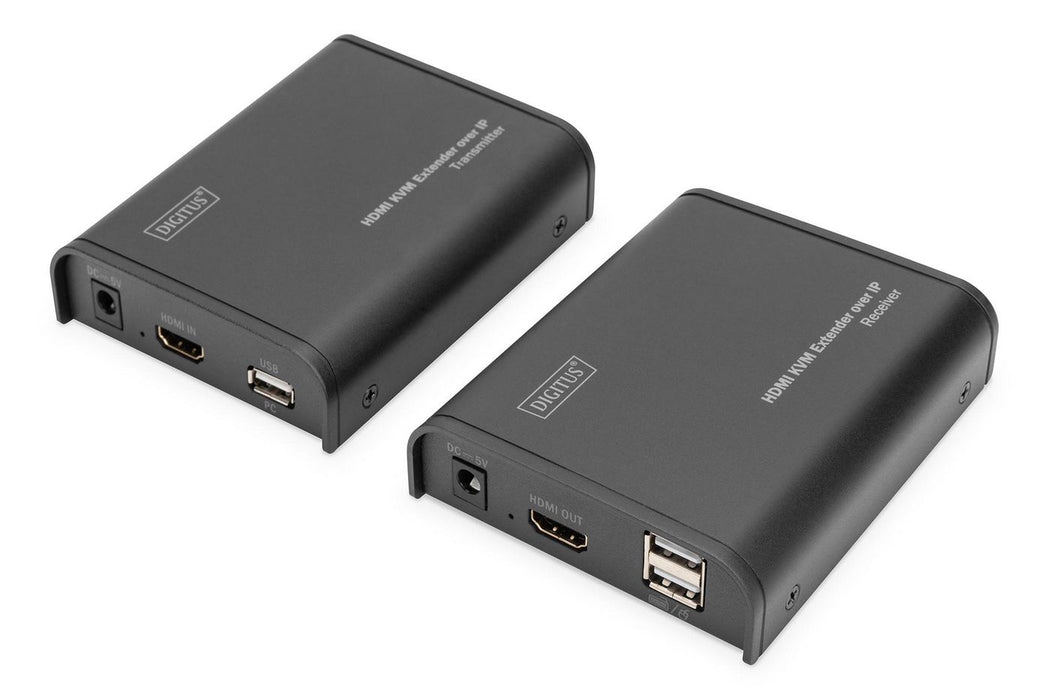

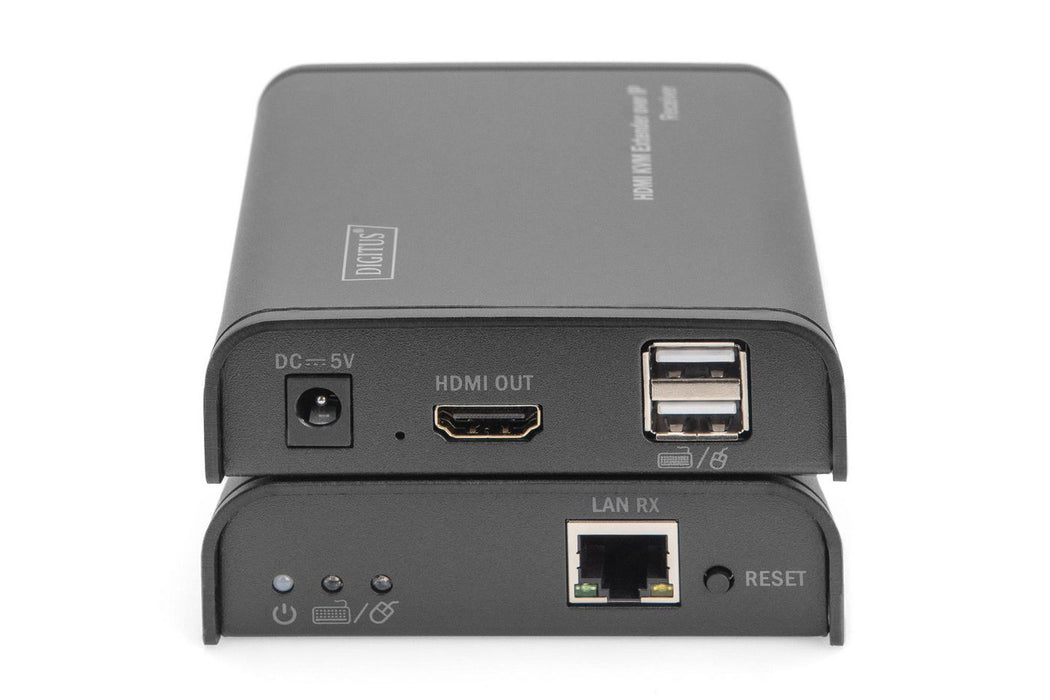

The Digitus HDMI KVM extender set consists of a sender unit (local location) as well as a receiver unit (remote location). The HDMI signal can be extended by means of a network cable (CAT 6, 5e, 5) up to a maximum distance of 120m. The HDMI signal can also be extended to an unlimited distance via the existing network infrastructure (via IP connection). The highest supported video resolution is 1080p / 60 Hz. It also makes convenient access on a computer (mouse and keyboard) possible via the USB ports on the receiver unit. It is perfectly suited to industrial, commercial and public applications. -
Category Attribute Value Features Cable types supported Cat5/Cat5e/Cat6 Connectivity technology Wired LED indicators Yes Material Aluminium Max digital resolution 1920 x 1080 pixels Max transfer distance 80 m Plug and Play Yes Product colour Black Type Transmitter & receiver Legal Info EU ECCN Code N/A UNSPSC Code (Icecat) 43211601 US ECCN Code 5A992 Logistics HS code 84733080 UK Trade Tariff code 85176200 Operational Cond. Operating temp. (T-T) 0 - 60 °C Storage temp. (T-T) -20 - 70 °C Package (Verified) Depth 18.3 cm Height 8.8 cm Width 24.3 cm Gross Weight 0.882 kg Packaging Content AC adapter included Yes Manual included Yes Power Adapter output current 1 A Adapter output voltage 5 V Power (receiver, max) 3.5 W Power (transmitter, max) 3.5 W Product Size Net Weight 0.546 kg Depth 8 cm Height 24 cm Width 17.6 cm Receiver KB/Mouse port type USB Video port type HDMI RJ-45 ports 1 Transmitter KB/Mouse port type USB Video port type HDMI RJ-45 ports 1 Vendor Info Brand Name Digitus Warranty 2 Year(s) Weight & Dimens. Receiver weight 170 g Transmitter weight 160 g -
Description Downloads Digitus Full HD 1080p 120 m Over Network Cable HDMI KVM Extender | DS-55202 User Manual Downloads
