Ampetronic Ceiling/Wall Mount Dante Transmitter with Auracast Audio | AURI-TX2N-D-E0
SKU: AURI-TX2N-D-E0
£1,531.70 (Excl. VAT)
- Description
- Specifications
-
Auri TX2N | 2-Channel Dante Transmitter with PoE & Auracast Support
Auri 2 Channel Transmitter (Dante)

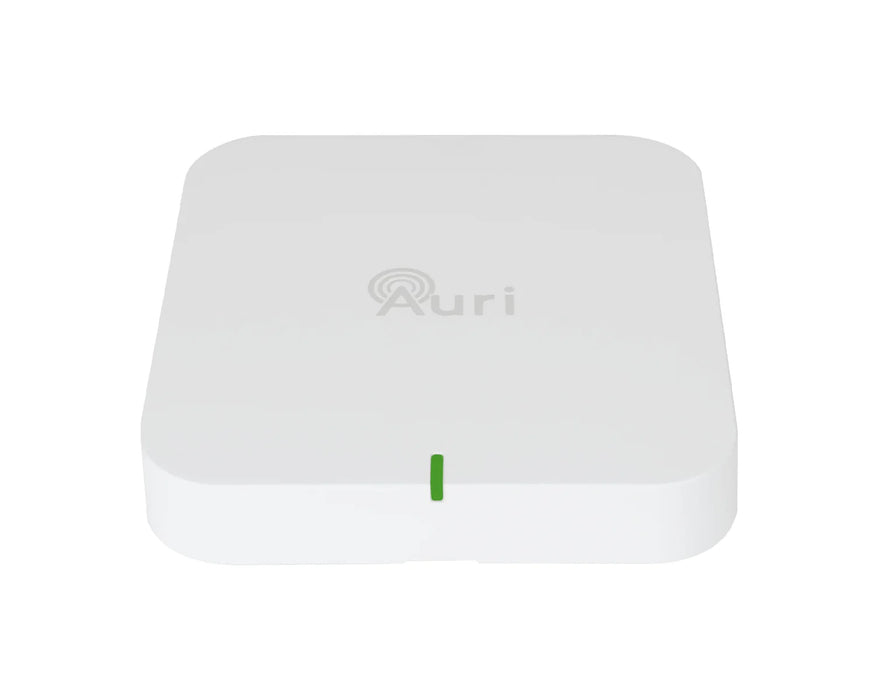

The Auri™ TX2N is a sleek, low-profile transmitter designed for professional installations, resembling a Wi-Fi access point. It features a discreet logo, multicolor status indicator, and side-mounted balanced analog mic/line inputs, supporting mono, stereo, or dual mono configurations. A single ethernet connection manages PoE, network/PC control, and Audio over IP, with an option for Dante® network audio. It also includes a balanced line output and USB-C for optional power. A versatile ceiling/wall mounting bracket is included for easy installation.
A concealed side-panel offers two balanced analog mic/line audio inputs for the two radios. This combination offers an array of routing and configuration options, including single stream mono audio, true stereo audio, and dual mono streams with separate audio (e.g. content or language).
Supports PoE, network/PC connection (for system management), and Audio over IP (for repeater or daisy-chain configuration). The transmitter also supplies a balanced line-output.
A USB-C port is available to accept power from an optional power supply, rounding out the standard connectors. An optional version of the transmitter adds a Dante® network audio interface. A ceiling/wall mounting bracket is also included. -
Audio Inputs 2x selectable mic/line/Dante Mic/Line Connection 2x 3-way 3.5mm Euroblock Input Impedance 15kΩ THD+N 0.03% @0dBu (line), 0.02% @–25dBu (mic) CMRR 56dB Mic Mode Max Level -25 dBu (before clipping) Mic Sensitivity -65 dBu Phantom Power +24 V (switchable) Line Mode Max Level +16 dBu Line Sensitivity -25 dBu Dante 2 channels, 48kHz, 100Mbit Line Output 1x 3-way 2.5mm Euroblock, +1dBu, 150Ω Bluetooth v5.3, Auracast™, LC3 codec Frequency / Power 2400–2482 MHz, NA +20dBm / ROW +10dBm Encryption AES128-CCM, 4–16 char password Formats Mono/Stereo Network Audio 2x stereo in/out, Multicast RTP, 16-bit Bandwidth 0.5–1.5 Mbit/s per stereo stream Latency (Internal) 13 ms (line in→line out) Latency (System) Auri RX1: 29–45 ms Audio Processing Input routing, AGC 20dB, Low cut (75/110/220Hz) Frequency Response 16kHz SR: 50–7.5kHz
24kHz: 50–11kHz
48kHz: 50–22.5kHzNetwork 100 Mbit, DHCP/static/link-local Protocols mDNS, UDP, RTP, RTCP Security UDP AES256-GCM Controls Restart, Factory reset, via Auri Manager Status LED RGB multi-function Power Options PoE IEEE 802.3af, USB-C 5V PD Power Consumption USB-C: 1.85W / PoE: 2.54W Environmental Storage -40–70°C, Oper. -10–40°C, 0–95% RH IP Rating IP30 (with bracket) Compliance FCC, ISED, CE, UKCA, RCM, MIC, RoHS, REACH, WEEE Dimensions 183 x 173 x 48 mm (7.20 x 6.81 x 1.89 in.) Weight 0.45 kg (0.99 lbs.) Enclosure PC-ABS, White Mounting Wall/ceiling bracket, UK/EU/US box, VESA 75
