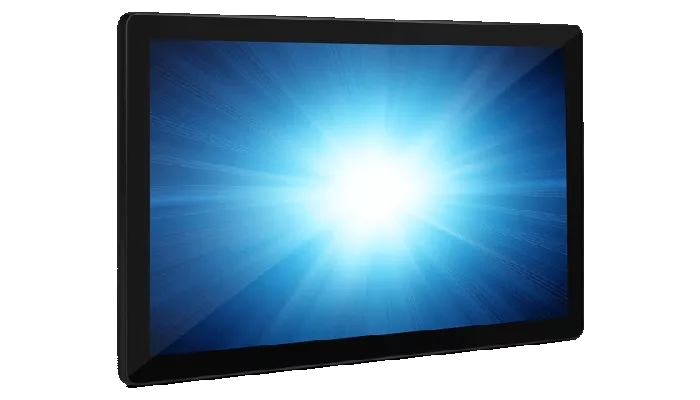

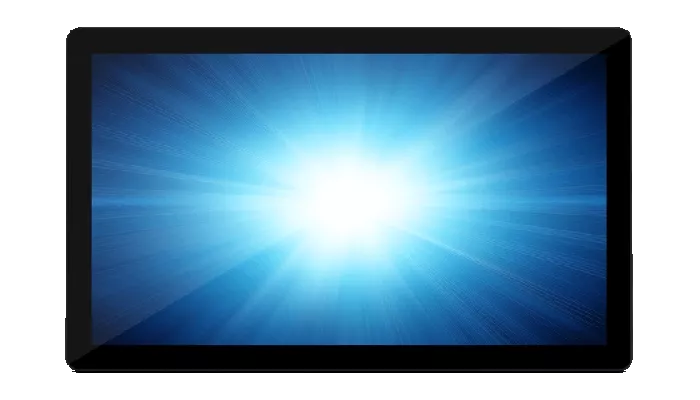

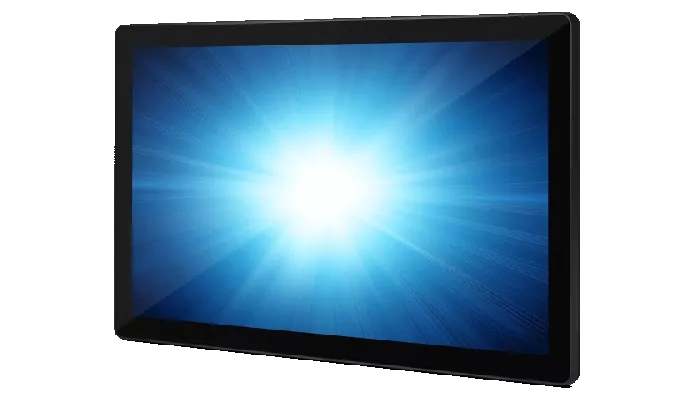

Elo 22" I-Series FHD Intel Core i3 8GB RAM 128GB SSD Win10 IoT Touchscreen Computer | E850591
SKU: E850591
£1,177.17 (Excl. VAT)
- Display Size22"
- Touch Capabilities10pt multi-touch
- Net Weight5 kg
- Operating SystemWindows 10
- VESA Patterns100x100
- Panel TypeTFT Panel
- ResolutionFull HD (1080p)
- Screen TypeFlat
- Response Time14ms
- Screen Ratio16:9
- Brightness225 cd/m2
- Operating Hours24/7
Book a Free Product Demo
Remote or on-site. No obligation.
Integrator or Installer?
Trade pricing, volume discounts, same-day collection.
Education & Public Sector Solutions
Exclusive pricing, flexible terms, and dedicated support for schools, universities, NHS, and government organisations.
- Description
- Specifications
- Warranty
- Downloads
-
Elo I-Series 2.0 22" Touchscreen Computer | Intel Core i3-8100T, 8GB RAM, 128GB SSD, Win10 IoT, Full HD
I-Series for Windows
Elo's I-Series for Windows delivers commercial-grade computing with the capabilities, security and enterprise infrastructure of a powerful, Windows-based platform—all in a sleek, yet durable fixed tablet form factor.Built on a modular platform and available with either 15-inch or 22-inch displays, the I-Series for Windows can be found in installations across the globe, from in-store interaction and point-of-sale to self-service, hospitality and corporate office environments. The uses are virtually unlimited.
Endless Versatility
The Elo I-Series offers versatility across environments. From retail and entertainment to corporate offices and signage, the I-Series is an excellent choice to meet the demands of continuous public use.Configure with Elo Edge Connect
Built with versatility in mind, the Elo Edge Connect system offers a wide assortment of peripherals that seamlessly attach to the edge of the touchscreen. And you can add or swap them out later as your needs change.Stands & Mounts

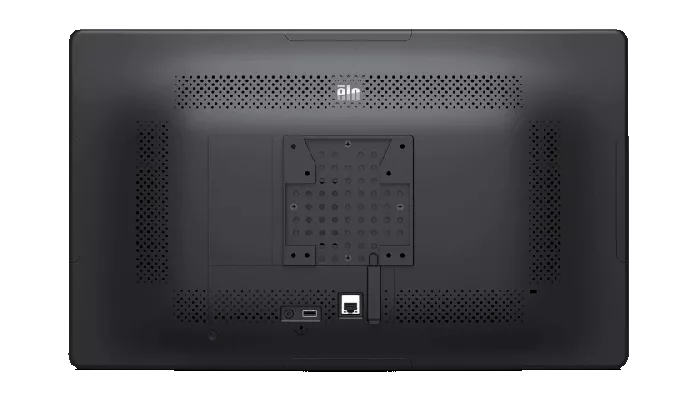

With a standard VESA mount, we give you the flexibility to mount our products however you want.Windows or Linux. You Choose.
Elo's I-Series utilizes the reliability-tested performance and security of Intel's 8th-generation processors and vPro™ platform. Available with Windows 10 or, for added flexibility, the I-Series offers models with no OS-all pretested with Linux SuSE, Ubuntu and Red Hat operating systems-allowing businesses to get the solution best suited for them.Get Peace of Mind With EloCare
EloCare is service and support from the people who know your Elo products best. From extended warranties and on-site exchange to advance unit replacement and field services, the highly skilled Elo technical specialists will get you up and running. -
Feature Description Built-in speaker(s) Yes Number of speakers 2 RMS rated power 2 W Built-in camera No Panel mounting interface 100 × 100 / 75 × 75 mm Product colour Black VESA mounting Yes Aspect ratio 16:9 Display brightness 225 cd/m² Display diagonal 21.5" Display number of colours 16.78 million colours Display resolution 1920 × 1080 pixels Display response rise/fall 14 ms HD type Full HD LED backlight Yes Native aspect ratio 16:9 Response time 14 ms Screen shape Flat Touch technology Multi-touch Touchscreen Yes Discrete graphics card No Discrete graphics card model Not available Maximum on-board graphics card memory 64 GB Number of displays supported (on-board graphics) 3 On-board graphics adapter ID 0x3E91 On-board graphics card Yes On-board graphics card 4K support Yes On-board graphics card base frequency 350 MHz On-board graphics card DirectX version 12.0 On-board graphics card dynamic frequency (max) 1100 MHz On-board graphics card family Intel® UHD Graphics On-board graphics card model Intel® UHD Graphics 630 On-board graphics card OpenGL version 4.5 Internal memory 8 GB Internal memory type DDR4-SDRAM Maximum internal memory 32 GB Memory clock speed 2666 MHz Memory layout (slots × size) 1 × 8 GB Memory slots 2 Memory slots type SO-DIMM Bluetooth Yes (5.0) Ethernet LAN Yes (10/100/1000 Mbit/s) Top Wi-Fi standard Wi-Fi 5 (802.11ac) Wi-Fi Yes Wi-Fi standards 802.11a / 802.11b / 802.11g / Wi-Fi 4 (802.11n) / Wi-Fi 5 (802.11ac) Operating relative humidity (H-H) 20 – 80 % Operating temperature (T-T) 0 – 35 °C Storage relative humidity (H-H) 5 – 95 % Storage temperature (T-T) −20 – 60 °C 3D No Detachable display No AC adapter included Yes Quick start guide Yes Pen included No Motherboard chipset Intel® H310 Product type All-in-One tablet PC Trusted Platform Module (TPM) Yes Ethernet LAN (RJ-45) ports 1 HDMI ports quantity 0 Headphone outputs 1 Thunderbolt 2 ports quantity 0 Thunderbolt 3 ports quantity 0 Thunderbolt ports quantity 0 USB 2.0 ports quantity 4 USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 1 USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity 0 USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity 0 USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity 0 USB 3.2 Gen 2x2 Type-C ports quantity 0 AC adapter frequency 50–60 Hz AC adapter input voltage 100 – 240 V AC adapter power 100 W 64-bit computing Yes Bus type DMI3 Configurable TDP-down 25 W Configurable TDP-down frequency 2.4 GHz ECC supported by processor Yes Maximum internal memory supported by processor 64 GB Maximum number of PCI Express lanes 16 Memory bandwidth supported (max) 37.5 GB/s Memory channels supported Dual Memory clock speeds supported 2400 MHz Memory types supported DDR4-SDRAM PCI Express configurations 1x16 / 1x8+2x4 / 2x8 PCI Express slots version 3.0 Processor cache 6 MB (Smart Cache) Processor code SR3Y8 Processor codename Coffee Lake Processor cores 4 Processor family Intel® Core™ i3 Processor frequency 3.1 GHz Processor generation 8th gen Intel® Core™ i3 Processor lithography 14 nm Processor manufacturer Intel Processor model i3-8100T Processor operating modes 64-bit Processor socket LGA 1151 (Socket H4) Processor threads 4 Stepping B0 System bus rate 8 GT/s Thermal Design Power (TDP) 35 W Tjunction 82 °C CPU configuration (max) 1 Embedded options available Yes Enhanced Intel SpeedStep Technology Yes Execute Disable Bit Yes Idle States Yes Intel 64 Yes Intel Clear Video Technology Yes Intel Enhanced Halt State Yes Intel Identity Protection Technology version 1.00 Intel Secure Key Technology version 1.00 Intel Software Guard Extensions (Intel SGX) Yes Intel Stable Image Platform Program (SIPP) No (version 0) Intel Trusted Execution Technology No Intel TSX-NI No (version 0.00) Intel Virtualization Technology (VT-x) Yes Intel VT-d Yes Intel VT-x with EPT Yes Intel® AES-NI Yes Intel® Clear Video HD Technology (CVT HD) Yes Intel® Clear Video Technology for MID Yes Intel® Hyper-Threading Technology No Intel® Identity Protection Technology (IPT) Yes Intel® InTru™ 3D Technology Yes Intel® OS Guard Yes Intel® Quick Sync Video Technology Yes Intel® Secure Key Yes Intel® Smart Cache Yes Intel® Turbo Boost Technology No Processor ARK ID 129944 Processor package size 37.5 × 37.5 mm Scalability 1S Supported instruction sets AVX 2.0 / SSE4.1 / SSE4.2 Thermal Monitoring Technologies Yes Thermal solution specification PCG 2015A Operating system installed Windows 10 Card reader integrated No Compatible memory cards Not supported Number of SSDs installed 1 Optical drive type No SSD capacity 128 GB SSD form factor M.2 Storage media SSD Total SSDs capacity 128 GB Total storage capacity 128 GB Brand Name Elo Touch Solutions Warranty 3 Year(s) Depth (with stand) 5.26 cm Height (with stand) 31.92 cm Weight (with stand) 5200 g Width (with stand) 52.59 cm Main category Server, Computer & Printer Parts Subcategory Servers & Computers Subcategory PCs & Workstations Subcategory All-in-One PCs/Workstations
-
Touchscreen Monitors LCD Monitors 3 years
-
Description Download Download Drivers Download
Spec Sheet Download Drawings and Certificates
Description Link Dimensional Drawing Download Dimensional Drawing - Floor Stand (E048069) Download Dimensional Drawing - Shelf Mount (E043382) Download CAD Drawings Download Agency Approval Certificates Download Material Safety Data Sheet (MSDS) Download
