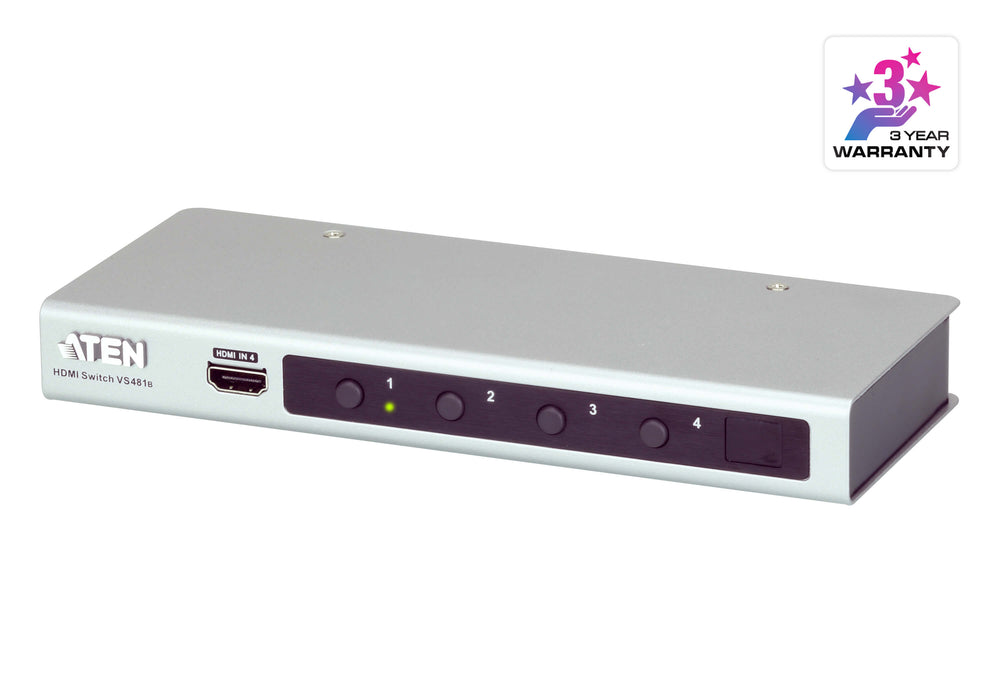

ATEN 4-Port 4K HDMI Switch | VS481B

SKU: VS481B
ATEN 4-Port 4K HDMI Switch | VS481B Video Switches Aten
Availability:
6 in stock
Save £36.79 Save £36.79

£63.36 (Excl. VAT)

- £76.03 (Inc. VAT)
£63.36 - £63.36
- - £76.03
Availability:
6 in stock
payment-icons
Download Product Datasheet i
Trade pricing for verified resellers, proforma issued on official company letterhead for PO processing.
Education & Public Sector Pricing available for schools, universities, NHS, and government organisations. Contact our Public Sector Team on 020 8191 9223 or email info@screenmoove.com.

Book a Free Product Demo

Remote or on-site. No obligation.

Integrator or Installer?

Trade pricing, volume discounts, same-day collection.

Request a Trade Account

Education & Public Sector Solutions

Exclusive pricing, flexible terms, and dedicated support for schools, universities, NHS, and government organisations.

Create an Account Email Public Sector Team
Official Purchase Orders We accept formal POs with VAT-compliant invoicing for all verified institutions.
Contract & Volume Discounts Competitive rates for multi-site, long-term, or framework-based deployments.
Dedicated Account Management Single point of contact for lead times, coordination, and sourcing.
Flexible 30-Day Terms Available to verified schools, councils, and government bodies.
  • Description
  • Specifications
  • Downloads

  •  ATEN 4-Port 4K HDMI Switch | VS481B

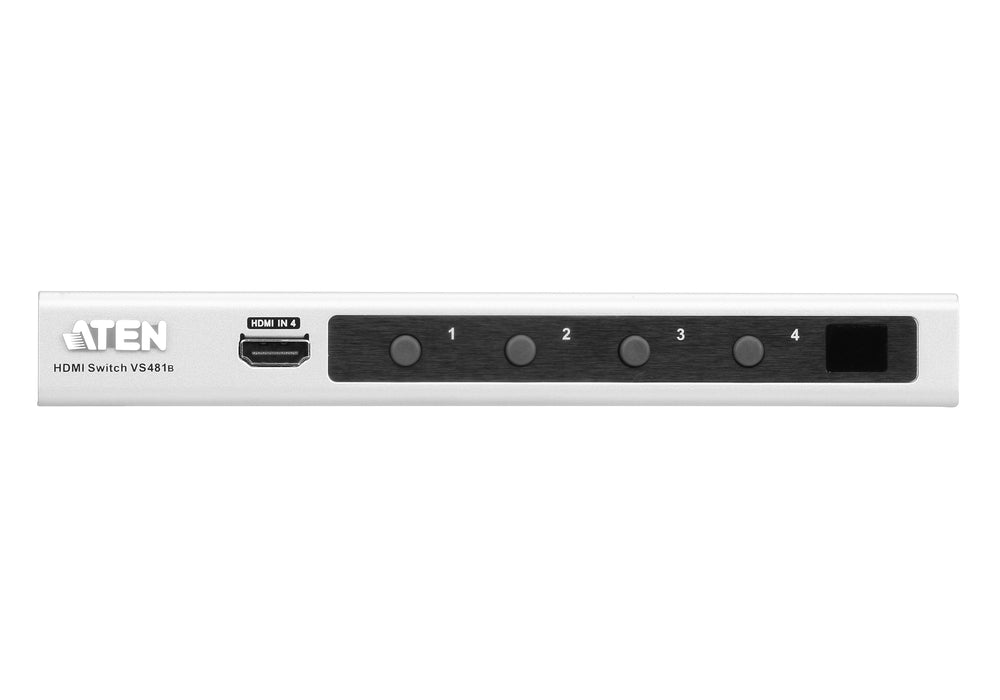

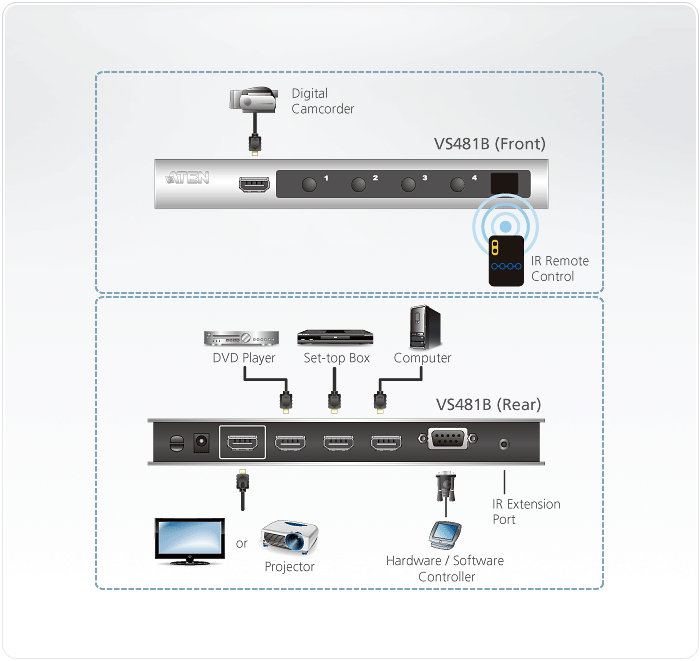

    The VS481B 4-Port HDMI Switch allows you to quickly connect 4 HDMI sources to your HDMI display and easily switch between them via front panel pushbuttons, RS-232 or IR remote control. The front panel’s LEDs indicate the source device selected for the display at a glance.

    The VS481B supports Ultra HD 4Kx2K, the newest resolution for high definition displays; Auto Switching modes for auto port selection;Instant Switching for a smooth video transition between HDMI ports with increased efficiency; and features a built-in bi-directional RS-232 serial port that allows the switch to be controlled through a high-end controller, PC, and/or home automation/home theater software package.

    VS481B

    Features
    Allows up to four HDMI A/V sources to be connected to one HDMI display
    Quick and easy switching between HDMI sources via front panel pushbuttons, RS-232 or IR Remote control
    Supports 300MHz bandwidth for ultrahigh 4kx2k video
    HDMI (3D, Deep Color, 4kx2k); HDCP compatible
    Auto switching modes for auto port selection
    Long distance transmission – up to 15 m (24 AWG)
    Consumer Electronics Control (CEC) support
    Supports Dolby True HD and DTS HD Master Audio
    Built-in bi-directional RS-232 serial remote port for high-end system control
    Instant switching between HDMI input sources
    Supports IR extension using a IR extension cable *
    LED indication of video source devices

    Package Contents
    1x VS481B 4-Port HDMI Switch
    1x HDMI Cable (1.8m/6ft)
    1x IR Remote Control
    1x Power Adapter
    1x User Instructions

  •

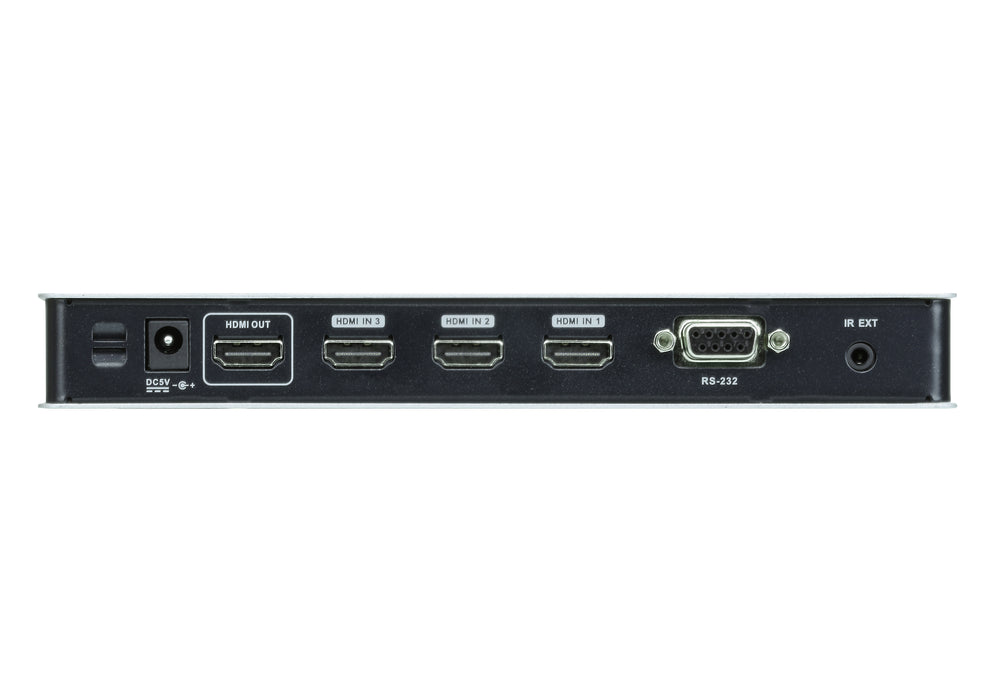

    Category Attribute Value
    Video Input Interfaces 4 x HDMI Type A Female (Black)
    Impedance 100 Ω
    Max. Distance 3m @3840x2160@30Hz (4:4:4)
    Video Output Interfaces 1 x HDMI Type A Female (Black)
    Impedance 100 Ω
    Max. Distance 15m @3840x2160@30Hz (4:4:4)
    Video Max. Data Rate 10.2 Gbps (3.4 Gbps per lane)
    Max. Pixel Clock 340 MHz
    Compliance HDMI (3D, Deep Color, 4K), HDCP, CEC
    Max. Resolution 4096x2160@60Hz (4:2:0), 4096x2160@30Hz (4:4:4)
    Control RS-232 1 x DB-9 Female, 19200 baud
    IR 1 x Mini Stereo Jack Female (Black)
    Connectors Power 1 x DC Jack
    Power Consumption DC5V: 1.76W / 8 BTU/h
    Environmental Operating Temperature 0 - 50°C
    Storage Temperature -20 - 60°C
    Humidity 0 - 80% RH, Non-Condensing
    Physical Housing Metal
    Weight 0.48 kg (1.06 lb)
    Dimensions 20 x 8.25 x 2.5 cm (7.87 x 3.25 x 0.98 in.)
    Packaging Carton Lot 10 pcs
  • Description Downloads
    ATEN 4-Port 4K HDMI Switch | VS481B DataSheet Downloads
    ATEN 4-Port 4K HDMI Switch | VS481B User Manual Downloads
    ATEN 4-Port 4K HDMI Switch | VS481B Drawing Downloads
    ATEN 4-Port 4K HDMI Switch | VS481B Quick Start Guide Downloads
