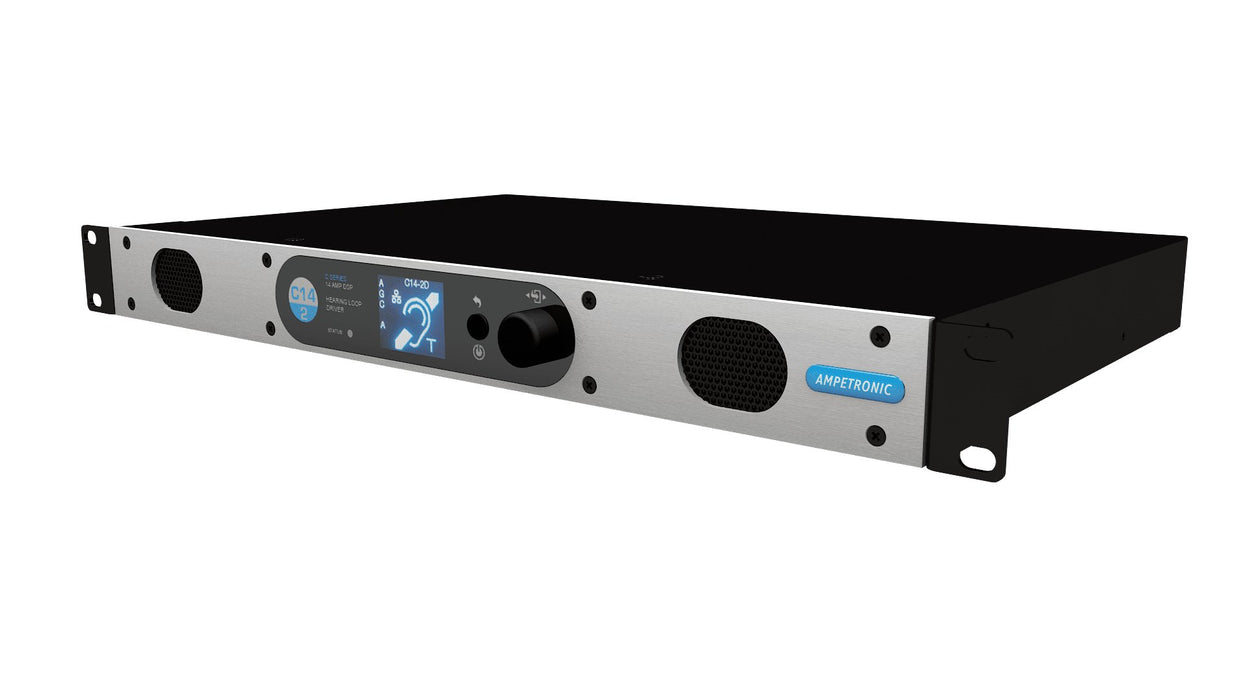

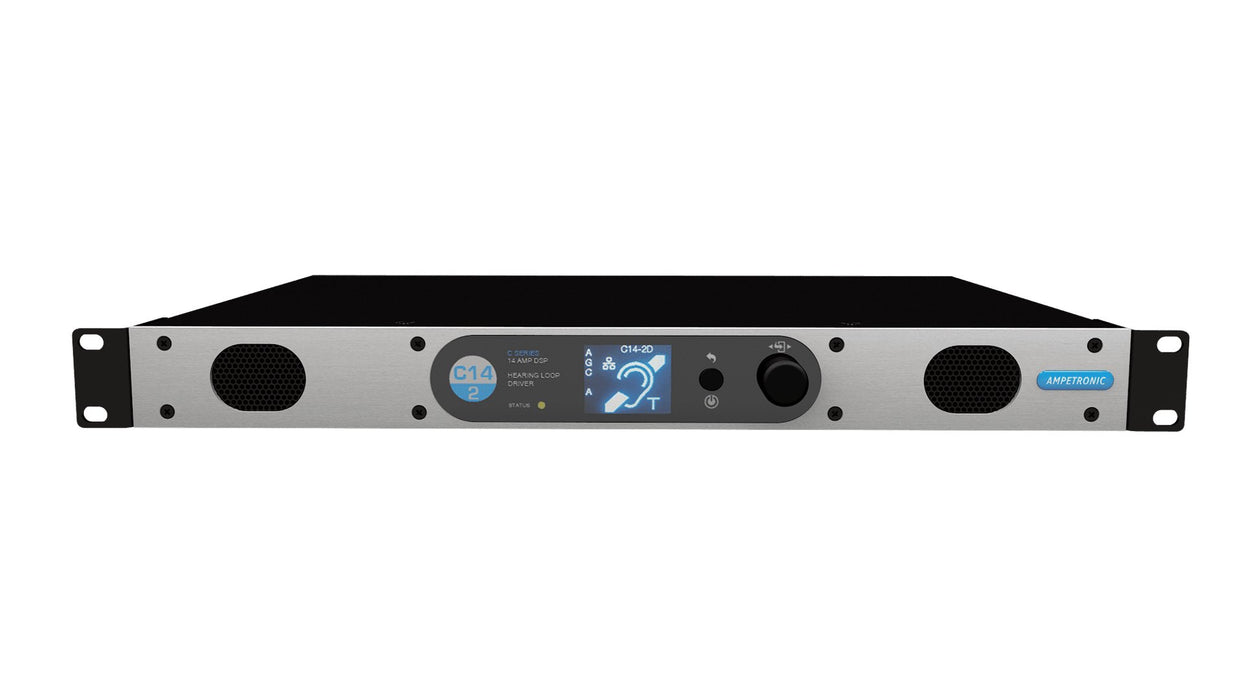

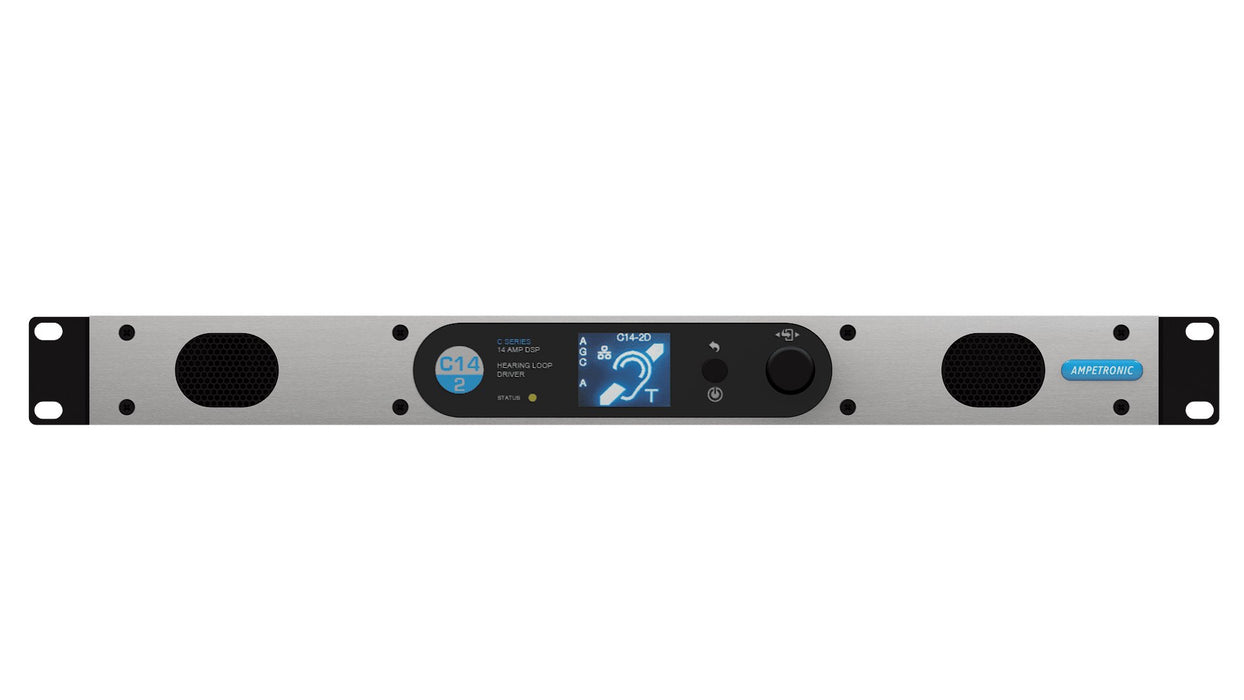

Ampetronic C14-2N MultiLoop Hearing Loop Driver
SKU: C14-2N
£2,161.05 (Excl. VAT)
- Description
- Specifications
- Downloads
-
Ampetronic C14-2 | 14A RMS Hearing Loop Driver with DSP & Network Control
The C14-2 Series hearing loop drivers from Ampetronic mark a substantial development in assistive listening technology. C Series units feature digital signal processing and networking functionality, and enable fast, accurate setup and adjustment via a very simple and easy to use user interface.
Ampetronic has engineered the C Series to offer the high end performance, consistency and certainty of results usually associated with top of the range hearing loop drivers. Class ‘D’ drivers built into the C Series ensures low running and maintenance costs.
Network and Dante versions enable installers, technicians and facilities managers to remotely control the driver and monitor its condition status along with resistance and induction measurements. Fault condition alerts via email or Telnet provide reassurance that an operator will be informed of any issues with performance delivery.
The C14-2 features 14 AmpsRMS current loop output, plus ample voltage headroom, making it suitable for a wide range of applications. Installation can be performed with total confidence; unique, multi-stage filtering ensures compatibility with other systems and global EMC regulations. These products are designed to form part of a system that can meet all of the requirements of the international loop performance standard IEC60118-4, and the relevant parts of IEC TR 63079.
C14-2 Series hearing loop drivers applications include:
Lecture Theatres & Conference facilities
Stadia, Sports Halls, Cinemas & Theatres
Courts Rooms, Airports & Railway Stations
Features
Simple digital interface for accurate adjustment
Network and stand-alone options
Networking with browser interface for remote reporting, adjustment, active status monitoring and remote fault reporting via email or Telnet
Dual outputs featuring accurate and stable 90° phase shift
Built-in test tones
Compatible with Loopworks Measure LoopLink for direct and automated driver control
Clear indicators and system diagnostics
Compact 1U rack mount unit with internal power supply
Optimised for speech frequencies with unmatched intelligibility and capable of high quality musical reproduction
Industry standard Phoenix connectors
Data compliant with IEC 62489-1 Standard
100V line input -

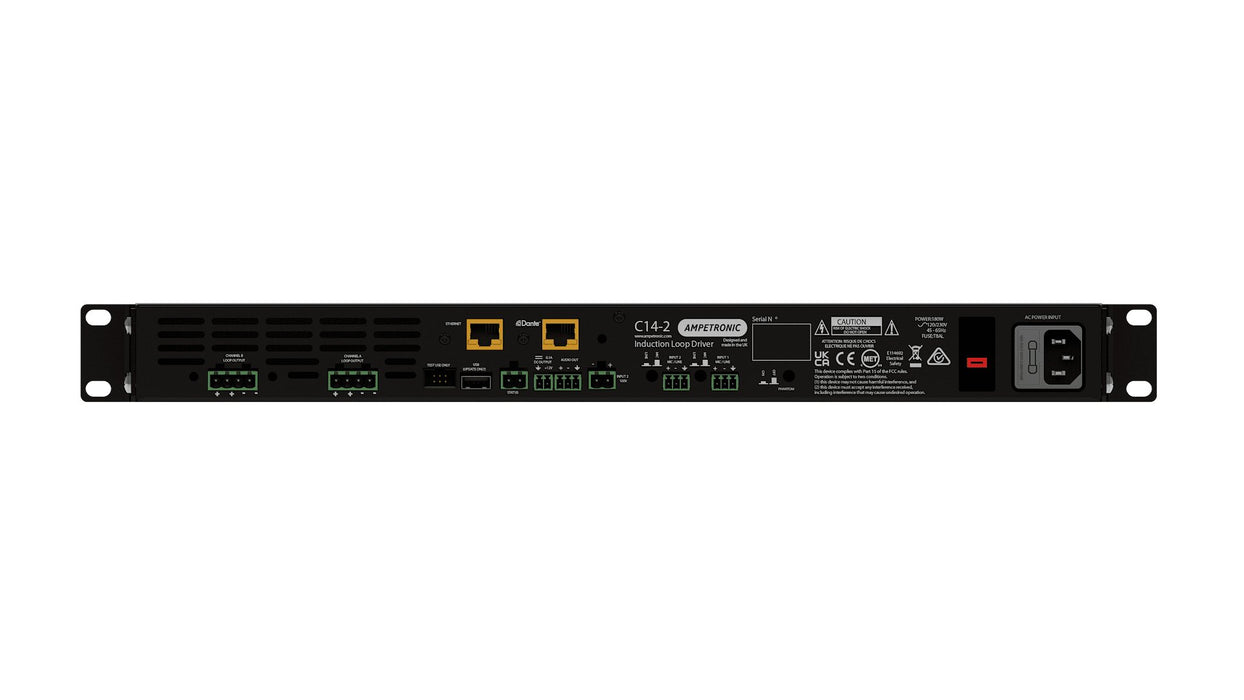

Inputs Input 1 & 2: 3-way 3.5mm Euroblock (supplied), balanced mic/line selectable, 250Hz low cut, priority option (network models).
Mic: 200–600Ω, -67dBu sensitivity, 24V phantom (mic only).
Line: -42dBu sensitivity, max +17dBu line, max -8dBu mic.
100V Line (Input 2): 2-way 5mm Euroblock, +7dBu sensitivity.
Dante (C5/C7 optional): RJ45 Ethernet, web/Telnet/SNMP.Outputs Loop: 4-way 5mm Euroblock per output.
DC Out: 2-way 3.5mm Euroblock, 12V 0.1A, fuse protected.
Status Relay (C10/C14): 2-way 3.5mm Euroblock, 0.5A 125VAC/2A 30VDC.
Line Out: 3-way 3.5mm Euroblock, post-AGC balanced.
USB: Firmware updates or router power (200mA max).Models C5-1: 5ARMS, 20VRMS, 35W, 2.5kg
C5-2: 15ARMS, 20VRMS, 55W, 2.8kg
C7-1: 7ARMS, 20VRMS, 55W, 2.8kg
C7-2: 7ARMS, 20VRMS, 95W, 3.1kg
C10-1: 10ARMS, 33.9VRMS, 70W (switchable), 4.2kg
C10-2: 10ARMS, 33.9VRMS, 120W (switchable), 5.2kg
C14-2: 14ARMS, 48.1VRMS, 180W (switchable), 6.7kgAudio System Frequency Response: 80Hz–6.5kHz
Distortion: THD+N <0.3% @1kHz full current

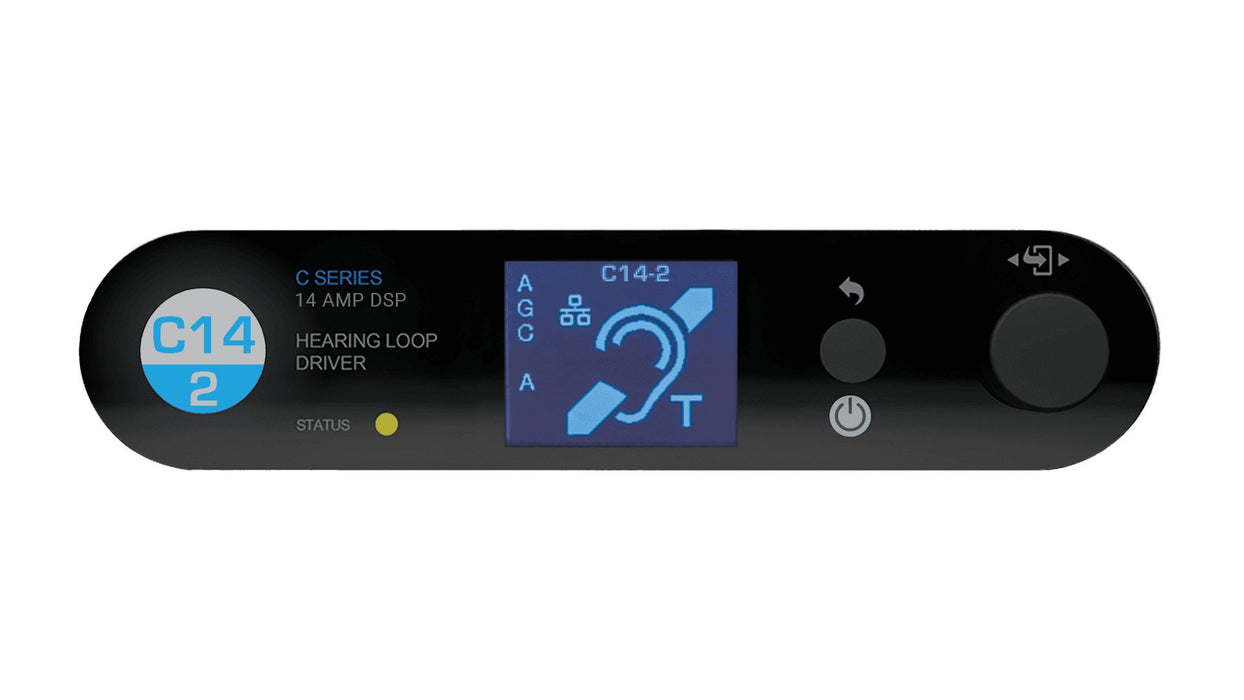

AGC: Optimised for speech, >36dB dynamic rangeMetal Loss Correction Adjustable slope 0–4dB/octave in 0.25dB steps, dual slope via menu (network models). Gain constant at 1kHz. Phase Shift Selectable (network models) 0° / 90° Status Indication Tri-colour LED: Green = normal, Flash Green = sleep, Amber = standby, Red = error, Fast Amber = firmware update Physical Size 1U 19″ rack, 430W x 190D x 44H mm (C5/C7 depth incl. knob 190mm; C10/C14 depth 305mm) Mounting Freestanding, 1U rack (brackets standard), optional wall brackets Environment IP20, 20–90% RH, 0–35°C Cooling C5/C7 passive, C10/C14 variable speed fan (front inlet, rear exhaust) -
Description Downloads Ampetronic C14-2N MultiLoop Hearing Loop Driver DataSheet Download
