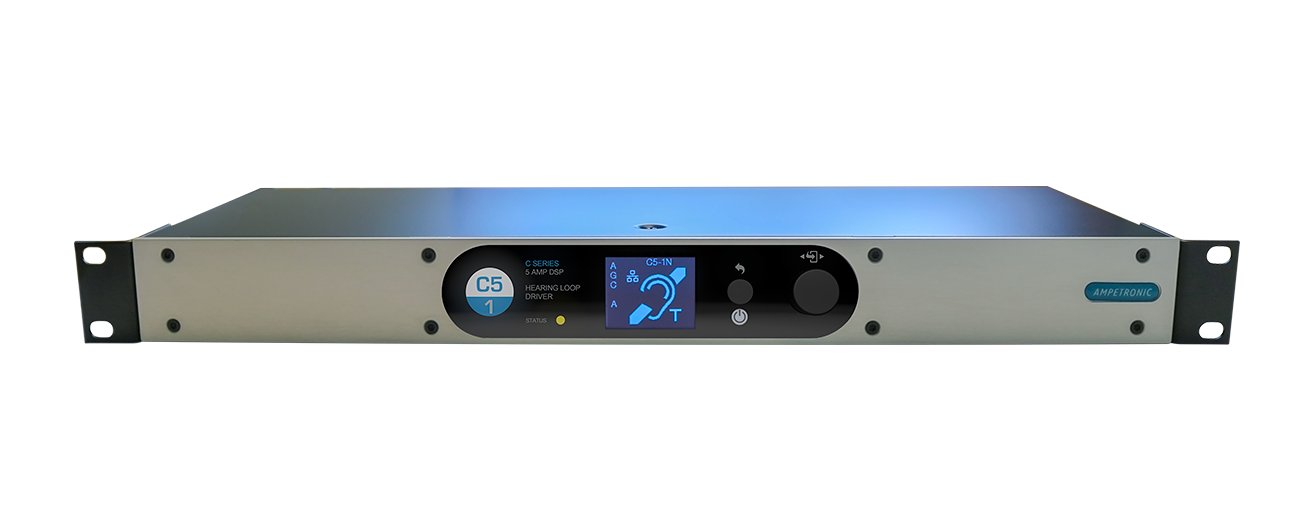

Ampetronic C5-1 Perimeter Hearing Loop Driver
SKU: C5-1
£495.87 (Excl. VAT)
- Description
- Specifications
- Downloads
-
Ampetronic C5-1 | 5A RMS Hearing Loop Driver with DSP & Network Options
The C5-1 Series hearing loop drivers from Ampetronic mark a substantial development in assistive listening technology. C Series units feature digital signal processing and networking functionality, and enable fast, accurate setup and adjustment via a very simple and easy to use user interface.
Ampetronic has engineered the C Series to offer the high end performance, consistency and certainty of results usually associated with top of the range hearing loop drivers, all for the price of a mid-range amplifier. Class ‘D’ drivers built into the C Series ensures low running and maintenance costs.
Network and Dante versions enable installers, technicians and facilities managers to remotely control the driver and monitor its condition status along with resistance and induction measurements. Fault condition alerts via email or Telnet provide reassurance that an operator will be informed of any issues with performance delivery.
The C5-1 features 5 Amps RMS current loop output, plus ample voltage headroom, making it suitable for a wide range of applications. Installation can be performed with total confidence; unique, multi-stage filtering ensures compatibility with other systems and global EMC regulations. These products are designed to form part of a system that can meet all of the requirements of the international loop performance standard IEC60118-4, and the relevant parts of IEC TR 63079.
C5-1 Series hearing loop drivers applications include
Lecture Theatres & Conference facilities
Stadia, Sports Halls, Cinemas & Theatres
Courts Rooms, Airports & Railway Stations
Features
Simple digital interface for accurate adjustment
Network and stand-alone options
Built-in test tones
Compatible with Loopworks Measure LoopLink for direct and automated driver control
Clear indicators and system diagnostics
Compact 1U rack mount unit with internal power supply
Optimised for speech frequencies with unmatched intelligibility and capable of high quality musical reproduction
Industry standard Phoenix connectors
Data compliant with IEC 62489-1 Standard
100V line input -
Input 1 & 2 3 way 3.5mm euroblock screw terminal input with balanced mic/line, switchable 250Hz low cut, priority option (network models) Microphone / Line 200–600Ω, -67dBu sensitivity, 24V phantom (mic only), Line -42dBu, Max line 17Bu, Max mic -8dBu 100V Line (Input 2) 2 way 5mm euroblock, Sensitivity +7dBu Dante (Optional C5/C7) RJ45 Ethernet, control & monitoring, web server, Telnet, SNMP Loop Connectors 4 way 5mm euroblock per output, twisted pair/star-quad feed cables DC Output* 2 way 3.5mm euroblock, 12V 0.1A fuse protected, controllable (network models) Status Relay 2 way 3.5mm euroblock, normally closed contacts, open on fault, 0.5A 125VAC / 2A 30VDC Line Output 3 way 3.5mm euroblock, post AGC balanced output USB* Firmware updates or 200mA router power (not simultaneous with DC out) Thermal Heat Chart View Chart C5-1 5ARMS / 20VRMS / 35W / 2.5kg C5-2 15ARMS / 20VRMS / 55W / 2.8kg C7-1 7ARMS / 20VRMS / 55W / 2.8kg C7-2 7ARMS / 20VRMS / 95W / 3.1kg C10-1 10ARMS / 33.9VRMS / 70W / 4.2kg C10-2 10ARMS / 33.9VRMS / 120W / 5.2kg C14-2 14ARMS / 48.1VRMS / 180W / 6.7kg Frequency Response 80Hz to 6.5kHz Distortion THD+N <0.3% 1kHz sine full current Automatic Gain Control Optimised for speech, >36dB dynamic range Metal Loss Correction Adjustable 0–4dB/oct slope, dual slope (network models) Phase Shift Selectable 0° / 90° (network models) Status Tri-colour LED: Green=Normal, Flash Amber=Standby, Red=Error Size 1U rack 430×190×44mm (depth 190–305mm) Mounting Options Rack mount (standard), freestanding, wall mount (optional) Environment IP20, 20–90% RH, 0–35ºC Cooling C5/C7 passive, C10/14 variable fan -
Description Downloads Ampetronic C5-1 Perimeter Hearing Loop Driver DataSheet Download
