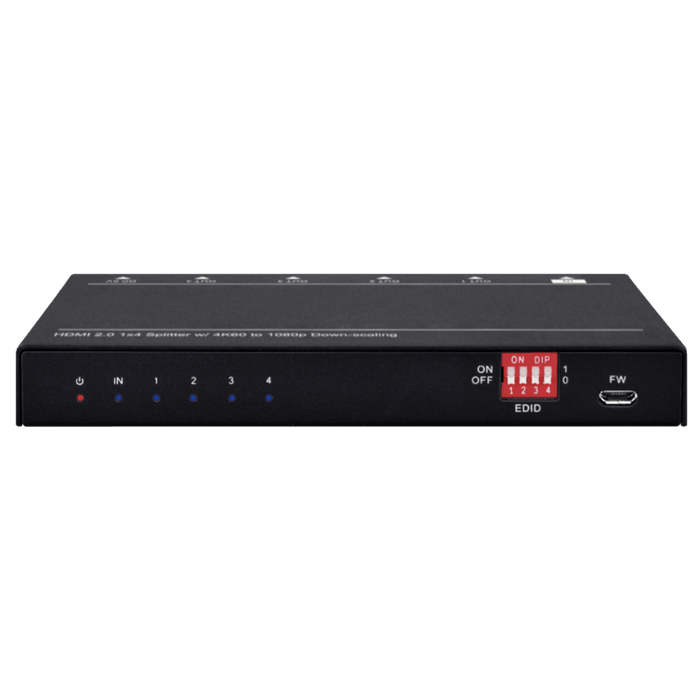

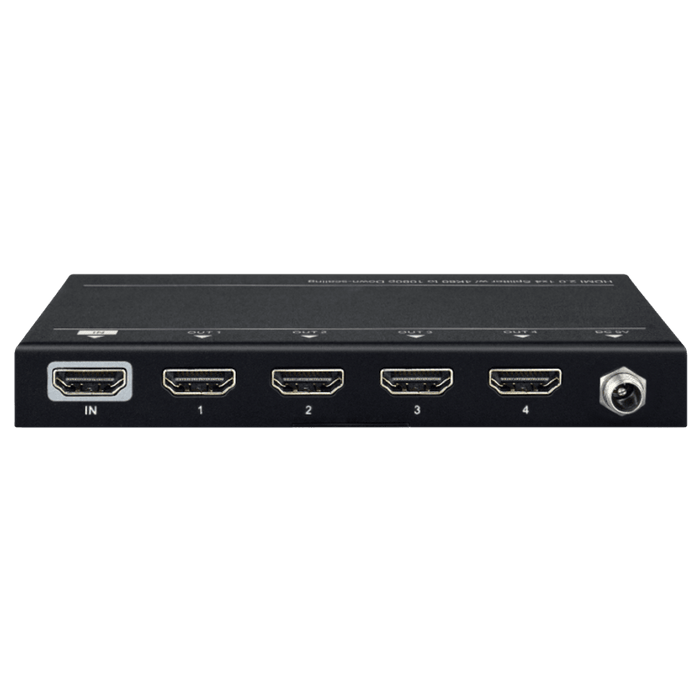

Aurora DXE-142A-DS 1x4 HDMI 4K Splitter
SKU: DXE-142A-DS
£262.63 (Excl. VAT)
- Description
- Specifications
- Downloads
-
Aurora DXE-142A-DS 1x4 HDMI 4K Splitter
This Aurora Multimedia DXE-142A-DS 1x4 HDMI® 4k Splitter with Auto EDID Management provides one of the most advanced HDMI splitter solutions by which the Ultra High Definition video and high quality audio can be transmitted to multiple locations without losing quality. The DXE-142A-DS supports all 3D formats and true 4K2K video. EDID management can be one of the most important capabilities to a splitter. Taking it one step further Aurora has added the ability to customize EDID for complete EDID emulation. This allows full control over the source and what it will be allowed to do. The DXE splitter have firmware upgrade capability via the USB port ensures compatibility now and in the future. With 48bit deep color video and high definition audio support, the DXE-142A-DS is suitable for high quality HDMI broadcasting, conference room, digital signage and education applications.
Features
Supports HDMI 2.0A Deep Color & 3D / DVI 1.0 compliant
HDCP 1.4/2.2 compliant
Wide frequency range: 25MHz~600MHz
Video bandwidth: 18Gbps
Resolution up to 4K2K @ 60Hz
Auto EDID Management
EDID Emulation & Customizable EDID
Supports xvYCC, x.v.Color & Deep Color
Mini-USB port for firmware updating & EDID Setup
Supports Dolby Digital, DTS-HD and Dolby TrueHD audio
HDMI & Power Connectors on same side for easy installation
Ultra-low profile to fit behind displays -
Feature Description HDMI/DVI Compliance HDMI 2.0A, DVI 1.0 HDCP Compliance HDCP 1.4 / 2.2 Video Bandwidth Single-link 600MHz (18Gbps) Video Support Up to 4K2K @60Hz HDMI Output Distance 720p/1080i up to 20m, 1080p 15m, 4K 7.5m Audio Support DTS-HD MA, Dolby TrueHD, DTS, LPCM, etc. Firmware Update Mini-USB Port Input 1 x HDMI Output 4 x HDMI EDID Auto Management Housing Metal Enclosure Dimensions 100 x 70 x 11mm (3.94"x2.76"x0.43") Weight 0.12kg (4.23oz) Mounting Attachable Ears Power Supply 5V 1A DC Power Consumption 3.6W (max) Operating Temperature 0~55°C Storage Temperature -20~60°C (-4~140°F) Relative Humidity 10~90% RH (no condensation) -
Description Downloads Aurora DXE-142A-DS 1x4 HDMI 4K Splitter DataSheet Downloads Aurora DXE-142A-DS 1x4 HDMI 4K Splitter User Guide Downloads
