Aurora Multimedia DXB-8i-G2-B 8-Button 1-Gang Backlit Button Control Pad (Black)
SKU: DXB-8I-G2-B
£285.57 (Excl. VAT)
- Description
- Specifications
-

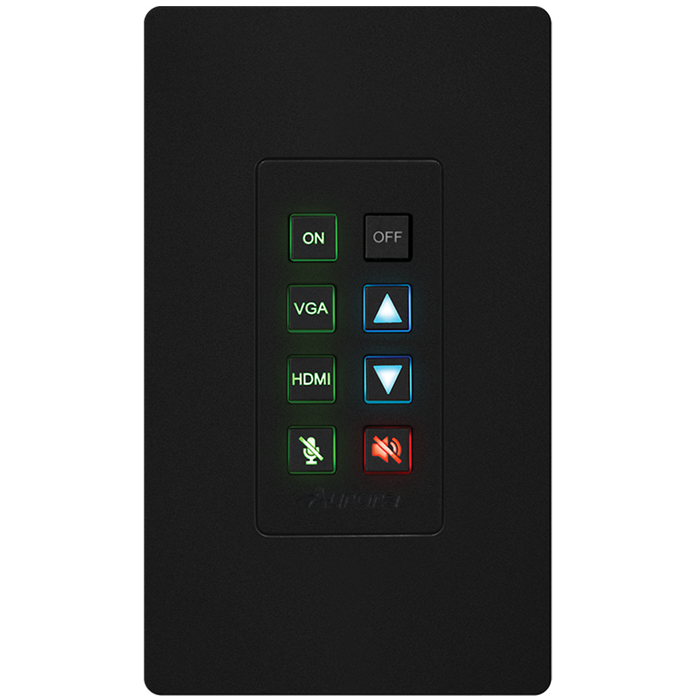

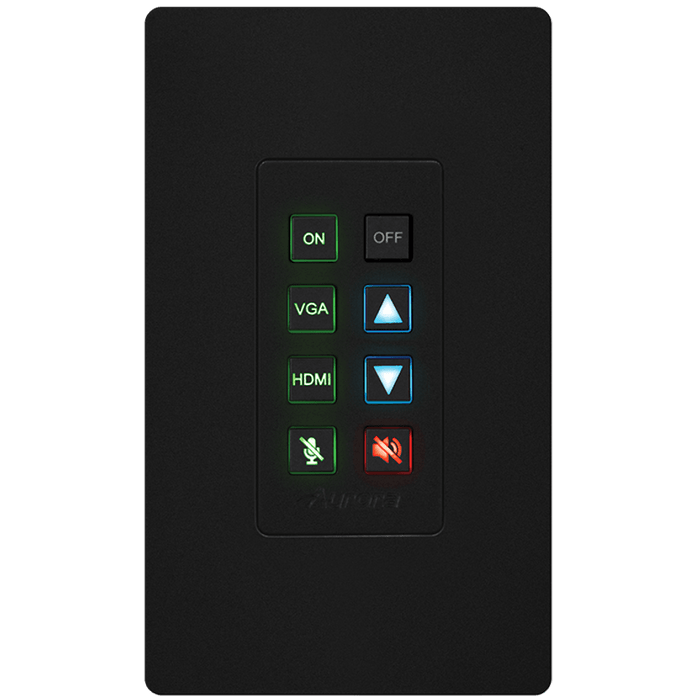

Aurora Multimedia DXB-8i-G2-B 8-Button 1-Gang Backlit Button Control Pad (Black)
This Aurora Multimedia DXB-8i-G2-B 8-Button 1-Gang Backlit Button Control Pad with Serial, IR, and Ethernet Control Ports (Black) is a low cost 8 button single gang button panel. Designed to work with just about any Ethernet, RS-232, or IR device on the market, this unit allows any Ethernet, RS-232, or IR string to be assigned to the press, release, toggle, and hold of each button. The buttons can individually be lit red, green, or blue so in dimly lit areas it can be seen. Available in Decora® white or black, this button panel is designed to match. Low cost, low power, simplicity, and compatibility with just about any device on the market makes the DXB-8i the simple solution of choice.
Features
8 Backlit Buttons (Red, Green, Blue)
Fits in Standard 1 Gang Decora® Style Outlet
1 LAN PoE
1 RS-232 port, with 5vdc OUTPUT
1 IR port
Buttons Individually Programmable for RS-232, IR, TCP, & Telnet Commands
Programmable on Press, Release, Toggle, and Hold
Macro Functions and Interlocking Buttons
9600 – 115k Baud Rate Selectable
Variety of Button Caps Available
Buttons Can Be Made to Order
Low Power
48v DC Aux Power
Low Depth .98" for Floor & Table Boxes
Available in Black
Warrenty: 60 Months -
Feature Description RS-232 Baud Rate Max 115kbps (Factory default 9600) Front Selections 8 Backlit Buttons (Red, Green, Blue) RS-232 Connector 4 pin 3.81mm Euro (with 5VDC output) IR Port 2 pin 3.81mm Euro Housing Plastic front with aluminum rear enclosure Dimensions 1.44"L x 4.331"W x 0.76"D Weight 0.38lbs Mounting Wall-mounting Decora 1 Gang Power Supply PoE or 48V 300mA DC Power Consumption 1 Watt (max) Operating Temperature 0~40°C [32~104°F]
