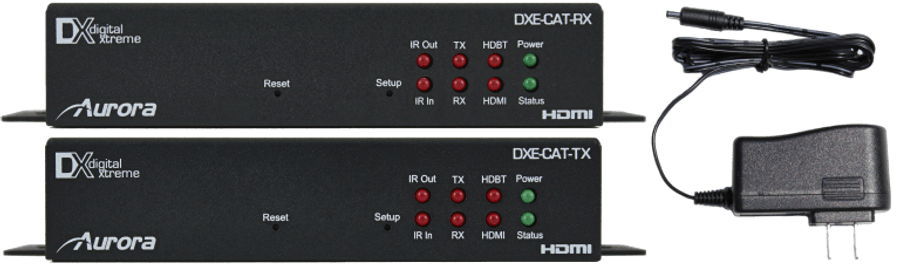

Aurora Multimedia DXE-CAT-S1-4K HDMI Hdbaset Cat Extender Kit
SKU: DXE-CAT-S1-4K
£449.58 (Excl. VAT)
- Description
- Specifications
- Downloads
-
Aurora Multimedia DXE-CAT-S1-4K HDMI Hdbaset Cat Extender Kit
The DXE‑CAT is part of the growing Digital Xtreme Series. This product is different than the typical CAT extender found on the market today, as it not only breaks the price barrier, but the feature and usability aspects as well. All connectors are on one side to make wiring cleaner and rack mounting easier. Having the ability to power the device with the choice of transmit or receive reduces the installation time and keeps things neat. An industry first is Aurora’s exclusive Power-Over-Ethernet circuit, which allows both the transmitter and receiver to be powered without the need of any wall supplies.
Features
Transmit HDMI up to 4k 30Hz 36bit 230ft over one CAT 5e/6/7 cable
4K UHD Resolution

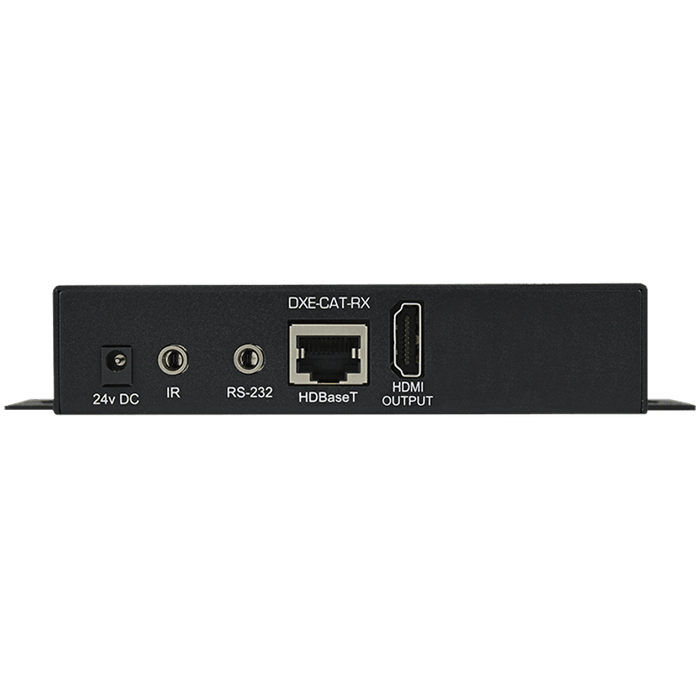

All connectors on one side for easier installation
Bi-directional RS-232 & IR
Power both units from TX or RX side with wall power supply

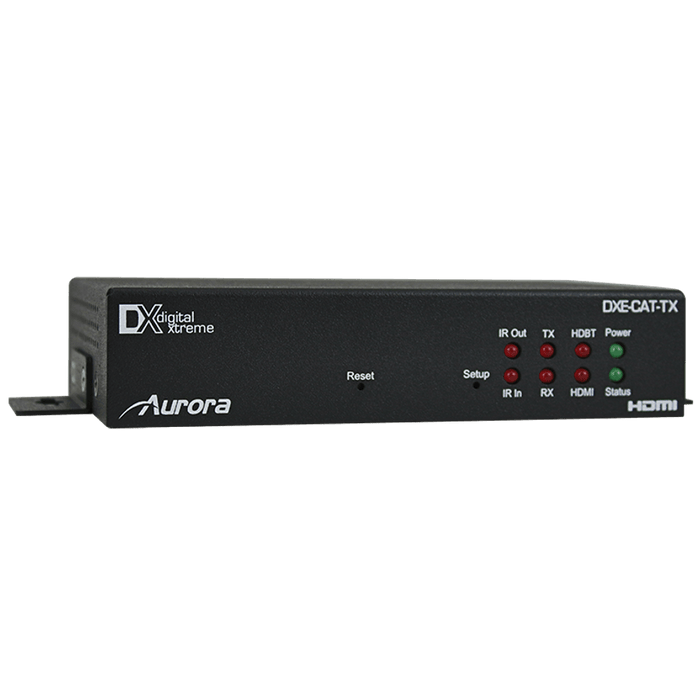

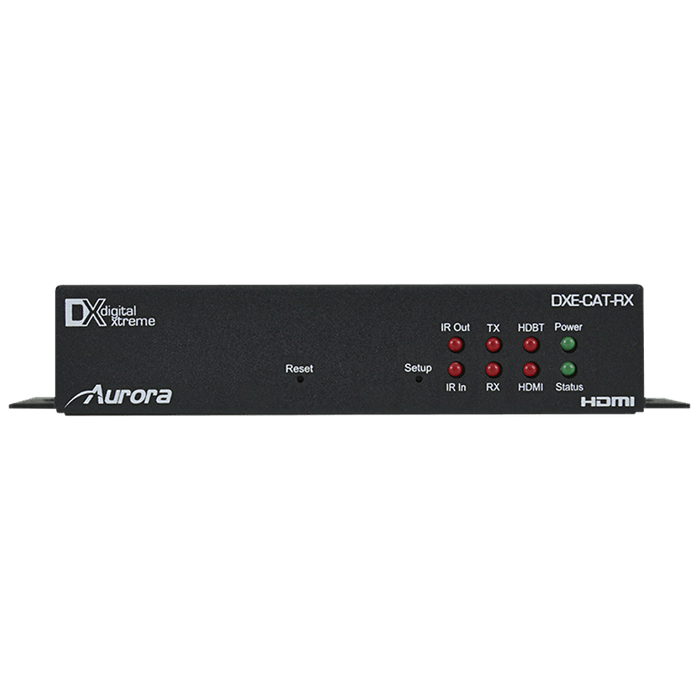

Status LED for all connections on front

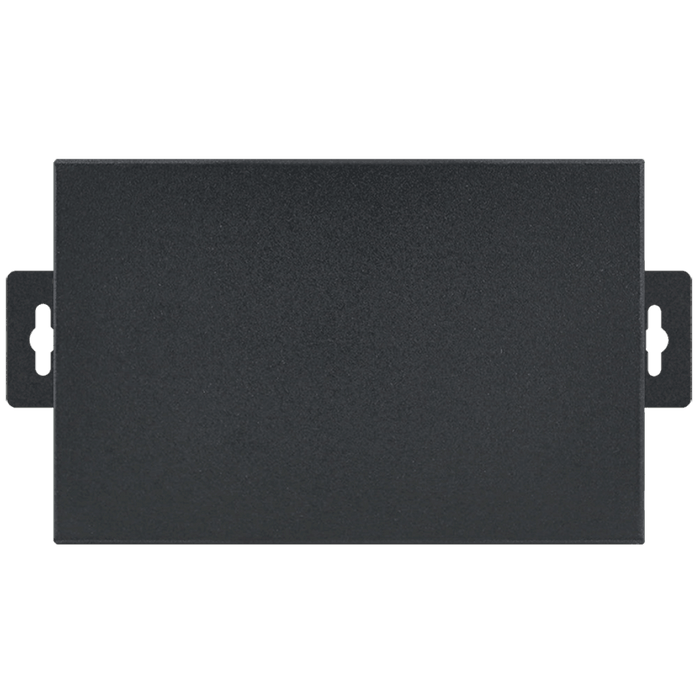

Various mounting options
Comes in a variety of models for different features & cost savings
Warrenty : 60 Months -
Feature Description Max Distance 230ft Max Resolution 4K UHD 30Hz Color Depth 36bit RS-232 Max 115kbps IR without LXC 30k-60kHz IR Output with LXC 30Hz-100kHz IR Input with LXC 30k-60kHz Front LED Status Power, Status, HDMI, HDBaseT, RS-232 TX/RX, IR In/Out Front Selections Reset HDBaseT Connector RJ-45 WE/SS 8P8C RS-232 Connector 3.5mm TRS IR Connector 3.5mm TRS (Auto Sensing) HDMI Connector Type A 19 pin Power Connector 1.35mm ID, 3.5mm OD Housing Black Aluminum Enclosure Dimensions (L×W×H) 120×77×27.94mm (4.72"×3.03"×1.1") Weight 395g (TX/RX) Mounting Wall and Rack Mounting Power Supply 24V 0.65A DC (1 required on TX or RX) Power Consumption 5W (TX), 7W (RX) max Operation Temp. 0–40°C (32–104°F) Relative Humidity 20–90% RH (No Condensation) -
Description Downloads Aurora Multimedia DXE-CAT-S1-4K HDMI Hdbaset Cat Extender Kit User Guide Downloads
