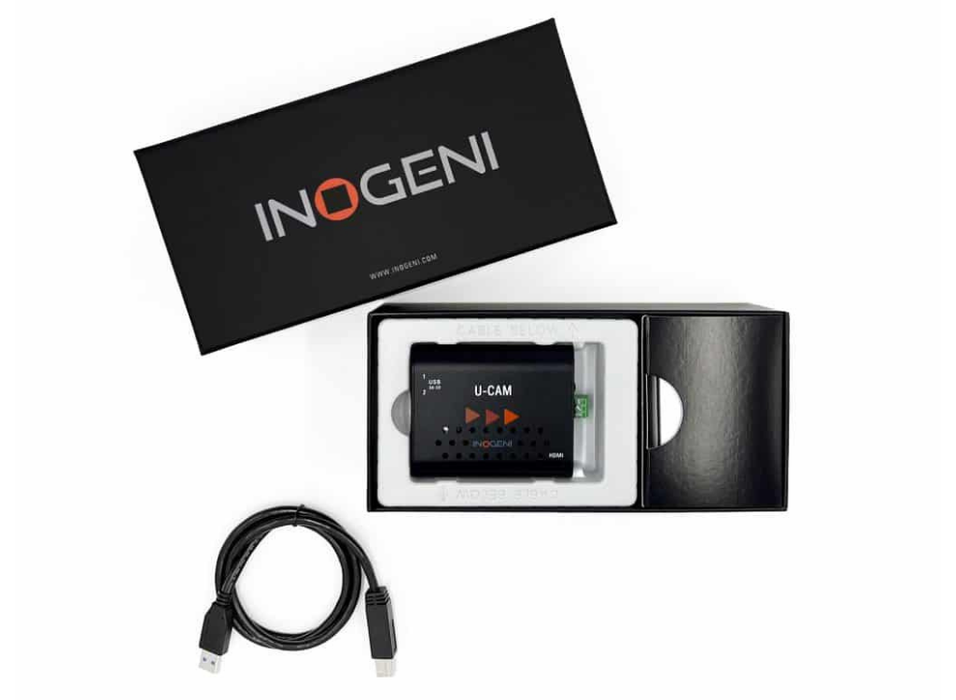

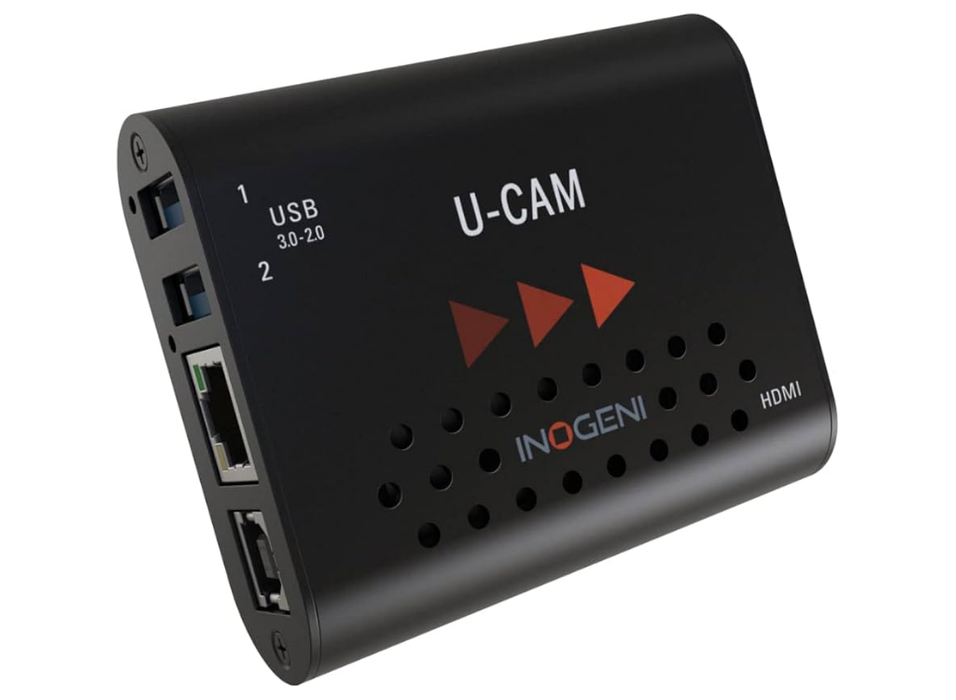

Inogeni U-CAM USB Camera & Audio to HDMI Converter
SKU: U-CAM
£595.00 (Excl. VAT)
- Description
- Specifications
- Downloads
-
Inogeni U-CAM USB Camera & Audio to HDMI Converter
A proven technology device that captures
uncompressed USB 3.0/2.0 video (up to 4K) and audio,
then converts it to HDMI with embedded audio.• Capture video & audio from USB 3.0 and 2.0 cameras
• IP control
• Field upgradable
• RS-232 control
• Compatible with Windows, macOS and Linux laptops
Video input capabilities
• Up to 1080p60 uncompressed with USB 3.0 (YUYV)
• Up to 4K30 uncompressed with USB 3.0 (I420/YV12 and NV12)
• Up to 1080p30 MJPEG with USB 2.0/3.0Video output capabilities
• HDMI 1.4 up to 4K30
• USB 2.0 720p30 MJPEG -
Feature Details Video Input 2x USB 3.0 Supported USB Resolutions MJPEG: up to 1080p30, YUYV: up to 1080p60 (USB 3.0), 1080p10 (USB 2.0) Audio Input Embedded audio via USB input #2 USB Power Output Up to 1.2A shared between USB ports Video Output 1x HDMI: 3840x2160p23.98/24/25/29.97/30, 1080p50/60, 720p50/60 Color Space Conversion YUV422 and YUV420 to RGB USB Output Connector 1x USB 2.0 Type-B USB Output Resolution Up to 1080p30 MJPEG (UVC), UAC audio I/O, PTZ control USB Processing Automatic hardware-based scaler, color, sampling, and frame rate conversion Audio Output Audio from USB is converted to HDMI IP Control Interface 100 Mbps half-duplex, static or DHCP IP RS-232 Interface 9600 baud, 3-pin terminal block, 8N1 format OS Compatibility Windows 7+, macOS 10.10+, Linux (kernel v2638+) USB Tier Usage 1 tier (acts as tier resetter) Supported Cameras Cameras or sources with USB output Software Compatibility UVC-compliant: Teams, Zoom, Webex, Google Meet, etc. Dimensions (W x L x H) 7.0 x 8.3 x 2.3 cm (2.76” x 3.76” x 0.9”) Weight 140 g (0.31 lb) Power Supply 12V (100–240 VAC to 12V/1.2A DC) Operating Temperature 0° to 45° C (32° to 113° F) Storage Temperature -40° to 105° C (-40° to 221° F) Humidity 0% to 90% RH, non-condensing UPC Code 040232609015 Origin Canada Warranty 5 years (after Aug 1, 2024) / 2 years (before) Certifications FCC, CE, RoHS, IEC62368, SoV, RCM, KC, MSIP, NOM TAA-Compliant Yes Package Contents USB 2.0 cable, RS-232 adapter, power supply, international adapters -
Description Downloads Datasheet Downloads
