JBL Background/Foreground Ceiling Speaker in Black | C24CT-BK
SKU: C24CT-BK
£282.15 (Excl. VAT)
- Description
- Specifications
- Downloads
-

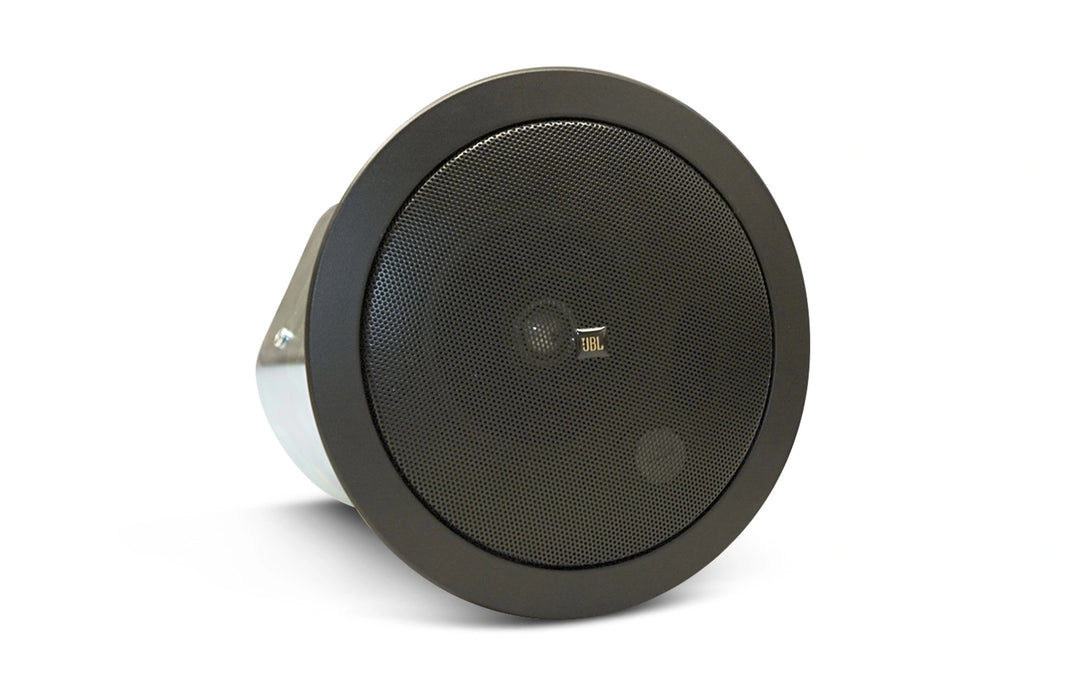

JBL Control 24CT-BK | Compact 4" Ceiling Speaker for High-Quality Background and Foreground Audio
Background/Foreground Ceiling Speaker
The Control 24CT-BK is a compact ceiling speaker providing premium performance in background, foreground and music-pluspaging sound systems. The Control 24CT-BK is perfectly suited for a wide variety of applications from professional offices and airports to restaurants and specialty retail stores. High power handling, wide frequency response and low distortion make the Control 24CT-BK ideal for sound systems requiring a higher fidelity sound from ceiling loudspeakers. The premium performance capability ensures excellent sound character, providing pleasant, enveloping sound throughout the listening area.
Features
Coaxially mounted 100 mm (4 in) woofer with butyl rubber surround and 19 mm (¾ in) titanium coated diffraction-loaded tweeter
High power, wide frequency response and low distortion for high sound level capability
Wide coverage allows fewer speakers, reducing the cost of the installed sound system without
sacrificing performance
Packaged with grille, backcan and tile rails for fast installation and easy dealer stocking
Black baffle and grille works well in black and dark ceiling -
Frequency Range 80 Hz - 20 kHz Power Rating See transformer taps Transformer Taps 70V: 30W, 15W, 7.5W (& 3.7W @ 70V) Coverage Angle 130° conical Directivity Factor (Q) 2.4 dB averaged 500 Hz to 4 kHz Directivity Index (DI) 3.8 dB averaged 500 Hz to 4 kHz Maximum SPL (1m) 102 dB (top 70V/100V tap) Nominal Impedance 16 ohms (Min Z 16.1 ohms @ 320 Hz) Sensitivity 86 dB (100 Hz - 10 kHz) Input Connectors Removable 4-pin locking connector with screw-down terminals Drivers LF: 100 mm (4.0 in)
HF: 19 mm (0.75 in)Color Black Safety Agency UL1480, UL2043, NFPA90, NFPA70, UL1876 compliant, IEC60849/EN60849 Backcan Formed steel (included "blind-mount") Baffle/Rim Medium impact polystyrene, fire rated UL94V-0 Ceiling Cutout Size 168 mm (6.6 in) diameter (template included) Included Accessories C-shaped support backing plate, 2 tile support rails (fits both 2 x 4 ft or 600 x 1200 mm tiles), cutout template, paint shield, removable locking wiring connector Plenum Usage Yes, backcan included -
Description Downloads JBL Background/Foreground Ceiling Speaker in Black | C24CT-BK DataSheet Download
