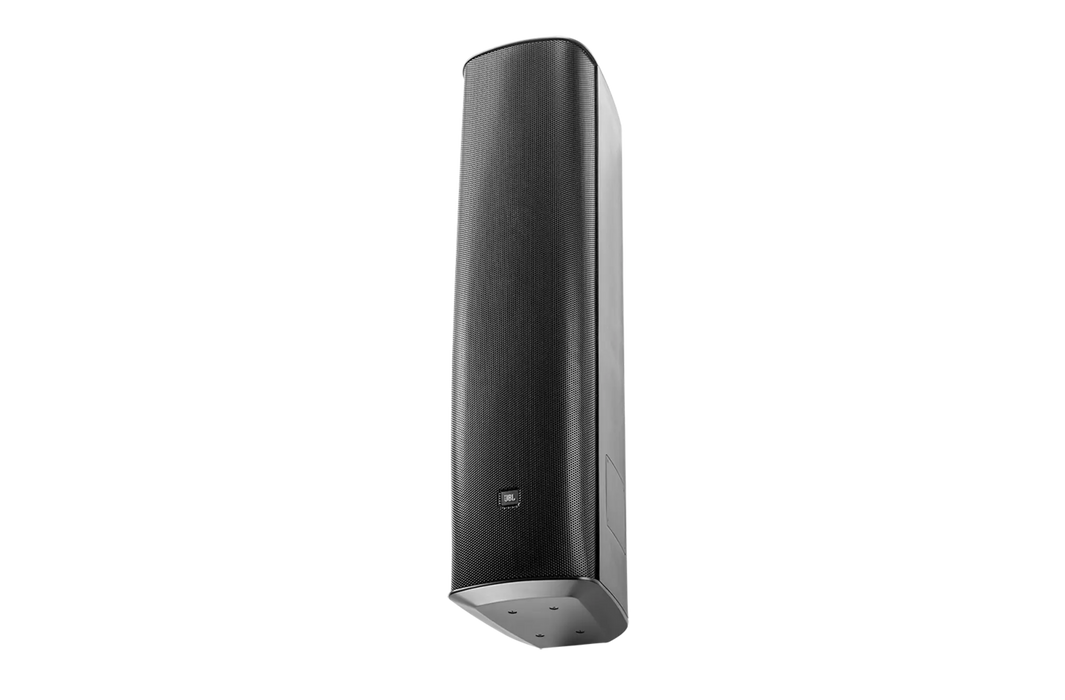

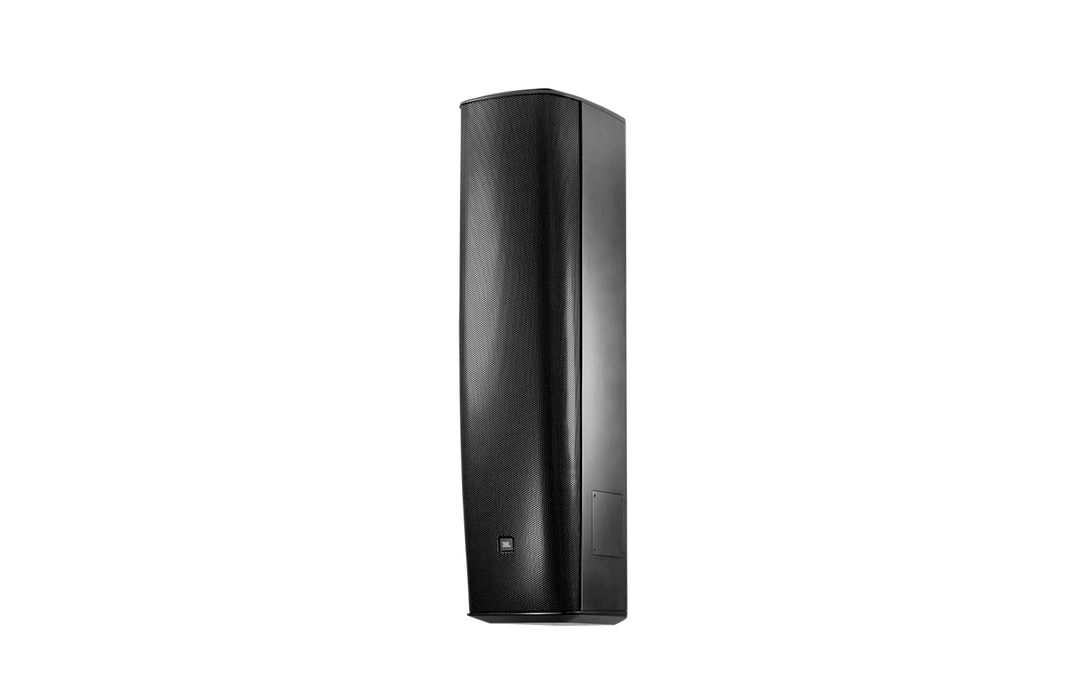

JBL CBT 1000 Constant Beamwidth Technology ™ Adjustable Coverage Line Array Column
SKU: CBT1000
£2,646.27 (Excl. VAT)
- Description
- Specifications
- Downloads
-
JBL CBT 1000 | Adjustable Coverage Line Array Column Loudspeaker with 1500W Power & IP55 Rating
Constant Beamwidth Technology ™ Adjustable Coverage Line Array Column with Asymmetrical Vertical Coverage and Tapered Horizontal Coverage
Expanding upon our highly successful Constant Beamwidth Technology™ breakthrough, the CBT1000 represents the next-generation in pattern control consistency utilizing adjustable vertical coverage and a tapered horizontal waveguide to increase the versatility of aiming the coverage of the loudspeaker to more accurately map to the room geometry in a wide variety of listening spaces.
Features
Asymmetrical vertical coverage sends more sound toward far area of room to make front-to-back sound levels more consistent.

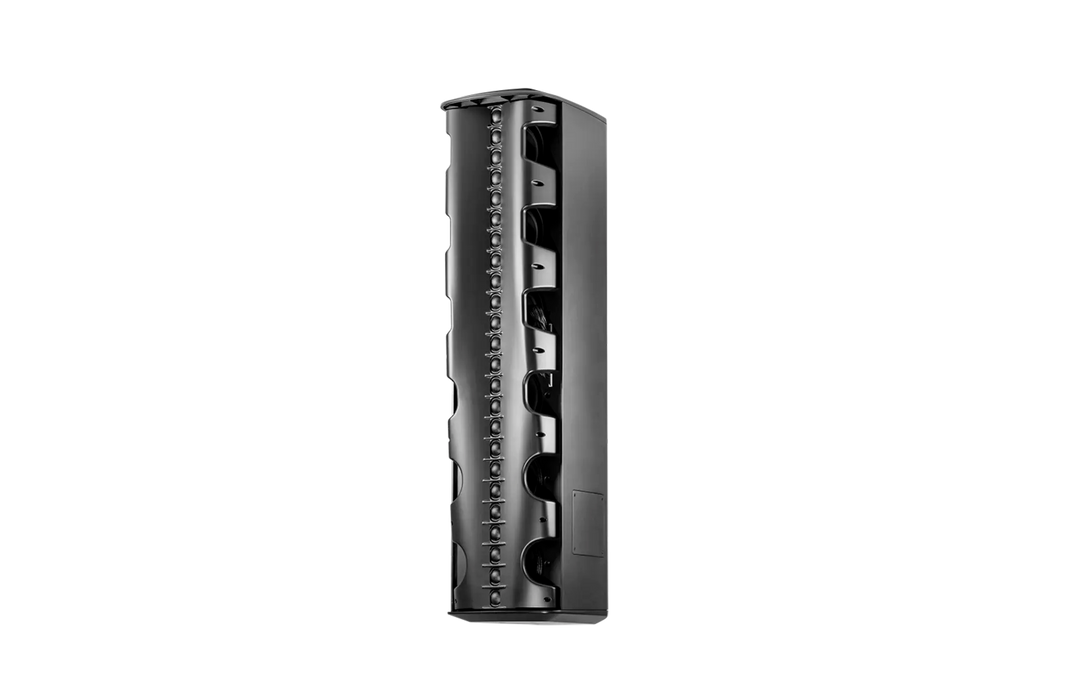

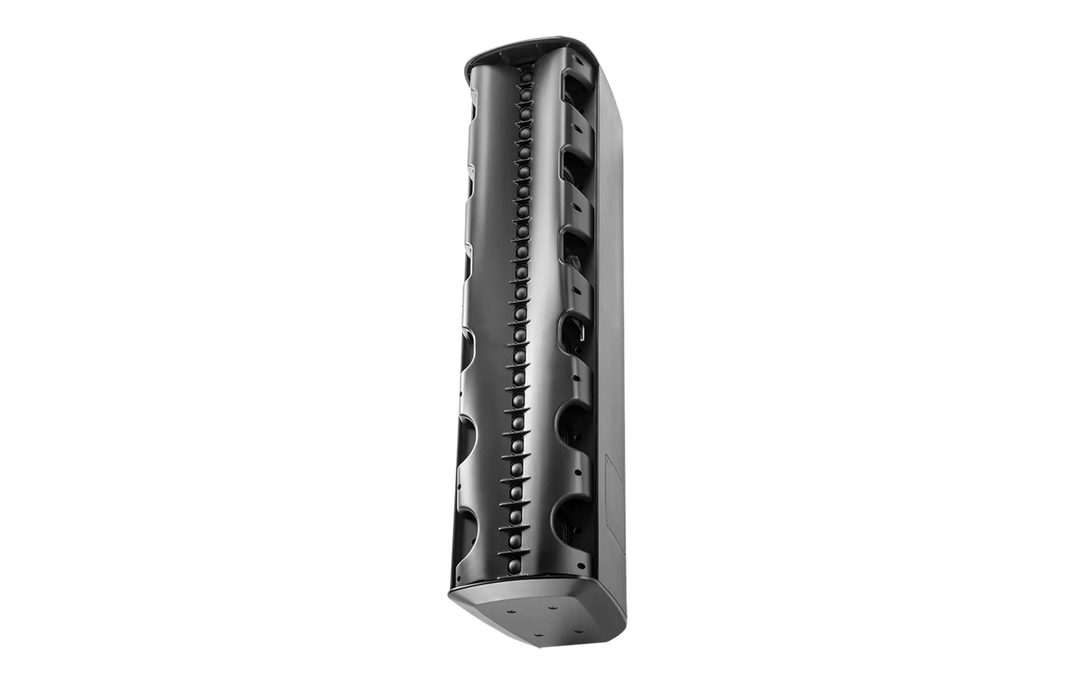

Components: Twenty-four (24) 25 mm (1 in) extra-high-power soft dome tweeters and six (6) 165 mm (6-1/2”) high-excursion LF drivers arranged coaxially.
Constant Beamwidth Technology™ provides constant directivity up to the highest frequencies and reduces out of coverage lobing.
Vertical pattern coverage is individually adjustable through a range of four (4) “Pattern Up” angles and four (4) “Pattern Down” coverage angles for a total of sixteen (16) different coverage combinations, all without the use of external DSP processing.
Patent-pending Tapered Horizontal Waveguide provides a continuously varying horizontal dispersion (very wide for short-throw, narrower for long-throw) delivering superior coverage in both the front and rear corners of a room.
Single-speaker room coverage at high SPL, with little over-splash and strong bass response down to below 40 Hz.
Switchable voicing provides flat response in music mode or mid-range presence peak in speech mode.
Swivel (pan)/tilt wall bracket included. -
Drivers Six 165 mm (6.5 in) LF drivers, Twenty-four 25 mm (1 in) HF drivers Frequency Range (-10dB) 45 Hz – 20 kHz Sensitivity 102 dB (max), 95 dB (min) in free space Impedance 4 ohms (4Ω >1kHz; 8Ω <800Hz) Power Rating 1500 W (6000 W peak, 2 hrs); 1000 W (4000 W peak, 100 hrs) Maximum Input Voltage 65.0 V RMS (2 hrs), 130.0 V Peak Maximum SPL (1m) 131 dB continuous, 134 dB program, 137 dB peak Coverage Angle Vertical: 4 top & 4 bottom selections; Horizontal: 100°–160° Recommended High-Pass 35 Hz, 24 dB/oct or greater Low Frequency Drivers 6 × 165 mm neodymium drivers, coated cones, copper-capped poles High Frequency Drivers 24 × 25 mm neodymium drivers, coated diaphragm, moisture & UV resistant Enclosure Fiberglass reinforced ABS, powder-coated 1050 aluminum grille Outdoor Capability IP55 (IEC529), ASTM G85 (200 hrs), with optional MTC-PC2 cover Color Black (RAL9004) or White (RAL9016) Insert Points 14 M8 inserts (back), 4 top & 4 bottom M8 inserts Mounting Two-part swivel/tilt wall bracket, ±45° swivel, ±15° tilt Dimensions (H × W × D) 1020 × 250 × 345 mm (40.2 × 9.9 × 13.6 in) Net Weight 24.5 kg (54 lbs) Shipping Weight 38.6 kg (85 lbs) Included Accessories Two-piece swivel (pan)/tilt wall bracket Optional Accessories MTC-PC2 terminal cover, CBT1K-ACC1 kit, MTC-CBT-SUS3 suspension kit CBT1K-ACC1 Kit Includes 2 × MTC-CBT-FM3, 1 × MTC-CBT-OS3, Coupler Plate, 2 × MTC-CBT-SUS3 -
Description Downloads JBL CBT 1000 Constant Beamwidth Technology ™ Adjustable Coverage Line Array Column DataSheet Download
