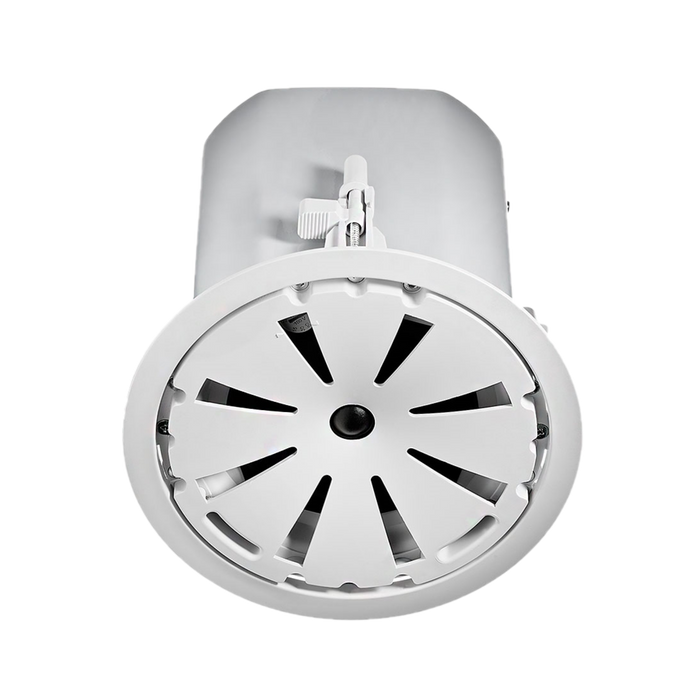

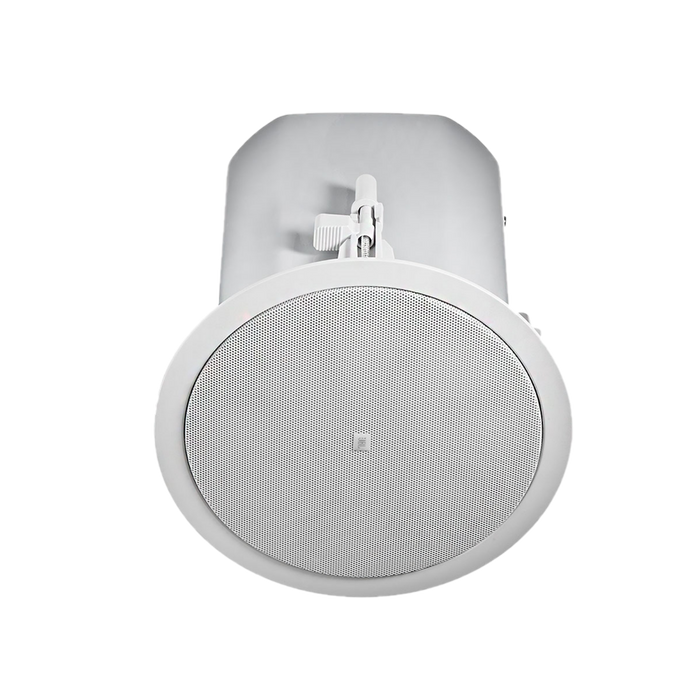

JBL Control 45C/T Two-Way 5.25" Coaxial Ceiling Loudspeaker
SKU: CONTROL45C/T
£517.44 (Excl. VAT)
- Description
- Specifications
- Downloads
-
JBL Control 45C/T | 5.25" Two-Way Coaxial Ceiling Speaker, 75W RMS, IP Rated
Two-Way 5.25" Coaxial Ceiling Loudspeaker
The Control 45C/T is a premium inceiling professional loudspeaker designed for applications that can benefit from extremely wide bandwidth and very consistent coverage from a ceiling speaker with a small footprint.
Features
Extremely consistent 120° broadband pattern control featuring JBL’s exclusive conical Radiation Boundary Integrator® (RBI™) technology.
• Very consistent, full-range coverage of listening area while providing a small ceiling footprint.
• Wide, consistent coverage requires fewer speakers, reducing the cost of the installed system without
sacrificing performance.
Coaxial design featuring:
• 130 mm (5.25 in) polypropylene-coated paper cone with butyl rubber surround.
• 20 mm (.75 in) soft-dome tweeter on 210 mm (8.25 in) diameter wave guide.
Bass extension down to 55 Hz.
8 ohm and 70V/100V operation.
Integrated backcan for easy “blind-mount” install. Packaged with grille and tile rails for easy installation. -
Frequency Range (-10 dB) 55 Hz – 20 kHz Frequency Response (±3 dB) 80 Hz – 17 kHz Power Rating 150W Continuous Program Power; 75W Continuous Pink Noise (300W peak) Sensitivity 88 dB (1 kHz – 16 kHz) Coverage Angle 120° conical, constant directivity Directivity Factor (Q) 5.6 Directivity Index (DI) 7.3 dB Maximum SPL (1m) 107 dB (low-impedance), 113 dB peak; 106 dB (top 70V/100V tap) Impedance 8 ohms (in bypass mode) Transformer Taps 60W, 30W, 15W (& 7.5W @ 70V), plus transformer bypass Transformer Insertion Loss 0.76 dB @ 60W, 0.70 dB @ 30W, 0.61 dB @ 15W, 0.58 dB @ 7.5W Drivers LF: 130 mm (5.25 in); HF: 20 mm (0.75 in) Input Connectors Two removable locking 2-pin connectors with screw-down terminals (Max wire 12 AWG / 2.5 mm) Knockouts Two (top and side) Safety Agency UL1480, UL2043, CUL, NFPA-70, NFPA-90A, IEC60849/EN60849 compliant Dimensions 250 mm (9.9 in) diameter, 239 mm (9.4 in) mounting depth Ceiling Cutout Size 220 mm (8.75 in) Ceiling Thickness Range Up to 70 mm (2.75 in) Net Weight 3.9 kg (8.6 lb) Shipping Weight 8.6 kg (19.0 lb), pair pack Included Accessories C-ring support plate, 2 tile rails, press-in grille, strain relief, cutout template, paint shield, 2 removable locking connectors Optional Accessories MTC-26NC New Construction Bracket, MTC-26MR Mud Ring Bracket Color White Backcan Formed steel (included "blind-mount") Baffle/Rim ABS baffle with UL94-V0 flame class fire rating Plenum Usage Yes, backcan included -
Description Downloads JBL Control 45C/T Two-Way 5.25" Coaxial Ceiling Loudspeaker DataSheet Download
