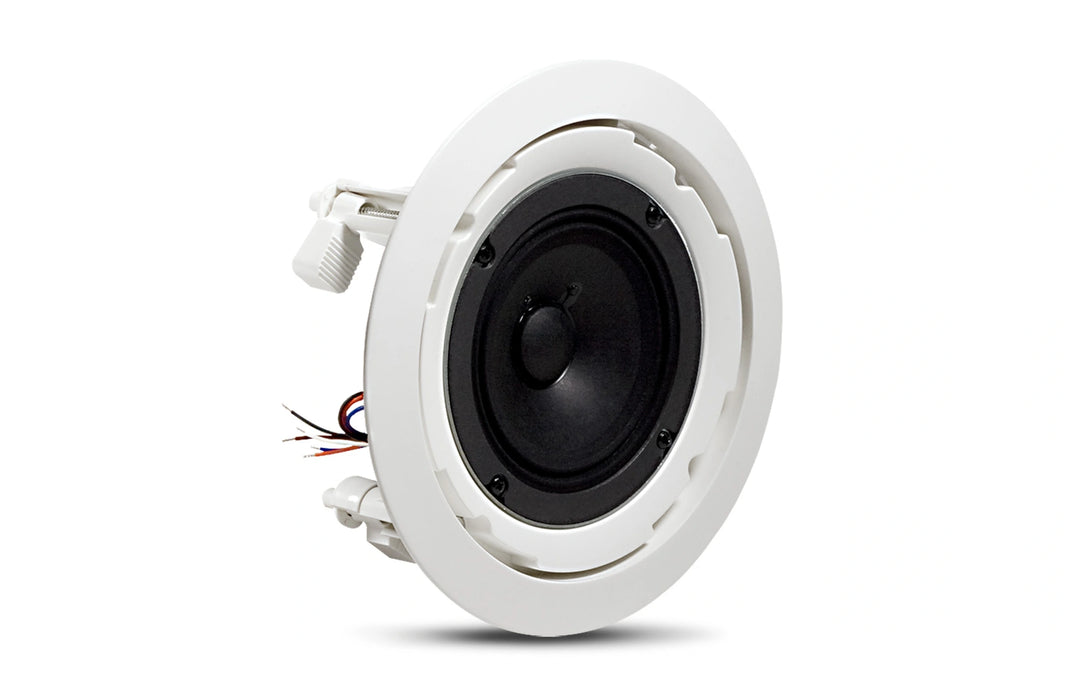

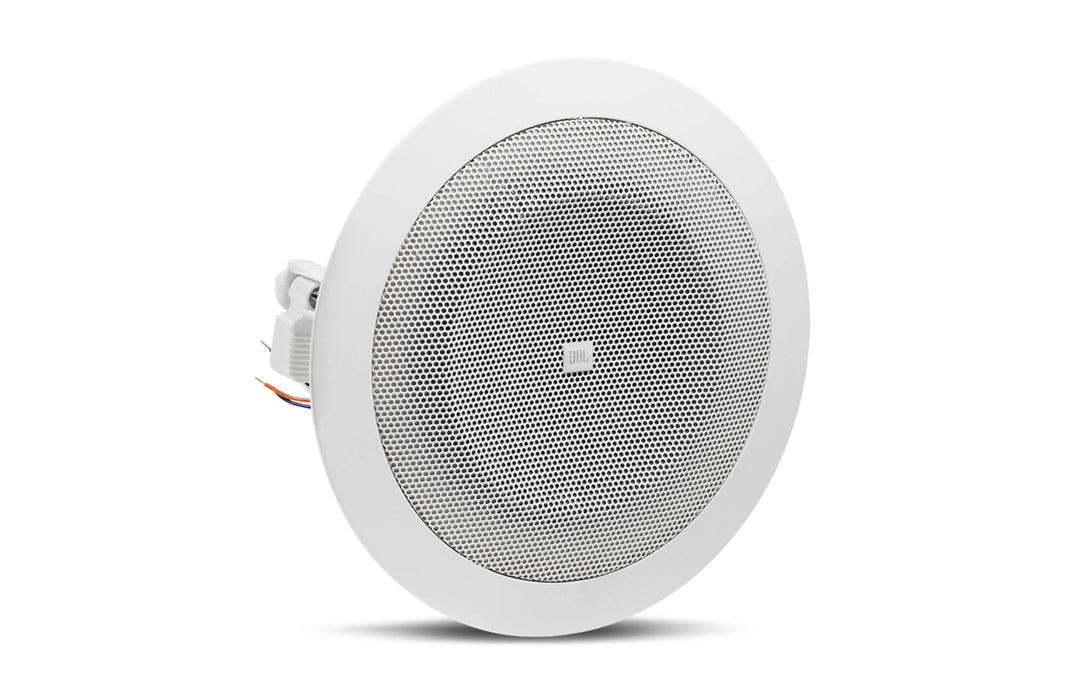

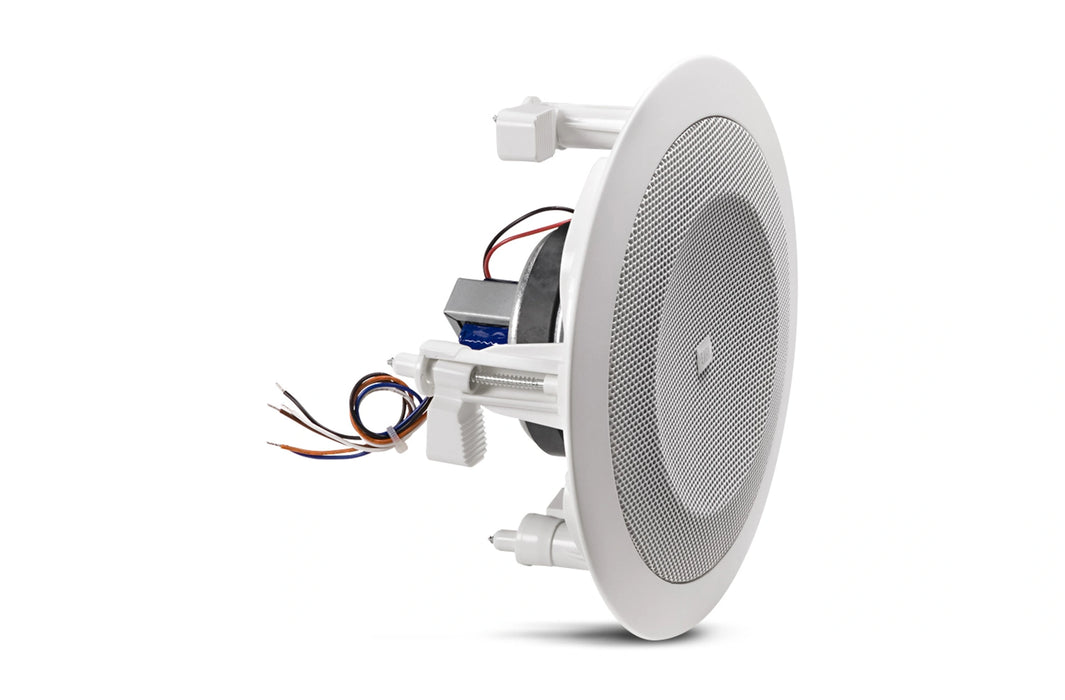

JBL PRO 8124 4" Full-range In-Ceiling Loudspeaker
SKU: 8124
£163.02 (Excl. VAT)
- Description
- Specifications
- Downloads
-
JBL 8124 | 4" Full-Range In-Ceiling Loudspeaker with 6W Transformer
4-inch, Full-range, In-Ceiling Loudspeaker
The 8124 is a 4-inch, full-range, cost-effective loudspeaker for commercial applications. The 8124 features high-fidelity performance in an easy to install package. The system’s high sensitivity drivers deliver maximum sound levels using minimal amplifier power. With its contemporary grill design, 70V/100V taps and an open-back design, the 8100 series brings elegance and performance to basic commercial sound systems, or any application not requiring a backcan for installation.
Features
Clear, High-Fidelity Performance
Dog-ears for easy retrofit installations
High Sensitivity (93 dB, 1W, 1m) for Maximum Power Efficiency
6W Transformer for use of 70V / 100V Distributed Lines -
Drivers 4 in (100 mm), Full-range Driver Frequency Range 60 Hz – 18 kHz Sensitivity 93 dB (1 kHz – 8 kHz) Coverage Angle 130° conical Transformer Taps 6W, 3W, 1.5W (0.75W at 70V only) Input Connectors Bare wires Dimensions (Diameter x Depth) 8.1 in (206 mm) x 3.5 in (89 mm) Weight 2.5 lb (1.2 kg) Included Accessories Sculpted Grille Optional Accessories MTC-8124C C-ring, MTC-Rail tile rails Power Rating See transformer taps Maximum SPL (1m) 101 dB ave. (top 70V/100V tap) Color White Baffle/Rim Plastic Ceiling Cutout Size 175 mm diameter (6.9 in) Plenum Usage Not intended for use in return air plenums Backcan No -
Description Downloads JBL PRO 8124 4" Full-range In-Ceiling Loudspeaker DataSheet Download JBL PRO 8124 4" Full-range In-Ceiling Loudspeaker Quick Start Guide Download
