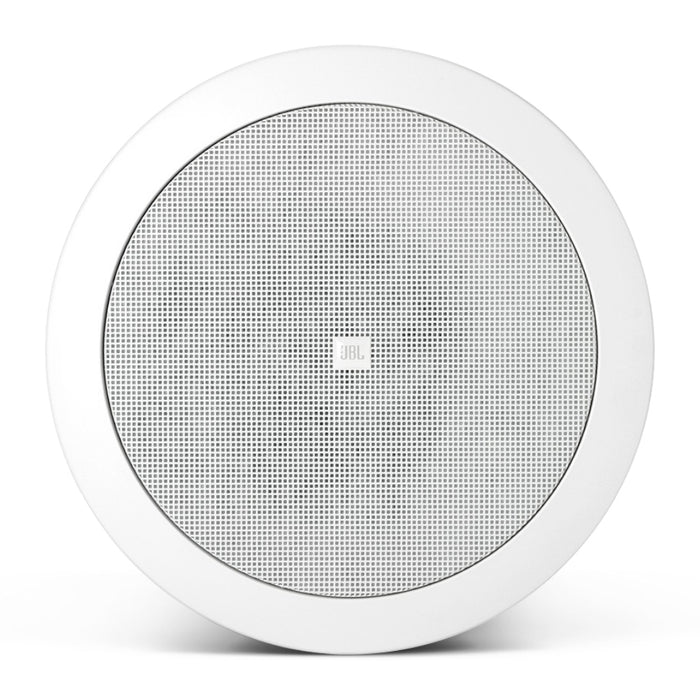

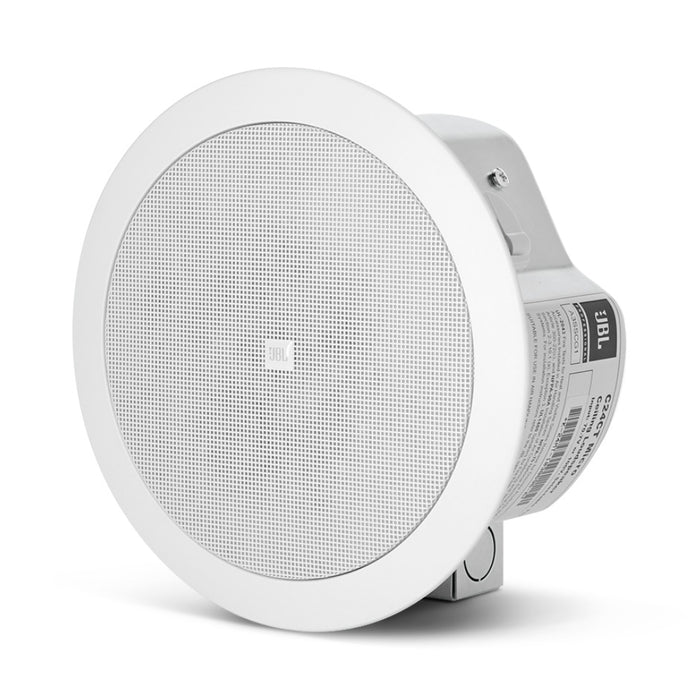

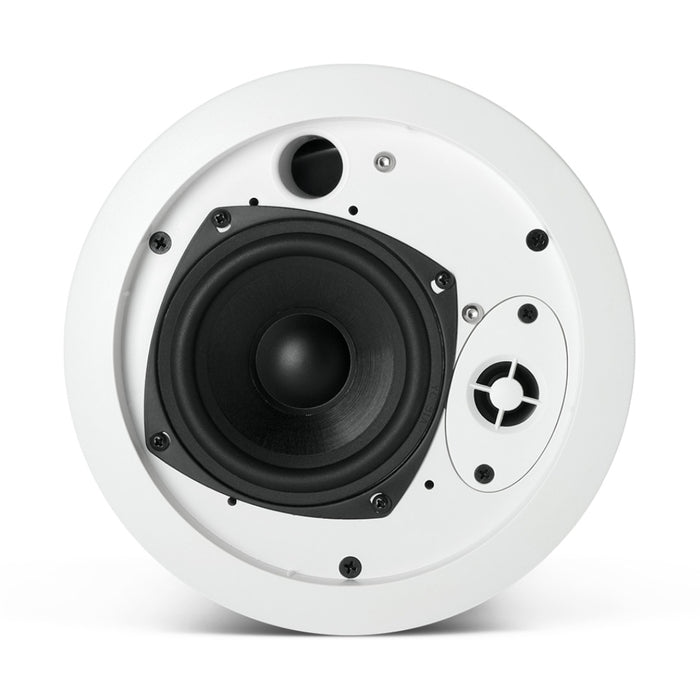

JBL PRO Control 24C Micro Compact Ceiling Speakers
SKU: CONTROL24CMICRO
£166.15 (Excl. VAT)
- Description
- Specifications
- Downloads
-
JBL Control 24C Micro | Compact 4.5" Ceiling Speaker for Background Music & Paging
Background Music Ceiling Loudspeaker
The Control 24C Micro and Control 24CT Micro are compact in-ceiling speakers, providing full, high quality sound for background music and music-plus-paging systems. These speakers are ideally suited for a wide variety of applications, from restaurants and specialty retail stores to professional offices and airports. Low distortion and a smooth, natural frequency response make the Control 24C/CT Micro ideal for medium volume business music systems as well as for the medium to low SPL segments of larger or louder systems. Low frequency output can be augmented with the addition of one of the Control Contractor subwoofer models. Similar mid/high frequency voicing to other JBL Control Contractor loudspeakers can, in many systems, allow for mixing and matching of models within zones without requiring separate equalization. Installation of the Control 24C/CT Micro is quick and easy. The loudspeaker is packaged with the backcan, grille, support backing bracket and tile rails. In addition, optional new construction brackets are available. The entire installation can be accomplished without requiring access above the ceiling. A template is provided for marking the cutout. An innovative C-shaped support backing plate can be installed from below through the cutout to reinforce the top of the ceiling material. Tile bridge rails are included which can be screwed onto the C-plate to extend support to the T-channel grid in suspended ceiling installations. After the speaker is fitted through the cutout, it is held securely in place via mounting tabs which tighten onto the C-plate, if used, or directly onto the ceiling material. The Control 24C/CT Micro backcan is made of formed steel and the speaker is suitable for use in air handling spaces per UL2043. An attachment loop is provided on the backcan for cabling. A seismic tab is provided as a secondary support. The Control 24C/CT Micro trim and baffle are paintable to match any decor.
-
Frequency Range 85 Hz - 25 kHz Power Capacity 30 W Continuous Program ; 15 W Continuous Pink Noise Nominal Sensitivity 86 dB SPL @ 1 m (3.3 ft) Crossover Frequency 3.5 kHz Rated Maximum SPL 98 dB @ 1 m (3.3 ft) Nominal Impedance 7.1 ohms Low Frequency Transducer 115 mm (4.5 in) IMG, 24 mm (1 in) voice coil High Frequency Transducer 12 mm (0.5 in) polycarbonate Included Accessories C-shaped support backing plate ; 2 tile support rails (fits both 2 ft & 600 mm tiles) ; Cutout template, cardboard Optional Accessories MTC-24TR trim ring ; MTC-24NC new construction bracket ; MTC-24MR mud ring Outside Dimensions (H x Dia) 106 x 195 mm (4.2 x 7.7 in) ; 105 mm (4.1 in) depth Cutout Size 167 mm (6.6 in) Net Weight (each) 1.6 kg (3.6 lb) Shipping Weight (pair) 3.6 kg (7.9 lb) Backcan Formed steel Baffle/Rim Medium impact polystyrene, UL94V-O fire rated ; Secondary Attachment Point Included Termination Screw-down terminals, touch-proof, UL/CE/VDE rated Safety Agency Rating UL1480, UL2043, NFPA90 & NFPA70 compliant ; UL1876 registered transformer ; IEC60849/EN60849 compliant What's in the Box 1 x Control 24C Micro ; 1 x C-shaped support backing plate ; 2 x Tile support rails (fits both 2 ft & 600 mm tiles) ; 1 x Cutout template, cardboard -
Description Downloads JBL PRO Control 24C Micro Compact Ceiling Speakers DataSheet Download JBL PRO Control 24C Micro Compact Ceiling Speakers Owner's Manual Download
