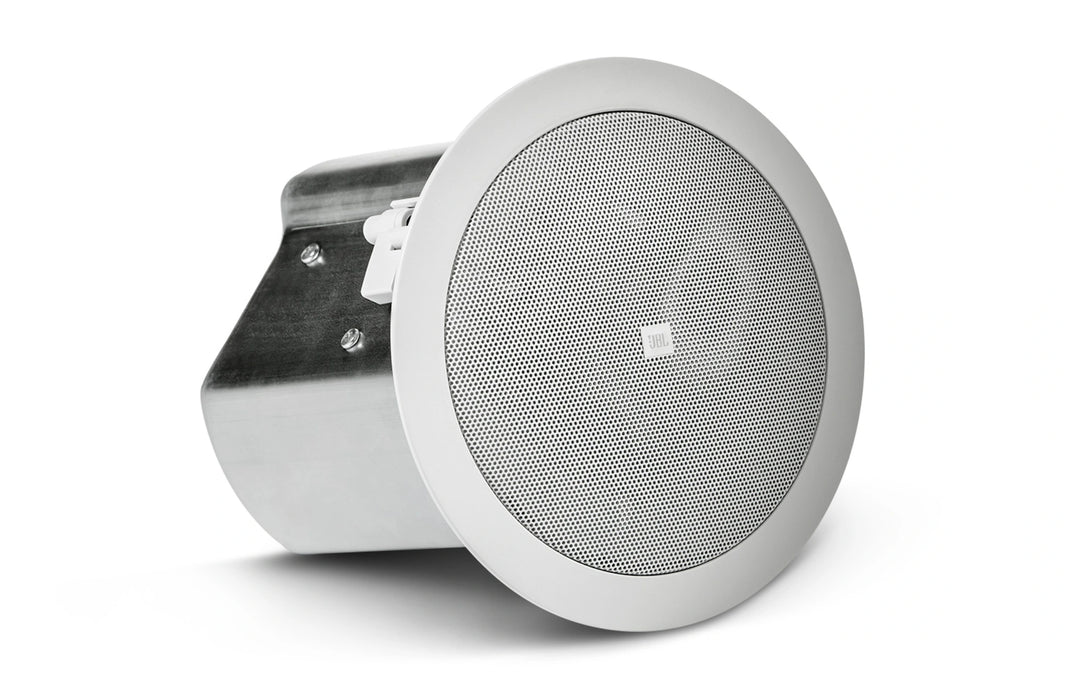

JBL PRO Control14C/T Two-Way 4" Coaxial Ceiling Loudspeaker
SKU: CONTROL14C/T
£231.99 (Excl. VAT)
- Description
- Specifications
- Downloads
-
JBL Control 14C/T | 4" Two-Way Coaxial Ceiling Loudspeaker with Backcan
Two-Way 4" Coaxial Ceiling Loudspeaker

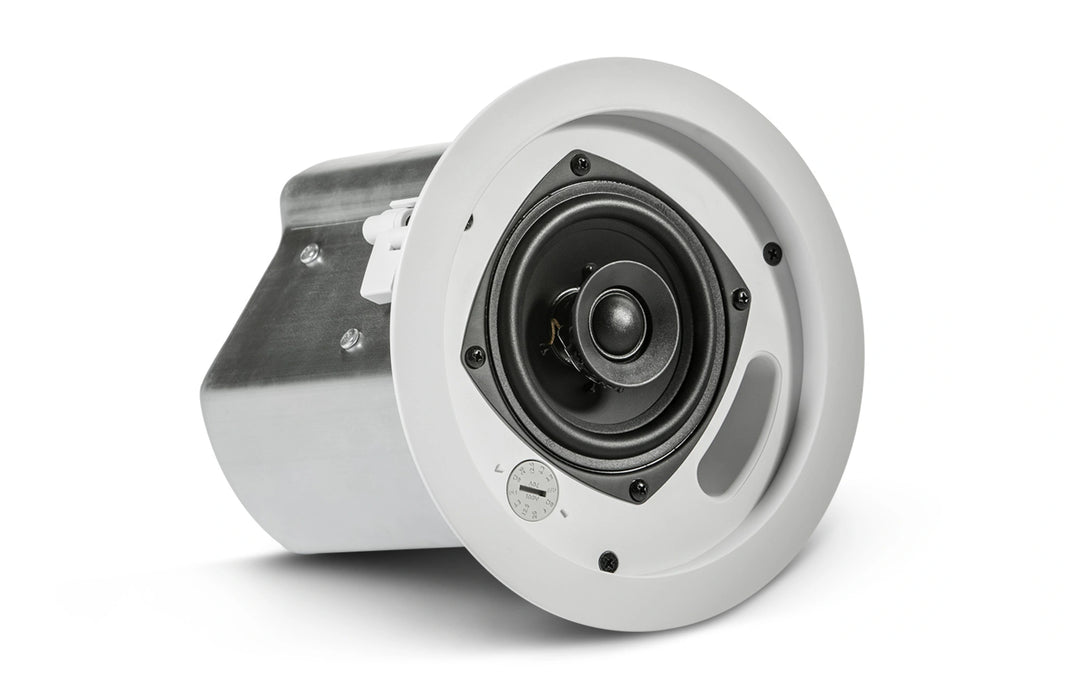

Control 14C/T is a full-range ceiling speaker consisting of a 100 mm (4 inch) high tech cone driver and a 19 mm soft-dome liquid cooled tweeter mounted in a vented, paintable baffle made of UV resistant UL94-V0 and UL94-5HB material, with an integrated backcan for quick and easy installation.
Features
Components:
• 100 mm (4.0 in) high output driver with polypropylene coneand butyl rubber surround
• 19 mm (0.75 in) soft-dome liquid-cooled tweeter
Integrated backcan for quick and easy install
Dual conduit/cable clamps
Combined 70V/100V and low impedance direct operation
• 30 Watts at 8Ω nominal setting
• 25W multi-tap at 70V/100V
74 Hz – 20 kHz bandwidth with wide 120° coverage
White or black (-BK) -
Frequency Range (-10dB) 74 Hz – 20 kHz Power Rating IEC System Long-Term Ratings (low-Z direct):
60 W Continuous Program Power
30 W Continuous Pink Noise (120W peak), 100 hrTransformer Taps 25 W, 12.5 W, 6.3 W @ 70V or 100V (plus 3.2 W @ 70V only) Frequency Response (±3 dB) 100 Hz – 20 kHz Sensitivity 87 dB (1 kHz – 16 kHz) Coverage Angle 120° conical Directivity Factor (Q) 7.6 Directivity Index (DI) 8.1 dB Maximum SPL (1m) 101 dB (low-impedance, 108 dB peak)
101 dB (top 70V/100V tap)Impedance 8 ohms (in direct/bypass 8Ω setting) Crossover Network 12 dB/oct (2nd order) low-pass LF
12 dB/oct (2nd order) high-pass HFDrivers LF: 100 mm (4.0 in)

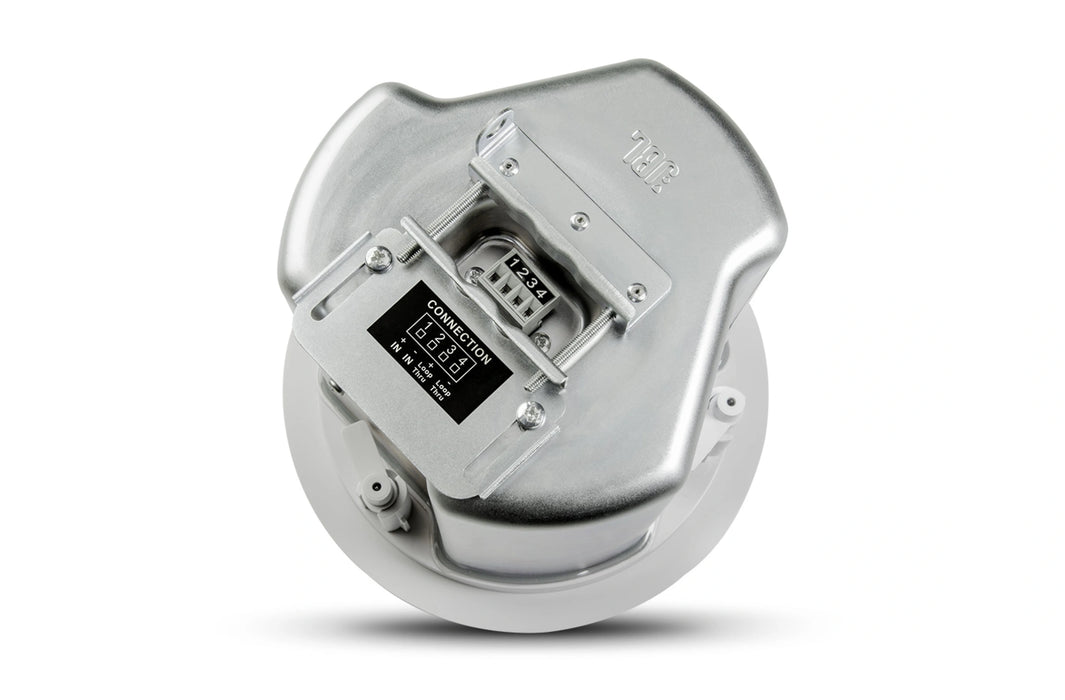

HF: 19 mm (3/4 in)Input Connectors Removable locking 4-pin connector, screw-down terminals, max 12 AWG (2.5 mm²) Connector Wiring Pin 1 = + In; Pin 2 = - In;
Pin 3 = + Loop Thru; Pin 4 = - Loop ThruStrain Reliefs Strain relief for two cables or flex conduits via clamping mechanism Materials ABS baffle UL94-V0/5VB flame rating
Zinc-plated steel backcanSafety Agency UL1480, UL2043, NFPA90 & NFPA70; S7232/UL Listed; UL1876; ROHS; C-tick N108; CE; IEC60849/EN60849 Dimensions 196 mm Ø x 181 mm depth
(7.7 in Ø x 7.1 in depth)Ceiling Cutout Size 170 mm (6.7 in) diameter (template included) Ceiling Thickness Range Up to 35 mm (1.4 in). With MTC-TCD up to 55 mm (2.2 in) Safety Seismic Attachment One point, top surface Net Weight 2.2 kg (4.8 lbs, one speaker) Shipping Weight 8.2 kg (17.9 lbs, pair in master carton) Included Accessories C-ring plate, 2 tile rails, cutout template, paint shield, multi-pin connector, grille Optional Accessories MTC-24NC, MTC-24MR, MTC-TCD, MTC-48TR Color White or Black Backcan Formed steel (integrated backcan) Baffle/Rim ABS baffle with UL94-V0/5VB flame rating Plenum Usage Yes, backcan included -
Description Downloads JBL PRO Control14C/T Two-Way 4" Coaxial Ceiling Loudspeaker DataSheet Download
