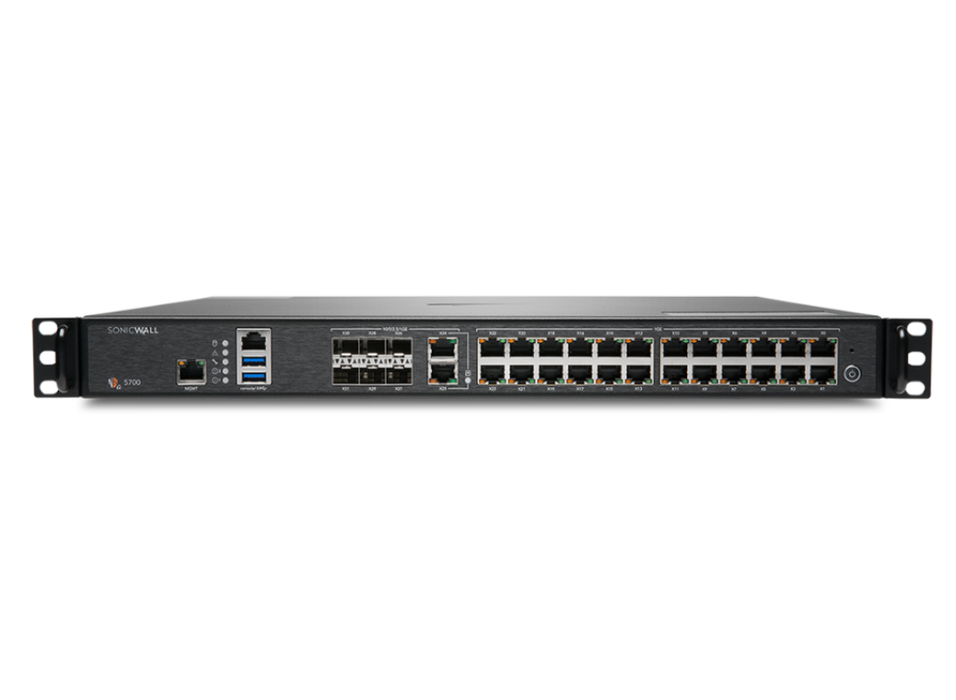

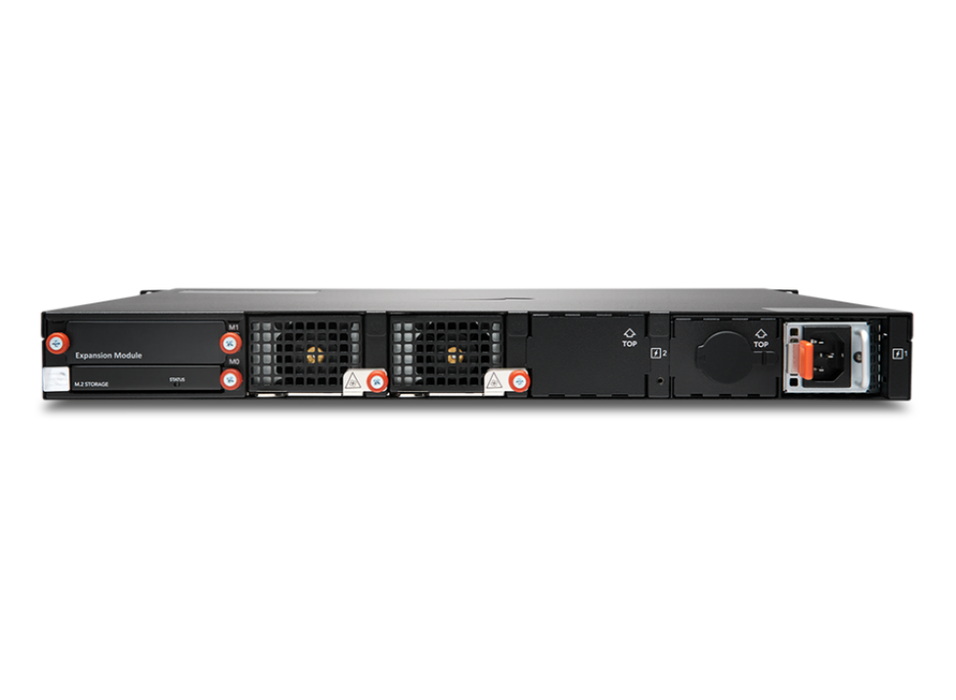

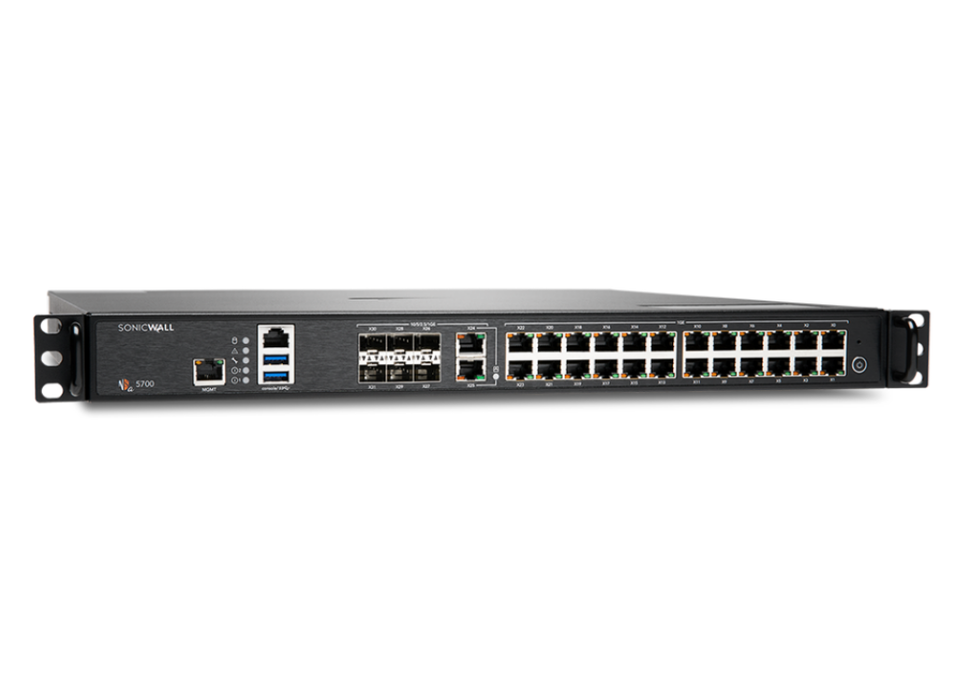

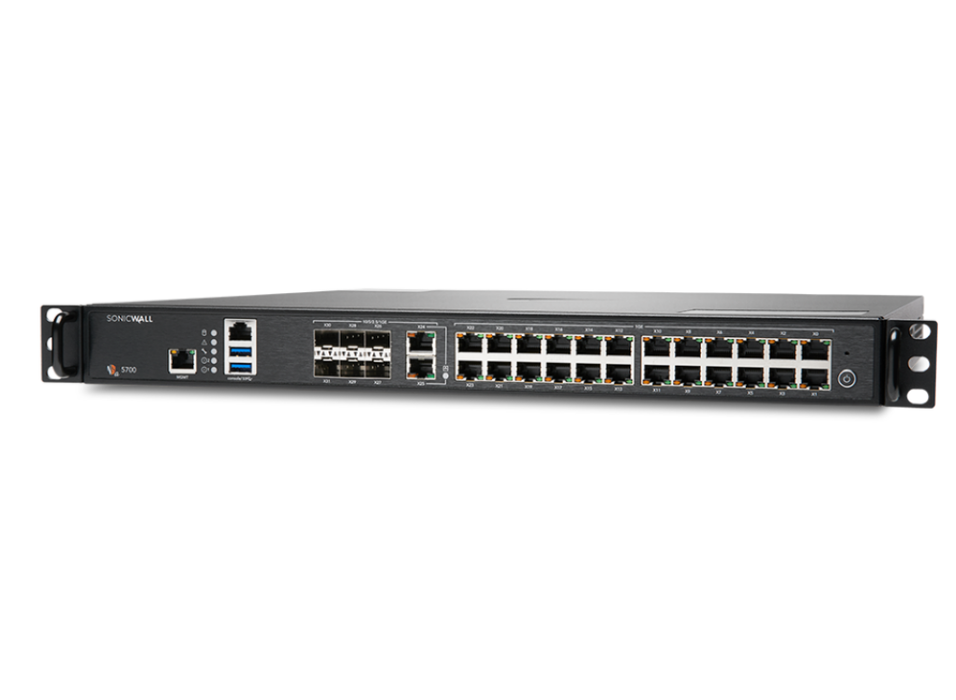

SonicWall NSa 5700 Total Secure - Advanced Edition | 02-SSC-3919
SKU: 02-SSC-3919
£1,868.09 (Excl. VAT)
- Description
- Specifications
- Downloads
-
SonicWall NSa 5700 Total Secure - Advanced Edition | 02-SSC-3919
With comprehensive security features such as intrusion prevention, VPN, application control, malware analysis, URL filtering and IP reputation services, it protects the perimeter from advanced threats without becoming a bottleneck. The NSa 5700 has been built from the ground up with the latest hardware components, all designed to deliver multi-gigabit threat prevention throughput — even for encrypted traffic. Featuring a high port density (including 24 x 1GbE ports and 6 x 10G SFP+ ports), the solution supports network and hardware redundancy with high availability, clustering and dual power supplies.
Highlights:
1 RU – Form Factor
24 x 1 GbE interfaces
6 x 10 GbE interfaces
Multi-gigabit Threat and Malware Analysis Throughput
Enterprise Internet Edge Ready
Latest Generation 7 SonicOS support
Secure SD-WAN capability
Intuitive single pane of glass management
TLS 1.3 support
Best-in-class price-performance
Fast DPI performance
Low TCO in its class
High port density for easy networking
Redundant power
-
Category Specification Operating System SonicOS 7.0.1 Interfaces 6 x10G/5G/2.5/1G SFP+, 2 x 10G/5G/2.5G/1G (Cu), 16 x 1GbE (Cu), 2 USB 3.0, 1 Console, 1 Mgmt. port Expansion Storage Expansion Slot (Up to 1TB) Storage 128GB VLAN Interfaces 512 Access Points Supported (Max) 512 Firewall Inspection Throughput 28 Gbps Threat Prevention Throughput 15 Gbps Application Inspection Throughput 18 Gbps IPS Throughput 17 Gbps Anti-Malware Inspection Throughput 16 Gbps TLS/SSL Decryption and Inspection Throughput (DPI SSL) 7 Gbps IPSec VPN Throughput 15 Gbps Connections per Second 228,000 Maximum Connections (SPI) 5,000,000 Maximum DPI-SSL Connections 350,000 Maximum Connections (DPI) 3,500,000 Site-to-Site Tunnels 6000 SSL VPN Licenses (Max) 2 (1500) IPSec VPN Clients (Max) 2000 (4000) Encryption/Authentication DES, 3DES, AES (128, 192, 256-bit)/MD5, SHA-1, Suite B Cryptography Key Exchange Diffie Hellman Groups 1, 2, 5, 14v Route-based VPN RIP, OSPF, BGP Certificate Support Verisign, Thawte, Cybertrust, RSA Keon, Entrust, Microsoft CA VPN Features Dead Peer Detection, DHCP Over VPN, IPSec NAT Traversal, Redundant VPN Gateway, Route-based VPN Global VPN Client Platforms Microsoft® Windows, Mac OS X, Google® Android™, Kindle Fire, Chrome, Windows 8.1 NetExtender Microsoft Windows, Mac OS X, Linux FC3+/Ubuntu 7+/OpenSUSE Mobile Connect Apple® iOS, Mac OS X, Google® Android™, Kindle Fire, Chrome, Windows 8.1 (Embedded) Deep Packet Inspection Services Gateway Anti-Virus, Anti-Spyware, Intrusion Prevention, DPI SSL Content Filtering Service (CFS) HTTP URL, HTTPS IP, keyword/content scanning, Comprehensive filtering Comprehensive Anti-Spam Service Supported Application Visualization Yes Application Control Yes Capture Advanced Threat Protection Yes IP Address Assignment Static, DHCP, PPPoE, L2TP, PPTP, Internal DHCP server, DHCP relay NAT Modes 1:1, 1:many, many:1, many:many, flexible NAT, PAT, transparent mode Routing Protocols BGP, OSPF, RIPv1/v2, static routes, policy-based routing QoS Bandwidth priority, max bandwidth, guaranteed bandwidth, DSCP marking, 802.1p Authentication LDAP, XAUTH/RADIUS, SSO, Novell, internal user DB, Terminal Services, CAC Local User Database 3200 VoIP Full H323-v1-5, SIP Standards TCP/IP, UDP, ICMP, HTTP, HTTPS, IPSec, ISAKMP/IKE, SNMP, DHCP, PPPoE, L2TP, PPTP, RADIUS, IEEE 802.3 Certifications Pending FIPS 140-2, UC APL, VPNC, IPv6 (Phase 2), ICSA Network Firewall, ICSA Anti-virus, Common Criteria NDPP (Firewall and IPS) High Availability Active/Active with stateful synchronization Form Factor 1U Rack Mountable Power Supply (W) 1x350W Maximum Power Consumption (W) 128.1 Input Power 100-240 VAC, 50-60 Hz Total Heat Dissipation (BTU) 436.82 BTU Dimensions 43 x 46.5 x 4.5 (cm) / 16.9 x 18.1 x 1.8 (in) Weight 7.8 kg Shipping Weight 13.5 kg Regulatory Certifications FCC Class A, CE, UL, cUL, TUV/GS, WEEE, REACH, ANATEL Operating Temperature 32°-105° F (0°-40° C) Storage Temperature -40° to 158° F (-40° to 70° C) Humidity 0-90% non-condensing -
Description Downloads Datasheet Downloads
