WyreStorm 6U/12 Slot Rack Mount for NetworkHD™ 100/250/400/500/600 Series | NHD-000-RACK4
SKU: NHD-000-RACK4
£245.00 (Excl. VAT)
- Description
- Specifications
- Downloads
-
WyreStorm 6U/12 Slot Rack Mount for NetworkHD™ 100/250/400/500/600 Series | NHD-000-RACK4

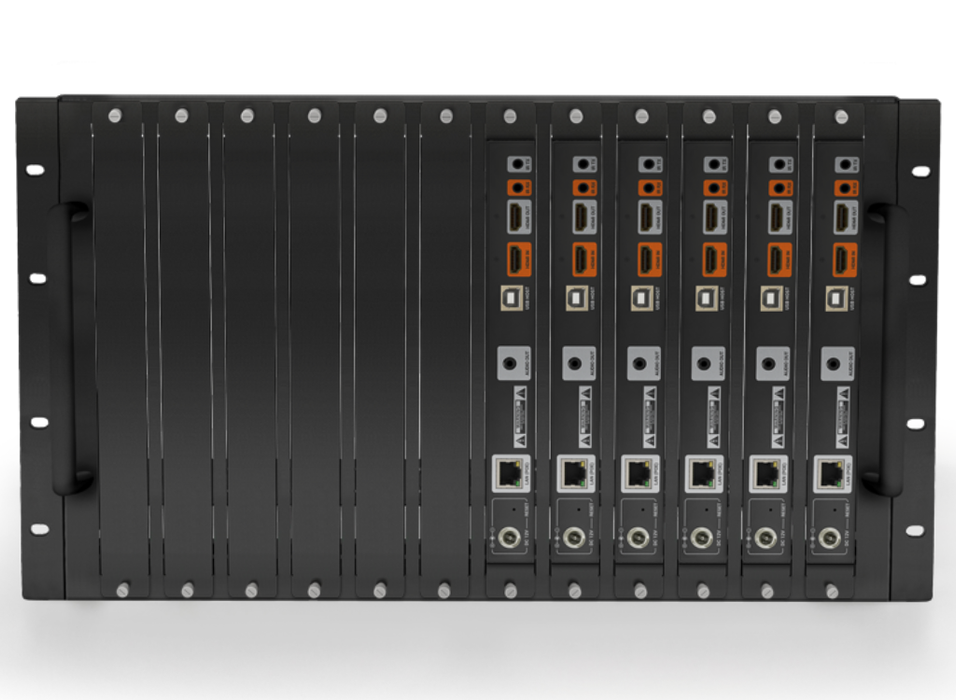

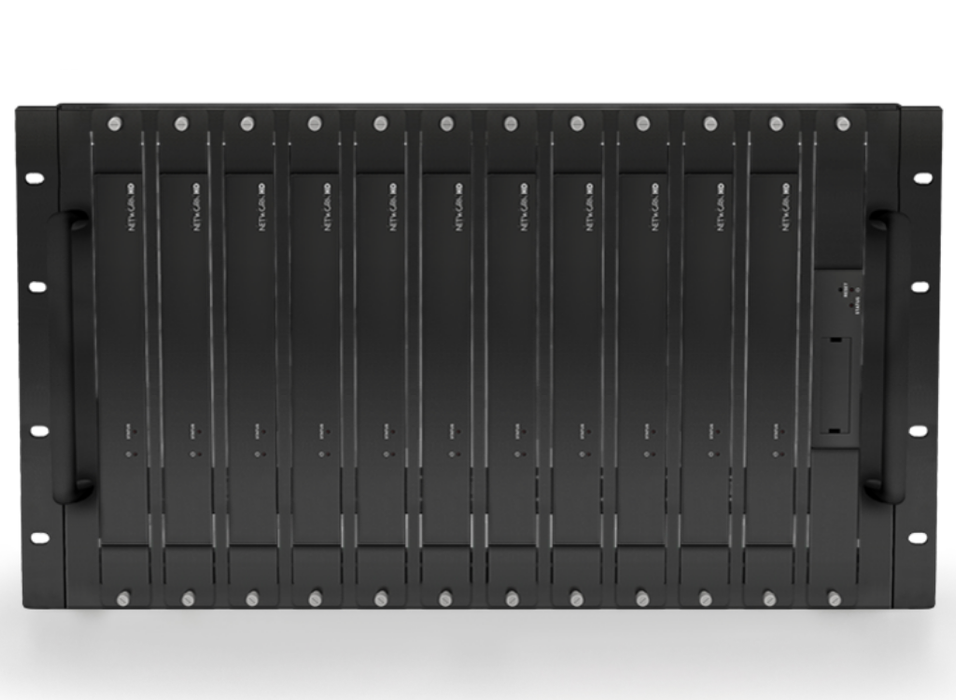

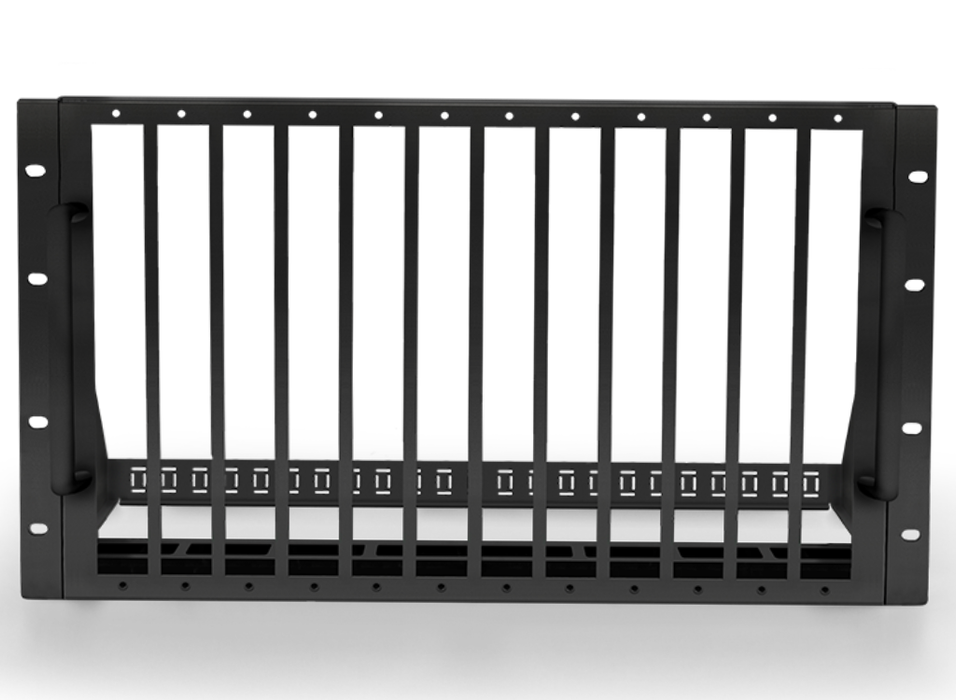

The NHD-000-RACK4 is a 6U rack mount that provides a clean installation for up to 12 NetworkHD 100, 400, 500 and 600 Series encoders or decoders. The NHD-000-CTL NetworkHD controller is also compatible allowing for all required devices to be installed in a single location.
The slimline and thermally optimized design helps keep your centralized NetworkHD solution perfectly organized.
IDEAL HEAT DISSIPATION
Vertical slot installation supports any combination of up to 12 NetworkHD Series components or NHD-CTL-PRO’s providing ideal component heat dissipation and airflow – a key factor in increasing reliability and product lifespan.
WE SHIP COMPLETE
All mounting hardware provided: rack, brackets, blanking plates, rails, lacing bar, handles and screws.
ALL STEEL DESIGN
Strong, steel enclosure construction keeps hardware secure and protected with units secured via brackets, rails and front panel screws.
STREAMLINE YOUR INSTALL
Specifically designed for organizing NetworkHD components within the main rack location, the NHD-000-RACK4 de-clutters the rack, improving cable management, port identification and unit access.
In the Box
1x NHD-000-RACK4 Chassis
2x 19” Rack Mounting Brackets
7x Blank Plates
1x Assembly Screws Pack -
Feature Specification Rack Units 6U Height (With Feet) 265.9mm / 10.47in Height (Without Feet) 265.9mm / 10.47in Width (With Brackets) 483mm / 19.02in Width (Without Brackets) 440mm / 17.33in Depth (With Handles) 188.3mm / 7.42in Depth (Without Handles) 150mm / 5.91in Weight (Chassis without Plates) 2.3kg / 5.06lbs Device Mounting Brackets Not included (required separately) Blanking Plates 7 included (extra available separately) Slot Capacity 12 slots for 100, 400, 500, 600 Series & NetworkHD Controller devices Mounting Options Front or rear-facing connections Cable Management Removable rear cable management bar Thermal Efficiency Supports passive/active cooling systems Convenience Features Removable front-facing handles Design All-steel, sturdy and solid structure Pre-built Systems Systems can be pre-built before arrival -
Description Downloads SpecSheet Downloads
