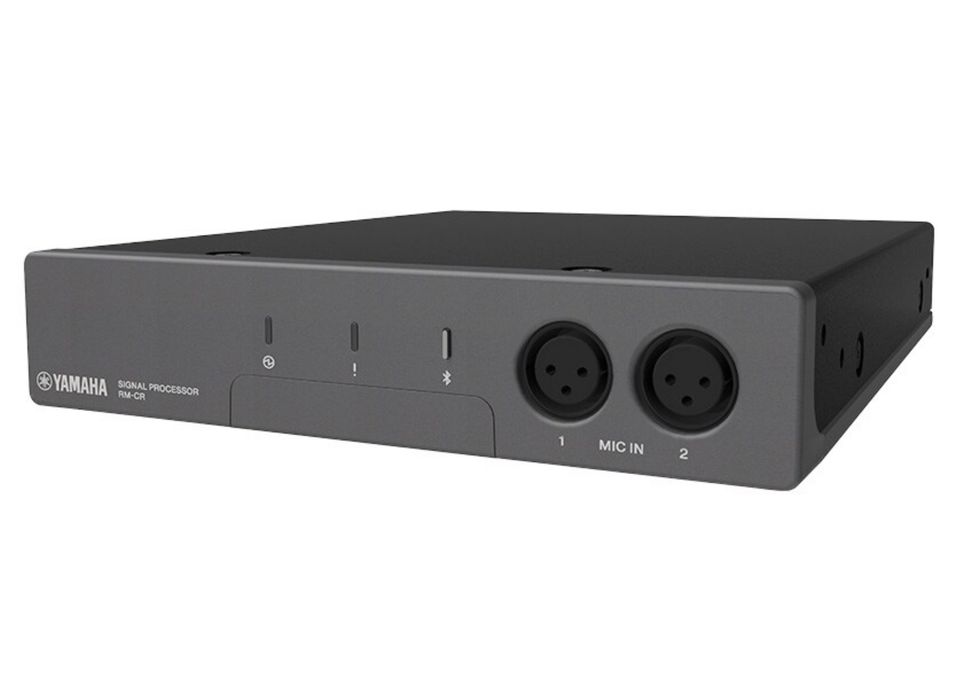

Yamaha RM-CR Dante Remote Conference Audio Processor

Advanced Dante Audio Processing for Modern Conference Rooms

Standard network audio support for Dante—all compatible devices can be connected with single network cable
Uses the Dante audio network standard for audio transmission between devices. Audio/control signals can be transmitted via a single network cable. The RM-CR Remote Conference Processor performs voice line settings and detailed adjustments automatically, which easily resolves several difficult problems associated with troublesome wiring, establishing network environments, and optimizing acoustics for each room environment.

Power supply uses the PoE method, enabling power to be supplied via a network cable
Power supply uses the PoE method. Together with the RM-CG Ceiling Array Microphone and Dante/PoE-compatible VXL Series Model P line array speakers, the RM-CR uses power supplied from the PoE-compatible Yamaha network switch via a network cable, sparing you any worry about compatibility with various devices.

Automatically recognizes connected devices on the same network for audio routing
All it takes is a click in your web browser. The setup wizard automatically performs audio routing in your system. This minimizes the enormous amount of time required for adjustment, and can be easily set without knowledge or experience of acoustics.

Equipped with Auto Tuning functions to automatically measure and provide the optimum sound settings for the environment
By automatically recognizing devices connected to the same network as the RM-CR, analyzing the acoustic environment of the room where it is installed and the state of any installed speakers, and automatically optimizing the parameters of signal processing technology, etc., the Auto Tuning function adjusts for optimum sound that makes hearing and speaking easy.

Equipped with Auto Mixer functions to automatically optimize the mixing balance of audio input via Dante
Equipped with Auto Mixer functions that allow you to select either gain-sharing type* or gate type, enabling input level balance to be actively adjusted from each microphone.

*Gain-sharing type does not require complicated settings such as threshold level, attack time, or hold time.

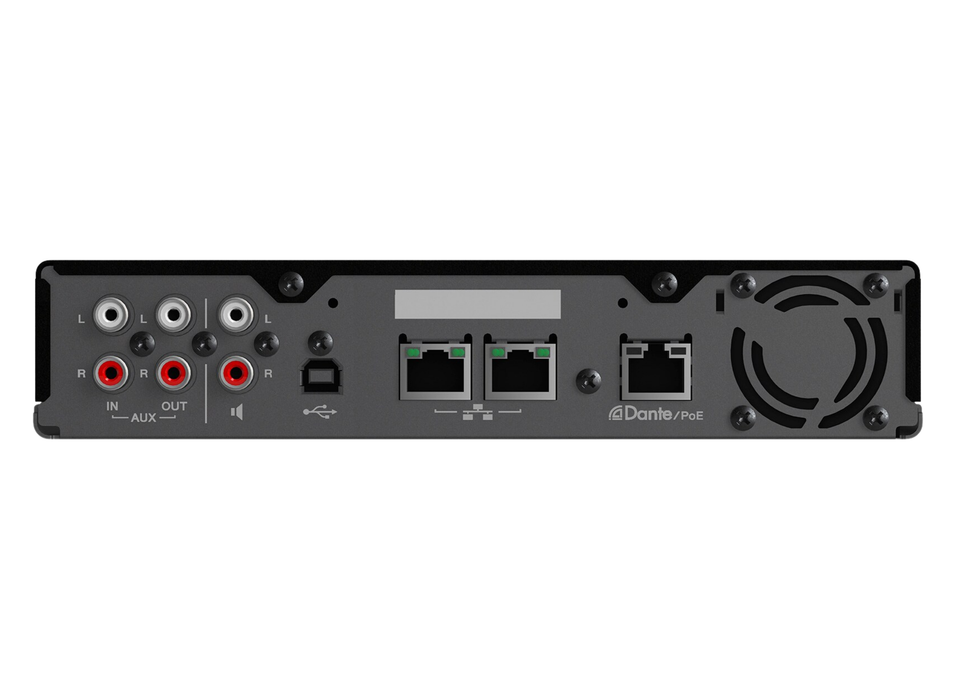

Equipped with various input/output connections such as USB, analog, and Bluetooth, compatible with diverse applications
Equipped with various interfaces such as USB, Bluetooth®, and audio input/output, the system can be used not only for web conferencing but also for other remote conferencing applications such as video conferencing and conference calls. As it’s compatible with Windows, macOS, iOS and Android, there are no restrictions on the web conferencing system used. Remote communication solutions can be constructed in combination with any OS, device, or teleconferencing system.

RM-CR Auto Setup
Follow the setup wizard on your web browser and with just a few clicks it will automatically adjust the audio according to your system’s audio routing and room environment. This minimizes the enormous amount of time required for adjustment, and can be easily set without knowledge or experience of acoustics.

Settings screen: Password, network, region, peripherals, and Bluetooth settings can be changed here.

Audio screen: Input/output can be checked and auto tuning can be carried out here.

Tools screen: Firmware can be updated and device information can be checked here. Firmware updates can be carried out not only for the RM-CR itself, but also for connected RM series firmware. Save/recall settings and log settings can also be changed on the Tools screen.

Divide/Combine Room Wizard
This feature makes it easy to design rooms for divide/combine operation. From the web GUI, run the “Divide/Combine Room” wizard to configure up to four rooms and their divide/combine modes. Create and save presets for each operating pattern, then recall them during use with the RM-CR Preset/Recall function.

Smart Looks and Flexible Design for Custom Control Panels
No specialized programming skills are required. An intuitive interface makes it easy to create faders for volume control and mute on/off of RM-CR. And position photographs or other graphic elements on the tablet screen as required to create original control panels that are ideally suited to conference audio controls. In addition, ProVisionaire Touch and ProVisionaire Control can control the MRX series processor and other Yamaha Pro Audio equipment. It is easy to combine those parameters onto the one screen. ProVisionaire Control and MRX7-D can control 3rd party networked equipment using commands of Ethernet protocols, UDP, or/and TCP.

Using deep neural networks, the system provides adaptive noise reduction across a wide range of acoustic conditions. Additional tuning prioritizes conversational naturalness and continuity for smooth, seamless transitions.

A high-performance AI Denoiser function for enhanced noise reduction is built right into the hardware itself — no extra software, PCs, or additional settings are needed.

Enterprise level Security
Yamaha's comprehensive ADECIA remote conferencing solution utilizes the Radius Server and MAC Authentication capabilities of Yamaha switches to provide a robust, semi-automatic defense against security risks.
