MicroTouch 10.1" TFT LCD WXGA PCAP Touch Monitor | DT-100P-A1
SKU: DT-100P-A1
£185.63 (Excl. VAT)
- Display Size10"
- Touch Capabilities10pt multi-touch
- Net Weight1 kg
- Operating SystemNone
- VESA Patterns75x75
- Panel TypeTFT Panel
- ResolutionWXGA
- Screen TypeFlat
- Response TimeN/A
- Screen Ratio16:10
- Brightness300 cd/m2
- Operating HoursN/A
- Description
- Specifications
- Downloads
-

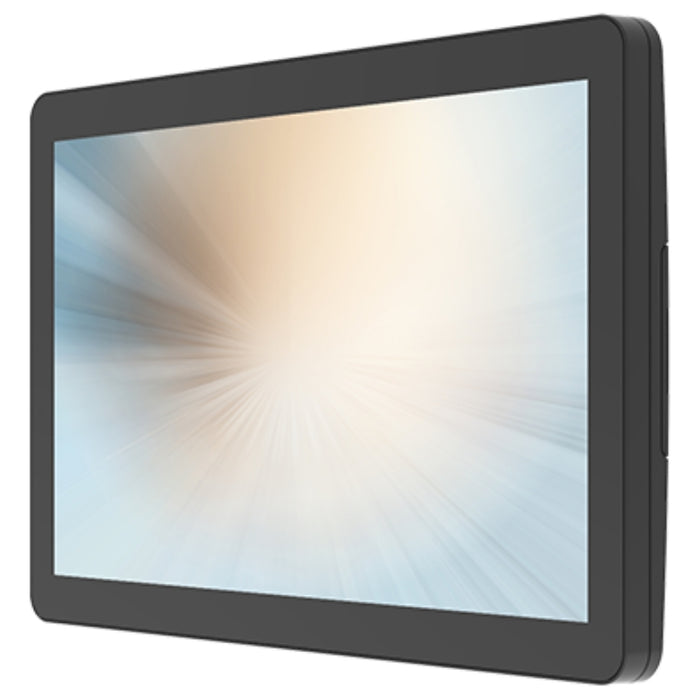

MicroTouch DT-100P-A1 10.1" PCAP Touch Display | 1280x800 USB-C IP65 Front Commercial Monitor
The ultra-modern, unique zero bezel design and small footprint of the DT-100P-A1 makes it a one-stop-shop solution for a variety of applications. The versatile USB-C port with ALT DP mode, power delivery input, and touch acceptance eliminates the need to manage multiple cables enabling a seamless aesthetic while driving efficiencies during the installation process. This 10-point touch projected capacitive display with a 16:10 – 1280×800 resolution is designed to create a memorable touch experience for retail point-of-sale second displays, small form factor point-of-service, in-aisle or end-aisle interactive signage applications, and more. The seamless bezel, advanced PCAP technology and rounded aesthetic bridges the gap between daily consumer devices and commercial devices, a step towards commonality and memorable end-user experience.
-

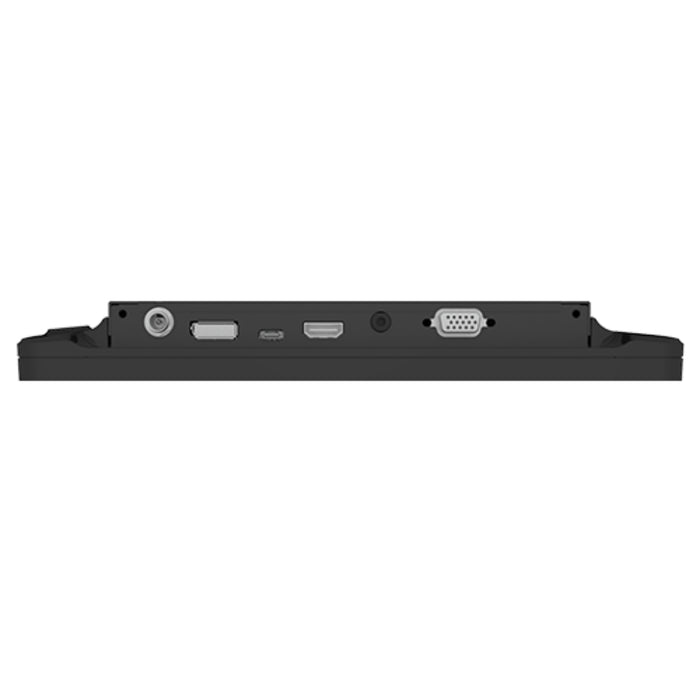

Size 10.1" TFT LCD Maximum Resolution 1280 x 800 Contrast Ratio 1000:1 Aspect Ratio 16:10 Brightness 350 nits (No Touch), 290 nits (PCAP) View Angle H:160˚, V:160˚ Video Port 1 x VGA, 1 x DP, 1 x HDMI Warranty 3 year Touch Screen Projected Capacitive Touch Points 10 Touch Screen Interface USB-HID Display Surface 7H Hardness durable glass OSD Port 1 x RJ11 USB Port 1 x USB Type C (ALT Mode & PD Input) Audio Port 1 x Audio-Input (3.5 mm Mini-Jack) Power Input 1 x DC In 12V Jack Power Input Power Supply 36W (12V, 3A) External Power Adaptor Speaker 2 x 2W Stereo Housing Color Black Material Plastic, Glass, SECC Metal Compliance IP65 – Front Only Dimensions (W x H x D) mm 245.4 x 170.5 x 30.3 mm (monitor only) Net Weight (kg) 0.95 kg (monitor only) Gross Weight (kg) 6.80 kg (5 units set) (monitor only) Carton (W x H x D) mm 450 x 335 x 295 mm (monitor only) VESA 75 x 75 mm Certifications CE, FCC, UL, CB, UKCA Operating Temperature 0˚C ~ 40˚C, 20% ~ 80% RH. Non-Condensing Storage Temperature -20˚C ~ 60˚C, 10% ~ 90% RH. Non-Condensing Box Contents LCD Touch Monitor, Power Cord, Power Supply, AC-DC Adapter, HDMI, USB-C to A, USB-C to C -
Description Downloads MicroTouch 10.1" TFT LCD WXGA PCAP Touch Monitor | DT-100P-A1 DataSheet Download
