Enhanced Durability with GOB Surface Treatment

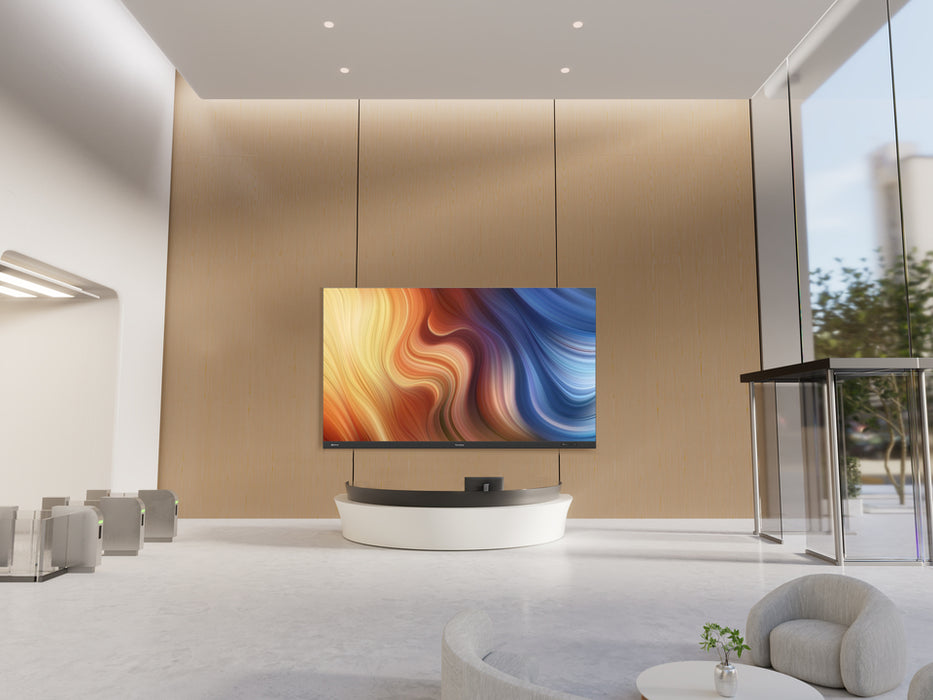

Crafted for exceptional durability, this display features Glue-on-Board (GOB) surface treatment technology—a protective process that seals the LED module surface with transparent epoxy glue, enhancing protection during installation and use. Achieving an IP54 and IK06 rating*, it provides resistance against collisions, dust, and moisture, making it an ideal choice for public spaces such as lobbies, shopping malls, and transportation hubs.
*Only the LED module surface is rated IP54 and IK06
IP54 & IK06 Certified Protection
Automatic Power Switching for Continuous Operation
To ensure continuous display in mission-critical environments, the LED display integrates an intelligent power redundancy system. In the event of a cabinet power failure, the system automatically switches to an adjacent cabinet’s power supply, preventing black screens and maintaining uninterrupted operation.
*If both adjacent cabinets experience simultaneous power failure, the backup mechanism will be unable to operate.
All-in-One Integration for Effortless Installation
The LED display's all-in-one design streamlines installation by eliminating the need for configuration involving power supply, control, image stitching, and display systems. Simply power on the display to initiate operations.
Modular Design for Easy Installation
This modular display features a user-friendly design for a simplified installation experience. Each LED module automatically configures and calibrates to its specific location and settings during installation, ensuring a smooth and effortless process.

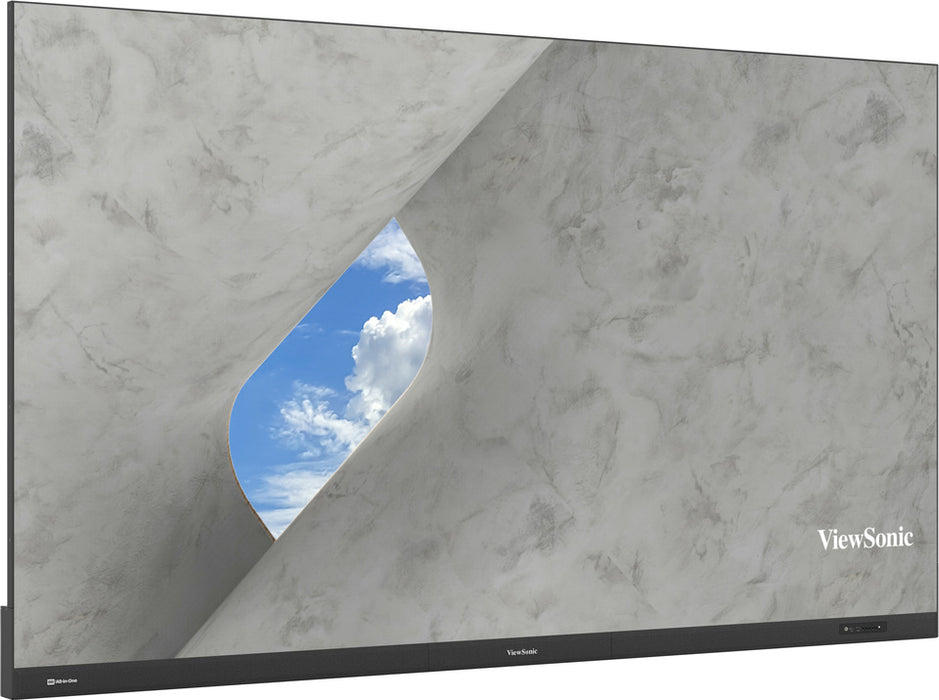

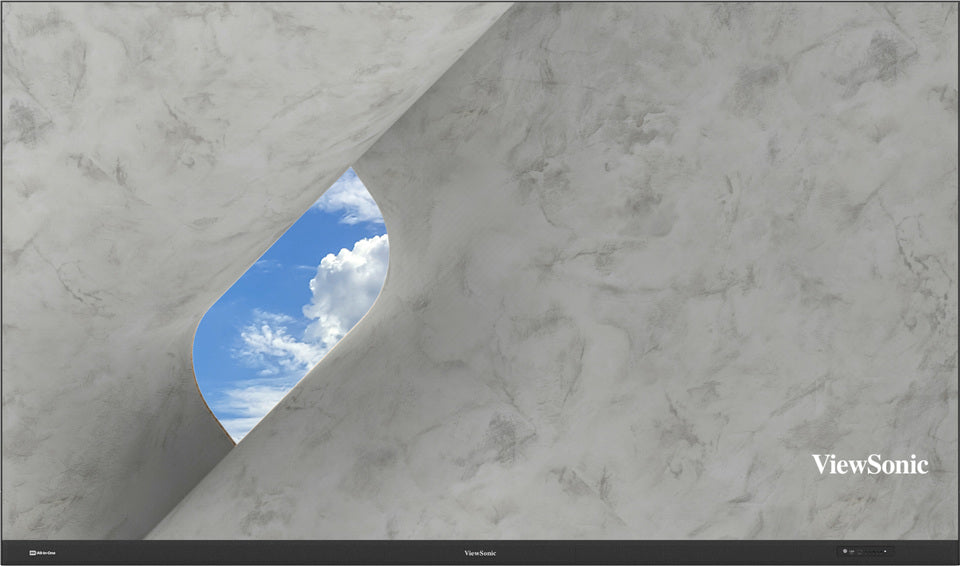

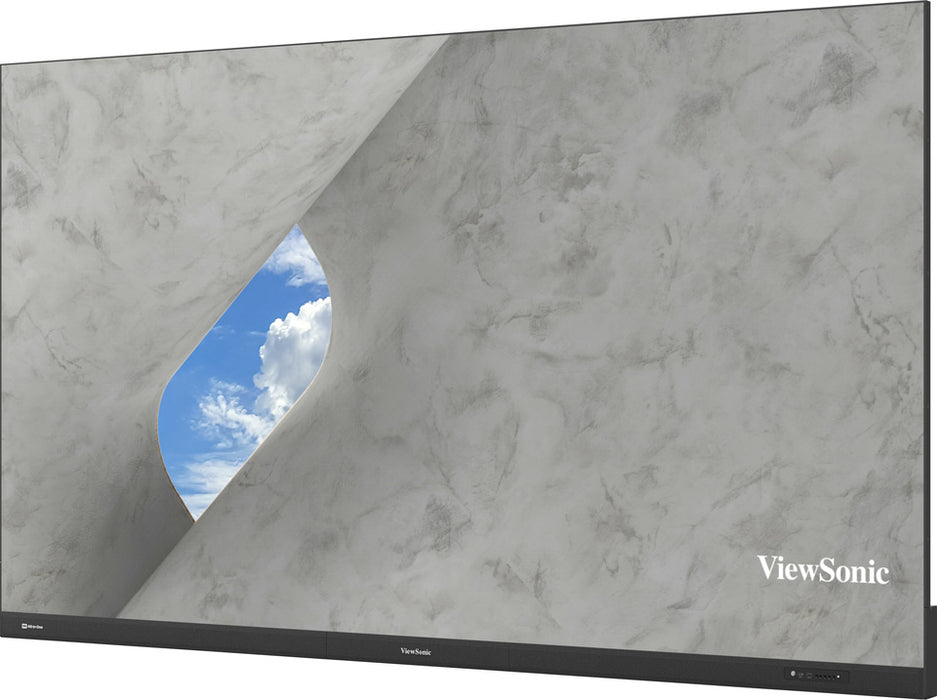

Premium Aesthetics with Ultra-Slim & Bezel-Free Design
Spanning an expansive 163” screen, equivalent to nine 55” LCD displays combined, this frameless display seamlessly delivers content without any visible bezel stitching, creating a truly immersive visual experience. Its minimalist and sleek design, with a slim 32mm thickness, exudes sophistication that effortlessly complements any space and interior design.
Captivating Visuals that Shine Bright
Experience stunning clarity with an impressive brightness of 600 nits, featuring 100-level adjustments and an outstanding 6,500:1 contrast ratio. This display delivers captivating, crystal-clear visuals, effortlessly shining in large venues with ambient lighting. Boasting a lightning-fast 3,840 Hz refresh rate, it effortlessly elevates every presentation to an unparalleled level of excellence.
600 nits Brightness, 6,500:1 Contrast Ratio
Engage Your Audience through Powerful Audio
Deliver compelling presentations that captivate your audience with the display's dual sets of 18W speakers, ensuring powerful and clear sound even in large venues.
18W Speakers
Centralized Management via LAN Control
This LED display supports easy and efficient control of multiple-display configurations through LAN control, enabling centralized management, scheduling, and adjustments from a remote location.
Streamlined and Secure with an OS-Free Design
This LED display features a secure OS-free design with no pre-installed apps, minimizing software vulnerabilities and hacking risks. It also simplifies maintenance by removing the need for updates.
Full Front Maintenance
Instead of relocating an entire set of display for maintenance, users can effortlessly replace any defective piece with the hot-swappable front LED modules using the electric vacuum suction tool – it's easy to use regardless of technical expertise.
Hot-Swappable
Dimensions & I/O Ports
1-Speakers
2-IR Receiver
3-HDMI 1
4-USB 2.0
5-Menu Control: Brightness Level
6-Menu Control: Volume Level
7-Power Button
8-Indicator Light
9-HDMI 2
10-HDMI Out
11-RJ45
12-USB 2.0
13-SPDIF Out
14-Audio Out x2
15-RS-232
| Screen Size | 136" | Display Area (mm) | 3000 (H) x 1687.5 (V) |
| Native Resolution | 1920x1080 | Panel Technology | Direct view LED |
| LED Package Type | SMD 3 in 1 (GOB) | Bonding Wire | Copper |
| Pixel Pitch (mm) | 1.56 | Brightness (max.) | 600 nits (100 levels adjustable) |
| Contrast Ratio (typ.) | 6500:1 | Orientation | Landscape |
| Viewing Angles (typ.) | H = 170°, V = 170° | LED Lifetime (typ.) | 100,000 Hours |
| Resolution Support | SVGA (800x600) to 1080p (1920x1080@60Hz) | HDTV Compatibility | 720p, 1080p |
| Horizontal Frequency | 31K-94kHz | Vertical Scan Rate | 56-85Hz |
| HDMI Input | 2 (HDMI 1.3/HDCP 1.4) (internal x1, external x1) | USB Type A Input | 2 (USB2.0) (internal x1, external x1) |
| RJ45 Input | 1 (control) | HDMI Output | 1 (HDMI 1.3/HDCP 1.4) |
| Speaker | 18W x 2 | Audio Out (3.5mm) | 2 (internal speaker x1) |
| S/PDIF | 1 | USB Type A (Power) | Shared with USB A input (5V/0.5A) |
| RJ45 (LAN Control) | 1 (shared with internet) | USB Type A (Services) | 1 (shared with USB A input) |
| RS232 | 1 (DB 9-pin female) | IR Receiver | 1 |
| Power Supply Voltage | 100-120V/20A ~ 50/60Hz or 220-240V/10A ~ 50Hz (vary by country) | Power Consumption | 570W (typ), 1710W (max), <0.5W (Hibernate) |
| Operating Temperature | 0~40℃ | Total LED Module Quantity | 100 |
| Ingress Protection Rating | IP54 (Front) | Impact Protection Rating | IK06 (Front) |
| Net Weight | 330.69 lbs (150 kg) | Gross Weight | 529.11 lbs (240 kg) |
| Product Dimensions (WxHxD) | 118.58 x 69.82 x 3.56 in (3012 x 1773.4 x 90.5 mm) | With Wall Mount | 118.58 x 69.82 x 3.56 in (3012 x 1773.4 x 90.5 mm) |
| Packing Dimensions (WxHxD) | 78.35 x 34.65 x 48.03 in (1990 x 880 x 1220 mm) | Standard Accessories | Power Cord x1, LAN Cable (Cat 5E) x1, Remote Control (IR) x1, Installation Guide x1, Wall Mount x1, Spare LED Module x7, Maintenance Tool (RSPL) |
| Optional Accessories | Maintenance Tool: RSPL |
