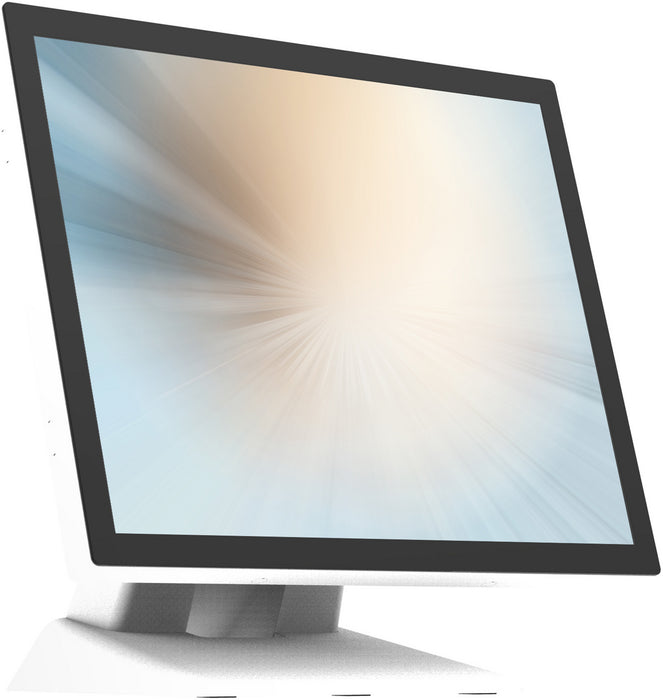

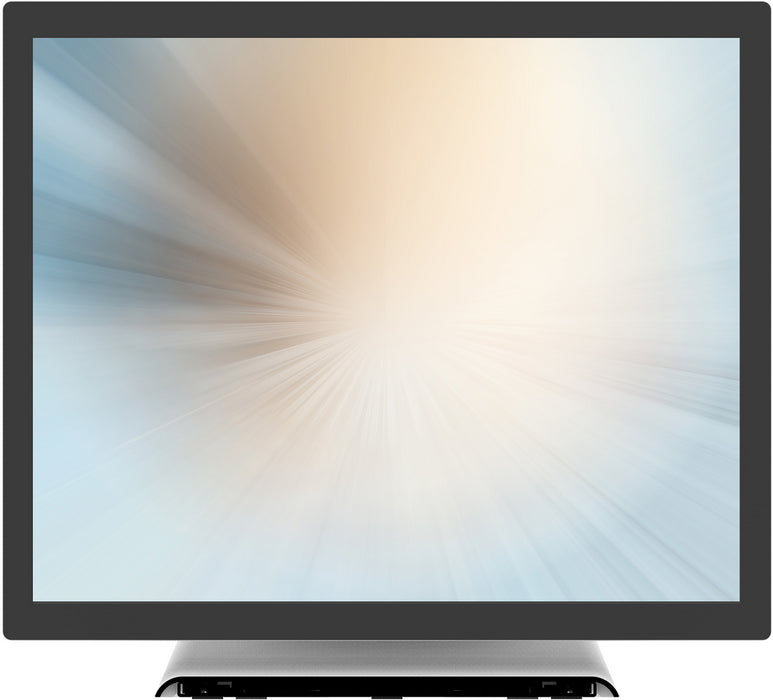

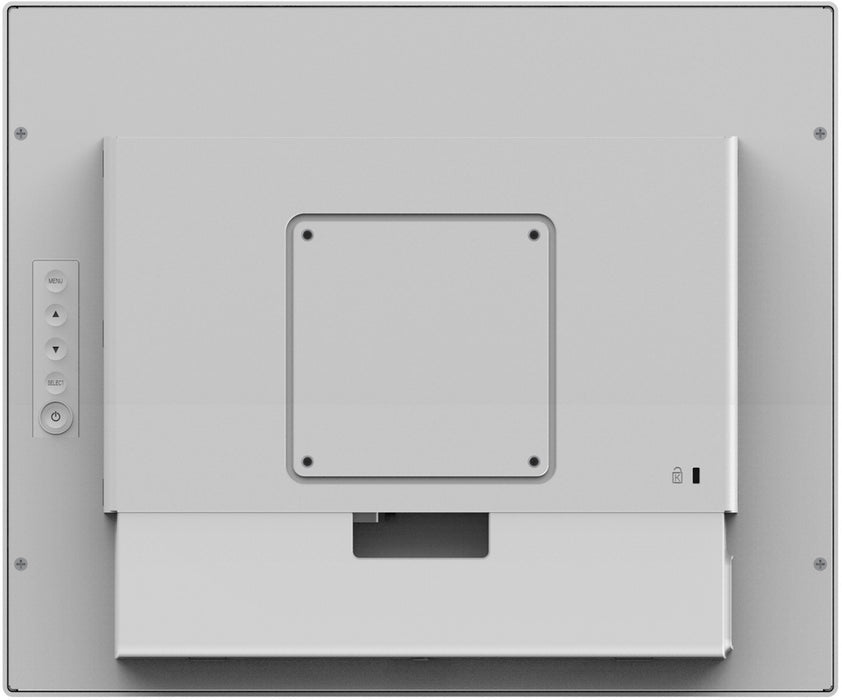

MicroTouch 17" SXGA TFT LCD Medical-grade Touch Monitor | DT-170P-M1

SKU: DT-170P-M1
MicroTouch 17" SXGA TFT LCD Medical-grade Touch Monitor | DT-170P-M1 Touchscreen Monitor MicroTouch
Availability:
Out of stock
📞 Call for stock update.
Free Express Delivery Guaranteed on all orders over £100 ex VAT.
Sold out

£419.96 (Excl. VAT)

- £503.95 (Inc. VAT)
£419.96 - £419.96
- - £503.95
Availability:
Out of stock
payment-icons
Download Product Datasheet i
Trade pricing for verified resellers, proforma issued on official company letterhead for PO processing.
Education & Public Sector Pricing available for schools, universities, NHS, and government organisations. Contact our Public Sector Team on 020 8191 9223 or email info@screenmoove.com.
  • Display Size17"
  • Touch Capabilities10pt multi-touch
  • Net Weight5 kg
  • Operating SystemNone
  • VESA Patterns100x100
  • Panel TypeTFT Panel
  • ResolutionSXGA
  • Screen TypeFlat
  • Response TimeN/A
  • Screen Ratio5:4
  • Brightness300 cd/m2
  • Operating HoursN/A

Book a Free Product Demo

Remote or on-site. No obligation.

Integrator or Installer?

Trade pricing, volume discounts, same-day collection.

Request a Trade Account

Education & Public Sector Solutions

Exclusive pricing, flexible terms, and dedicated support for schools, universities, NHS, and government organisations.

Create an Account Email Public Sector Team
Official Purchase Orders We accept formal POs with VAT-compliant invoicing for all verified institutions.
Contract & Volume Discounts Competitive rates for multi-site, long-term, or framework-based deployments.
Dedicated Account Management Single point of contact for lead times, coordination, and sourcing.
Flexible 30-Day Terms Available to verified schools, councils, and government bodies.
  • Description
  • Specifications
  • Downloads

  • MicroTouch DT-170P-M1 17" Medical Touch Monitor | IP65 Front IEC60601-1-2 Compliant Display

    The DT-170P-M1 is a 17″ standard format medical-grade monitor perfect for a wide range of healthcare applications including, nurses’ stations, equipment/devices, laboratory instruments, medical carts, and advertising. This unique, 10-point touch monitor is specifically designed to enhance your medical space and end-user experience while maintaining a durable, compliant, and versatile product enabled by IP54 rated screens and IEC-60601-1-2 4th edition EMC compliance. Naturally intuitive, engineered performance, and designed for medical, this monitor combines a commonality of medical market requirements and consumer-grade touch experience into one solution.

  • Size 17" TFT LCD Maximum Resolution 1280 x 1024
    Contrast Ratio 1000:1 Aspect Ratio 5:4
    Brightness 350 nits (No Touch), 297 nits (P-CAP) View Angle H:170˚, V:160˚
    Video Port 1 x VGA, 1 x HDMI, 1 x DP Warranty 3 year
    Touch Screen Projected Capacitive Touch Points 10
    Touch Screen Interface USB-HID (Type B) Screen Treatment Anti-Glare
    USB Port 1 x USB 2.0 (Type B) for Touch Interface (USB-HID) Audio Port –
    Power Input 1 x 2.1 mm 12V DC Jack Other Port 1 x RJ11 (for remote key)
    Color Temperature 5500K / 6500K / 7500K / 9300K / User Definition Gamma Selection Native / Gamma 1.8 / Gamma 2.2 / DICOM Part 14, Calibrated
    Gamma LUT (bits) 10 Scaling Mode Full / 5:4 / 4:3 / 16:9 / 1:1
    Power Supply Medical External Power Adaptor 60W Speaker –
    Housing Color White Construction Glass, SECC Metal, Plastic (ABS)
    Compliance Front Panel IP65 Dimensions (W x H x D) mm 369.0 x 334.9 x 202.0
    Net Weight (kg) 5.3 Gross Weight (kg) 7.3
    Carton (W x H x D) mm 450.0 x 418.0 x 277.0 VESA 100 x 100 mm
    Ball Drop IK07 Certifications CE, CB, FCC, UL, CCC, RoHS, IEC60601-1-2 4th edition EMC compliant
    Operating Temperature 0° C ~ 40° C, 20% ~ 80% RH. Non-Condensing Storage Temperature -20° C ~ 60° C, 20% ~ 90% RH. Non-Condensing
    Box Contents LCD Touch Monitor, Stand, Power Cord, DC Power Supply, HDMI Cable, VGA Cable, USB Cable (A to B), M3 Screw & IO Cover Optional Peripheral N/A
    Optional/Replacement Accessories 60W Power Supply | Adapter 12V 60W BPM060S12F31 DC2.1 BP: PS-3316006024F0, Cable HDMI V2.0 A-A L1800 BK, A.3: HDMI-5313118134FH, Cable DP_DP V2 L1800 BK L1800 BK: DP-5313118123FV, Cable VGA PC99 1.8M BK V1: VGA-5313118072FH, Cable A55336-000 USB A-B L1830 BK: USB-5313118047FV
