86" 4K UHD
3840 × 2160 resolution for large-format commercial content.
Official Partner

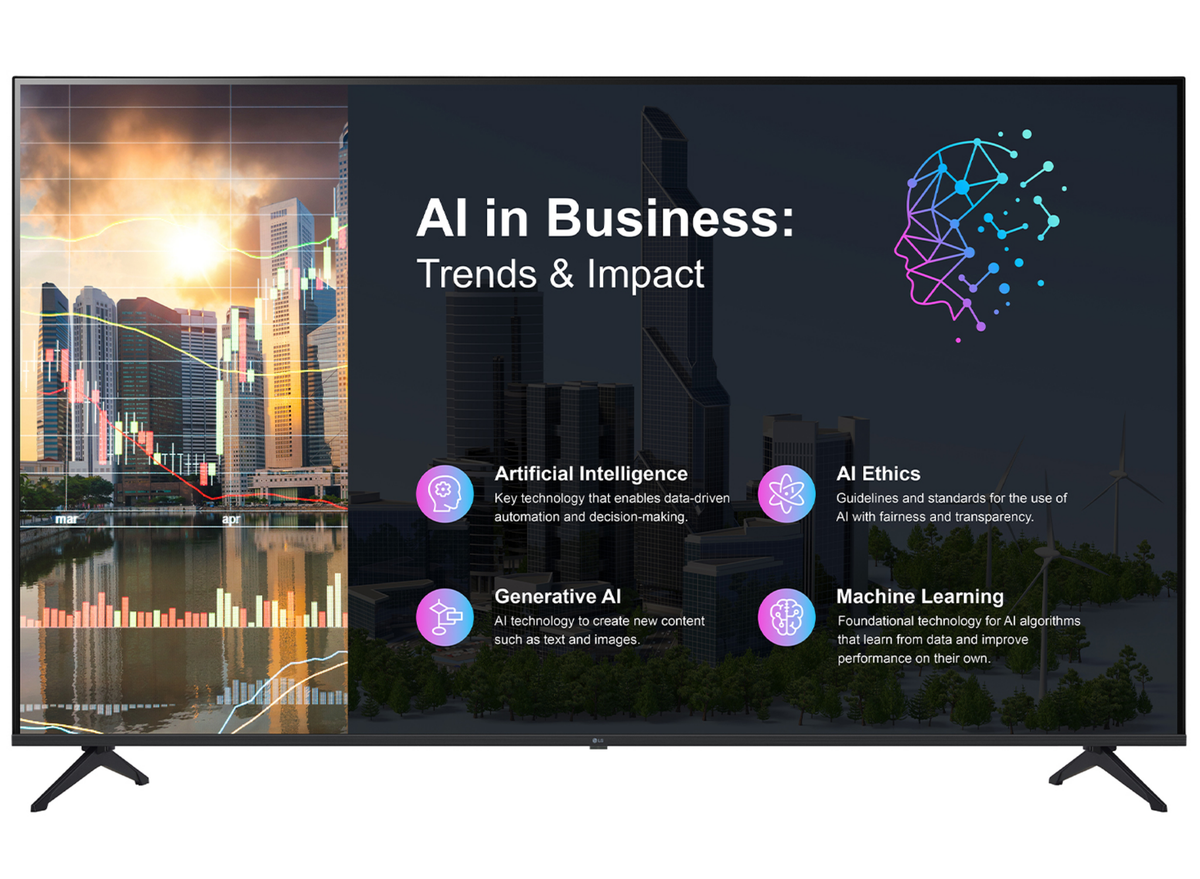

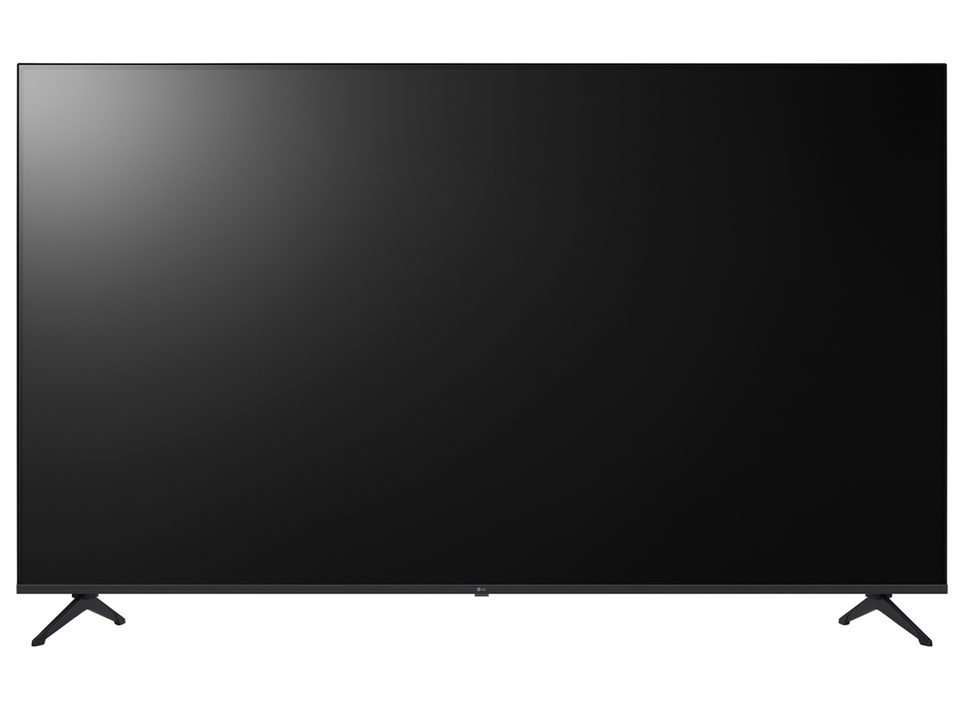

LG 86PK640S 86" 4K Ultra HD Smart Commercial Signage TV
In Stock195 available
Express DeliveryFast UK delivery where eligible
3 Year WarrantyManufacturer-backed cover
UK Expert SupportPre-sales and technical advice
Product description
LG 86PK640S · 86" UHD TV Signage
LG 86PK640S 86" 4K UHD Smart Commercial Signage TV with webOS 25
The LG 86PK640S is an 86-inch professional UHD TV signage display combining 3840 × 2160 4K resolution, webOS 25, integrated content management, Wi-Fi, Bluetooth and LG signage management tools.
Designed for retail, hospitality, corporate environments, education, reception spaces and commercial TV applications, the LG 86PK640S provides a large 86-inch display with embedded Content Manager, Group Manager, Fail Over, Play via URL, scheduling, Beacon and LG SuperSign compatibility.
Explore the wider LG Digital Signage collection or compare other 86-inch commercial displays available from ScreenMoove.
86" 4K UHD
3840 × 2160 resolution
webOS 25
Integrated smart signage platform
300 nit Max.
260 nit typical brightness
16/7 Operation
30,000-hour backlight life
Description
LG 86PK640S Professional TV
86-inch 4K UHD commercial TV signage for business environments.
The LG 86PK640S combines an 86-inch Direct LED display with native 3840 × 2160 4K UHD resolution and a 5,000:1 typical static contrast ratio.
Unlike conventional consumer televisions, the PK640S range includes commercial signage tools such as Vertical Setup, Fail Over, Play via URL, time scheduling, NTP synchronisation, Beacon, embedded Content Manager and embedded Group Manager.
- 86-inch UHD TV signage display
- 3840 × 2160 4K resolution
- Direct LED backlight
- 300 nit maximum brightness
- 260 nit typical brightness
- 5,000:1 typical static contrast
- 60Hz refresh rate
- webOS 25
- 30,000-hour backlight life
- Rated for 16 hours/day, 7 days/week
86PK640S specifications at a glance.
webOS 25
Integrated smart signage platform with upgraded SoC and web engine.
5,000:1 Contrast
Strong typical static contrast for commercial TV signage.
Embedded CMS
Built-in Content Manager and Group Manager functionality.
Wi-Fi & Bluetooth
Wireless content sharing, Soft AP and Bluetooth audio support.
16/7 Operation
30,000-hour backlight life based on 16 hours per day, 7 days a week.
4K Ultra HD Picture Quality
Four times the resolution of Full HD.
The LG 86PK640S displays content at 3840 × 2160 4K UHD resolution, providing four times the pixel count of 1920 × 1080 Full HD.
On an 86-inch screen, this additional resolution is particularly valuable for detailed presentation content, promotional imagery, digital information, menus and large-format branded visuals.
- 3840 × 2160 resolution
- 4K UHD picture quality
- Direct LED backlight
- 60Hz refresh rate
- HDR10 Pro support
- HLG support
Large 86-Inch Display
Detailed visual communication at large scale.
The 86-inch format gives businesses significantly more display area than conventional commercial TVs, making the 86PK640S suited to environments where information needs to be visible across larger spaces.
Its 4K resolution allows content to remain detailed despite the large physical screen size.

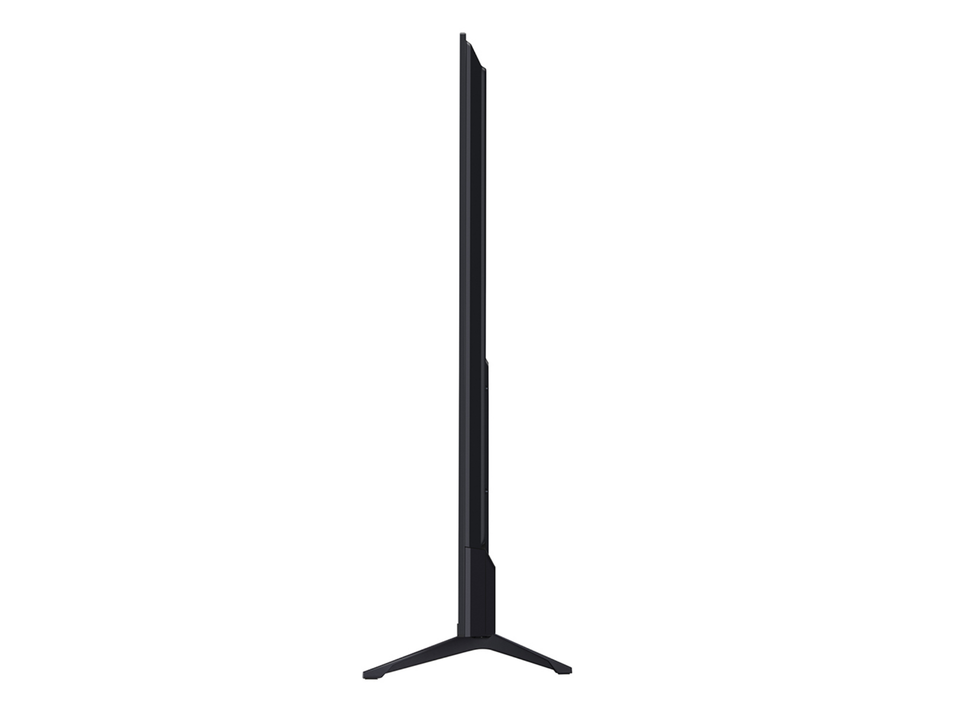

Slim Commercial Design
59.8mm deep without the stand.
The PK640S series uses a relatively slim commercial TV design to simplify installation in retail, hospitality, corporate and public-facing spaces.
Without its stand, the 86PK640S measures 1920 × 1102 × 59.8mm and weighs 33.4kg.
- 59.8mm chassis depth
- 1920mm overall width
- 1102mm height without stand
- 33.4kg without stand
- 400 × 400mm VESA mounting
LG webOS 25
A smart commercial signage platform built into the display.
The LG 86PK640S uses webOS 25 with LG's K25Lp quad-core system-on-chip.
The platform provides an intuitive smart interface alongside commercial signage functions, reducing the need for separate external hardware for many basic content applications.
- webOS 25
- K25Lp SoC
- Quad-core processing
- Web browser
- YouTube application
- Smart Home launcher
- Quick Access
- Software clock
LG SuperSign CMS
Professional content management for LG digital signage.
The LG 86PK640S supports LG SuperSign CMS, providing compatibility with LG's professional signage content-management ecosystem.
SuperSign CMS can be used to create, organise and distribute commercial signage content across compatible LG displays.
- SuperSign CMS compatibility
- SuperSign Control
- SuperSign Control Plus
- Simple Editor
- LG ConnectedCare compatibility
Embedded Content & Group Management
Manage signage content without a separate PC.
The embedded Content Manager and Group Manager allow compatible signage content to be edited, played, scheduled and organised directly through the PK640S platform.
Control can be performed using a remote control, mouse or compatible mobile device, reducing reliance on a dedicated management computer for straightforward deployments.
- Embedded Content Manager
- Embedded Group Manager
- Playlist management
- Time scheduling
- Remote-control operation
- Compatible mobile control
Beacon & Bluetooth Low Energy
Support real-time promotional experiences.
Beacon functionality and Bluetooth Low Energy can support compatible applications that provide location-based information, promotions and customer communications.
This can be particularly relevant to retail, hospitality and customer-facing commercial environments.
- Beacon support
- Bluetooth Low Energy
- Bluetooth audio playback
- Mobile connection overlay

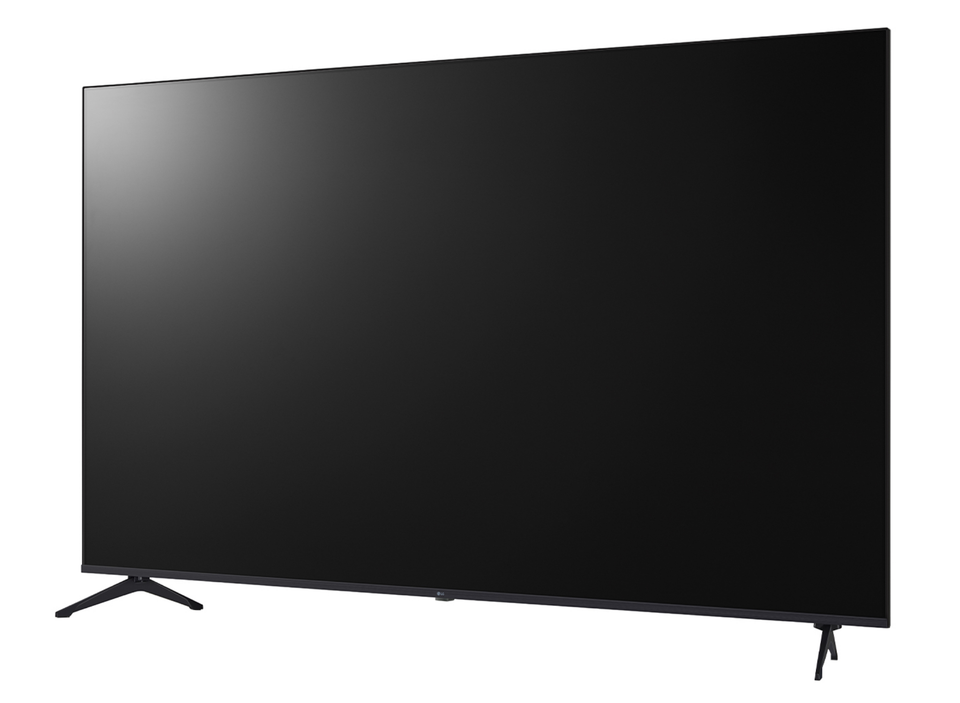

Wireless Content Sharing
Mirror compatible devices over Wi-Fi.
Screen Share using Miracast allows compatible devices connected to the same Wi-Fi network to mirror content to the 86PK640S.
The display can also function as a Soft AP wireless access point for compatible mobile devices.
- Wi-Fi 802.11ac
- Screen Share / Miracast
- Smart Share
- Soft AP
- DIAL
- Bluetooth audio playback
Display Power Management
Automatically respond to incoming TV signals.
Display Power Management can be configured so the 86PK640S responds when a TV signal is detected.
This provides an additional power-management option for commercial environments where the display does not need to remain active continuously.
- Display Power Management
- Auto Off
- Sleep Timer
- Energy Saving Mode
- Motion Eye Care
LG ConnectedCare
Optional remote monitoring for commercial deployments.
LG ConnectedCare is compatible with the PK640S series and can provide remote display monitoring, fault diagnosis and management for supported deployments.
ConnectedCare is an optional service and availability can vary by region.
- Remote status monitoring
- Fault diagnosis support
- Remote management
- Commercial signage maintenance

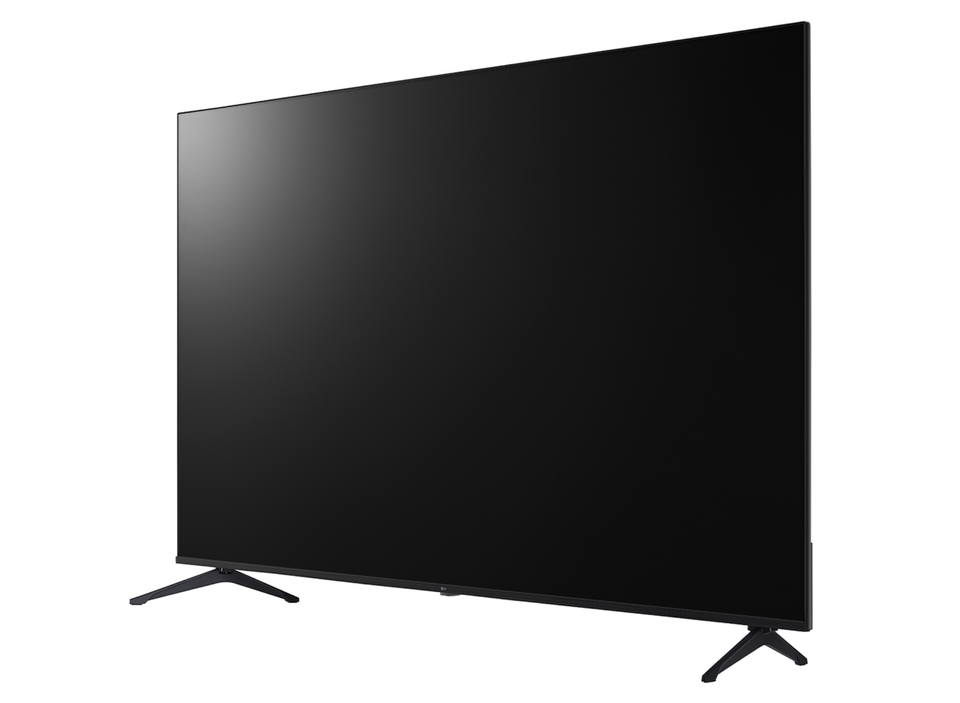

Commercial Signage Functions
Fail Over, scheduling and network control.
The LG 86PK640S includes a selection of features specifically intended for corporate and retail signage rather than ordinary consumer television use.
- Vertical Setup
- Fail Over
- Play via URL
- Time Scheduler
- NTP Sync Timer
- Beacon
- Embedded Content Manager
- Embedded Group Manager
- Wake on LAN
- SNMP
- USB Cloning
- Crestron compatibility
Professional Connectivity
HDMI, USB, LAN, RF, RS-232C and digital audio.
The 86PK640S includes wired and wireless connectivity for professional TV signage applications.
- HDMI 2.0 input
- USB 2.0
- RF input
- RJ45 LAN
- RS-232C control
- Optical digital audio output
- 3.5mm external speaker output
- Wi-Fi 802.11ac
- Bluetooth audio
- HDMI ARC on HDMI 2

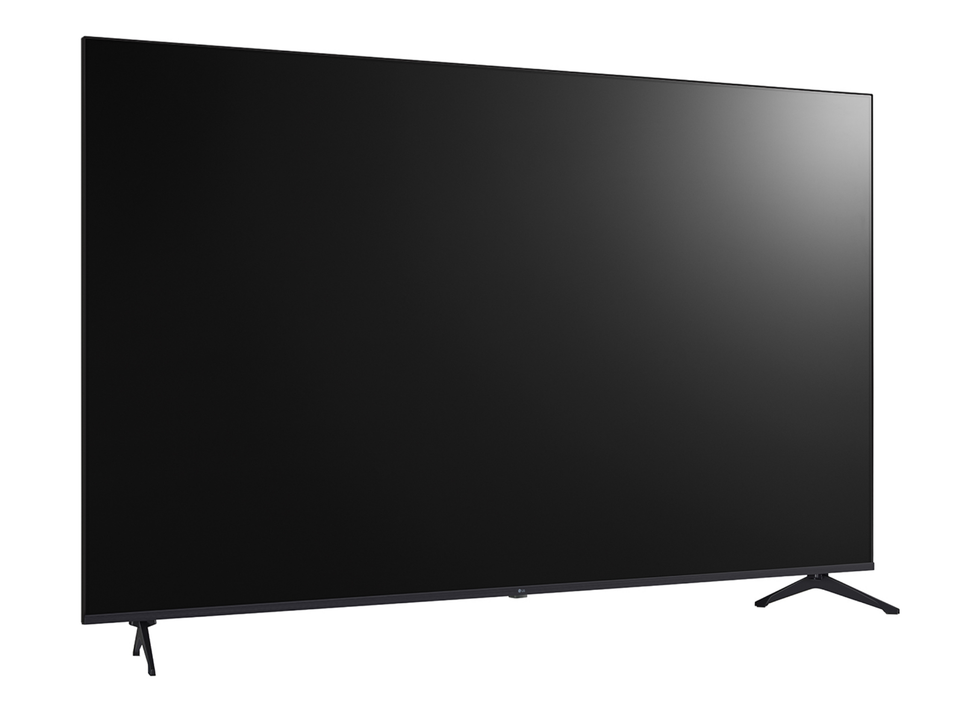

86-Inch Commercial TV
Large format with wall-mount or stand installation.
Without the stand, the LG 86PK640S measures 1920 × 1102 × 59.8mm and weighs 33.4kg.
With the two-pole stand fitted, dimensions increase to 1920 × 1182 × 413mm with a total weight of approximately 34kg.
- 1920 × 1102 × 59.8mm without stand
- 33.4kg without stand
- 1920 × 1182 × 413mm with stand
- 34kg with stand
- 400 × 400mm VESA
- Black commercial finish
Specifications
LG 86PK640S Technical Specification
LG 86PK640S specifications.
Technical specifications for the LG 86PK640S 86-inch 4K UHD Smart Commercial Signage TV with webOS 25.
| Specification | LG 86PK640S Details |
|---|---|
| General | |
| Model | LG 86PK640S |
| Category | UHD TV Signage / Professional TV |
| Tool Name | UA75 |
| Front Colour | Black |
| Stand Type | 2 Poles |
| Display | |
| Screen Size | 86" |
| Resolution | 3840 × 2160 - 4K UHD |
| Backlight Type | Direct |
| Brightness | 300 nits maximum / 260 nits typical |
| Dynamic Contrast Ratio | 1,000,000:1 |
| Static Panel Contrast | 5,000:1 typical |
| Response Time | 8ms typical GTG |
| Refresh Rate | 60Hz |
| Backlight Life | 30,000 hours - 16 hours/day, 7 days/week |
| Video | |
| SoC | K25Lp |
| SoC Marketing Name | Quad |
| HDR10 Pro | Yes |
| HLG | Yes |
| Audio | |
| Speaker System | 2.0 channel |
| Speaker Output | 10W + 10W |
| LG Sound Sync | Yes - Bluetooth or optical |
| Smart Platform | |
| Operating Platform | webOS 25 |
| Smart Home | Launcher Bar |
| Quick Access | Yes |
| Web Browser | Yes |
| Preloaded Application | YouTube |
| SDP Server Compatibility | Yes |
| Software Clock | World Clock / Alarm |
| Mood Display | Yes |
| Soft AP | Yes |
| Wi-Fi | 802.11ac |
| Screen Share | Miracast |
| Smart Share | Yes |
| DIAL | Yes |
| Bluetooth Audio Playback | Yes |
| Mobile Connection Overlay | Yes |
| HDMI ARC | Yes - HDMI 2 |
| Corporate / Retail Signage | |
| Vertical Setup | Yes |
| Fail Over | Yes |
| Play via URL | Yes |
| Crestron Compatibility | Yes |
| Display Power Management | Yes |
| Time Scheduler | Yes |
| NTP Sync Timer | Yes |
| Beacon | Yes |
| Embedded Content Manager | Yes |
| Embedded Group Manager | Yes |
| LG Software Compatibility | |
| SuperSign Control | Yes |
| SuperSign Control Plus | Yes |
| SuperSign CMS Premium | Yes |
| Simple Editor | Yes |
| LG ConnectedCare | Compatible - optional service |
| Connectivity | |
| HDMI | HDMI 2.0 input |
| USB | USB 2.0 |
| RF Input | Yes |
| RS-232C | 4-pin phone jack |
| Digital Audio Output | Optical |
| External Speaker Output | 3.5mm phone jack |
| RJ45 LAN | Yes |
| Additional Commercial Features | |
| USB Cloning | Yes |
| Wake on LAN | Yes |
| SNMP | Yes |
| Self Diagnostics | USB |
| SI Compatible Protocol | TV Link Tuner |
| HTNG-CEC | Yes |
| Simplink | HDMI-CEC 1.4 |
| IR Out | RS-232C phone jack type |
| Multi IR Code | Yes |
| Hotel Mode | Yes |
| Installer Menu | Yes |
| Lock Mode | Limited |
| Port Block | Yes |
| Welcome Screen | Splash image |
| Insert Image | Yes |
| IP Channel Manager | Yes |
| Moving Picture Playback | SD / HD / Plus HD |
| Auto Off / Sleep Timer | Yes |
| Energy Saving Mode | Yes |
| Motion Eye Care | Yes |
| Dimensions & Mounting | |
| VESA | 400 × 400mm |
| Dimensions With Stand | 1920 × 1182 × 413mm |
| Weight With Stand | 34kg |
| Dimensions Without Stand | 1920 × 1102 × 59.8mm |
| Weight Without Stand | 33.4kg |
| Shipping Dimensions | 2080 × 1255 × 220mm |
| Shipping Weight | 46.5kg |
| On-Bezel Width L/R/U/B | 12.4 / 12.4 / 12.4 / 19.4mm |
| Off-Bezel Width L/R/U/B | 10.3 / 10.3 / 10.3 / 2.5mm |
| Power | |
| Power Supply | AC 100-240V, 50-60Hz |
| LG Published Power Consumption | 226W / 195W - listed by LG as Typical / Maximum |
| Standby Consumption | Under 0.5W |
| Certification | |
| Safety | UL |
| EMC | FCC Class B |
| Other | ISTA6 |
Downloads
LG 86PK640S Downloads
86PK640S datasheet and related ScreenMoove resources.
LG PK640S Datasheet
Download the ScreenMoove-hosted LG PK640S technical datasheet.
View Specifications Online
View the complete LG 86PK640S specification table on this page.
LG Digital Signage
Explore ScreenMoove's range of LG professional commercial displays.
86" Commercial Displays
Compare the LG 86PK640S with other professional 86-inch displays.
LG 86PK640S Product Gallery
86-inch commercial TV signage details.
Commercial Applications
Where can the LG 86PK640S be used?
Retail
Use the 86-inch 4K display for promotions, product information and customer-facing commercial content.
Hospitality
Display branded television, menus, guest information, promotions and venue communications.
Corporate Environments
Use Screen Share, webOS and the large 86-inch canvas for presentations and workplace communication.
Education
Suitable for presentations, information and digital communications in suitable education environments.
LG Digital Signage
Compare other LG professional TV and digital signage solutions.
86" Commercial Displays
Compare alternative professional displays in the same 86-inch size.
LG PK640S Size Range
Compare alternative LG PK640S commercial TV sizes.
The LG PK640S commercial TV signage range is available in multiple screen sizes, allowing businesses to select the right display for different rooms, viewing distances and installation requirements.
Choose the Right PK640S
From 43 inches to 86 inches.
The 86PK640S is the largest model in this ScreenMoove PK640S selection. Smaller sizes provide the same product-family approach for rooms where an 86-inch display would be unnecessarily large.
For broader comparisons, browse all LG Digital Signage or the complete 86-inch Commercial Display range.
43"
LG 43PK640S
View size
50"
LG 50PK640S
View size
55"
LG 55PK640S
View size
65"
LG 65PK640S
View size
75"
LG 75PK640S
View size
86"
LG 86PK640S
You are viewing this
Frequently Asked Questions
LG 86PK640S FAQs.
What is the LG 86PK640S?
The LG 86PK640S is an 86-inch 4K UHD professional TV signage display with webOS 25 and commercial content-management features.
What resolution does the LG 86PK640S have?
The display has a native 3840 × 2160 4K UHD resolution.
How bright is the LG 86PK640S?
LG specifies 300 nits maximum brightness and 260 nits typical brightness.
What refresh rate does the LG 86PK640S use?
The 86PK640S has a 60Hz refresh rate.
Is the LG 86PK640S a 24/7 commercial display?
No. LG specifies a 30,000-hour backlight life based on 16 hours per day, 7 days per week.
What operating platform does the 86PK640S use?
The display uses LG webOS 25.
Does the LG 86PK640S have Wi-Fi?
Yes. It supports 802.11ac Wi-Fi, Miracast Screen Share and Soft AP functionality.
Does the LG 86PK640S have Bluetooth?
Yes. It supports Bluetooth audio playback and Bluetooth Low Energy functionality including Beacon applications.
Does the LG 86PK640S support SuperSign?
Yes. It supports compatible LG SuperSign software including SuperSign Control, Control Plus and CMS Premium.
Does the LG 86PK640S have built-in content management?
Yes. The platform includes embedded Content Manager and Group Manager functions.
Can the LG 86PK640S play content from a URL?
Yes. Play via URL is included among its corporate and retail signage functions.
Does the LG 86PK640S support Fail Over?
Yes. Fail Over is supported.
What VESA mounting pattern does the LG 86PK640S use?
It uses a 400 × 400mm VESA pattern.
How large is the LG 86PK640S?
Without the stand, the display measures 1920 × 1102 × 59.8mm.
How much does the LG 86PK640S weigh?
The display weighs 33.4kg without the stand and approximately 34kg with the stand.
What other PK640S screen sizes are available?
ScreenMoove also offers the 43PK640S, 50PK640S, 55PK640S, 65PK640S and 75PK640S.
Where can I compare other LG commercial displays?
Browse the LG Digital Signage collection or compare other 86-inch commercial displays at ScreenMoove.
Where can I download the LG PK640S datasheet?
Download the LG PK640S datasheet directly from ScreenMoove.
LG 86" Smart Commercial TV Signage
Is the LG 86PK640S right for your project?
The LG 86PK640S combines an 86-inch 4K UHD display, webOS 25, embedded content and group management, Wi-Fi, Bluetooth, SuperSign compatibility, Fail Over and professional commercial TV functionality in a large-format display.
Technical Highlights
- Display size / Screen sizes
- 86"
- Resolution
- Ultra HD (4K)
- Panel type
- N/A
- Screen type
- Flat
- Brightness
- 300 cd/m2
- Response time
- 8ms
- Screen ratio
- 16:9
- Refresh rate
- 60Hz
- Display orientation
- Landscape Only
- Operating hours
- 16/7
- Operating system
- WebOS
- Player features
- USB Plug and Play
- VESA patterns
- 400x400
- Warranty
- 3 Year Warranty
LG 86PK640S 86" 4K Ultra HD Smart Commercial Signage TVSKU: 86PK640S
£1,386.85
See Before You Decide
Book a Free Product Demonstration
Compare picture quality, touchscreen performance, software and connectivity with guidance from a commercial display specialist.
Remote or on-site
No obligation
Expert-led session
For Integrators and Resellers
Open a Screen Moove Trade Account
Access project pricing, volume discounts, product sourcing support and faster commercial quotations for your client projects.
Trade pricing
Project support
Volume discounts
Education & Public Sector
A simpler procurement route for schools and public organisations
Access education pricing, purchase-order support, installation services and account management for schools, academies, colleges, universities, NHS organisations, councils and government bodies.
Purchasing for a school, academy, university or NHS organisation?
Register your organisation to request institutional pricing and
purchase-order support.
Register Your Organisation
Trusted Store Status
Top Quality Store
Rating status, Exceptional, based on Google’s shopping experience metrics.
Why it matters
Demonstrates consistently strong fulfilment, service, and post-sale experience across Google signals.
Google
Top Quality Store
Built for confidence, next-day delivery options, UK-based support, trade-ready operations.
Request a quote
JO
Josh
Jan 6, 2026
Great products and service! The guys always go above and beyond to make sure they supply you with the product that best fits your needs. I’ve been using Screen Moove for a number of years now and woul...
See moreSD
Sandy Dobson
Nov 28, 2025
Verified
Screen Moove went above and beyond for my requirements. Ordering system was super easy it just take 2 minutes to complete my order and I have received my tracking details right away after few minutes...
See moreS
St Peter's Church
Dec 17, 2025
Moe Khan, one of the team at Screen Move has been a fantastic help as we have navigated the process of choosing and buying screens and stands for our church. Helpful at every step of the way, patient...
See moreFS
Furniture Store
Nov 27, 2025
We originally planned to purchase a cheap TV for our showrooms. After speaking with screen moove, we ended up investing in floorstanding displays across multiple retail sites and showrooms. The bright...
See moreFT
Felix Thomas
Sep 4, 2025
Verified
I placed my order late at night but realized I had entered the wrong address. I immediately sent an email asking for it to be changed, not really expecting a reply until the next day. To my surprise,...
See moreAS
ava singh
Aug 27, 2025
Verified
I’ve been looking ultra high brightness display despite I checked everywhere I didn’t trust. They got my trust and I ordered. It arrived safely next day we have installed screen is awesome and high qu...
See moreGK
Glenn Khan
Nov 27, 2025
Verified
This is second time I used Screen Moove, I have bought double sided 55 inch display. The first order was a bit delayed I don't blame it might be happen, but customer service over the phone was excell...
See moreBY
Burcu Yesilova
Feb 12, 2025
Screenmoove, perfect customer satisfaction from start to finish! Their customer service is incredibly helpful and fast. It’s amazing to be able to reach out and get quick solutions for any issue. We a...
See moreTE
Tina e Edwards
Dec 17, 2025
We found that we needed a video call to work out the set up. The tech team at screenmoove were very very good. I would suggest that the instructions that come with the screen offer two key info. 1. Set...
See moreMA
Miss Akthar
Nov 21, 2025
Verified
Great experience with Jonathan Gray, previously I was looking for other companies and randomly ordering our needs from elsewhere. after I met with him, since 2024 we are keep purchasing from screen m...
See moreGet in touch
Speak directly with Screen Moove about your display, digital signage, meeting-room or AV project.
Need help choosing the right product?
Speak directly with a dedicated Screen Moove expert and get the right solution first time.
Call us: 020 8191 9223
Email: info@screenmoove.com
Contact us
Simply complete our contact form, and we will promptly respond to your inquiries.
If you have any questions or enquiry, please fill out the form below with all of your details and we'll get back to you shortly.
Ready to start your next AV project?
Contact our team of experts today!
