Full HD 1920 x 1080 resolution
3.5 mm ultra-narrow bezel for seamless LCD video walls
700 nits high brightness for semi-outdoor installation
Anti-Burn-in technology prevents image ghosting
Versatile connectivity: DisplayPort, HDMI, DVI, VGA, Composite, Component
PROFESSIONAL VIDEO WALLS
55-inch ultra-narrow bezel 3.5mm professional video wall display creates seamless images for an uninterrupted visual experience. For a complete video wall set up, up to 10×10 tiling is supported via DisplayPort and DVI interfaces.
IPS PANEL FOR 24/7 USE
Designed for 24/7 operation, PN-55H high brightness video wall display is produced to meet the highest standard of IPS panel technology and take advantage of superior components to ensure a long product lifetime in demanding environments.
PATENTED ANTI-BURN-IN™ TECHNOLOGY
To combat the effects of traditional LCD burn-in or ghosting, AG Neovo utilises its patented Anti-Burn-in Technology to prevent image burn-in and assure the extended life span for displays.
COLOUR CALIBRATION FOR VIDEO WALL SETUP
Screen colour varies due to temperature changes or after long-term use. Fortunately, AG Neovo offers a colour calibration tool, which detects each area using on-screen sensors and automatically fine-tunes colours and details for large-scale display installations.
BUILT-IN HEATCONTROL SENSORS
The built-in HeatControl Sensors automatically activate the internal cooling fans when the temperature rises.
EMBEDDED IMAGE ENHANCER
The embedded image enhancer features a 3D Comb Filter, 3D Deinterlace, and Noise Reduction to solve image issues – offer crystal clarity to the most demanding environments.
INTEGRATED CONTENT SCHEDULER
The built-in integrated scheduler in the OSD menu allows you to easily broadcast content based on source, time, and day by IR remote control.
VERSATILE CONNECTIVITY FOR MULTIMEDIA PLAYBACK

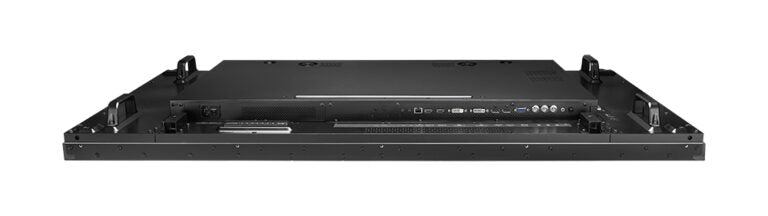

The PN-55H integrates diverse connectivity, including HDMI, DisplayPort, DVI, VGA, and an OPS slot to connect external devices. In addition, the displays support USB playback functionality and users can directly playback multimedia content without the need of a PC.
| Feature | Specification |
|---|---|
| Panel Type | IPS |
| Panel Size | 54.6" |
| Max. Resolution | FHD 1920 x 1080 |
| Pixel Pitch | 0.630 mm |
| Brightness | 700 cd/m² |
| Contrast Ratio | 1400:1 |
| Viewing Angle (H/V) | 178°/178° |
| Display Colour | 1.07B |
| Colour Gamut | NTSC 72% |
| Response Time | 5 ms |
| Surface Treatment | Anti-Reflection Treatment (Reflectance <2%)<br>3H Hard Coating |
| Frequency (H) | 31 kHz-92 kHz |
| Frequency (V) | 48 Hz-85 Hz |
| Signal Input | DisplayPort 1.2 x 1<br>HDMI 1.3b x 2<br>DVI 24-Pin DVI-D<br>VGA 15-Pin D-Sub x 1<br>Component BNC x 1<br>Composite BNC x 1 (Share with Component-Y) |
| Signal Output | DisplayPort 1.2 x 1<br>DVI 29-Pin DVI-I x 1 (VGA) |
| External Control | IR In 3.5 mm Phone Jack<br>IR Out 3.5 mm Phone Jack<br>RS232 In 2.5 mm Phone Jack<br>RS232 Out 2.5 mm Phone Jack<br>LAN RJ45 x 1 |
| Other Connectivity | USB 2.0 x 1 (Service Port / Media Playback)<br>OPS Slot Yes |
| Audio | Audio In Stereo Audio Jack (3.5 mm)<br>Stereo Audio Jack (RCA)<br>Audio Out Stereo Audio Jack (3.5 mm)<br>Internal Speakers 10W x 2 |
| Power Supply | Internal |
| Power Requirements | AC 100-240V<br>50/60 Hz |
| On Mode | 167W (On) |
| Standby Mode | <0.5W |
| Off Mode | <0.5W |
| Operating Conditions | Temperature 0°C-40°C (32°F-104°F)<br>Humidity 20%-80%(non-condensing) |
| Storage Conditions | Temperature -20°C-60°C (-4°F-140°F)<br>Humidity 5%-90% (non-condensing) |
| Mounting | VESA FPMPMI Yes (400 x 400 mm) |
| Security | Kensington Security Slot Yes |
| Dimensions | Product w/o Base (W x H x D) 1213.4 x 684.2 x 107.7 mm (47.8" x 26.9" x 4.2")<br>Packaging (W x H x D) 1551.0 x 961.0 x 450.0 mm (61.1" x 37.8" x 17.7") |
| Weight | Product w/o Base 24.9 kg (54.8 lb)<br>Packaging 37.3 kg (82.1 lb) |
| Regulation Approval | Certifications & Compliance FCC<br>CE<br>BSMI<br>LVD<br>WEEE<br>RoHS<br>REACH<br>EAC |
| Accessories | Supplied Batteries<br>CD<br>IR Sensor<br>Power Cord<br>Remote Control<br>RS232 Cable<br>RS232 Daisy Chain Cable<br>VGA Cable<br>Optional Accessories Floor Mount FMC-02 FMS-01 FMS-02<br>Video Wall Mount VWM-01 VWM-02<br>Wall Mount LMA-01 LMA-02<br>Ceiling Mount (Landscape only) CMP-01 + LMK-01<br>Wall Mount (Landscape only) LMK-01 LMK-03<br>Floor Mount (Landscape only) FMC-03 + LMK-04 FMC-04 + LMK-04<br>Desk mount (Landscape only) DTS-01 |
AG Neovo provides the following limited warranty. This limited warranty applies only to the original End User and to no other purchaser or transferee.
AG Neovo warrants its LCD Monitor products and parts against defects in materials and workmanship under normal use for a period of Three (3) Years for parts from the date of initial retail purchase. AG Neovo warrants LCD Panel for a period of Three (3) years from the date of initial retail purchase. During this period, AG Neovo will repair or replace a defective product or part without charge.
Changes to or updates of the following warranty conditions and procedures can be found at the AG Neovo website or may be obtained from AG Neovo by contacting your local AG Neovo office.
The AG Neovo warranty obligations for the product are limited to the terms set forth below.
AG Neovo has the right to revise the policy.
Please contact local AG Neovo office to get detailed information.
AG Neovo warrants its accessories to be free from defects in material and workmanship under normal operating conditions for a period of 12 months limited warranty.
Changes to or updates of the following warranty conditions and procedures can be found at the AG Neovo website or may be obtained from AG Neovo by contacting your local AG Neovo office.
AG Neovo has the right to revise the policy.
Please contact local AG Neovo office to get detailed information.
For information on obtaining warranty service, call your AG Neovo dealer, AG Neovo’s Customer Support hotline, or email service centers.
