TOA A-3524D 5 Inputs Digital Mixer Amplifier
SKU: A-3524D
£435.81 (Excl. VAT)
- Description
- Specifications
- Downloads
-

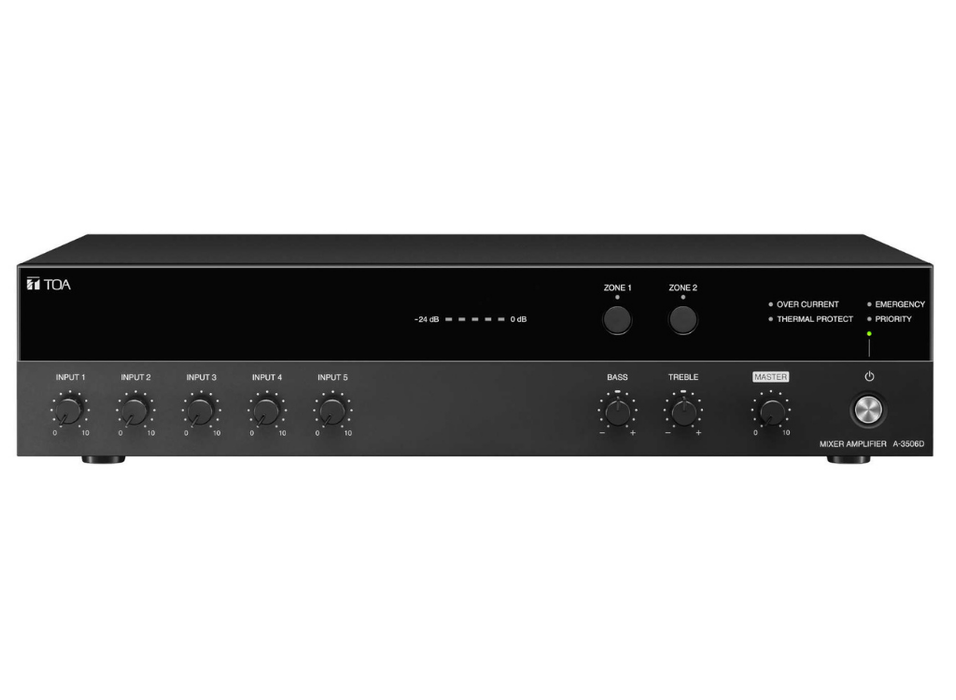

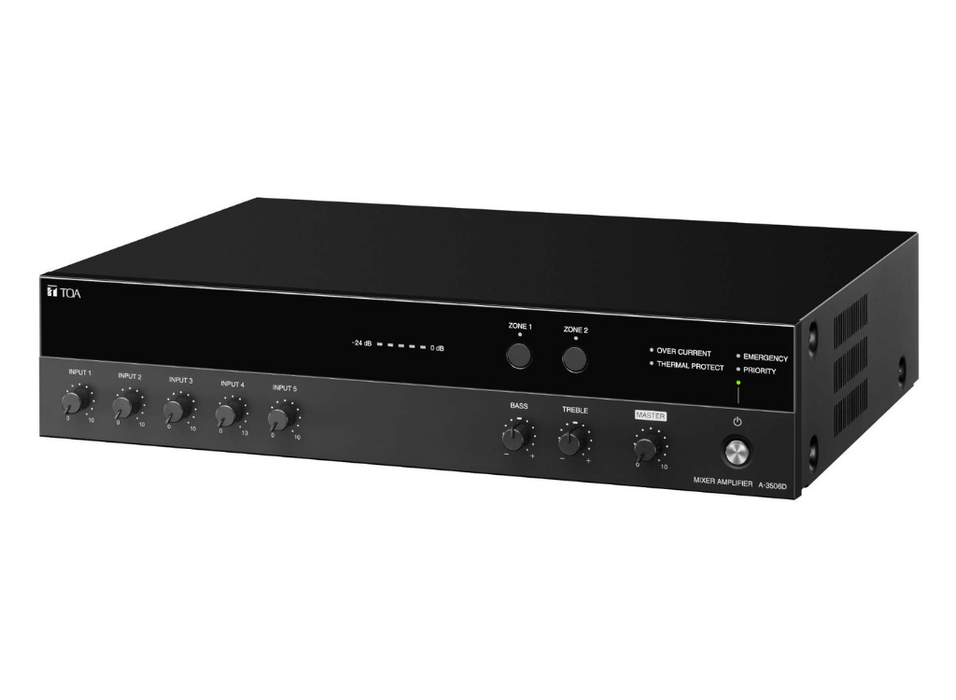

TOA A-3524D 5 Inputs Digital Mixer Amplifier
The A-3524D is a class D mixer amplifier with 240 watts output. It comes with emergency and priority paging, is equipped with 3 MIC/LINE inputs, 1 MIC input, 1 AUX input can be also used for music source. With 2-channel speaker zone selectors it is ideal for paging announcements and background music applications in retail shops, schools, offices and production facilities.- 240 W Class D mixer amplifier for high and low impedance speakers
- 5 Inputs: 1 Mic, 1 AUX, 3 MIC / AUX (selectable), 2x Phantom power
- 2 Zone speaker selector (high impedance only)
- 2 Line out, 1 Rec out
- 2 Zone control inputs / outputs
- 1 Emergency output
Application examples for this product:
Bars
Supermarkets
Sport facilities
Restaurants
Houses of worship -
Specification Details Power Source 100 - 240 V AC, 50 / 60 Hz Power/Current Consumption 314 W (at rated output), 70 W (EN62368-1) Frequency Response 50 Hz - 20 kHz Rated Output 240 W Speaker Output Direct, zones 1 & 2 Control Input 2 channels, no-voltage make contact input, open voltage: 35 V DC or less, short-circuit current: 10 mA or less, removable terminal block (3.81 mm, 5 pins) ZONE Control No-voltage make contact input, open voltage: 35 V DC or less, short-circuit current: 10 mA or less, removable terminal block (3.81 mm, 4 pins) Control Output Power remote, emergency, zone control: Open collector output, withstand voltage: 30 V DC or less, control current: 25 mA or less, removable terminal block (3.50 mm, 4 pins) Operating Temperature –10 to +40 °C Finish ABS resin, Steel plate, black Dimensions 420 x 96 x 313 mm (W x H x D) Weight 4.9 kg Distortion ≤ 1 % (at 1 kHz, rated power) Amplifier Class D S/N Ratio 88 dB(A) (A-weighted) Connectable Microphones 3 Inputs INPUT 1, 2: –60 dB* (MIC)/–20 dB* (LINE) selectable, 600 Ω, electronically-balanced, removable terminal block (3.81 mm, 5 pins)/ø6.3 mm phone jack (2P)
INPUT 3: –60 dB*, 600 Ω, electronically-balanced, ø6.3 mm phone jack
INPUT 4: –60 dB* (MIC)/–20 dB* (LINE) selectable, 600 Ω, electronically-balanced, ø6.3 mm phone jack (2P)
INPUT 5: –20 dB*, 10 kΩ, unbalanced, RCA pin jack x 2
PWR AMP:IN: 0 dB*, 600 Ω, unbalanced, RCA pin jackOutputs REC, LINE 1/1: 0 dBV, 600 ohms, unbalanced, RCA pin jack
SPEAKER direct, zones 1 and 2: 4-16 ohms in total or 100 V -
