TOA A-3606D 4 Channels Digital Mixer Amplifier
SKU: A-3606D
£416.11 (Excl. VAT)
- Description
- Specifications
- Downloads
-

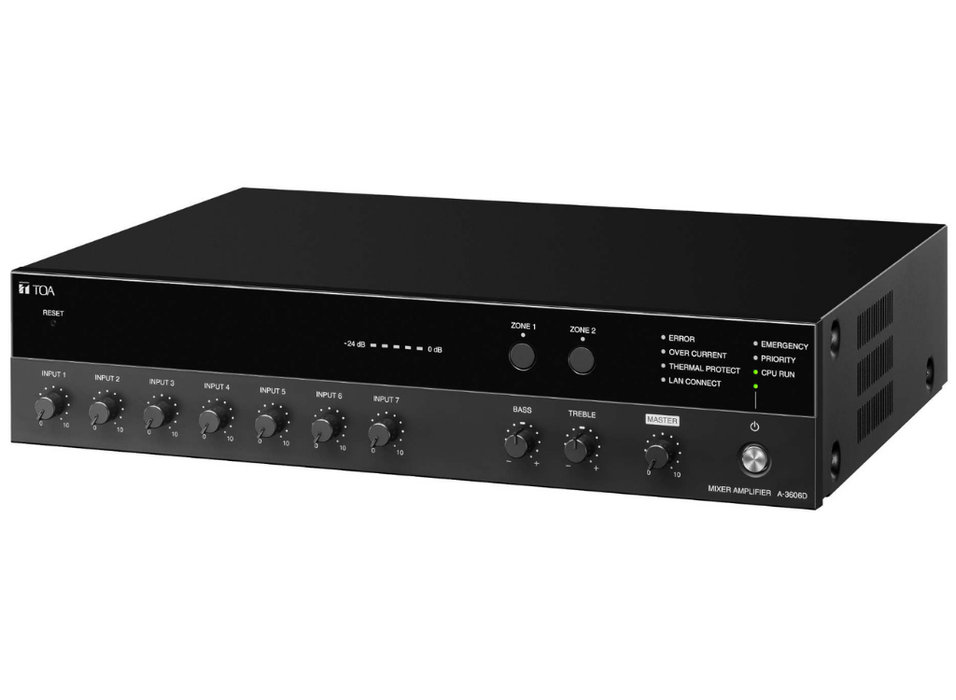

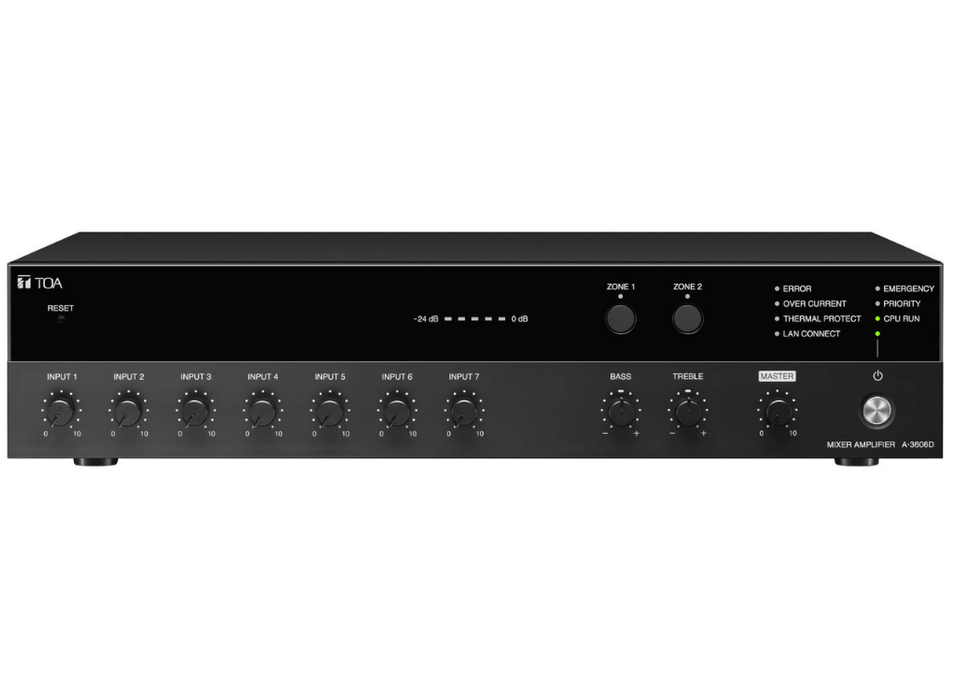

TOA A-3606D 4 Channels Digital Mixer Amplifier
A-3600D Series Digital Mixer Amplifier provide maximum flexibility with up to seven inputs and up to 480 W of power. Browser based control and monitoring from anywhere reduces your time troubleshooting and adjusting systems. Feedback suppressor, input priorities, a sleek new appearance, and TOA's legendary quality and reliability makes this a perfect fit for background and foreground music, paging, and noise masking applications. The A-3600D series is suited for broadcasting pagings or background music in retail shops, supermarkets, educational facilities, offices, houses of worship and factories. Crystal clear announcements and high sound quality, the A-3600D public address amplifier is equipped with 7 audio inputs, zone selctor for 2 zones, high and low impedance, broadcasting priority and emergency paging via control input. The digital technology makes this amplifier energy efficient, eco-friendly and cost-effective.- 60 W Class D amplifier
- For high and low impedance speakers
- AC-mains 100V - 240V
- 8 Inputs (4 MIC/AUX selectable, 2 MIC, 1 AUX, 1 power amp)
- 4 Mic inputs with phantom power
- 2 Zone speaker selector (high impedance only)
- 2 Line out
- 1 Rec output
- 2 Zone control inputs/outputs
- 1 Power remote control output
- 1 Emergency output
Application examples for this product:
Houses of worship
Clubs
Sport facilities
Supermarkets
Bars
Sports facilities
Hotels -
Specification Details Power Source 100 - 240 V AC, 50 / 60 Hz Power/Current Consumption 40 W (EN62368-1), 96 W (rated output) Frequency Response 50 Hz - 20 kHz Rated Output 60 W Speaker Output Low impedance: 8-16 Ω, High impedance: 100 V, Direct, Zones 1 & 2 Control Input 4 channels, no-voltage make contact, 35 V DC or less, 10 mA max Control Output Power remote, emergency, zone control, withstand voltage: 30 VDC, 25 mA max Controls 7x volume for inputs, bass, treble, master volume, zone switches Operating Temperature -10 °C to +40 °C (14 °F to 104 °F) Finish ABS resin, black Dimensions 420 x 96.1 x 313.1 mm (W x H x D) Distortion < 1 % (at 1 kHz, rated power) Amplifier Type Class D S/N Ratio 88 dB(A) (A-weighted) Connectable Microphones 6 Inputs Inputs 1+2: -60/-20 dBV, 600 Ω, balanced, phantom power switchable; Inputs 3+4: -60 dBV, 600 Ω, balanced, phantom power switchable; Inputs 5+6: -60 dBV, 600 Ω, balanced, unbalanced, RCA jacks; Input 7: -20 dBV, unbalanced, RCA jacks Outputs Recording, Line out 1+2: 0 dBV, 600 Ω, unbalanced, RCA jack -
Description Downloads Datasheet Downloads
