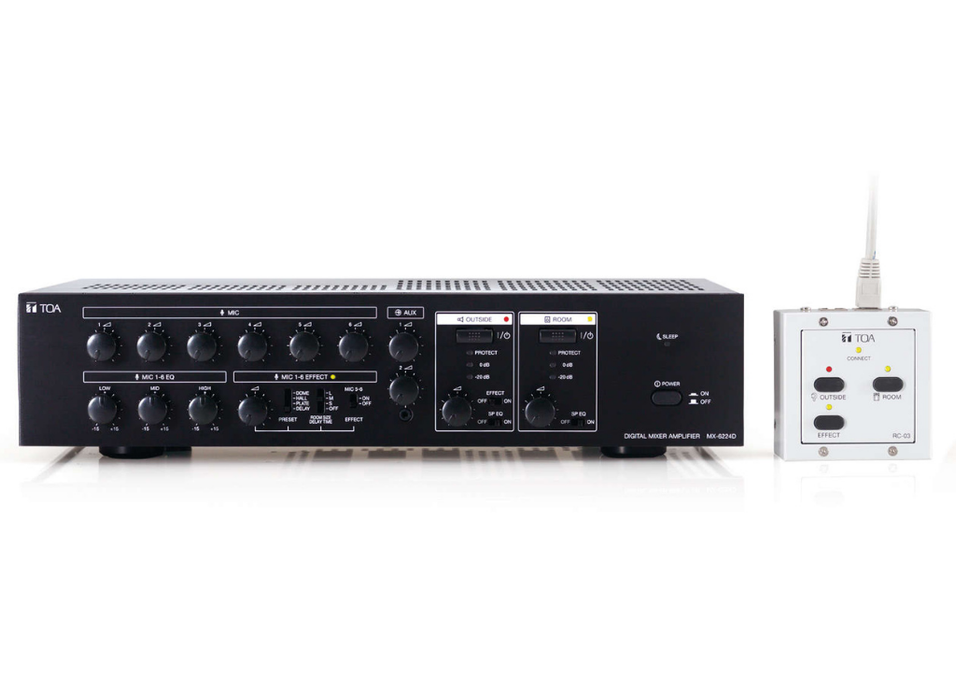

TOA MX-6224D 2 x 240W Digital Mixer Amplifier
SKU: MX-6224D
£795.28 (Excl. VAT)
- Description
- Specifications
- Downloads
-
TOA MX-6224D 2 x 240W Digital Mixer Amplifier
The number of mosques around the world is rapidly increasing however there are very few sound systems that can match their complex needs, as well as their tight budget.
TOA has created the MX-6224D, an affordable digital mixer amplifier, specifically to cater for medium and small mosques. the MX-6224D is a reliable and simple system, needing very little technical knowledge to operate, yet still maintains exceptional sound quality.
2 x 240W Digital Mixer Amplifier
Class D amplifier
Selectable reverberation for microphones
Fixed equalizer for BS-1030 and TC-horn speakers
Easily operableApplication examples for this product:
Houses of worship -
Specification MX-6224D Power Source 220 - 240 V AC, 50 / 60 Hz Power Consumption 100 W (according to IEC60065); 570 W (at rated output, both 2 ch) Frequency Response 50 Hz - 20 kHz Rated Output 240 W 2 ch (100 V, 42 Ω, rated output) Speaker Output 2 zones, 100 V (42 Ohm) Operating Temperature 0°C to + 40°C Finish Aluminium, Steel plate, black Dimensions (W x H x D) 420 x 99.8 x 360.6 mm Weight 6.1 kg Distortion < 1 % S/N Ratio 60 dB(A) Number of Channels 8 Connectable Microphones 6 Inputs MIC 1: -50 dBV (24 V phantom powered) / -60 dBV (phantom power off), 600 Ω, electronically balanced, 6.3 mm phone jack, MIC 2 – 4: -66 dBV, 200 Ω, electronically balanced, 6.3 mm phone jack or XLR, MIC 5 – 6: -60 dBV, 600 Ω, electronically balanced, 6.3 mm phone jack or XLR, AUX 1: -10 dBV, 10 kΩ mixed monaural, unbalanced, RCA pin jacks (1 pair), AUX 2: -20 dBV, 10 kΩ mixed monaural, stereo mini jack Outputs Speaker output: 2 zones, 100V (42 Ohm), galvanic isolated balanced, M4 screw terminal, Recording output: 0 dBV, 600 Ohm monaural, unbalanced, RCA pin jacks (1 pair), Effect bus output: 0 dBV, 600 Ohm monaural, unbalanced, RCA pin jacks (1 pair), Preamplifier output: 0 dBV, 600 Ohm monaural, unbalanced, RCA pin jacks (1 each for ROOM and OUTSIDE outputs) Control Input RS-232C, D-sub connector (9P, female), for PC setting or control by AMX, Crestron etc.; Control input: 4, no-voltage make contact, open voltage: 3.3 V DC, short-circuit current: 1 mA or less, removable terminal block (14 pins); 2 remote volume control by potentiometer 10 kΩ Control Output 4, open collector output, withstand voltage: 27 V DC, control current: 50 mA, removable terminal block (14 pins) Amplifier Type Class D -
Description Downloads Datasheet Downloads
