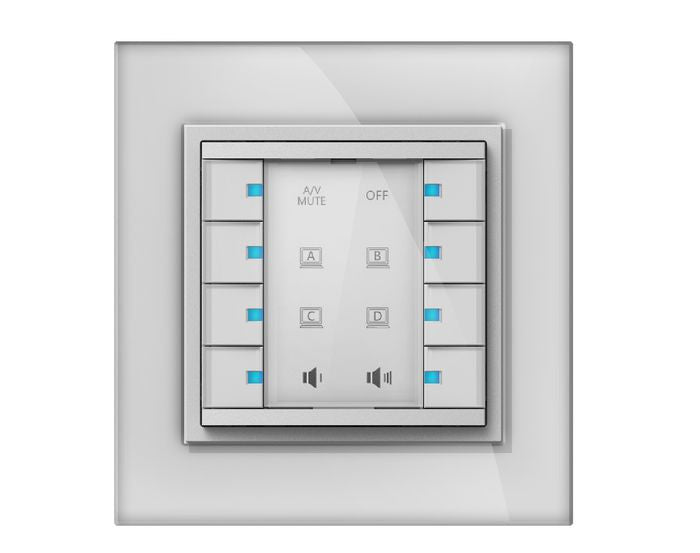

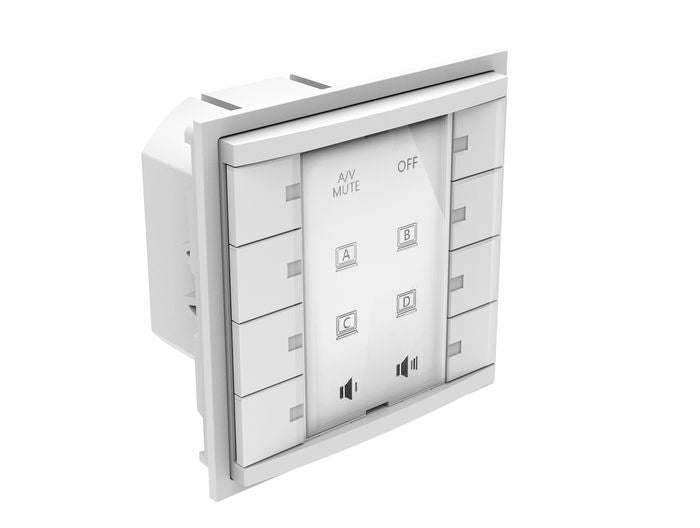

Vivolink Control Panel 8 Button - VLCP8B
SKU: VLCP8B
£199.35 (Excl. VAT)
- Description
- Specifications
- Downloads
-
Vivolink Control Panel 8 Button - VLCP8B
Control Panel 8 Button
Vivolink control panel can be used to control all products supporting RS232 or RS485 protocol.
With the supplied IR blaster it is also possible to control products with IR commands.
The built in 12v relay can be used to control products like a projector sceen or curtains.Typical installations:
Ideal for meeting rooms
Can control switching, projectors, curtains, canvas, etc.8 function keys with indication lights

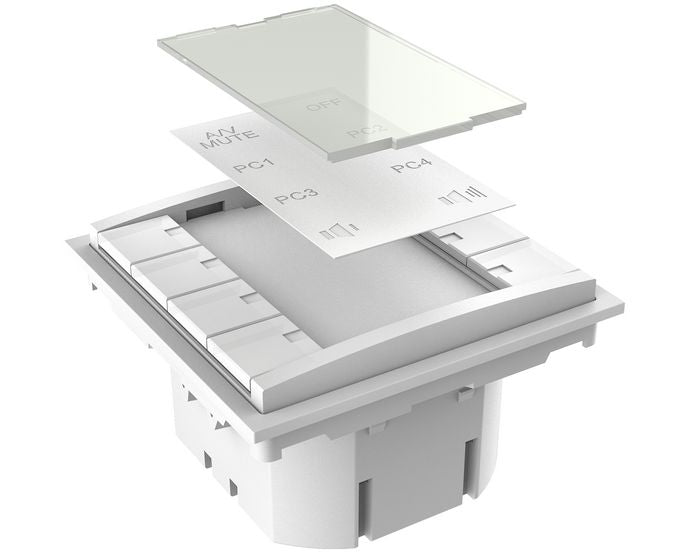

Customized label print
Any button can be configured to execute multiple actions through the serial, IR control and Relay ports
Start the projector (RS232)
Screen down (Relay)
Switch on input 1(RS232 parallel connection)
Mounts in a single size European junction box with 60 mm mounting centers
-
Category Specification Design Product colour White Legal Information EU ECCN Code N/A UNSPSC Code 39122216 US ECCN Code EAR99 Package dimensions (verified) Depth Verified 17.2 cm Gross Weight Verified 1.012 kg Height Verified 9.9 cm Width Verified 27.1 cm Power Input voltage 12 V Power source type DC Product dimensions Net Weight (Product, kg) 1.01 kg Product Depth 17.2 cm Product Height 9.9 cm Product Width 27.1 cm Technical details Connector(s) DC in, DC out, RS-232, RS-485, IR Out, Relay 12V output Illuminable Yes Number of buttons 8 buttons Vendor information Brand Name Vivolink Warranty 3 Year(s) - VLCP8B : Product Datasheet
