Official Partner
OUTDOOR KIOSKS

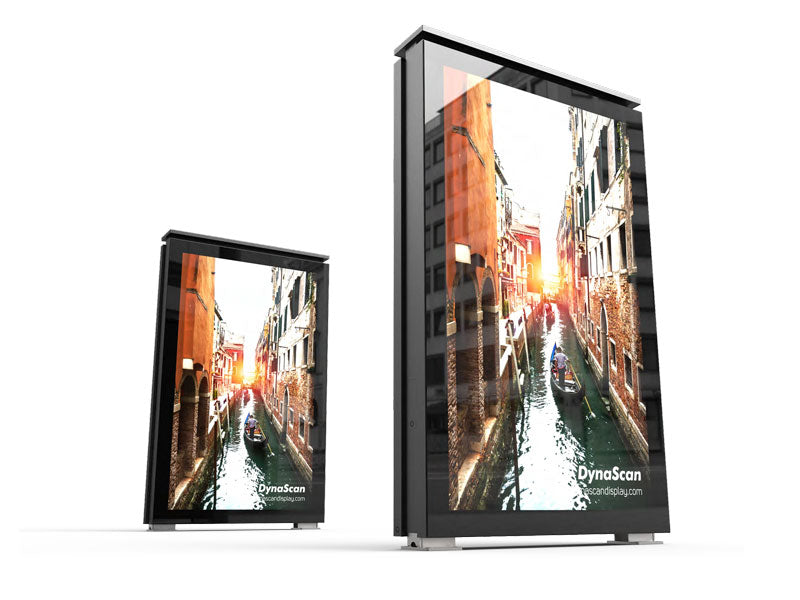

Featuring an eye-catching dual-sided design, sunlight-viewable 3500 nits image, and vandal-resistant construction, the new DynaScan DK861DR4 is an 86-inch outdoor kiosk that features a 4K UHD high contrast image with TrueColor™ calibration.
The DK861DR4 is IP56 rated for protection from water and dust, features an IK10 vandal-resistant tempered glass surface, and rugged all-metal rustproof construction.
SUNLIGHT VIEWABLE IMAGE
DUAL-SIDED DESIGN
VIEWABLE WITH POLARIZED LENSES
VANDAL RESISTANT
WEATHERPROOF
INTELLIGENT THERMAL MANAGEMENT
IP56 Weather Resistant
Rain or shine, DynaScan outdoor displays can endure what Mother Nature has to offer. All-metal rustproof construction with IP56 weather protection resists water and dust from entering the display even in some of the harshest environments.
Dual-Sided Design
A double-sided display offers the flexibility to present different messaging points to customers inside as well as potential customers outside.
IK10 Vandal Resistance
With a tough, steel frame and double laminated glass with IK10 protection, DynaScan outdoor displays are durable and secure.
Robust Outdoor Solution
DynaScan outdoor kiosks offer a feature-packed display solution that can be adapted to fit a variety of applications—from bus shelters to transit depots to shopping centers.
Sunlight Viewable Image
With sustained brightness of 3500 nits, DynaScan outdoor displays are easily viewed in direct sunlight.
Filterless Design
Filters not only reduce cooling efficiency by lowering air intake, but they can also cause a product failure if not properly maintained. DynaScan employs a proprietary thermal management system that doesn’t require filters.
| PANEL | |
|---|---|
| LCD Panel Size | 85.6" inches LCD (x2) |
| Native Resolution | 3840 x 2160 |
| Brightness | 3500 nits |
| Light Lifetime (Typ.) | 100,000 hrs |
| Contrast Ratio | 3000:1 |
| Color Depth | 10 bits |
| Viewing Angle (H/V) | 178° / 178° |
| Blackening Defect-Free | Up to 110°C (230°F) |
| Polarized Sunglasses Support | Yes |
| Touch Function (optional) | P-Cap touch |
| POWER | |
|---|---|
| Power Supply | Internal |
| Rated Voltage | 200-240 V ~ 50/60 Hz |
| Power Consumption (Typ./Max.) | 1300 W / 3000 W |
| MECHANICAL SPECS | |
|---|---|
| Bezel Width (T/B/L/R) | 95.2 / 106.7 / 134.4 / 134.4 mm |
| Cabinet Color | Black |
| Dimension (LxHxD, w/o stand) | 1338.0 x 2174.0 x 254.0 mm |
| Weight | 500 kg |
| Orientation | Portrait |
| Reserved Space for Optional Player | Yes |
| High Security Lock | Yes |
| USER INTERFACE | |
|---|---|
| Language | English |
| Support SNMP (Up to V3.0) | Yes |
| Local Dimming Control | Yes |
| Ambient Light Sensor | Yes |
| Power On/Off Scheduling | Yes |
| Internal Temperature Sensor | Yes |
| Backup Player Built-in | Yes |
| INPUT | |
|---|---|
| HDMI | x6 (2160p) |
| DisplayPort | x2 |
| USB 3.0 | x2 |
| Micro SD Slot | x2 |
| OUTPUT | |
|---|---|
| Audio | x2 |
| EXTERNAL CONTROL | |
|---|---|
| RS-232 | In x2, Out x2 |
| RJ-45 (LAN) | x4 |
| ENVIRONMENT | |
|---|---|
| Operating Temperature | -30°C~50°C |
| Storage Temperature | -20°C~60°C |
| Humidity | 10% ~ 100% RH Non-condensing |
| Environmental Rating | IP56 / IK10 / ASTM G155 |
| CERTIFICATION | |
|---|---|
| CE | FCC |
| UL | ROHS |
DynaScan’s warranty obligations are limited to the terms set forth below:
DynaScan warrants its professional LCD display product delivered new to the original purchaser against defects in materials and workmanship for THREE (3) YEARS from the date of original purchase.
If a product is found to be defective in material and workmanship during the Limited Warranty Period, DynaScan will, at its sole option, (a) repair the product at no charge with new or reconditioned parts, or (b) replace the product with a functionally equivalent product. A replacement part or product assumes the remaining warranty of the original part or product, or NINETY (90) DAYS from the date of replacement or repair, whichever provides a longer coverage. When a part or product is replaced, any replacement item becomes your property and the replaced item becomes DynaScan’s property.
| Resource | Download Link |
|---|---|
| Data Sheet | Download |
