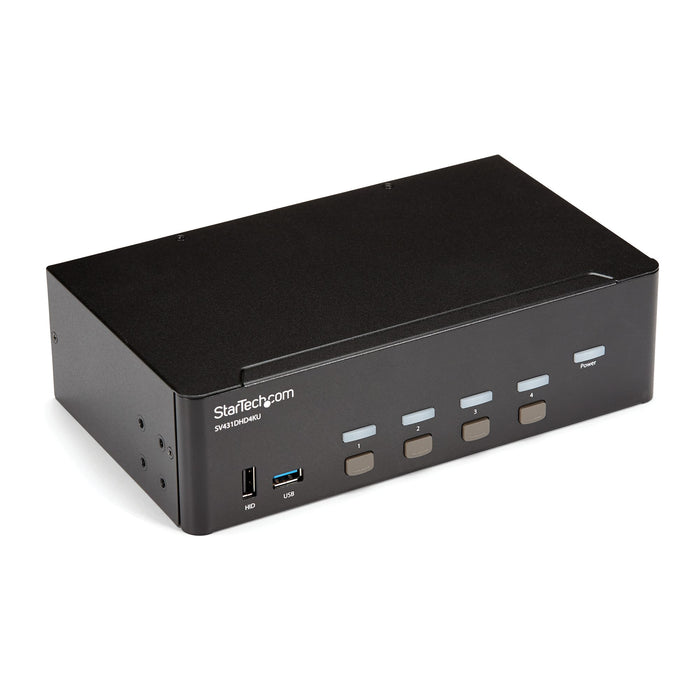

StarTech 4 Port HDMI KVM Switch - 4K 30Hz, Dual Display | SV431DHD4KU
SKU: SV431DHD4KU
£451.66 (Excl. VAT)
- Description
- Specifications
- Downloads
-
StarTech 4 Port HDMI KVM Switch - 4K 30Hz, Dual Display | SV431DHD4KU
This 4-port HDMI KVM switch lets you control four HDMI computers with a single mouse, keyboard and monitor up to 4K 30Hz. The KVM also features 3.5 mm audio and a built-in 2-port USB 3.0 hub.
4K at 30Hz UHD dual display
With support for ultra-high-definition 4K 30Hz resolutions, this 4-port KVM switch can drive dual HDMI displays with crystal clarity, making it ideal for graphical applications that require UHD capability.Convenient and cost-effective USB 3.0 peripheral sharing
This 4-port KVM switch offers two USB 3.0 ports, as well as four HID keyboard and mouse ports, so you can share peripheral devices between each computer and avoid the cost of separate equipment. The USB 3.0 hub automatically switches your connected devices to the selected computer, saving you the hassle of disconnecting and reconnecting peripherals.Complete multimedia capability
Along with dual UHD video capability, this KVM switch features auxiliary 3.5 mm dual-channel bi-directional audio ports. This independent analog audio lets you share your analog audio devices such as speakers or a microphone between each of your connected computers, giving you complete multimedia control of your systems.
Applications
Ideal for applications that require two displays at high resolutions such as graphic design, medical imaging, digital signage, multimedia design across four computersGreat for those who need to share high-speed storage between up to four systems
Perfect for creative professional applications such as video and sound design or editing
-

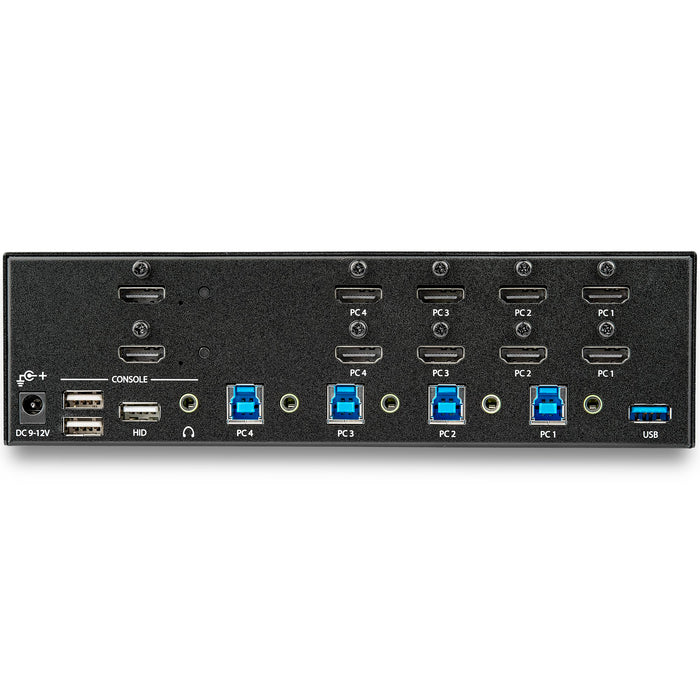

Category Detail Warranty Information 2 Years Connector(s) Console Interface(s) 2 - HDMI 4 - USB Type-A (4 pin; HID Port) USB 1.1 2 - USB 3.2 Type-A (9 pin, Gen 1, 5Gbps) 1 - 3.5mm Stereo Female 3 pos Host Connectors 8 - HDMI 4 - USB 3.2 USB Type-B (9 pin, Gen 1, 5Gbps) 4 - 3.5mm Stereo Female 3 pos Environmental Operating Temperature 0°C ~ 40°C Storage Temperature -10°C ~ 60°C Humidity 0% ~ 80% Hardware Audio Yes KVM Ports 4 PC Interface USB PC Video Type HDMI Number of Monitors Supported 2 Rack-Mountable Optional Cables Included No Daisy-Chain No Indicators LED Indicators 4 - LED for Source Status and Selected PC 1 - Power LED Packaging Information Shipping (Package) Weight 3.9 lb [1.8 kg] Package Quantity 1 Package Length 11.8 in [30.0 cm] Package Width 9.8 in [24.8 cm] Package Height 3.4 in [8.6 cm] Performance IP Control No Hot-Key Selection Yes Maximum Data Transfer Rate 5Gbps Maximum Digital Resolutions 3840 x 2160 @ 30Hz Wide Screen Supported Yes Auto Scan 3, 8, 15 & 30 seconds Port Selection Support Push Button and Hotkeys General Specifications 3D Video Support Yes MTBF 168,000 hours Physical Characteristics Color Black Material Steel Product Length 8.7 in [22.0 cm] Product Width 5.1 in [13.0 cm] Product Height 2.5 in [6.3 cm] Weight of Product 2.7 lb [1.2 kg] Power Power Source AC Adapter Included Input Voltage 100 - 240 AC Input Current 0.6 A Output Voltage 12V DC Output Current 1.5 A Center Tip Polarity Positive Plug Type M Power Consumption (In Watts) 18W What's in the Box Included in Package 1 - KVM Switch 1 - Quick-Start Guide 4 - Rubber Feet 1 - Universal Power Adapter (NA/JP, UK, EU, ANZ) -
Description Downloads Datasheet Downloads User Manual Downloads
