StarTech 8 Port 1U Rackmount DVI USB KVM Switch | SV831DVIU
SKU: SV831DVIU
£583.86 (Excl. VAT)
- Description
- Specifications
- Downloads
-
StarTech 8 Port 1U Rackmount DVI USB KVM Switch | SV831DVIU

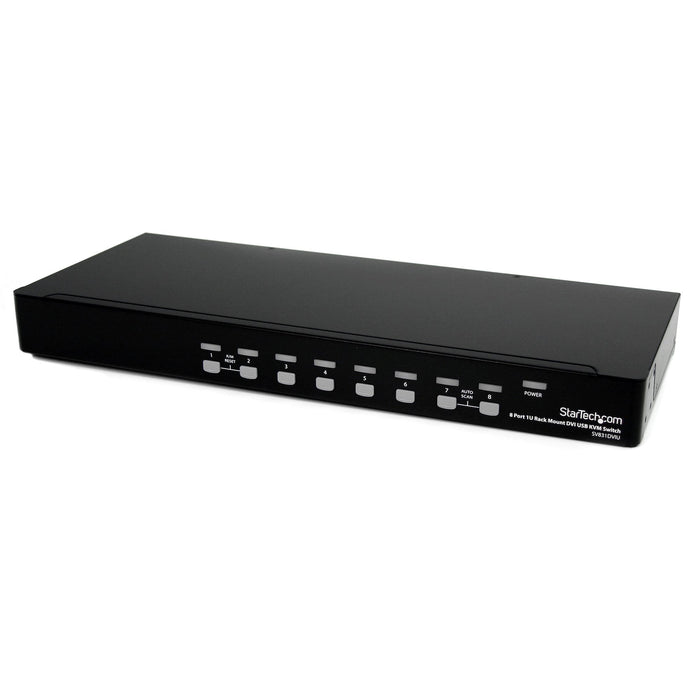

The SV831DVIU 8-Port 1U Rack Mount DVI USB KVM Switch lets you control up to 8 USB-connected computers (each with DVI or HDMI display output) from a single keyboard, mouse and monitor.

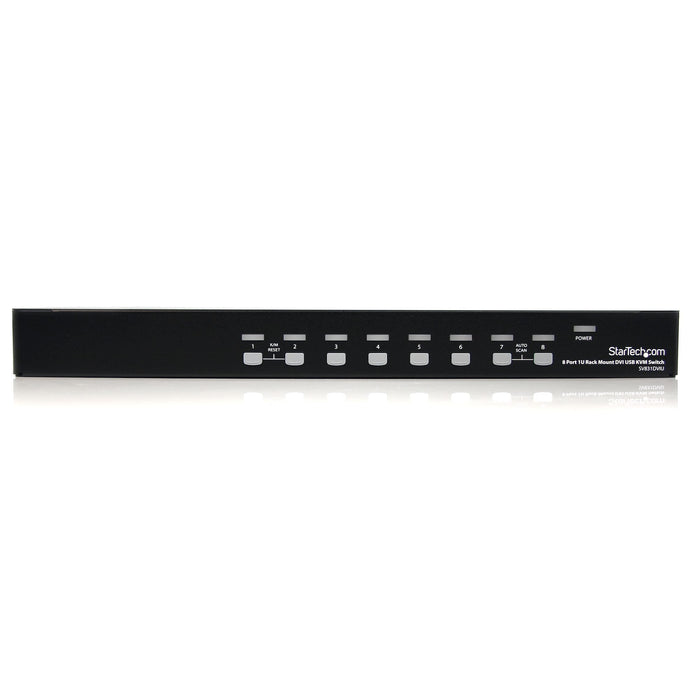

The KVM switch offers maximum control, allowing you to switch computers using hot-key commands or front panel push-buttons. Supporting digital resolutions up to 1920x1200 via DVI or HDMI connection (using DVI to HDMI adapter - see accessories), the KVM provides the high resolutions recommended for newer displays, allowing you to take full advantage of your monitor/screen capability.A perfect addition to any server room or software test lab, this 8-port switch can be rack-mounted into 1U of cabinet space.
Applications
Ideal for software development and QA test labs with multiple PCs and platforms connected to one consoleSingle console administration of your co-location/ISP facility
Create a streamlined access solution in your Datacenter or Server Farm
Great for PC test/burn-in computer control saving the desk space required for multiple monitors, keyboards and mice
Perfect for manufacturing line computer control, simplifying access to multiple systems
-
Category Detail Warranty Information Warranty 3 Years Connector(s) Console Interface(s) 1 - DVI-I (29 pin) 2 - USB 2.0 Type-A (4 pin, 480Mbps) Host Connectors 8 - USB B (4 pin) 8 - DVI-I (29 pin) Environmental Operating Temperature 0°C to 40°C (32°F to 104°F) Storage Temperature -20°C to 60°C (-4°F to 140°F) Humidity 0~80% RH Hardware Audio No KVM Ports 8 PC Interface USB PC Video Type DVI Number of Monitors Supported 1 Rack-Mountable Yes Cables Included No U Height 1U Daisy-Chain No Packaging Information Package Height 8.8 cm [3.5 in] Package Length 58.8 cm [23.1 in] Shipping (Package) Weight 3.7 kg [8.3 lb] Package Width 26.4 cm [10.4 in] Package Quantity 1 Performance On-Screen Display No DVI Support Yes - Single Link IP Control No Hot-Key Selection Yes Maximum Cable Length 4.6 m [15.0 ft] Maximum Digital Resolutions 1920 x 1200 Maximum Number of Users 1 Port Selection Support Push Button and Hotkeys MTBF 134,000 hours Physical Characteristics Weight of Product 2.5 kg [5.5 lb] Color Black Material Steel Product Length 18 cm [7.1 in] Product Width 43.8 cm [17.2 in] Product Height 4.4 cm [1.7 in] Power Power Source AC Adapter Included Input Voltage 100 - 240 AC Input Current 1.8A Output Voltage 12V DC Output Current 4A Center Tip Polarity Positive Plug Type M Power Consumption (In Watts) 48W Software OS Compatibility OS independent; No software or drivers required Special Notes / Requirements Note Supports SUN keyboard emulation What's in the Box Included in Package 1 - 8 Port DVI USB KVM Switch 1 - Set Rack-mount brackets 3 - Universal power adapter: NA/EU/UK or Australia/New Zealand 1 - User Manual -
Description Downloads Datasheet Downloads User Manual Downloads
