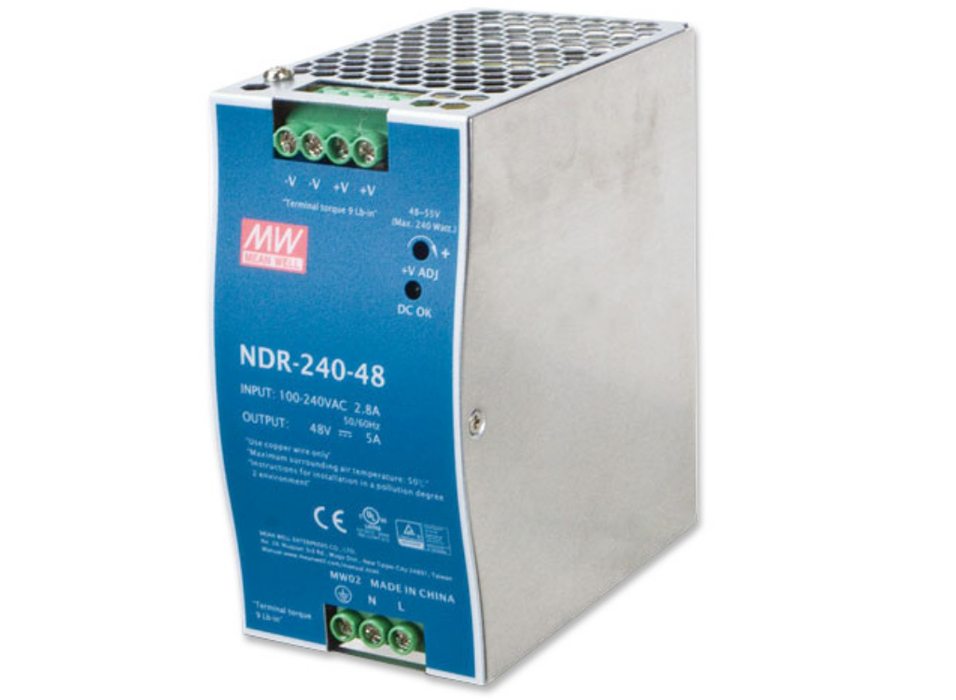

Planet PWR-240-48 48V, 240W Din-Rail Power Supply
SKU: PWR-240-48
£60.84 (Excl. VAT)
- Description
- Specifications
- Downloads
-
Planet PWR-240-48 48V, 240W Din-Rail Power Supply
Din-Rail Power Supply
The PWR series DIN Rail power supply units are stable power sources for industries that can experience varying temperatures and environments. These power supply units from Planetechusa.com serve as reliable power sources and are compatible with the universal 90-264 AC input voltage or 127-370 DC input voltage. The PWR series offers power output in the ranges of 24V / 48V DC with different Watt values depending on the model number. These power supply units are ideal for DIN rail TS-35 / 7.5 or 15 installation because of their slim design and compact features. The PWR series are suitable for industrial environments that require dependable power in harsh environments with extreme temperatures. The series provides protection from various risks, such as over-heating, short circuit, overload and voltage overuse. These units work with ease in temperatures from -20° to 70°C.
Input Voltage AC: 90-264VAC
Input Voltage DC: 127-370VDC
Power Output: 240 Watts, 48V DC, 5A
Operating Temperature: -20 to 70°C -
Specification Details Hardware Version 2 Dimensions (W x D x H) 63 x 125.2 x 113.5 mm Weight 1 kg Input Voltage (AC) 90-264V AC, 47~63Hz, 2.5A Input Voltage (DC) 127-370V DC, 47~63Hz, 1.3A Power Output 240 watts, 48V, 5A Operating Temperature -20~70°C Storage Temperature -40~85°C Operating Humidity 20~95% Storage Humidity 10~95% (non-condensing) Installation DIN rail TS-35/7.5 or 15 Safety & Function UL508, TUV EN60950-1 approved (meeting EN60204-1) Note Specification is for PWR-240-48 hardware version 2 Output Load Derating Please refer to output load derating curve from product specification. -
Description Downloads Datasheet Downloads User Manual Downloads
