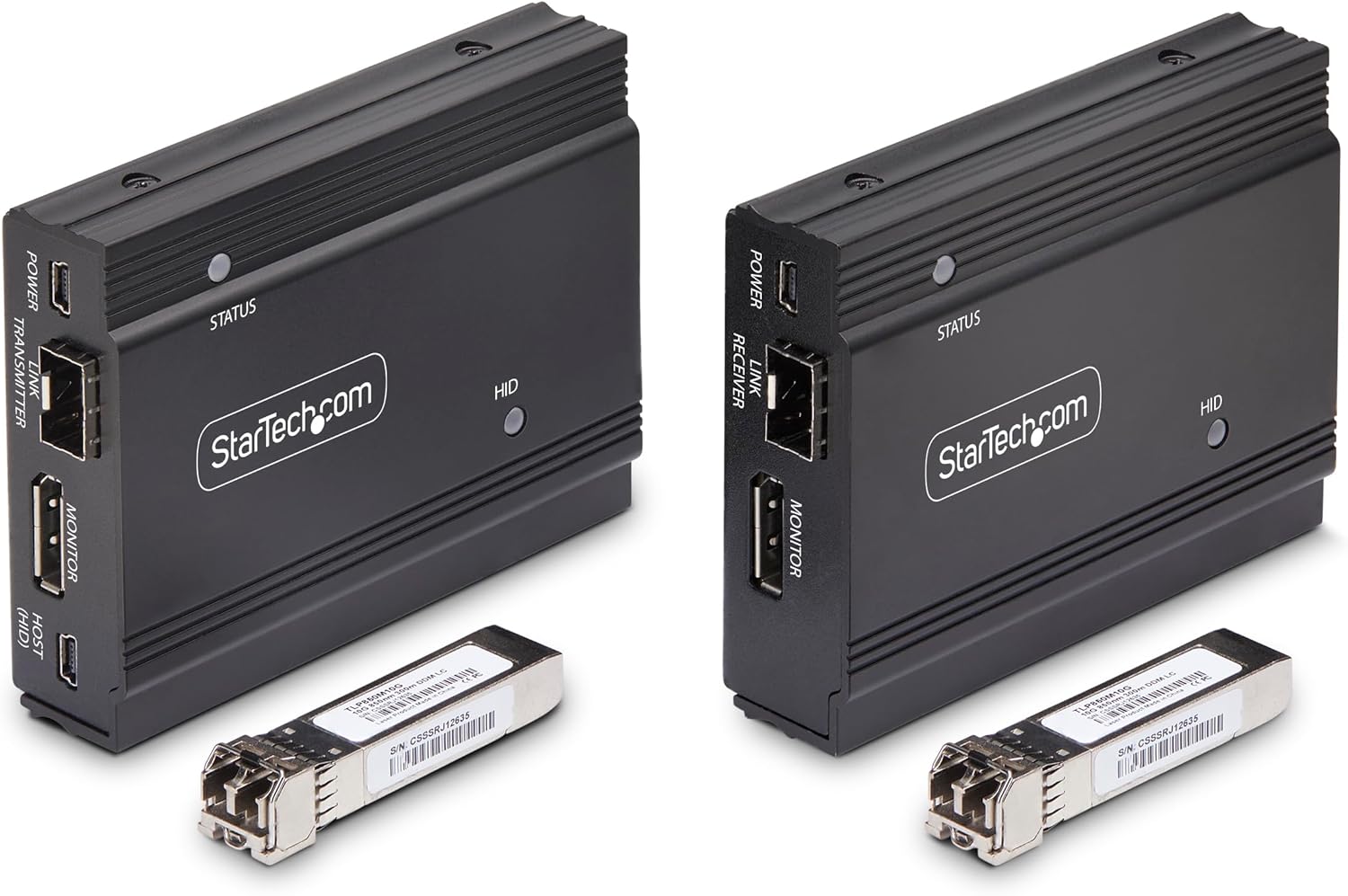

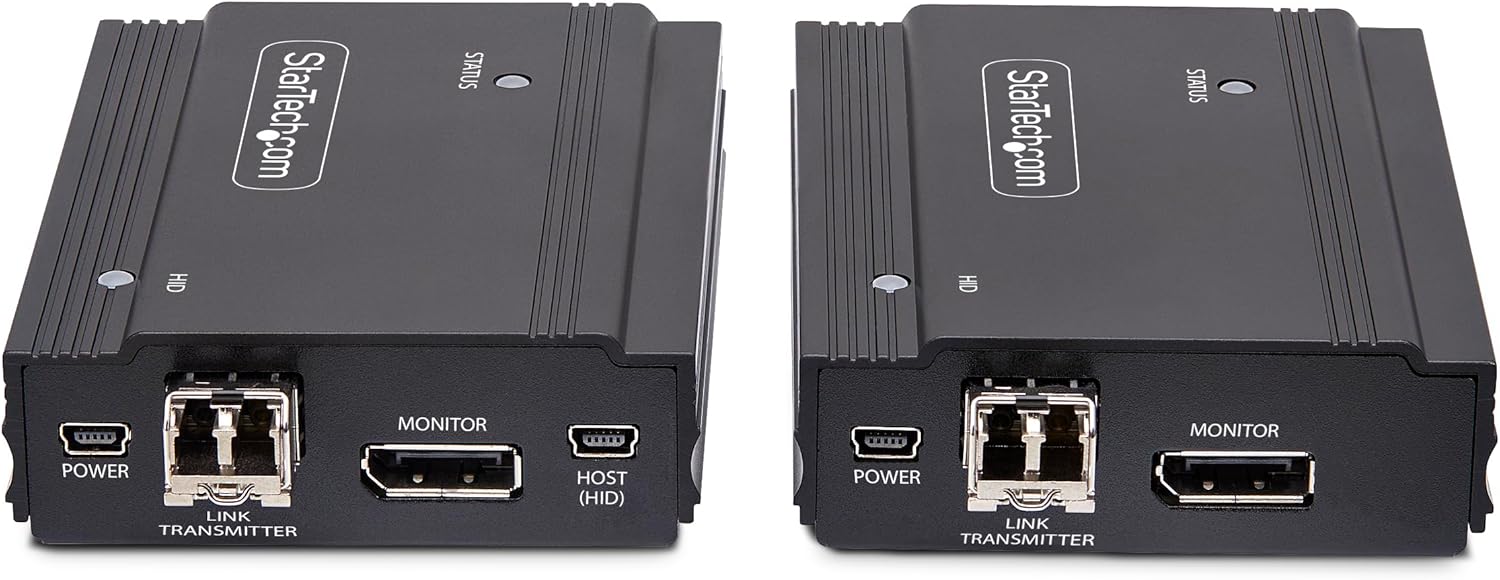

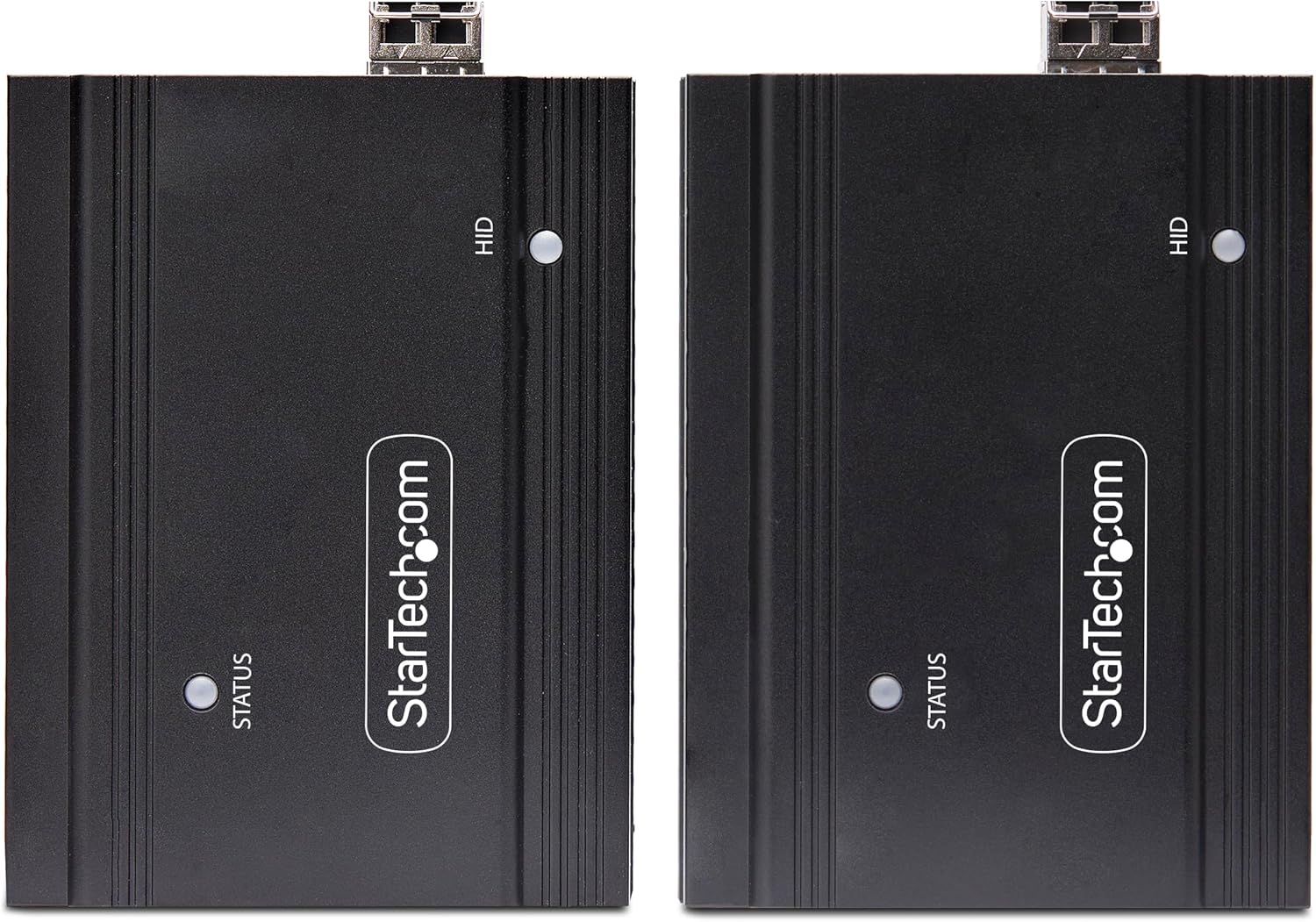

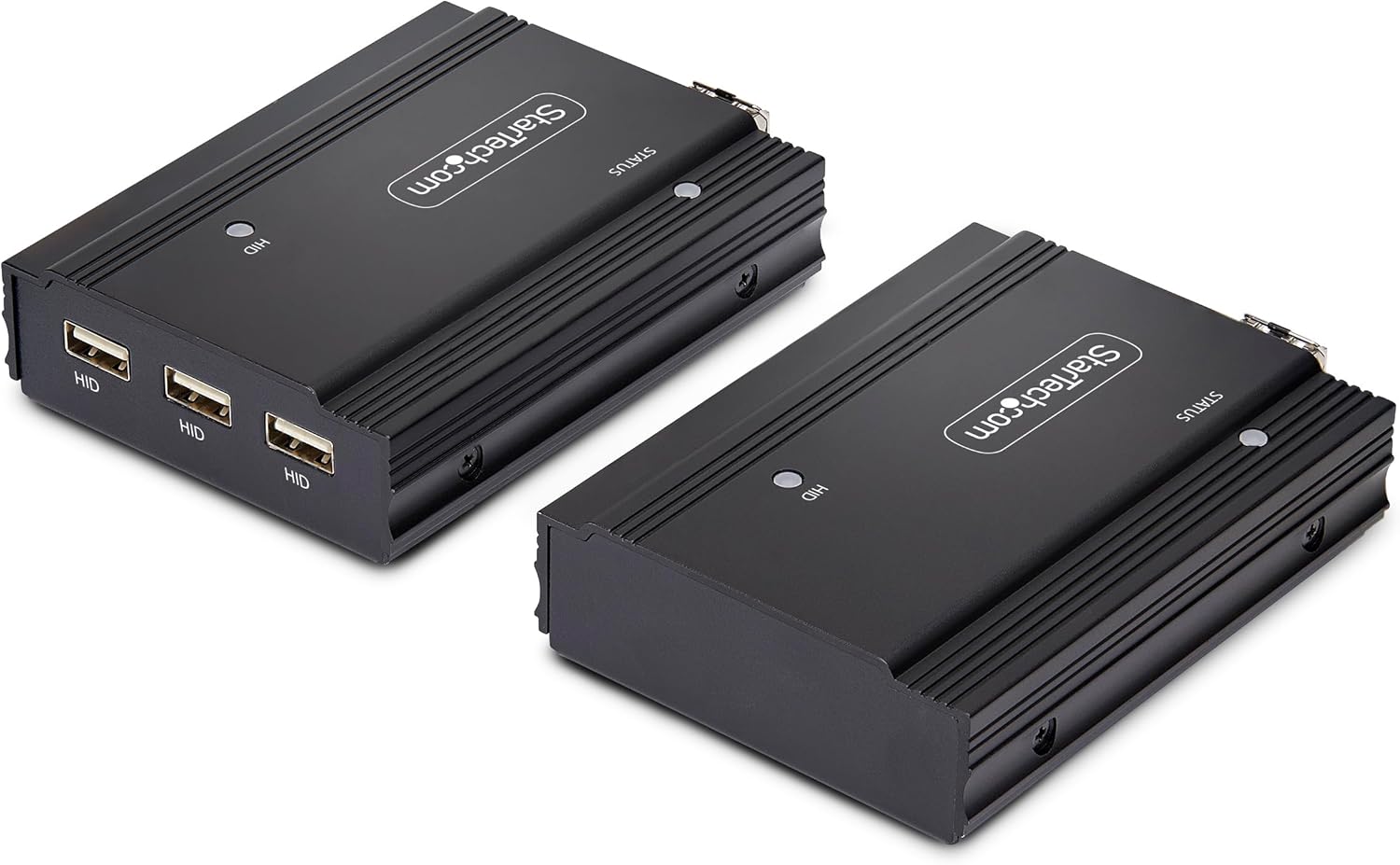

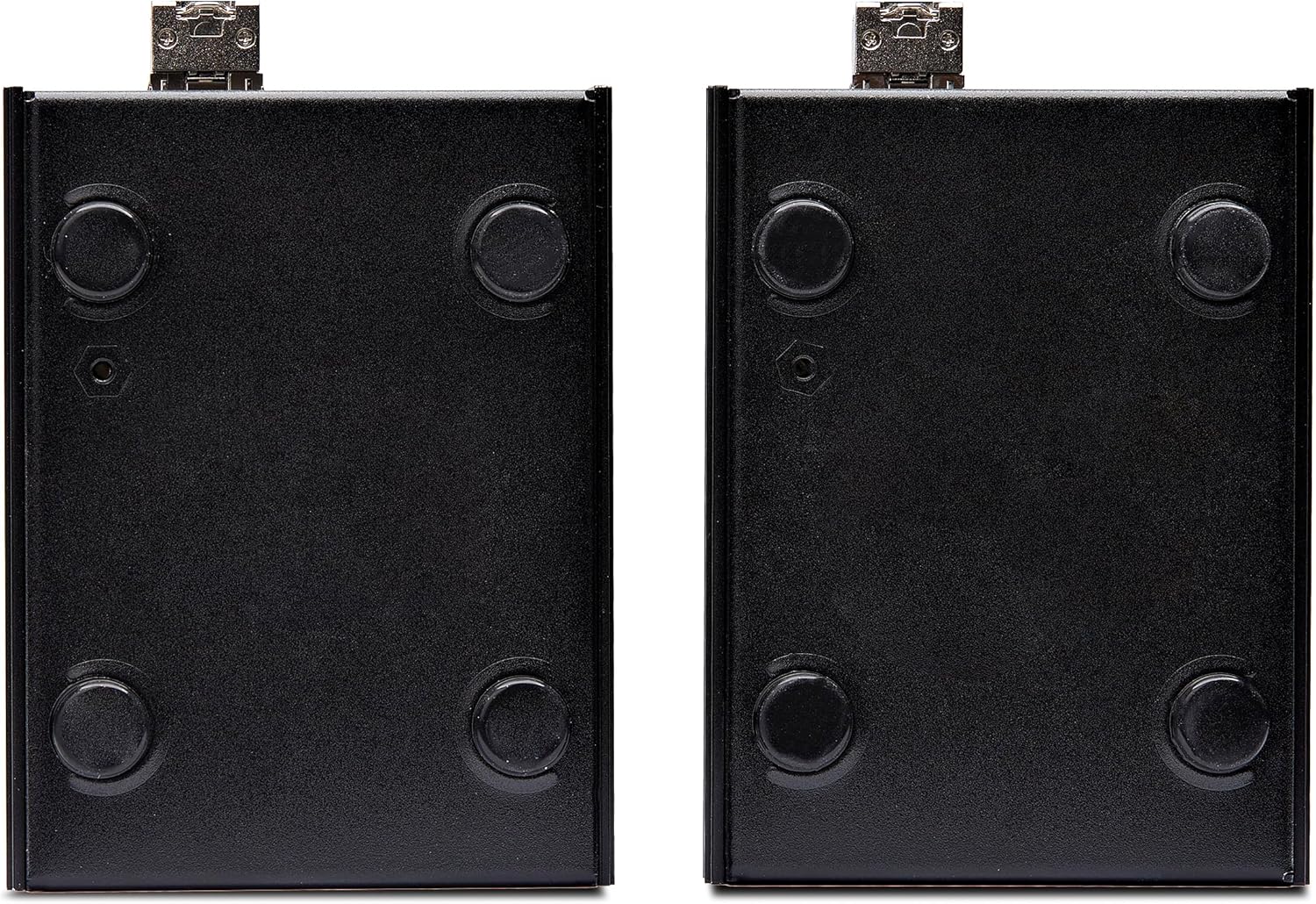

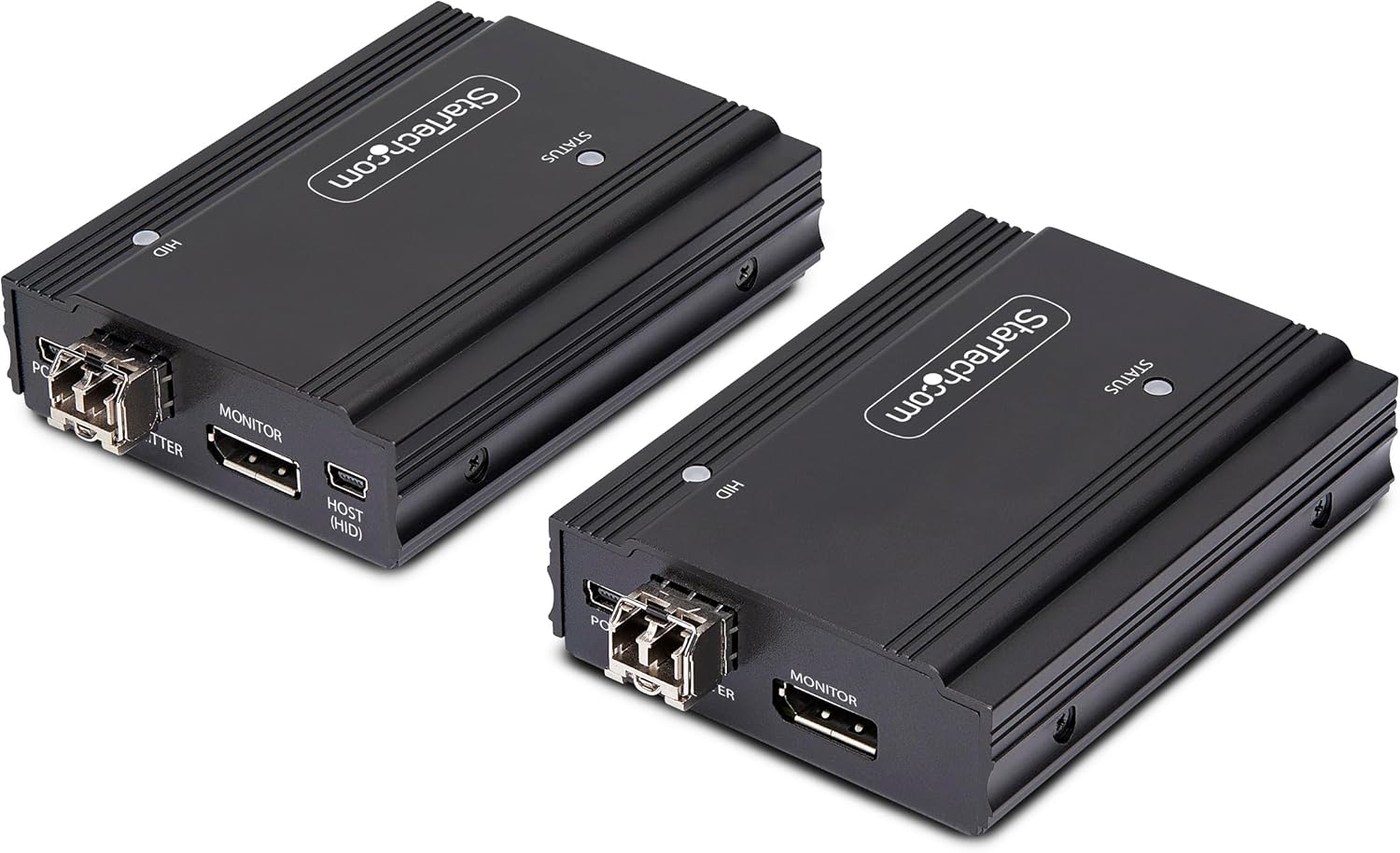

StarTech KVM Extender DP 4K 60Hz 300m SFP+ USB HID TAA
The Fiber Optic KVM Extender allows for control of a KVM switch, console, or PC from a distance of up to 984ft (300m).
4K 60Hz DisplayPort Video
The transmitter/receiver kit extends 4K 60Hz DisplayPort video, supporting UHD resolutions up to 3840x2160 at 60Hz (4:4:4). It is DP 1.2 compliant and includes EDID pass-through for real-time display information, ensuring optimal signal quality and compatibility.
Universal Compatibility
The KVM Console Extender does not require any drivers or software for installation. The point-to-point fiber connection eliminates the need for configuring or managing network settings. The extender is compatible with all operating systems, including Windows, macOS, and Linux. The SFP+ slots support both single and multi-mode MSA-compliant modules.

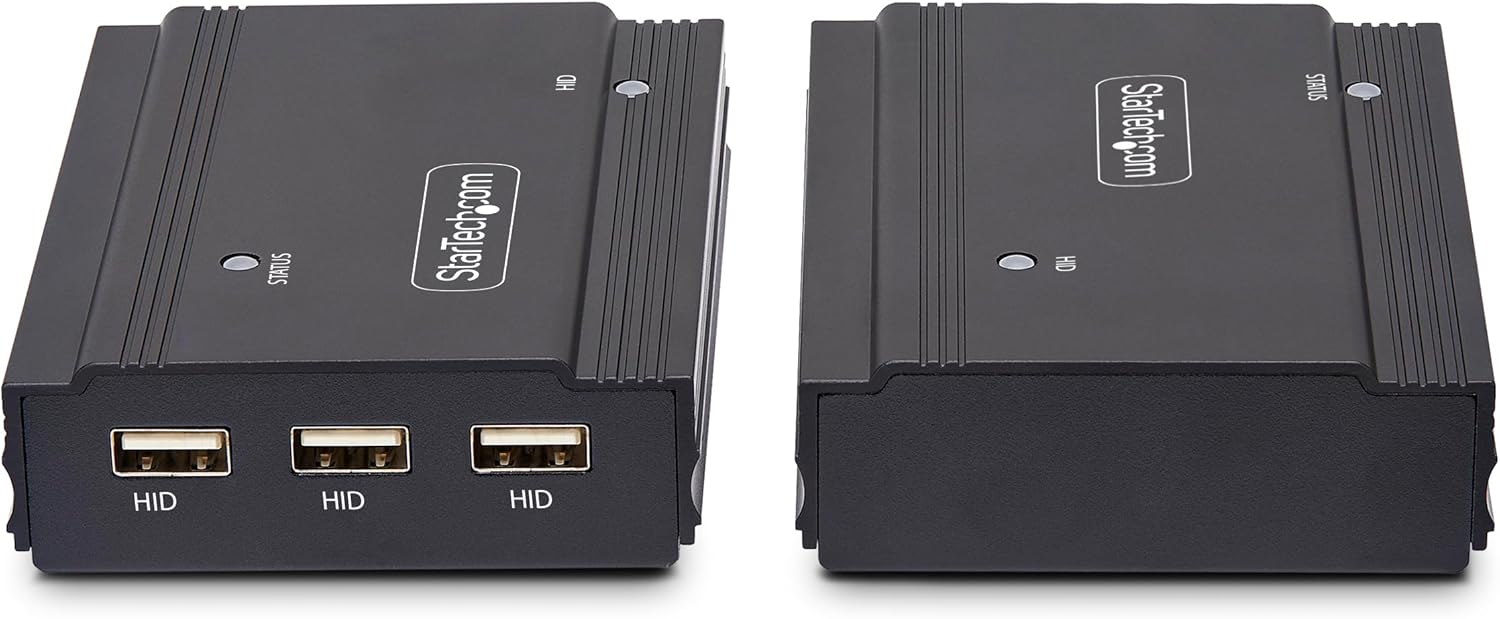

Built-In USB Hub
Three USB ports allow users to connect peripherals such as a mouse and keyboard, ideal for remote control of source devices, flexible workstation setups, and collaborative multimedia environments.
Durable Design
The extender has a sturdy steel chassis and uses fiber-optic extension to reduce electromagnetic interference (EMI), improving stability and ensuring long-term reliability. Its rugged design makes it suitable for installation in various environments.
Applications
Professionals who need to work with computers or servers in remote or isolated locations
Manage digital signage setups where the computer running the content is remote from the display
Educational institutions that need to centralize and manage computer systems while providing access to users in different classrooms or locations
| Category | Attribute | Value |
|---|---|---|
| Compatibility | OS Independent | Yes |
| Software Required | No | |
| Warranty | Warranty | 2 Years |
| Console Ports | SFP+ Slot | 1 |
| USB Type-A (HID) | 3 (USB 1.1) | |
| DisplayPort | 1 | |
| USB Mini-B (Power) | 1 | |
| Host Ports | DisplayPort | 1 |
| USB Mini-B | 1 | |
| USB Mini-B (Power) | 1 | |
| Environment | Operating Temp | 0°C to 50°C |
| Storage Temp | -10°C to 60°C | |
| Humidity | 0% ~ 80% RH | |
| Hardware | Audio | Yes |
| KVM Ports | 1 | |
| PC Interface | USB | |
| PC Video Type | DisplayPort | |
| Monitor Support | 1 | |
| Rack-Mountable | No | |
| Cables Included | No | |
| Indicators | LED Indicators | 2 Status, 2 USB HID |
| Packaging | Height | 7.2 cm |
| Length | 17.9 cm | |
| Width | 30.8 cm | |
| Weight | 1.0 kg | |
| Performance | Video Revision | DisplayPort 1.2 |
| Max Cable Length | 300m (OM3 Fiber) | |
| Max Resolution | 4096x2160 @ 60Hz | |
| Wide Screen Support | Yes | |
| Audio via DisplayPort | 2 Channel | |
| Auto Scan | None | |
| MTBF | 156,000 Hours | |
| Physical | Color | Black |
| Height | 2.8 cm | |
| Length | 11.4 cm | |
| Width | 7.8 cm | |
| Weight | 0.5 kg | |
| Material | Metal | |
| Power | Power Source | AC Adapter Included |
| Input Voltage | 100 - 240V AC | |
| Input Current | 0.3A | |
| Output Voltage | 5V DC | |
| Output Current | 2A | |
| Power Consumption | 10W | |
| Software | Drivers Required | No |
| Notes | SFP+ Module | Pre-installed, interchangeable |

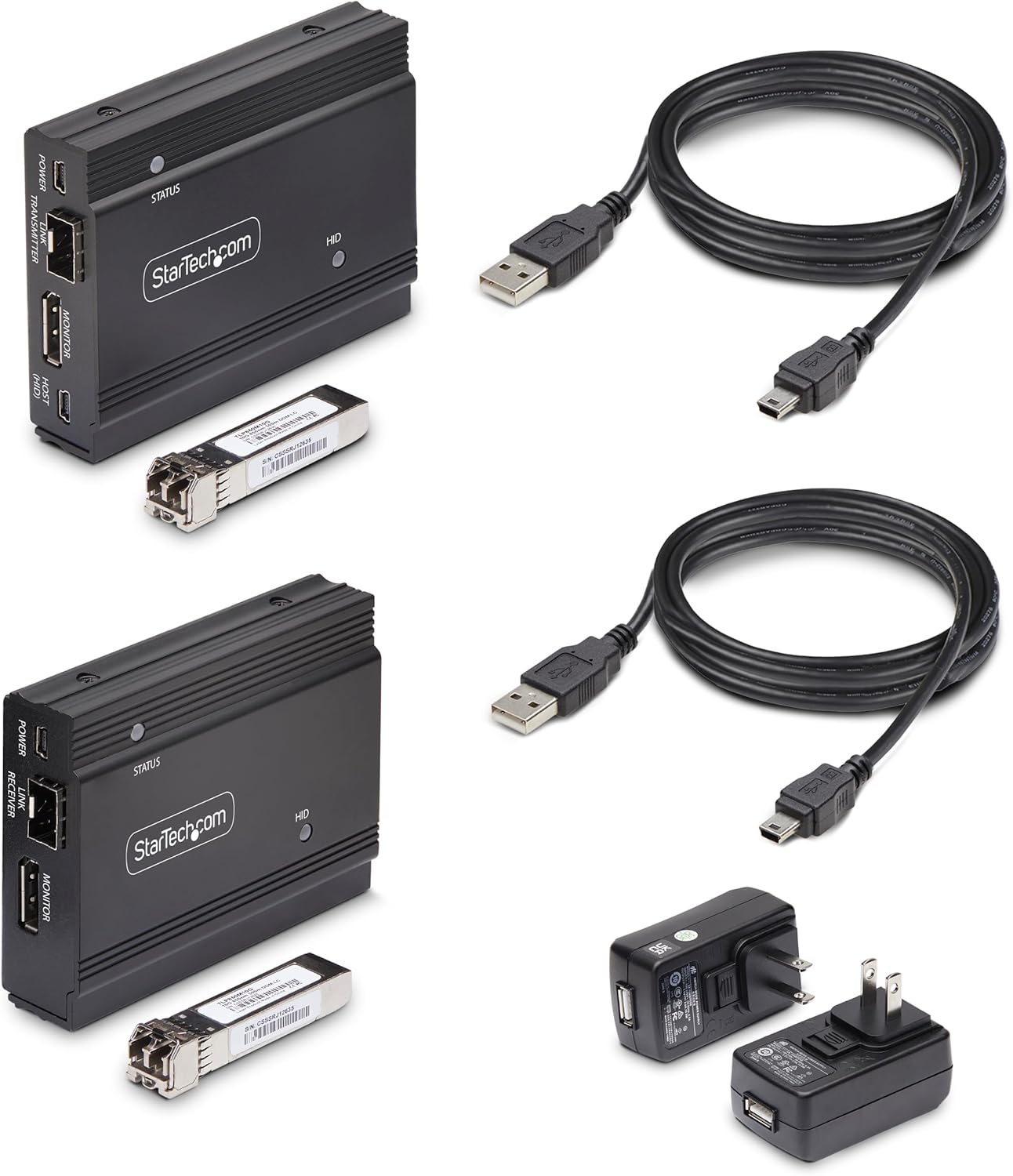

| Box Contents | Transmitter & Receiver Units | Yes |
| SFP+ Modules | 2 (pre-installed) | |
| Power Adapters | 2 (NA/EU/UK/ANZ) | |
| USB-A to USB Mini-B Cables | 3 (1.5m each) | |
| Quick-Start Guide | Included |
| Description | Downloads |
|---|---|
| StarTech KVM Extender DP 4K 60Hz 300m SFP+ USB HID TAA | FD121-KVM-EXTENDER DataSheet | Downloads |
| StarTech KVM Extender DP 4K 60Hz 300m SFP+ USB HID TAA | FD121-KVM-EXTENDER Quick Start Guide | Downloads |
