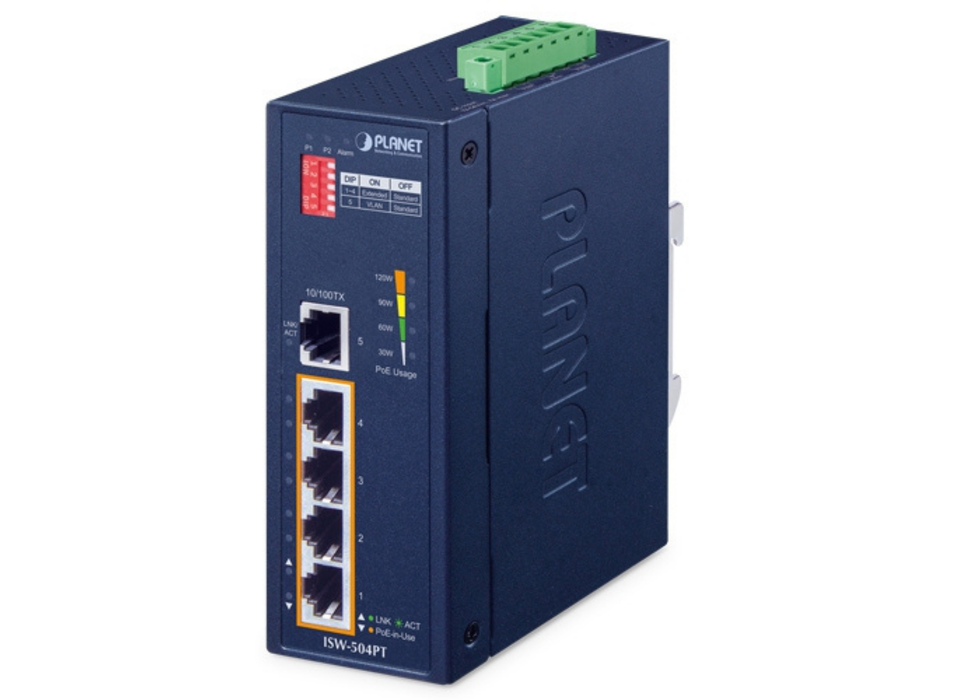

Planet Industrial 5-Port 10/100TX Ethernet Switch with 4-Port 802.3at PoE+ | ISW-504PT

Industrial 5-Port PoE+ Switch for Harsh Environments

A Perfect Full PoE+ Power Solution Ideal for Hardened Environment
With Plug and Play design, PLANET ISW-504PT Industrial-grade, DIN-rail type Unmanaged Fast Ethernet PoE+ Switch, featuring 4 IEEE 802.3at PoE+10/100BASE-TX ports and 1 additional Fast Ethernet RJ45 interface for uplink connection, allows to automatically detect and configure internal and external peripherals. With rugged IP40 metal housing and redundant power system for total power budget of up to 120 watts for different kinds of PoE applications, the ISW-504PT also operates efficiently in harsh environments, with an operating temperature range of -40 to 75 degrees Celsius.

In response to the growing demand for IIoT (Industrial Internet of Things) infrastructure, the ISW-504PT is designed for easy deployment of industrial networks with its Plug and Play capability. Furthermore, it ensures stable and reliable fast data and power transmission. The ISW-504PT also supports PROFINET traffic pass-through with QoS, making it an ideal choice for integrating with industrial automation systems and enhancing communication between devices in a factory setting.

PROFINET Traffic Pass-through with QoS
The ISW-504PT features a brand-new function that enhances support for recognizing the PROFINET traffic for higher delivery priority. Once the ISW-504PT receives the PROFINET traffic, it will forward the PROFINET traffic first, and then handle other Ethernet traffic. With this enhanced function, the ISW-504PT becomes the ideal Industrial Unmanaged Switch for the faster PROFINET traffic.

Convenient and Reliable Power System
To facilitate the 802.3at PoE+ usage with the commonly-used 12~54V DC power input for transportation and industrial-level applications, the ISW-504PT adopts 12~54V DC to 54V DC power boost technology to solve power source issue but does not require special power supplies. Its wide-ranging voltages design is suitable for worldwide operability with high availability applications requiring dual or backup power inputs.

802.3at PoE+ Power and Ethernet Data Transmission Extension
The ISW-504PT has a built-in solid DIP switch providing “Standard”, "VLAN" and “Extend” operation modes. By default, the ISW-504PT operates as a normal IEEE 802.3af/at PoE+ Switch in the “Standard” operation mode.

The "VLAN" operation mode features with port-based VLAN function helps to prevent the IP camera’s multicast or broadcast storm from influencing each other.

In the “Extend” operation mode, the ISW-504PT operates on a per-port basis at 10Mbps full duplex operation and can support 25-watt PoE power output over a distance of up to 250 meters, overcoming the 100-meter limit on Ethernet UTP cable.

Environmentally-hardened Design
With the IP40 metal industrial case, the ISW-504PT provides a high level of immunity against electromagnetic interference and heavy electrical surges which are usually found on plant floors or in curb-side traffic control cabinets without air conditioning. It features a ventilated construction in which a cooling fan is not necessary, thereby making its operation noiseless. Being able to operate under the temperature range from -40 to 75 degrees C, the ISW-504PT can be placed in almost any difficult environment.

Robust Protection
The ISW-504PT provides contact discharge of ±5KV DC and air discharge of ±5KV DC for Ethernet ESD protection. It also supports ±5KV surge immunity to improve product stability and protects users’ networks from devastating ESD attacks, making sure the flow of operation does not fluctuate.

Intelligent LED Indicator for Real-time PoE Usage

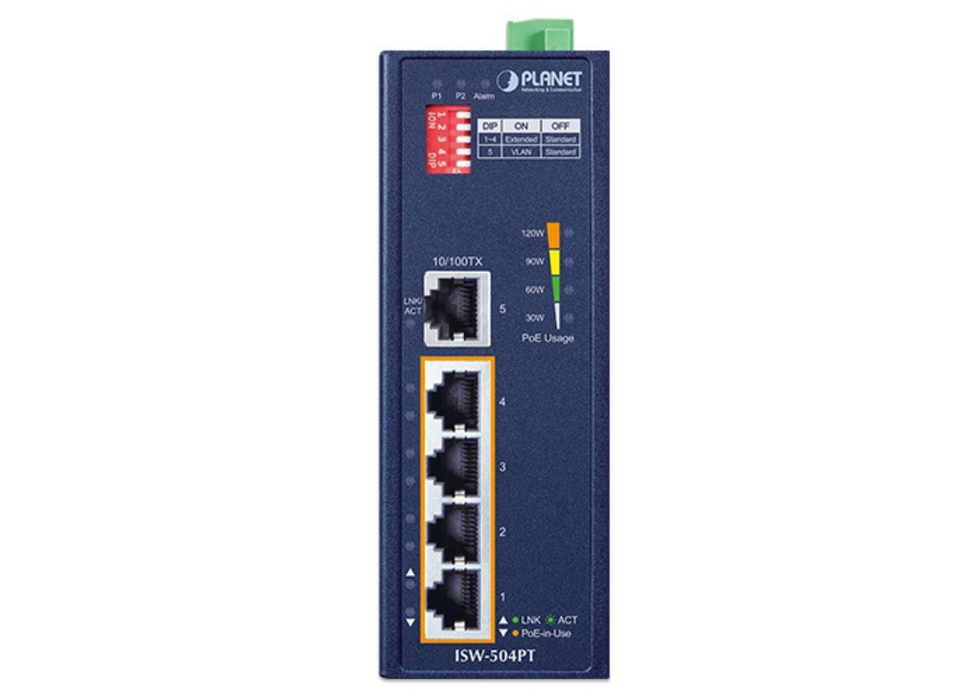

The ISW-504PT helps users to monitor the current status of PoE power usage easily and efficiently by its advanced LED indication. Called “PoE Power Usage”, the front panel of the Industrial Gigabit PoE+ Switch has four orange LEDs indicating 30W, 60W, 90W and 120W of PoE power usage.

Flexible and Easy Installation with Limited Space
The ISW-504PT is designed to be installed in different environments, such as wall enclosure. It can be installed by fixed wall mounting or DIN rail mounting, thereby making its usability more flexible and easier in any space-limited location.

Applications

Industrial-grade PoE+ Switch for Building Automation and Security
Suitable for buildings where security is strictly enforced, the ISW-504PT, with four Fast Ethernet 802.3at PoE+ in-line power interfaces, can easily build a power centrally controlled for an IP phone system, IP surveillance system, and wireless AP group in the harsh Industrial environment. For instance, 4 PoE IP cameras or PoE wireless APs can be easily installed for surveillance demands or a wireless roaming environment in the industrial area can be built. Without the power-socket limitation, the ISW-504PT makes the installation of IP cameras or wireless APs easier and more efficient.

Perfect Integration Solution for IP PoE Camera and NVR System
The ISW-504PT provides four 10/100BASE-TX 802.3at PoE+ ports which can offer sufficient PoE power to 4 PoE IP cameras at the same time. In addition, with the 10/100BASE-TX interfaces, the ISW-504PT can connect to a core fiber switch and send video streams to an NVR and monitoring center. Through the high-performance switch architecture, the ISW-504PT facilitates the recorded video files from the 4 PoE+ IP cameras to be saved in the NVR systems. Furthermore, the NVR systems can be controlled and monitored in both the local LAN and the remote site via Internet. The ISW-504PT undoubtedly brings an ideal secure surveillance system at a lower total cost.

Key Features

Physical Port
4 10/100BASE-TX Fast Ethernet IEEE 802.3at PoE+ RJ45 copper ports (Ports 1 to 4)
1 10/100BASE-TX Fast Ethernet non-PoE RJ45 copper port

Power over Ethernet
Complies with IEEE 802.3at Power over Ethernet Plus, end-span PSE
Backward compatible with IEEE 802.3af Power over Ethernet
Up to 4 ports of IEEE 802.3af/at devices powered
Up to 120-watt PoE budget
Supports PoE power up to 36 watts for each PoE port
Each port supports 54V DC power to PoE powered device
Auto detects powered device (PD)
Circuit protection prevents power interference between ports
Remote power feeding up to 100m in standard mode with 250m in extend mode

Switching
Hardware-based 10/100Mbps (half/full duplex), auto-negotiation and auto MDI/MDI-X
Features Store-and-Forward mode with wire-speed filtering and forwarding rates
PROFINET traffic pass-through with QoS
IEEE 802.3x flow control for full duplex operation and back pressure for half duplex operation
1K MAC address table size
IEEE 802.1Q VLAN transparency
Hardware-based DIP switch for Standard, VLAN and Extend mode selection; the Extend mode features 25-watt PoE transmission distance of 250m at speed of 10Mbps (Only for Ports 1 to 4)
Automatic address learning and address aging

Industrial Case and Installation
IP40 metal case
DIN-rail, wall-mount design or side wall-mount design

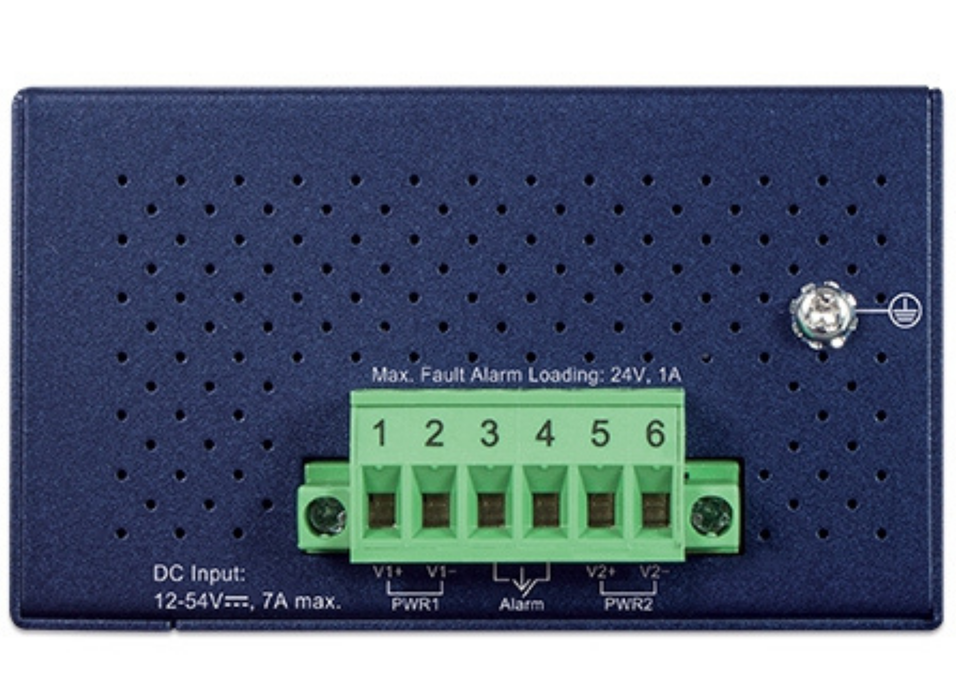

One terminal block for master and slave power input (Power Range: 12 ~ 54V DC redundant power)
12~54V DC redundant power with reverse polarity protection
Fault alarm for power input failed
4 real-time PoE power usage indicators
Supports 5KV DC Ethernet ESD protection
-40 to 75 degrees C operating temperature
