DataVideo 4K SHOWCAST Streaming Studio Switchers | SHOWCAST-100

DataVideo 4K SHOWCAST Streaming Studio Switchers

Innovative, Compact, Easy to use and All-in-one.

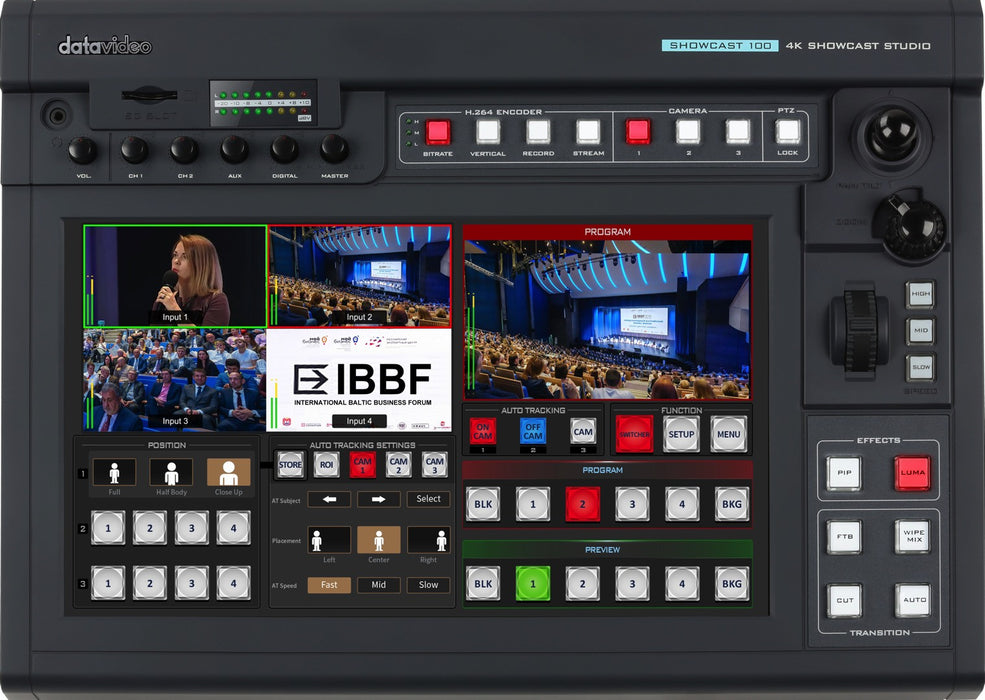

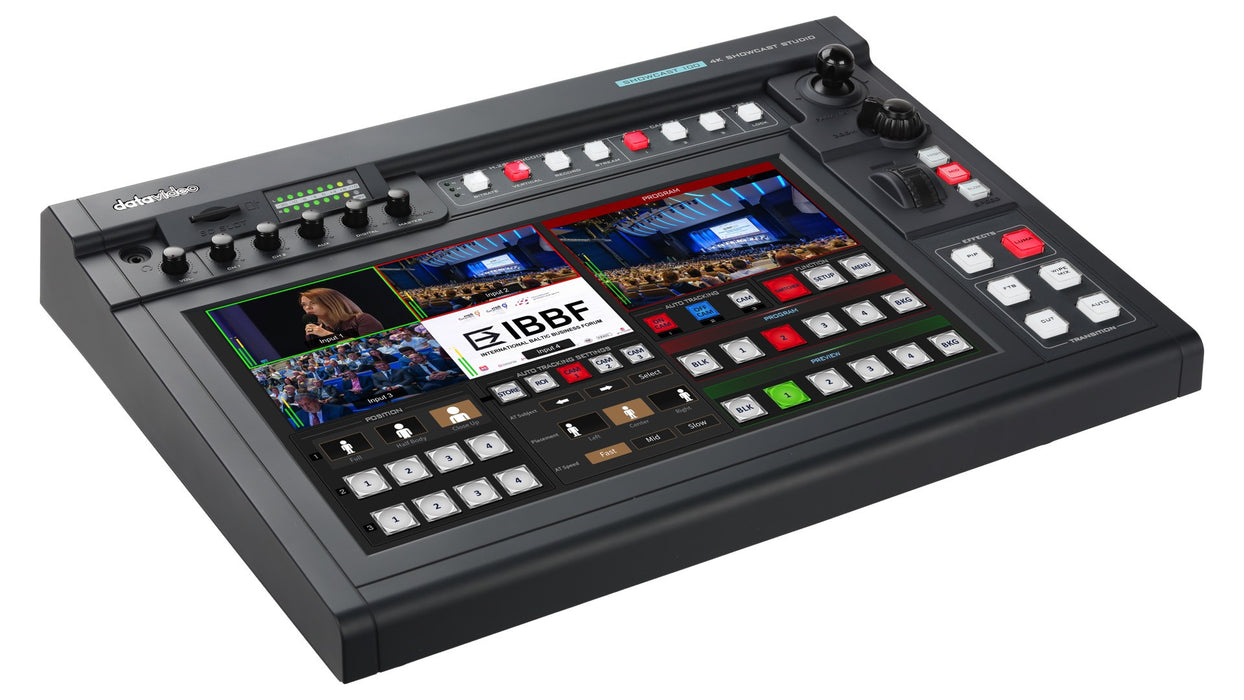

The SHOWCAST 100 is a brand new 4K 4-Channel All-in-one Productio Studio that features 7 major functions. It can switch video, overlay text and graphics, control cameras, live stream, record, and mix audio all from a single unit. Similar to a tablet, the 14-inch touch panel allows easy and intuitive access to switcher functions.

4K60p 4-Channel Touchscreen Switcher
The touch panel allows easy and intuitive access to a variety of switcher functions. The SHOWCAST 100 has many functions with easy setup.
The unique all-in-one design streamline your video production workflow by reducing the number of external devices that you need to connect. SHOWCAST100 is light and compact. Its mobility makes it ideal for any live production environment.

Video Switching
The four HDMI input/output channels are designed for basic video production workflow of meetings, corporate conferences, church events, etc.

Subtitles
The SHOWCAST 100 offers two ways to overlay subtitles. A lumakeyed subtitle is usually used for logos, animated texts, etc. Another way is to overlay subtitles using the built-in network streaming encoder.

Camera Control
The SHOWCAST 100's built-in camera control functions allow you to simultaneously control three PTZ cameras. You can directly save the lens position presets, pan and tilt camera lens in real time, zoom in and out of an image, and adjust the white balance, iris and mirror mode.

Video Streaming and Recording
The built-in dual live streaming encoder allows you to record and stream simultaneously. With the SHOWCAST 100's recording capability, you can easily back up the recorded video files for post production edits without much effort.


Direct Access to Auto Tracking Features
Gain immediate access to the auto tracking feature using a range of external controllers.
Beyond traditional camera controls, activating auto tracking on SHOWCAST 100 is also straightforward and convenient.


Smart PTZ Speed Adaptation
The integrated PID algorithm is able to detect the movement speed of the identified object and automatically adjust the camera's corresponding pan, tilt and zoom speeds in such a way that the lens movement will be smooth, avoiding common camera lens movement problems like jerky movements or unpredicted halts.


Talent Position: Center / Left Side / Right Side
The positioning of talent depends on the videographer’s creativity and intent rather than strict rules. Different positions can convey various emotions, messages, or visual effects. A centered composition provides a sense of stability and balance, suitable for scenes that require highlighting the main subject. Videographers may also place the talent on the left third or right third of the frame, leaving adequate space in the foreground to showcase the talent’s sight direction or potential future possibilities.


Quick Access to Framing Options
All Datavideo PTC Camera with AutoTracking include the RMC-1AT controller. User can quickly select full-body , half-body and close up framing, making it easy to change the shooting scene and framing requirements.


Custom AI Object Tracking
If you are filming multiple people, you can designate a person for Auto tracking. Once linked to the camera, only the designated person will be tracked, avoiding interferences such as the desks, people coming back and forth, large objects, etc.


Virtual Buttons
Virtual buttons on the large touch screen panel makes it easy for operating the switcher as well as setting up presets for cameras.
Operating the SHOWCAST 100 is as easy as using a tablet. Produce professional video productions without having a huge learning curve on how to use and operate a switcher.


Useful and Simple Transition Effects
Cut, Mix and Wipe are the three useful and simple transition effects built into the switcher. Via an easy-to-use 14 inch touchscreen UI, the transition settings will be immediately accessible after selection of a particular effect. For example, if you've selected WIPE, you can easily adjust the transition speed by dragging a slider with your finger or tap to select a color for the border.


PIP and Split
PIP is often required in video production. Most of the time, the PIP window size need to be adjusted for the program view. The SHOWCAST 100 allows you to drag different sliders on the touchscreen UI with your finger to set the aspect ratio of the PIP window. The split window is usually used for live interview, corporate presentations, and panel discussions.


Camera Control
The SHOWCAST 100's built-in camera control functions allow you to simultaneously control three PTZ cameras. You can directly save the lens position presets, pan and tilt positions in real time and zoom in and out of a shot. In addition, you can adjust the white balance, iris and mirror mode of each camera.


Powerful Camera Presets
Even though SHOWCAST 100 can control only three PTZ cameras, you can save up to four presets per camera, giving you a total of 12 different angles for your production. The 12 memory presets allow the director to instantaneously switch between different camera angles on SHOWCAST 100 by pushing corresponding preset buttons.


Fine Tuning the Camera Parameters
On the intuitive touchscreen UI, you can easily adjust the camera's focus, iris and white balance settings. Settings of a particular program can be saved in memory presets for future use.

Two Ways to Overlay Subtitles
The SHOWCAST 100 offers two ways to overlay subtitles. A lumakeyed subtitle is usually used for logos, animated texts, etc. Lumakeyed subtitles can be previewed on the multiview screen and transitioned to program.
Another way is to overlay the subtitles using the built-in network streaming encoder. On the web UI of the streaming encoder, enter the subtitle texts in the text field of the CG page after which the subtitle will be shown on your streamed video as streaming starts and recorded on the SD card along with the video. If lumkeyed subtitle and CG texts are shown at the same time, they will all be recorded on the SD card.


Lumakeyed Subtitle
Luma key is an image processing technique that deals with the brightness level of an image or a video, thereby generating a foreground subtitle or logo. SHOWCAST 100's luma key function is designed for logos, text and animated images.


Character Generation using the Network Streaming Server
The CG texts or image generated using the network streaming server can be overlaid on the video during streaming. The text size and color can be customized with a border added. The text or image position can also be adjusted accordingly.
Custom real-time captions and subtitles for your  programs such as news broadcast.
Transcribe audio by entering subtitles line by line using News CG then play subtitles in real time by simply tapping the space bar on the keyboard.


Adjust the size, position, color and borders
Highlight the information that you wish to convey to your audience. You can also transcribe audio by entering subtitles line by line using News CG after which you will be able to play subtitles in real time by simply tapping the space bar on the keyboard controller.

Live Streaming Encoder
The built-in dual live streaming encoder allows you to record and stream simultaneously. With the SHOWCAST 100's recording capability, you can easily back up the recorded video files for post production edits without much effort.
Depending on the bandwidth, you can set the bitrate to low, medium or high. To meet growing demand for mobile viewing, the portrait view can now be easily activated on the SHOWCAST 100 by simply pressing the VERTICAL button so that viewers will be able to view the program on their mobile devices by holding them upright without having to change the orientation.


Dual Streaming
During video production, you can simultaneously stream to two live streaming platforms such as Facebook, Youtube and Twitch. With Datavideo dvCloud, you can stream to 25 live streaming platforms at the same time and automatically back up your video files on the cloud server.

dvCloud and SRT
dvCloud is a professional live streaming platform developed by Datavideo. Once you've login, you will be allowed to create and manage all video streaming channels on dvCloud and stream your video to 25 live stream servers without any time constraints. The best part about dvCloud is that it allows you to back up video files on the cloud server for future downloads. The SHOWCAST 100 forms a low latency, secure and reliable streaming work flow with the SRT protocol and the dvCloud server.


Vertical Streaming
For each live streaming video, 50% of the audience view on mobile phones, and 94% of the mobile users prefer holding the phone upright to view the video. It takes only a few basic setups for the vertical streaming function of the SHOWCAST 100 to generate a portrait view of your streaming video.

14 Inch Touch Screen and Intuitive Operation using the Touchscreen UI
The traditional physical keyboard of the switcher is replaced by a professional touchscreen UI to allow video switching, activation of subtitle overlay, camera control, video recording, audio mixing, etc. Operating of these functions is intuitive and easy to learn, even to novice users.
The SHOWCAST 100's intuitive touchscreen UI has several buttons with each assigned of one function only. The pane-like design divides the functions into different groups. Like a tablet, the touchscreen UI is intuitive and easy to use.


SD Card Recording
With the SHOWCAST 100's recording capability, you can easily back up the recorded video files for post-edits, etc without much effort.

Audio Mixing
The 4 Channel Audio Mixer accepts embedded audio, two LINE input channels, one AUX channel and one HDMI audio channel, giving you the ability to mix the audios while processing the image.
The SHOWCAST 100 has two XLR/6.3mm composite ports for LINE inputs. The dual channel RCA port is designed for analog audio input. The RCA output serves to connect external audio equipment for audio monitoring.
