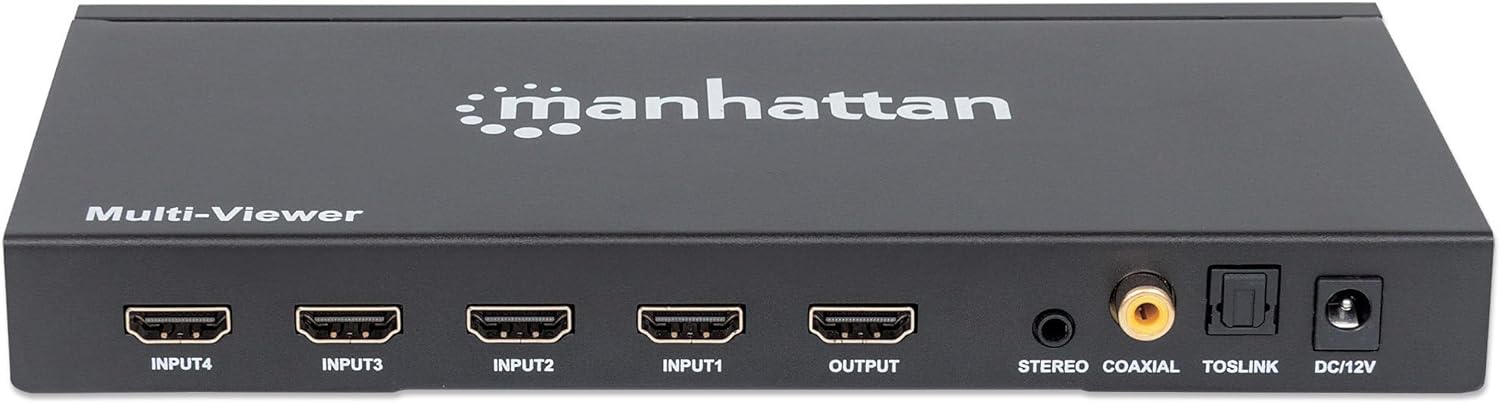

Manhattan 1080p 4-Port HDMI Multiviewer Switch | 207881
Easily connect and display four HDMI sources to a single display.

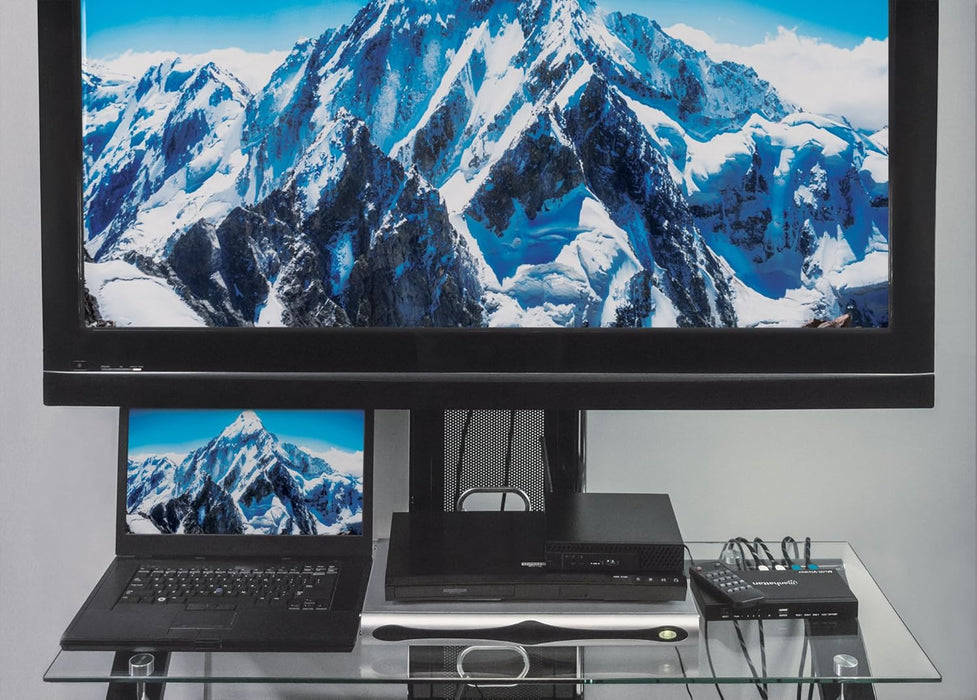

The Manhattan 1080p 4-Port HDMI Multiviewer Switch provides the option of simultaneously connecting as many as four HDMI video sources — including gaming consoles, Blu-ray players, satellite receivers, digital recorders, set-top boxes and other devices — to one High-Definition (1080p, HD) or high-definition 3D displays as well as Deep Color HD projectors. This Multiviewer Switch makes missing important shows, games or security displays a thing of the past with all four inputs able to be displayed on one screen with the Multiviewer Combo Mode function.
Flexible Solution for Many HD Applications
Perfect for a variety of home or commercial applications, the Manhattan 1080p 4-Port HDMI Multiviewer Switch has both manual selection switches and a convenient IR remote control so you can quickly select or seamlessly switch between HDMI sources or configure the display arrangement.
Best Possible Image Quality
The Manhattan 1080p 4-Port HDMI Multiviewer Switch is HDMI and HDCP 1.4a compliant and delivers a stunningly clean, crisp and vivid picture up to 1080p resolution on one displays thanks to an integrated video bandwidth amplifier. Additionally, it supports HD-quality 3D video, as well as LPCM, DTS and Dolby TrueHD audio.
Features
Share up to four HDMI Audio/Video sources on one display at the same time or one at a time
Multiviewer function supports four customizable modes: Full Screen and three variations of Combo Mode with seamless switching between sources
Supports 1080p resolution as well as HD 3D video and Deep Color (36-bits/pixel)
Integrated video bandwidth amplifier
Supports LPCM, DTS Digital, DTS-HD Master Audio and Dolby TrueHD audio
Supports Stereo, Coaxial and Toslink Audio output for connection to amplifier or receiver for the best sound quality

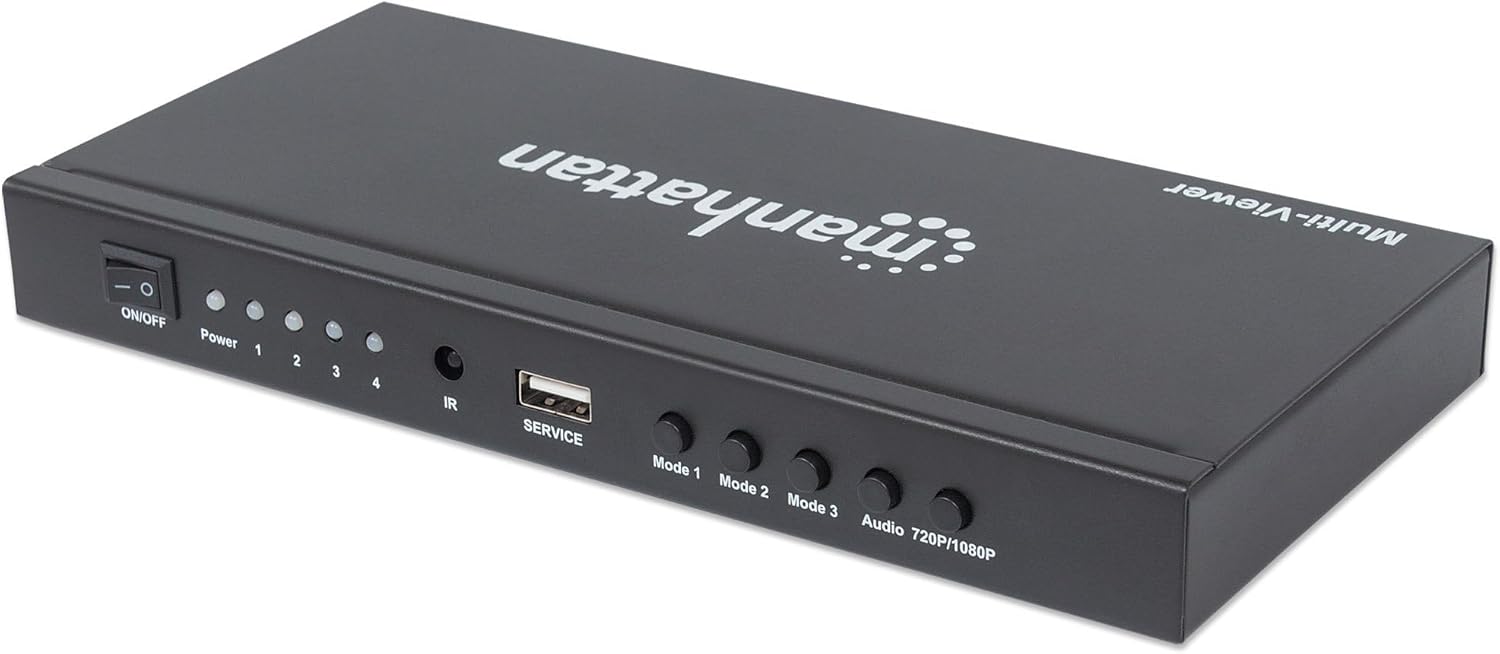

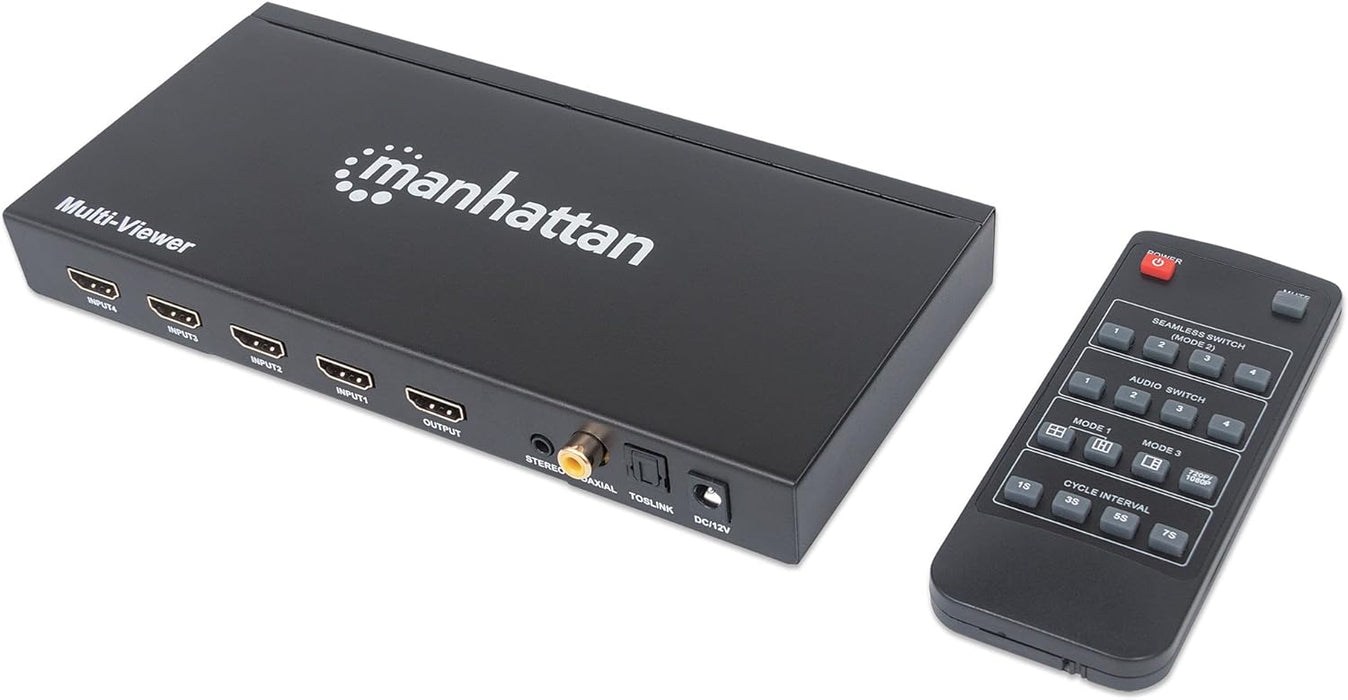

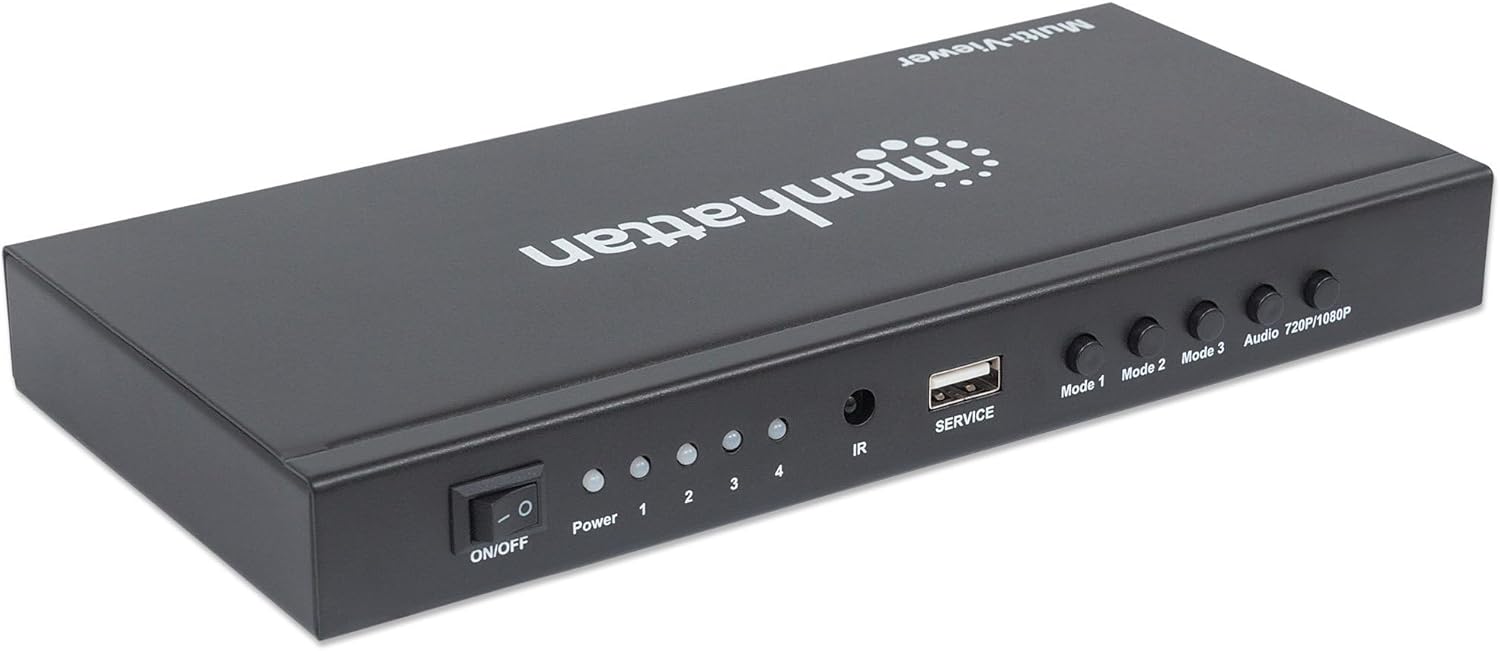

Supports source switching via IR remote control or manual switching with the push of a button
A flexible Audio/Video solution for conference rooms (when sharing ideas and data), digital signage (reducing space and cost needed for multiple displays), security and other applications
Works with PlayStation and Xbox game systems, Blu-ray players, set-top boxes, satellite receivers and more
Fully HDCP compliant
AC powered with Plug and Play installation; no special setup or remote required
Plug-and-play installation
Gold-plated contacts for corrosion-free connections
Three-year warranty
-
| Category |
Details |
| Standards |
HDMI 1.3, HDCP 1.4a, CE, FCC, RoHS2 |
| Source-to-Switch |
Up to 15 m (49 ft) |
| Switch-to-Display |
Up to 15 m (49 ft) |
| Seamless Switching |
Yes (if source resolutions match) |
| Power Supply |
12 VDC @ 2 A (adapter included) |
| Remote Battery |
CR2025 3V lithium cell |

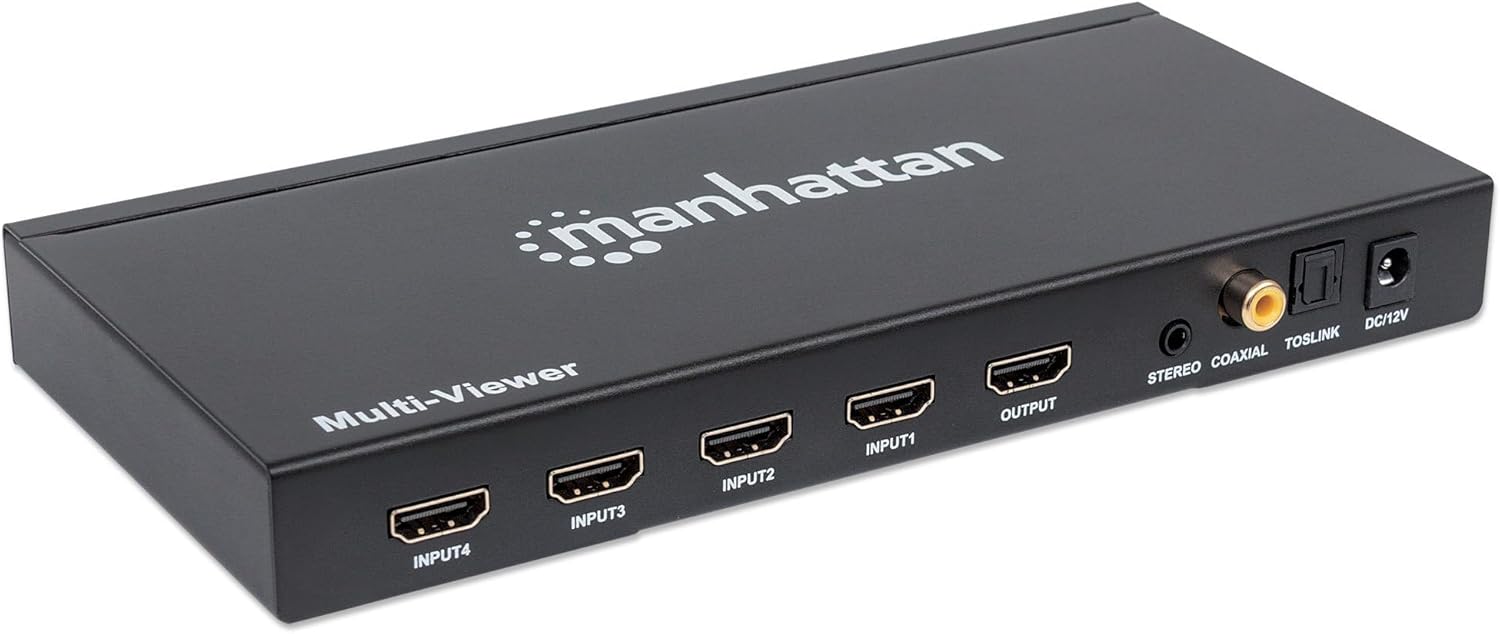

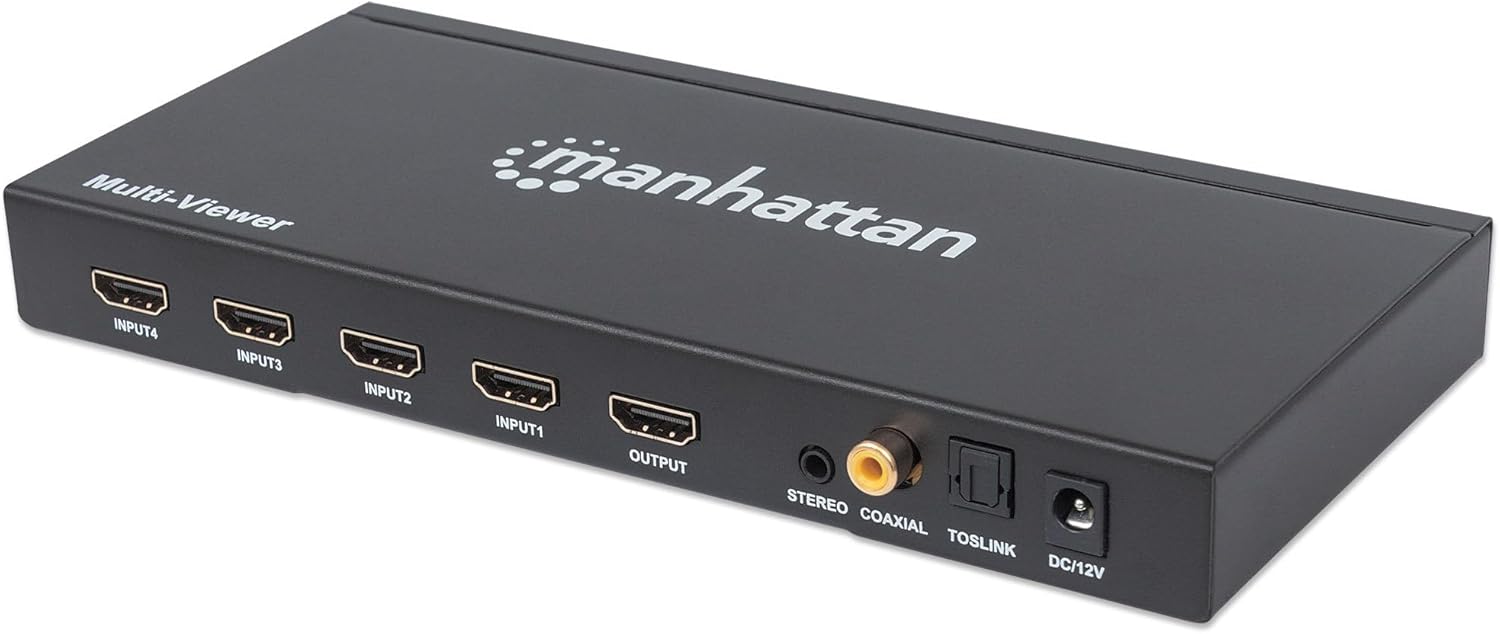

| Inputs |
4 x HDMI (19-pin), 1 x USB Mini-B (factory use) |
| Outputs |
1 x HDMI, 1 x 3.5mm Stereo, 1 x Toslink, 1 x Coaxial |
| Signal Input |
Video: 400–600 mV; DDC: 5V TTL |
| Video Output |
HDMI 1.3, HDCP 1.4a |
| Max Bandwidth |
2.25 Gbps / 225 MHz |
| Supported Resolutions |
480i to 1080p (HDTV/DTV) |

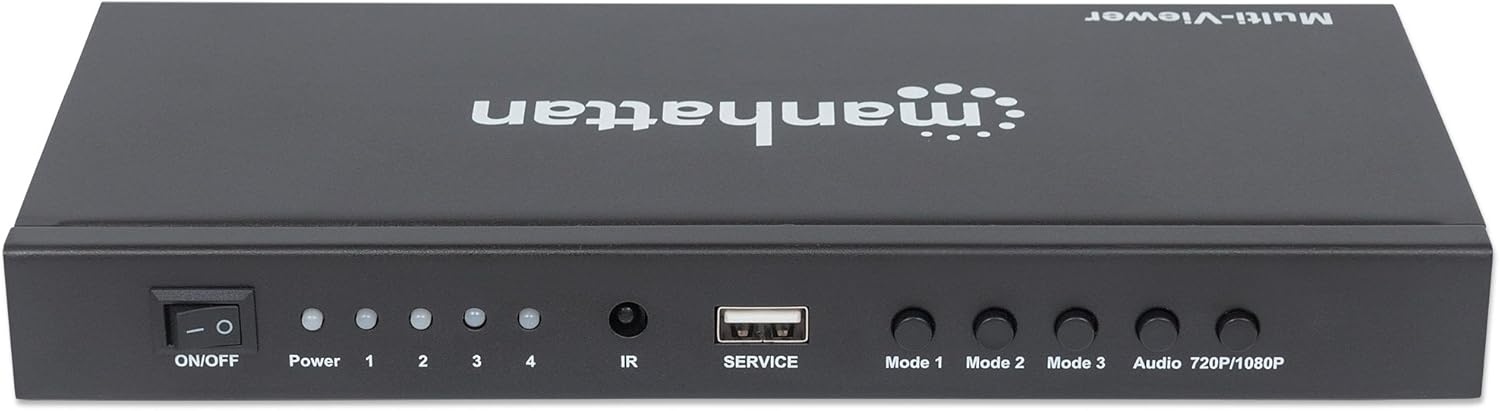

| LED Indicators |
Power and port connection |
| Power Switch |
Yes |
| Dimensions (L×W×H) |
213 × 100 × 25 mm (8.4 × 3.9 × 1 in) |
| Weight |
0.46 kg (1 lb) |
| Housing |
Metal |
| Operating Temp |
0 – 40°C (32 – 104°F) |
| Storage Temp |
-20 – 60°C (-4 – 140°F) |
| Humidity |
0 – 96% (non-condensing) |
| In the Box |
Switch, IR Remote, Power Adapter, Quick Guide |
-
