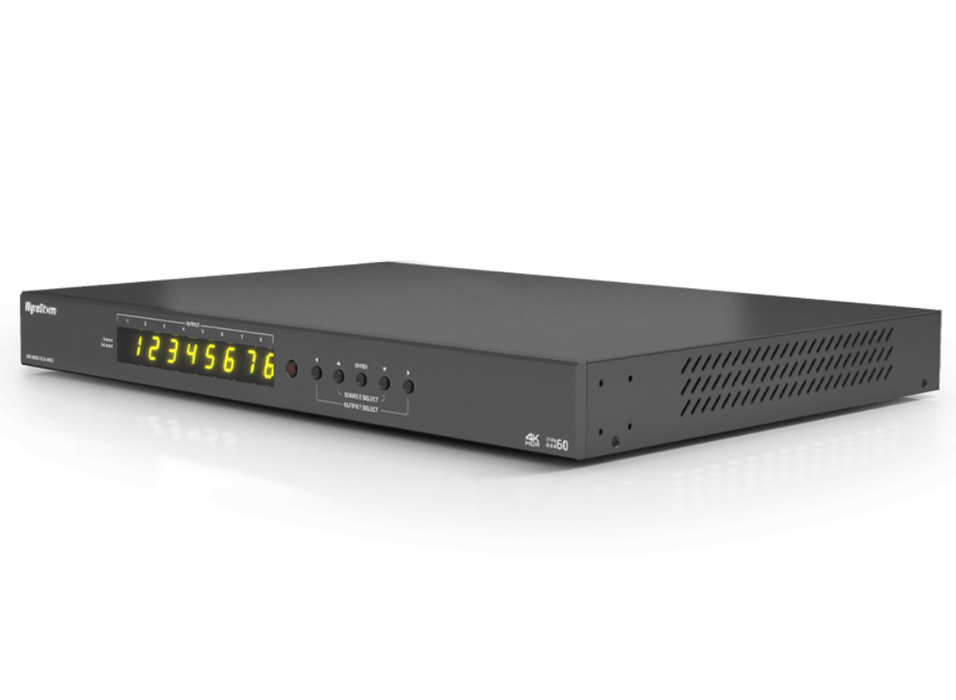

WyreStorm 4K60 8×8 HDMI Matrix | MX-0808-H2A-MK2
The MX-0808-H2A-MK2 is a welcome refresh to the powerful line of H2A pure HDMI switchers. The MK2 is familiar on the surface but has a host of improvements and added features. To start, the HDMI outputs now feature 4K > 1080p downscalers promoting easier integration of mixed resolution displays into a single system. The HDMI outputs also now support Audio Return Channel from smart TVs to bring audio from apps like Netflix, Prime Video, Hulu, etc.…to an external audio system. Speaking of audio, the analog audio outputs have been updated to balanced connections to ensure there is no loss in fidelity or interference.
VIDEO SCALERS
Each of the 8 outputs on the MK2 feature down scalers, allowing support for mixed resolution distribution of HDMI content to 4K and 1080p display simultaneously.
AUDIO DE-EMBED
Featuring balanced analog and a digital S/PDIF, easily de-embed audio from either the HDMI inputs or ARC to a secondary audio distribution system without the need for external adapters or converters.
ARC SUPPORT
All 8 HDMI outputs support Audio Return Channel from smart TVs apps like Netflix, Prime Video, Hulu, etc.….The ARC audio can then be sent through either the digital S/PDIF or balanced analog outputs to an AVR or stereo amp.
2160P 4:4:4
As a standard requirement with the latest WyreStorm products, the MK2 supports the latest video formats including 4K HDR and Dolby Vision content all in uncompressed HDMI glory.
In the Box
1x MX-0808-H2A-MK2 Matrix
1x AC Power Cord (US/UK/EU/AU)
8x 3.5mm 5-Pin Terminal Block
1x 3.5mm 3-Pin Terminal Block
1x IR Remote (CR2025 Battery not Included)
2x Matrix Mounting Brackets with screws
1x Quickstart Guide
-
| Category |
Specification/Feature |
| AUDIO & VIDEO |
|
| Inputs |
8x HDMI In |

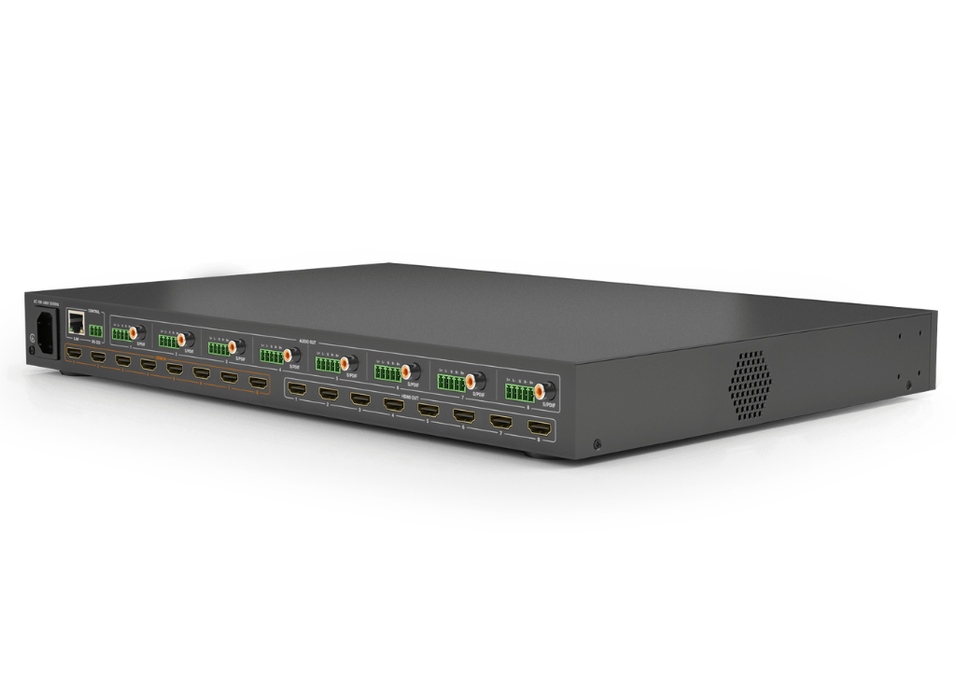

| Outputs |
8x HDMI Out, 8x 5-pin Balanced Analog Audio, 8x S/PDIF Digital Audio |
| Audio Formats |
2ch PCM, LPCM, Up to DTS-X, Dolby Atmos |
| Video Resolution (Max) |
1920x1080p @60Hz 16bit, 3840x2160p @60Hz 10bit 4:2:2 HDR10/10+, 3840x2160p @60Hz 12bit 4:2:0 Dolby Vision, 3840x2160p @50Hz 10bit 4:2:2 HLG, 4096x2160p @60Hz 8bit 4:4:4 |
| Supported Standards |
DCI, RGB, HDR10, HDR10+, Dolby Vision, HLG, BT.2020 |
| Maximum Pixel Clock |
600MHz |

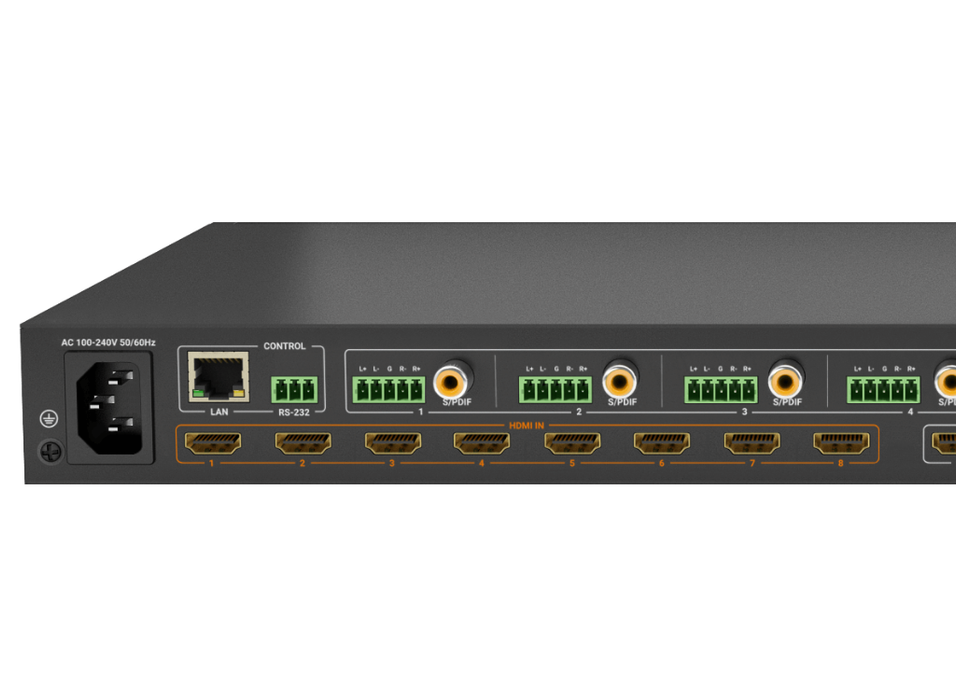

| COMMUNICATION & CONTROL |
|
| HDMI |
HDMI 2.0, HDCP 2.2, EDID, CEC (display power trigger) |
| RS-232 |
1x 3-pin Phoenix for API control |
| LAN |
1x 8-pin RJ-45 for API control |
| POWER |
|
| Power Supply |
100~240V AC 50/60Hz AC |
| Max Power Consumption |
60W |
| Additional Features |
|
| HDMI Signal Distribution |
Uncompressed HDMI signal supporting 18Gbps bandwidth and 4K/60 4:4:4 video content |
| Cable Compatibility |
WyreStorm HAOC cables for up to 50 meters HDMI distribution |
| HDR Standards |
Supports HDR10, HDR10+, Dolby Vision, HLG |
| Audio Distribution |
Balanced analog and digital S/PDIF audio de-embed |
| Downscaling Support |
Each HDMI output supports 4K to 1080p downscaling |
| Control Interface |
Output downscaling controlled via web UI or API commands |
| CEC Power Triggering |
Automatic/manual CEC power triggering through HDMI for expanded display compatibility |
| Audio Return Channel |
Supported on all 8 outputs for distributing 5.1 audio from smart TV apps to external audio systems |
| AV Mute |
AV Mute feature to enable/disable HDMI outputs per zone |
| Standby Mode |
API-triggered standby mode for low power state during downtime |
| EDID Management |
EDID management via API or front panel buttons |
| Chassis |
1U 19” chassis for rack installation |
-
