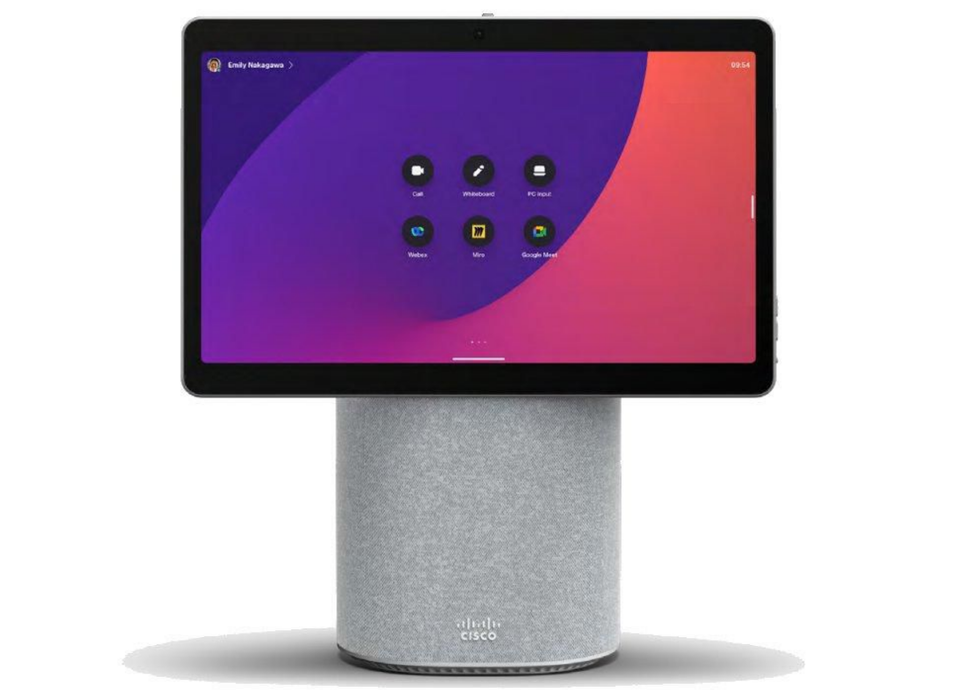

Cisco Desk Mini 15.6" Webex Collaboration Display | CS-DESKMINI-K9
SKU: CS-DESKMINI-K9
£1,665.00 (Excl. VAT)
- Description
- Specifications
- Downloads
-
Portable Collaboration for Hybrid Workspaces
The Desk Mini is designed with an integrated handle which makes it easy to move around from one room to another. It also comes equipped with privacy features such as noise removal, video backgrounds and easy access to in-meeting controls — so you can always show up and look professional in meetings even from your kitchen or living room.
Providing everything you need to work; with its USB-C connection you can double up your screen real estate, interact with any laptop content and applications as well as join any conference app running on your laptop. It’s the perfect work companion to your laptop with a 64-degree, 8 MP camera, intelligent microphone array for focused sound pickup and powerful speaker system you get a high-quality video and audio experience every time.
Cisco Desk Mini is an all-in-one collaboration device optimized to serve your needs to meet, work and ideate. It’s a versatile, compact and affordable device, designed to be your hybrid and remote work companion.
Meet, work, and co-create
Cisco Desk Mini allows you to make any space an office with the same all-in-one benefits as Cisco Desk and Cisco Desk Pro but with the added value of portability. With its 15-inch touch display and small footprint, the Desk Mini is a perfect work companion to your laptop at any desk or temporary work space whether you’re working from the dining room table or your cabin all you need to get started is power.
Work from any space
With an integrated handle for carrying, small footprint and elevated display Desk Mini makes any space your instant office. It’s the perfect work companion to your laptop. Simply connect via USB-C to your laptop or work with a wireless connection to the Webex app to create a compact desk space.Join any meeting
Connect natively from the device with WebRTC, VIMT, or join any meeting from third-party meeting providers through USB-C leveraging the camera, speaker, and microphone.Seamless ideation
Ideate with native digital whiteboarding tools including features like stickies, shapes, and content annotation — or download your own favorite web apps. Make brainstorming, design, and collaboration easy, whether in person or in a meeting. Drawing on the Desk Mini works with your finger or uses the same stylus as the Desk and Desk Pro.Remote workers wellbeing
Increase productivity with a video first experience - benefit from proactive meeting notifications, one button to join meetings, easy accessible meeting and privacy controls. Ensure employee health with the ergonomically heightened camera and display for a healthy working position and natural face to face interaction. -
Software compatibility Room OS 11 or later Default components in Cisco Desk Mini Cisco Desk Mini
USB-C cable
Power cableOptional hardware components Stylus kit
Ethernet cableDisplay 15.6-inch LCD monitor
1080p resolution (16:9)
IPS LED panel
Contrast ratio: 700:1 (typical)
Viewing angle: +/- 85° (typical)
Brightness: 250 cd/m2 color depth 16.7M colors
Color gamut: 72% NTSC (95% sRGB)User interface Projected capacitive touch
Multi-touchSupported PC resolutions 1080p60 Camera 64° horizontal field of view, 50° vertical field of view
f/2.0 aperture
8MP image sensor, supports up to 30 fps
1/3.2-inch CMOS
Automatic tilt adjustment
Automatic focus, brightness, and white balance
Focus distance: 20 cm to infinity
Privacy shutter with LED light in front (incoming calls and camera activation)Video Standards H.263, H.264 AVC Video Inputs USB-C display port alternate mode up to 1920x1080p60 Encode and decode Video stream: full HD 1080p60
Content stream: 4K 2160p15 and full HD 1080p60Audio standards G.711, G.722, G.722.1, G.729, AAC-LD, and Opus Audio features Acoustic Echo Cancellation (AEC)
Active Lip Synchronization
Automatic Gain Control (AGC)
Focused sound pickup
De-reverberation
Full duplex
Full-band audio
Music mode
Noise reduction
Noise removal
Optimize for my voice
Self-hear
Third-party integration
Ultrasound technologyAudio inputs Premium 3-element microphone system for angle estimation and crystal clear speech pickup
Audio in from USB-C
USB
Bluetooth ®Audio outputs (external) USB headset
Bluetooth ® headsetLoudspeaker (integrated) Premium single-channel loudspeaker system with a high quality 18mm tweeter and dual force-cancelling 80mm woofers
Frequency response: 65 Hz to 20 kHz @ 85dBSPL [+/- 3dB]
Maximum sound pressure level: 92dBUSB-C BYOD Ability to provide the following over one USB-C cable to a connected computer
Extension of display (1920x1080@60fps) (computer must support Alt-mode DisplayPort)
Touch redirect capabilities on supported operating systems
Use Desk Mini camera, microphone, and speakers with any software clientSensors Temperature (experimental) for Control Hub analytics reporting
Humidity (experimental) for Control Hub analytics reportingPower Input rating: 0.5A-0.3A 100-240V 50-60Hz
Networked standby power consumption: 7.5W
Power off: 0.3W
Rated: 60W maxOther USB 2.0 ports One standard type-A port enables headsets and handset use
One USB micro-B port is intended for service onlyOperating temperature and humidity 0°C to 35°C (32°F to 104°F) ambient temperature
20% to 90% relative humidity (RH)Storage and transport temperature -20°C to 60°C (-4°F to 140 °F) at RH 10% to 90% (noncondensing) Dimensions Width: 14.6 in (37.1 cm)
Height: 16.25 in (41.3 cm)
Depth: 5.3 in (13.5 cm)
Weight: 8.5 lb (3.9 kg)
Packaged size: 21.4x18.8x11 in (54.6x48x28 cm)
Packaged weight: 17 lb (8.04 kg)Ergonomic design Tilted, fixed screen: 11 degrees
Raised display and camera
Display height: 7.9 in (20 cm)Physical buttons Power button
Volume
MuteVisual indicator Camera On LED indicator in front (incoming calls and camera activation)
Camera shutter indicator
Mute indicator
Power indicatorNetwork One Ethernet (RJ-45) 10/100/1000 for LAN
Wi-Fi 802.11a/b/g/n/ac 2.4 GHz/5 GHz, 2x2 MIMOBandwidth supported Up to 6 Mbps for the best quality Signaling protocol VCS: H.323 * and SIP
Cisco Unified Communications Manager (UCM): SIP
Webex: HTTP, REST APIsPeripherals supported USB headset
Bluetooth ® headset (wideband)Wireless sharing Webex App
Webex Meetings
Cisco Proximity AppApprovals and compliance Directive 2014/53/EU (Radio Equipment Directive) for the radio versions
Directive 2014/30/EU (EMC Directive) for the non-radio versions
Directive 2014/35/EU (Low-Voltage Directive) for the non-radio versions
Directive 2011/65/EU (RoHS)
Directive 2002/96/EU (WEEE)
NRTL approved (product safety)
FCC CFR 47 Part 15B (EMC) – Class B
FCC CFR 47 Part 15C (RF)
FCC CFR 47 Part 15E (RF)
FCC listed (radio equipment)Multipoint support 4-way embedded SIP/H.323 conferencing capability with MultiSite option MultiSite features (Embedded multipoint)(optional upgrade)* Adaptive SIP/H.323 MultiSite:
3-way resolution up to 1080p30 + content up to 1080p15
4-way resolution up to 720p30 + content up to 1080p15
Full individual audio and video transcoding
H.323/SIP/VoIP in the same conference
Support for presentation (H.239/BFCP) from any participant at resolutions up to 3840 x 2160p5
Best impression (automatic continuous presence layouts)
Encryption and dual steam from any site -
