DynaScan DK651DR5

65” Dual-Sided Ultra-High Brightness Outdoor Kiosk

• Description
• Specifications
• Warranty
• Download

• OUTDOOR KIOSKS

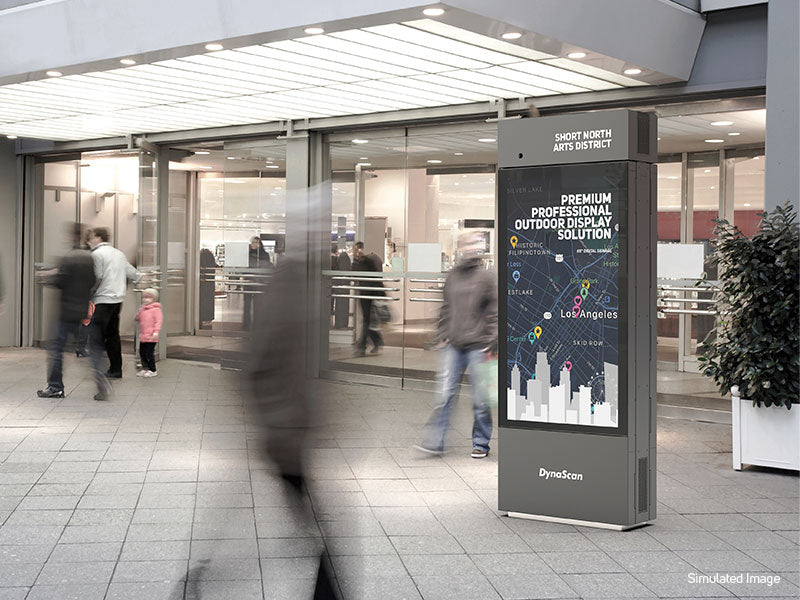

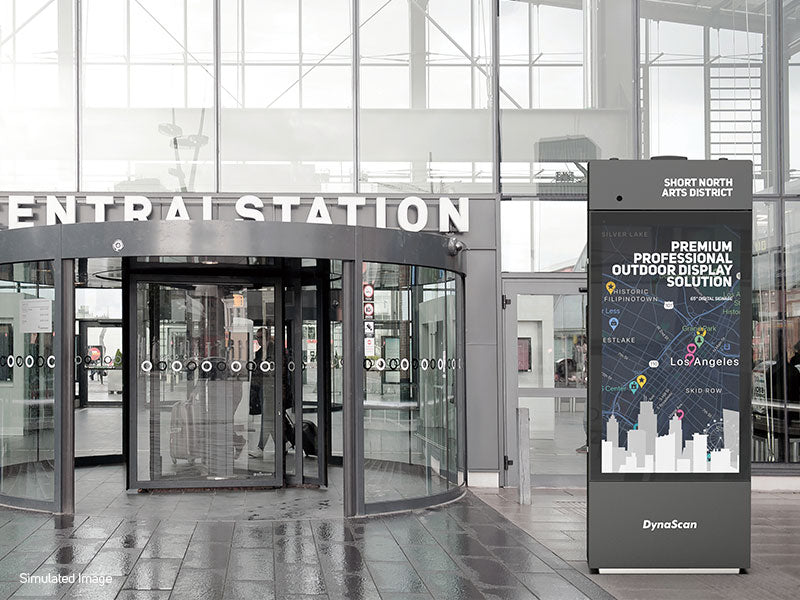

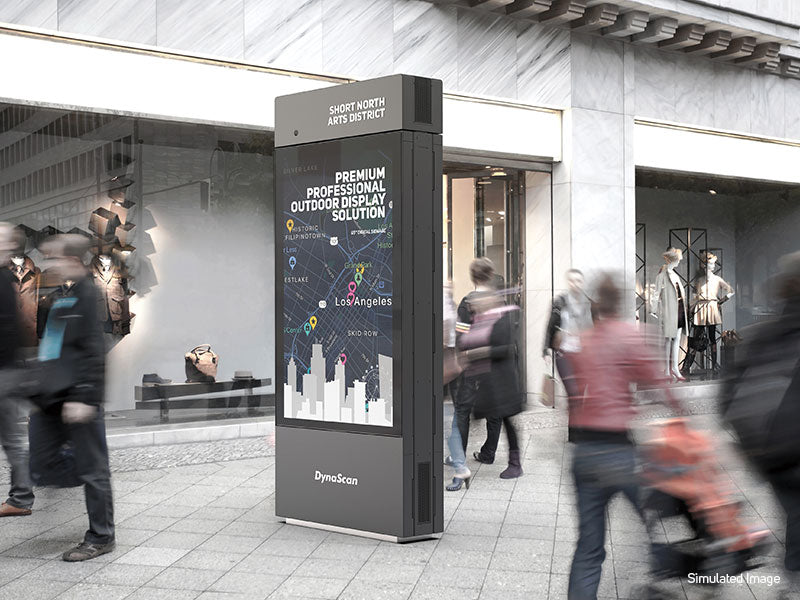

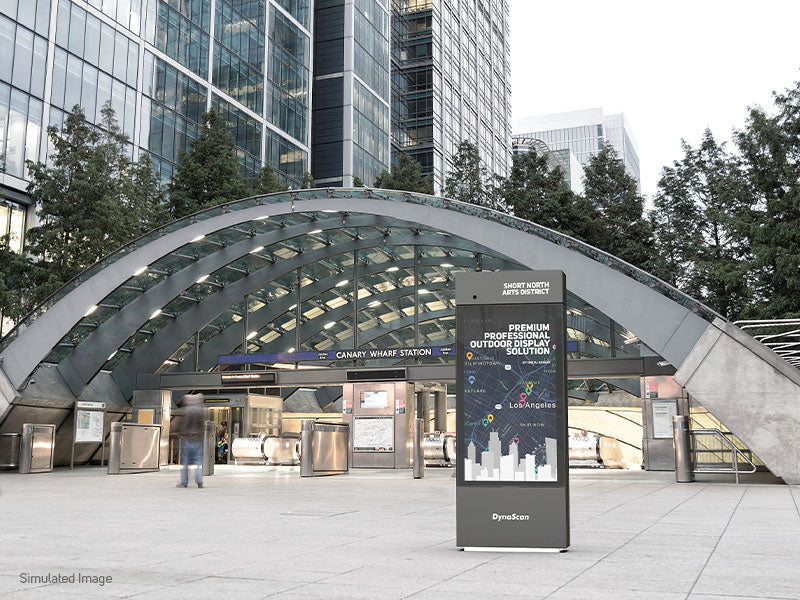

  Featuring an eye-catching double-sided design, an ultra-bright 4000 nits image, and vandal-resistant construction, the new DynaScan DK651DR5 is a 65-inch premium professional display kiosk for outdoor environments.

  The display features a full HD resolution with a high-brightness LED backlight producing a sunlight-viewable image. The DK651DR5 is IP56 rated for protection from water and dust, features an IK10 vandal-resistant tempered glass surface, and rugged all-metal rustproof construction.

  SUNLIGHT VIEWABLE IMAGE

  DUAL-SIDED DESIGN

  VIEWABLE WITH POLARIZED LENSES

  VANDAL RESISTANT

  WEATHER PROOF

  INTELLIGENT THERMAL MANAGEMENT





  IP56 Weather Resistant
  Rain or shine, DynaScan outdoor displays can endure what Mother Nature has to offer. All-metal rustproof construction with IP56 weather protection resists water and dust from entering the display even in some of the harshest environments.

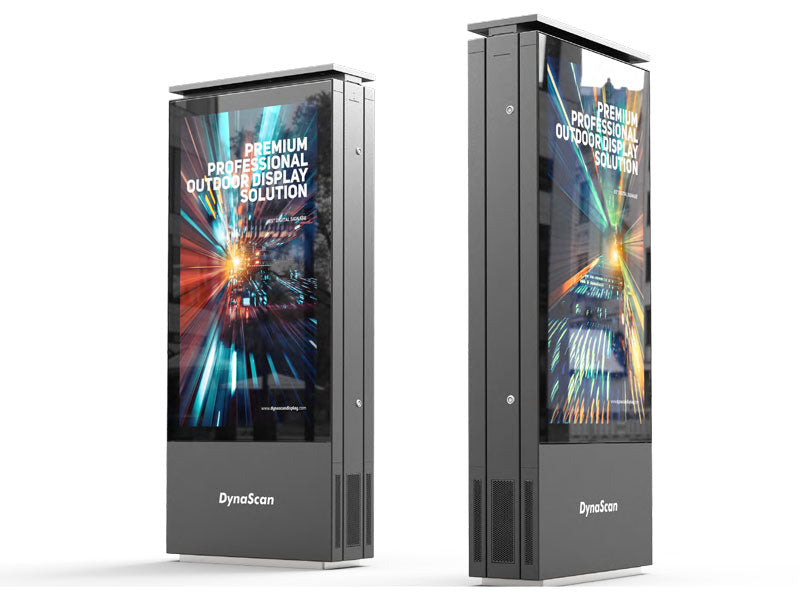

  Dual-Sided Design
  A double-sided display offers the flexibility to present different messaging points to customers inside as well as potential customers outside.

  IK10 Vandal Resistance
  With a tough, steel frame and double laminated glass with IK10 protection, DynaScan outdoor displays are durable and secure.

  Robust, Ready-to-install Outdoor Solution
  With an all-in-one design and a variety of video input options, DynaScan outdoor kiosks offer a feature-packed display solution that is ready for rapid deployment.

  Sunlight Viewable Image
  With sustained brightness of 4000 nits, DynaScan outdoor displays are easily viewed in direct sunlight.

  Filterless Design
  Filters not only reduce cooling efficiency by lowering air intake, but they can also cause a product failure if not properly maintained. DynaScan employs a proprietary thermal management system that doesn’t require filters.






• PANEL
  LCD Panel Size	65" (x2)
  Native Resolution	1920 x 1080
  Brightness	4000 nits
  Color Depth	10 bits
  Contrast Ratio	4000:1
  Response Time (Typ.)	8 ms
  Viewing Angle	178° / 178°
  Light Lifetime (Typ.)	100,000 hrs
  Blackening Defect-Free	Up to 110°C (230°F)
  Polarized Sunglasses Support	Yes

  TOUCH (OPTIONAL)
  Detection Method	Projected Capacitive Touch Technology
  Input Method	Finger and gloved finger
  Noise Shielding	Yes
  Number of Simultaneous Touches	Max. 40 points

  POWER
  Power Supply	Internal
  Rated Voltage	200-240 V ~ 50/60 Hz
  Power Consumption (Typ./Max.)	650 W / 1800 W

  MECHANICAL SPECS
  Bezel Width (T/B/L/R)	80.0 / 65.3 / 65.3 / 65.3 mm
  Cabinet Color	Black
  Kiosk Dimension (LxHxD)	2200.0 x 953.8 x 317.4 mm
  Weight	380 kg
  Orientation	Portrait
  Glass	Double Laminated Tempered
  Air Vent	Top & Bottom
  Base	539.0 mm H

  FEATURE
  Language	English
  Image Retention Protection	Yes
  Ambient Light Sensor	Yes
  Power On/Off Scheduling	Yes

  INPUT
  HDMI 2.1 (HDCP 2.3)	x6 (1080p recommended)
  DisplayPort	x2
  USB 3.0	x2
  Micro SD Slot	x2

  OUTPUT
  Audio	x2

  EXTERNAL CONTROL
  RJ-45	x4 (LAN)

  ENVIRONMENT
  Operating Temperature	-30°C~50°C
  Storage Temperature	-20°C~60°C
  Humidity	10% ~ 100% RH Non-condensing
  Water and Dust Resistant Design	IP56

  INTERNAL PLAYER
  Operating System	Android 8.0.0
  Processor	Dual-core A73 and dual-core A53
  Clock Speed	1.5 GHz
  Main Memory Interface	DDR4, 2G
  Graphics	Quad-core MaliG51
  Storage	Internal: 16GB eMMC Flash, External: Support Micro SD, Up to 32GB(exFAT) /128GB(FAT32)
  Multimedia	4K 10bits VP9/H265/H264 video decoders, up to 60fps 1080P other video decoders (VC-1, MPEG-1/2/4, VP8)

  CERTIFICATION
  CE	FCC
  RoHS

• DynaScan’s warranty obligations are limited to the terms set forth below:

  DynaScan warrants its professional LCD display product delivered new to the original purchaser against defects in materials and workmanship for THREE (3) YEARS from the date of original purchase.

  If a product is found to be defective in material and workmanship during the Limited Warranty Period, DynaScan will, at its sole option, (a) repair the product at no charge with new or reconditioned parts, or (b) replace the product with a functionally equivalent product. A replacement part or product assumes the remaining warranty of the original part or product, or NINETY (90) DAYS from the date of replacement or repair, whichever provides a longer coverage. When a part or product is replaced, any replacement item becomes your property and the replaced item becomes DynaScan’s property.

• Resource	Download Link
  Data Sheet	Download
