DynaScan DK751DH5

75” 4K UHD Outdoor Ultra-High Brightness Hybrid Kiosk with Light Box

• Description
• Specifications
• Warranty
• Download

• OUTDOOR KIOSKS

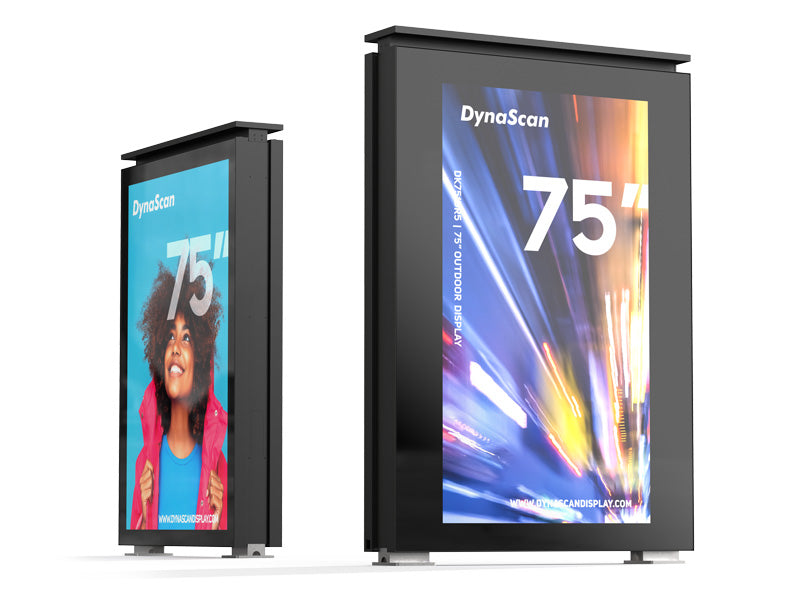

  Featuring an eye-catching dual-sided hybrid/digital design, a sunlight-viewable 4000 nits image, and vandal-resistant construction, the new DynaScan DK751DH5 is a 75-inch outdoor kiosk with 4K UHD resolution and TrueColor™ calibration.

  The DK751DH5 is IP56 rated for protection from water and dust, features an IK10 vandal-resistant tempered glass surface, and rugged all-metal rustproof construction.

  SUNLIGHT VIEWABLE IMAGE

  HYBRID DIGITAL & STATIC

  SMART LIGHT BOX

  VANDAL RESISTANT

  WEATHERPROOF

  4K UHD RESOLUTION

  IP56 Weather Resistant
  Rain or shine, DynaScan outdoor displays can endure what Mother Nature has to offer. All-metal rustproof construction with IP56 weather protection resists water and dust from entering the display even in some of the harshest environments.

  Hybrid Digital & Static Design
  The hybrid design offers the flexibility to present dynamic digital content on one side and a static poster on the reverse.

  IK10 Vandal Resistance
  With a tough, steel frame and double laminated glass with IK10 protection, DynaScan outdoor kiosks are durable and secure.

  Robust Outdoor Solution
  DynaScan outdoor kiosks offer a feature-packed display solution that can be adapted to fit a variety of applications—from bus shelters to transit depots to shopping centers.

  Sunlight Viewable Image
  With a sustained brightness of 4000 nits, DynaScan outdoor kiosks are easily viewed in direct sunlight.

  Filterless Design
  Filters not only reduce cooling efficiency by lowering air intake, but they can also cause a product failure if not properly maintained. DynaScan employs a proprietary thermal management system that doesn’t require filters.

• DISPLAY
  LCD Panel Size	74.52"
  Native Resolution	3840 x 2160
  Brightness	4000 nits
  Color Depth	10 bits
  Contrast Ratio	3000:1
  Response Time (Typ.)	8 ms
  Viewing Angle (H/V)	178° / 178°
  Light Lifetime (Typ.)	100,000 hrs
  Blackening Defect-Free	Up to 110°C (230°F)
  Polarized Sunglass Support	Yes

  LIGHT BOX
  Bezel Width (T/B/L/R)	89 / 89 / 89 / 89 mm
  Poster Size (WxH)	1200 x 1800 mm
  Kiosk Visual Opening (WxH)	1160 x 1710 mm

  MECHANICAL SPECS
  Digital Side Bezel Width (T/B/L/R)	117.6 / 117.6 / 203.5 / 203.5 mm
  Cabinet Color	Black
  Dimension (WxHxD, w/o stand)	1338.0 x 1962.0 x 254.0 mm
  Weight	< 350 kg [TBD] (lightbox excluded)
  Orientation	Portrait
  Glass	Yes
  Air Vent	Yes
  Key Lock (option)	Yes

  POWER
  Power Supply	Internal
  Rated Voltage	120-240 V ~ 50/60 Hz
  Power Consumption (Typ./Max.)	600 W / 1400 W

  FEATURE
  Language	English
  Support SNMP (Up to V3.0)	Yes
  Dimming Control	Yes
  Image Retention Protection	Yes
  Ambient Light Sensor	Yes
  Power On/Off Scheduling	Yes
  Internal Temperature Sensor	Yes

  INPUT
  HDMI	x3 (2160p)
  DisplayPort	x1
  USB 3.0	x1
  Micro SD Slot	x1

  EXTERNAL CONTROL
  RS-232	In x1
  RJ-45 (LAN)	x2

  ENVIRONMENT
  Operating Temperature	-30°C~50°C
  Humidity	10% ~ 100% RH Non-condensing
  Water and Dust Resistant Design	IP56

  CERTIFICATION
  CE	IEC60950-22
  RoHS

• DynaScan’s warranty obligations are limited to the terms set forth below:

  DynaScan warrants its professional LCD display product delivered new to the original purchaser against defects in materials and workmanship for THREE (3) YEARS from the date of original purchase.

  If a product is found to be defective in material and workmanship during the Limited Warranty Period, DynaScan will, at its sole option, (a) repair the product at no charge with new or reconditioned parts, or (b) replace the product with a functionally equivalent product. A replacement part or product assumes the remaining warranty of the original part or product, or NINETY (90) DAYS from the date of replacement or repair, whichever provides a longer coverage. When a part or product is replaced, any replacement item becomes your property and the replaced item becomes DynaScan’s property.

• Resource	Download Link
  Data Sheet	Download
