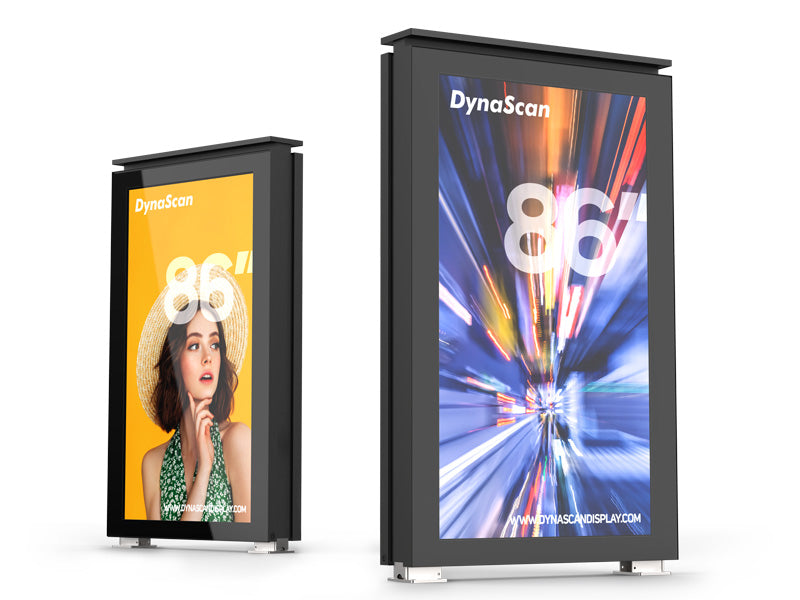

DynaScan DK861DH4 86” 4K UHD Outdoor Ultra-High Brightness Hybrid Kiosk with Light Box

SKU: DK861DH4
Part Number: DK861DH4
Condition: Brand New
Purchase Orders Accepted
Original price £7,865.60 - Original price £7,865.60
Original price £7,865.60
£8,258.88
£8,258.88 - £8,258.88
Current price £8,258.88
Ex. VAT
Send an enquiryExpress delivery UKTrustpilot rated

payment-icons

Bulk Price & Price Match Request

Contact our expert sales team on 020 8191 9223 for best price and dedicated assistance.

Educational & Public Sector Prices Available

For more details, please call us at 020 8191 9223 or email us at info@screenmoove.com

DynaScan DK861DH4

86” 4K UHD Outdoor Ultra-High Brightness Hybrid Kiosk with Light Box
DynaScan DK861DH4 86” 4K UHD Outdoor Ultra-High Brightness Hybrid Kiosk with Light Box

  • Description
  • Specifications
  • Warranty
  • Download
  • OUTDOOR KIOSKS
    Featuring an eye-catching dual-sided hybrid/digital design, a sunlight-viewable 3500 nits image, and vandal-resistant construction, the new DynaScan DK861DH4 is an 86-inch outdoor kiosk with 4K UHD resolution and TrueColor™ calibration.

    The DK861DH4 is IP56 rated for protection from water and dust, features an IK10 vandal-resistant tempered glass surface, and rugged all-metal rustproof construction.
    DynaScan DK861DH4 86” 4K UHD Outdoor Ultra-High Brightness Hybrid Kiosk with Light Box
    SUNLIGHT VIEWABLE IMAGE
    DynaScan DK861DH4 86” 4K UHD Outdoor Ultra-High Brightness Hybrid Kiosk with Light Box
    HYBRID DIGITAL & STATIC
    DynaScan DK861DH4 86” 4K UHD Outdoor Ultra-High Brightness Hybrid Kiosk with Light Box
    SMART LIGHT BOX
    DynaScan DK861DH4 86” 4K UHD Outdoor Ultra-High Brightness Hybrid Kiosk with Light Box
    VANDAL RESISTANT
    DynaScan DK861DH4 86” 4K UHD Outdoor Ultra-High Brightness Hybrid Kiosk with Light Box
    WEATHERPROOF
    DynaScan DK861DH4 86” 4K UHD Outdoor Ultra-High Brightness Hybrid Kiosk with Light Box
    4K UHD RESOLUTION
    DynaScan DK861DH4 86” 4K UHD Outdoor Ultra-High Brightness Hybrid Kiosk with Light Box
    IP56 Weather Resistant
    Rain or shine, DynaScan outdoor displays can endure what Mother Nature has to offer. All-metal rustproof construction with IP56 weather protection resists water and dust from entering the display even in some of the harshest environments.

    Hybrid Digital & Static Design
    The hybrid design offers the flexibility to present dynamic digital content on one side and a static poster on the reverse.

    IK10 Vandal Resistance
    With a tough, steel frame and double laminated glass with IK10 protection, DynaScan outdoor displays are durable and secure.

    Robust Outdoor Solution
    DynaScan outdoor kiosks offer a feature-packed display solution that can be adapted to fit a variety of applications—from bus shelters to transit depots to shopping centers.

    Sunlight Viewable Image
    With a sustained brightness of 3500 nits, DynaScan outdoor kiosks are easily viewed in direct sunlight.

    Filterless Design
    Filters not only reduce cooling efficiency by lowering air intake, but they can also cause a product failure if not properly maintained. DynaScan employs a proprietary thermal management system that doesn’t require filters.

  • PANEL
    LCD Panel Size 85.6" LCD (x1)
    Native Resolution 3840 x 2160
    Brightness 3500 nits
    Color Depth 10 bits
    Contrast Ratio 3000:1
    Response Time (Typ.) 8 ms
    Viewing Angle (H/V) 178° / 178°
    Light Lifetime (Typ.) 100,000 hrs
    Blackening Defect-Free Up to 110°C (230°F)
    Polarized Sunglasses Support Yes
    LIGHT BOX
    Bezel Width (T/B/L/R) 190.0 / 190.0 / 95.5 / 95.5 mm
    Poster Size (WxH) 1200 x 1800 mm
    Kiosk Visual Opening (WxH) 1147.0 x 1720.0 mm
    POWER
    Power Supply Internal
    Rated Voltage 200-240 V ~ 50/60 Hz
    Power Consumption (Typ./Max.) 720 W / 1700 W
    MECHANICAL SPECS
    Bezel Width (T/B/L/R) 95.2 / 106.7 / 134.4 / 134.4 mm
    Cabinet Color Black
    Dimension (WxHxD, w/o stand) 1338.0 x 2224.0 x 254.0 mm
    Weight 400 kg
    Orientation Portrait
    Glass Double Laminated Tempered
    Air Vent Top & Bottom
    Stand 58 mm H
    USER INTERFACE
    Language English
    Internal Temperature Sensor Yes
    Ambient Light Sensor Yes
    Power On/Off Scheduling Yes
    INPUT
    HDMI x3 (2160p)
    DisplayPort x1
    USB 3.0 x1
    Micro SD Slot x1
    EXTERNAL CONTROL
    RS-232 In x1
    RJ-45 (LAN) x2
    ENVIRONMENT
    Operating Temperature -30°C~50°C
    Storage Temperature -20°C~60°C
    Humidity 10% ~ 100% RH Non-condensing
    Water and Dust Resistant Design IP56
    CERTIFICATION
    CE FCC
    IEC60950-22 RoHS
  • DynaScan’s warranty obligations are limited to the terms set forth below:

    DynaScan warrants its professional LCD display product delivered new to the original purchaser against defects in materials and workmanship for THREE (3) YEARS from the date of original purchase.

    If a product is found to be defective in material and workmanship during the Limited Warranty Period, DynaScan will, at its sole option, (a) repair the product at no charge with new or reconditioned parts, or (b) replace the product with a functionally equivalent product. A replacement part or product assumes the remaining warranty of the original part or product, or NINETY (90) DAYS from the date of replacement or repair, whichever provides a longer coverage. When a part or product is replaced, any replacement item becomes your property and the replaced item becomes DynaScan’s property.


  • Resource Download Link
    Data Sheet Download
