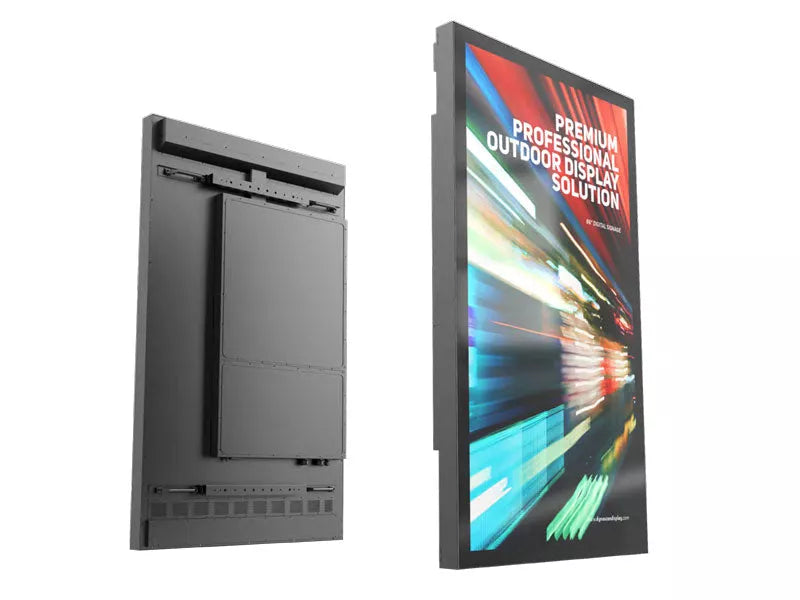

DynaScan DO861LR4

86” 4K UHD Waterproof Outdoor High Brightness Display

• Description
• Specifications
• Warranty
• Download

• FULL OUTDOOR DISPLAYS
  The DO861LR4 is an 86-inch premium professional LCD design for full outdoor applications. The display features 4K UHD resolution with a high brightness LED backlight producing a sunlight-viewable 3500 nits image.

  The DO861LR4 is IP56 rated for protection from water and dust, features an IK10 vandal-resistant tempered glass surface, and rugged all-metal rustproof construction.

  The display may be operated in both portrait and landscape orientations and utilizes quarter-wave plate technology to allow for viewing with polarized sunglasses.

  SUNLIGHT VIEWABLE IMAGE

  4K UHD RESOLUTION

  VIEWABLE WITH POLARIZED LENSES

  VANDAL RESISTANT

  WEATHERPROOF

  ANDROID™ MEDIA PLAYER

  IP56 Weather Resistant
  Rain or shine, DynaScan outdoor displays can endure what Mother Nature has to offer. All-metal rustproof construction with IP56 weather protection resists water and dust from entering the display even in some of the harshest environments.

  Sunlight Viewable Image
  With sustained brightness of 3500 nits, DynaScan outdoor displays are easily viewed in direct sunlight.

  IK10 Vandal Resistance
  With a tough, steel frame and double laminated glass with IK10 protection, DynaScan outdoor displays are durable and secure.

  TrueColor™ Calibrated
  Each screen is individually color-calibrated to the D65 (6500K) CIE color standard. Not only does this produce a true, natural white, but also accurately reproduces brand colors, skin tones, and colorways.

  Built-In Media Player
  An integrated Android™ media player with wireless connectivity offers users the freedom to select from the array of various media software solutions on the market or use the bundled DynaScan DSM365 application for local video playback, playlist creation, and content scheduling.

  Intel® SDM Ready
  An Intel® SDM slot to accept an Intel® Smart Display Module (sold separately). Supporting a variety of modern x64 operating systems, Intel® SDM delivers the same level of intelligence and interoperability as the Open Pluggable Specification, but in a smaller form factor. Compatible with both the Intel® Small (Intel® SDM–S) and Intel® SDM Large (Intel® SDM–L) form factors.

• PANEL
  LCD Panel Size	85.6 inches LCD
  Native Resolution	3840 x 2160
  Brightness	3500 nits
  Color Depth	10 bits
  Contrast Ratio	3000:1
  Response Time (Typ.)	8 ms
  Viewing Angle	178° / 178°
  Light Lifetime (Typ.)	100,000 hrs
  Blackening Defect-Free	Up to 110°C (230°F)
  Polarized Sunglasses Support	Yes

  POWER
  Power Supply	Internal
  Rated Voltage	200-240 V ~ 50/60 Hz
  Power Consumption (Typ./Max.)	1000 W / 1500 W
  AC Out	< 100 W

  MECHANICAL SPECS
  Bezel Width (T/B/L/R)	Even Bezel 68.0 mm
  Cabinet Color	Black
  Monitor Dimension (LxHxD)	2035.0 x 1205.0 x 155.0 mm
  Monitor Weight	222 kg
  Orientation	Portrait / Landscape
  Mounting (LxH)	1500 x 440 ; 1500 x 500 mm
  Carrying Handles	Yes

  FEATURE
  Language	English
  Support SNMP (Up to V3.0)	Yes
  Image Retention Protection	Yes
  Auto Orientation Sensor	Yes
  Ambient Light Sensor	Yes
  Power On/Off Scheduling	Yes
  OSD Menu Rotation	Yes

  EXPANSION SLOT FOR INTEL® SDM
  SDM Slot	SDM-S (support with DynaScan extended board) & SDM-L Compatible
  Power Support	Up to 45 W

  INPUT
  HDMI 2.1d (HDCP 2.3)	x2 (2160p)
  DisplayPort 1.2	x1
  USB 3.0	x1
  Micro SD Slot	x1

  OUTPUT
  Audio	x1

  EXTERNAL CONTROL
  RS-232	x1
  RJ-45	x2 (LAN)

  INTERNAL PLAYER
  Operating System	Android™ 8.0.0
  Processor	Dual-core A73 and dual-core A53
  Clock Speed	1.5 GHz
  Main Memory Interface	DDR4, 2G
  Graphics	Quad-core MaliG51
  Storage	Internal: 16GB eMMC Flash, External: Support Micro SD, 128GB(FAT32)
  Multimedia	4K 10 bits VP9/H265/H264 video decoders, up to 60fps 1080P other video decoders (VC-1, MPEG-1/2/4, VP8)

  ENVIRONMENT
  Operating Temperature	-30°C~50°C
  Storage Temperature	-20°C~60°C
  Humidity	10% ~ 100% RH Non-condensing
  Water and Dust Resistant Design	IP56

  CERTIFICATION
  CE	FCC
  RoHS

• DynaScan’s warranty obligations are limited to the terms set forth below:

  DynaScan warrants its professional LCD display product delivered new to the original purchaser against defects in materials and workmanship for THREE (3) YEARS from the date of original purchase.

  If a product is found to be defective in material and workmanship during the Limited Warranty Period, DynaScan will, at its sole option, (a) repair the product at no charge with new or reconditioned parts, or (b) replace the product with a functionally equivalent product. A replacement part or product assumes the remaining warranty of the original part or product, or NINETY (90) DAYS from the date of replacement or repair, whichever provides a longer coverage. When a part or product is replaced, any replacement item becomes your property and the replaced item becomes DynaScan’s property.




• Resource	Download Link
  Data Sheet	Download
