Indoor High Brightness Displays

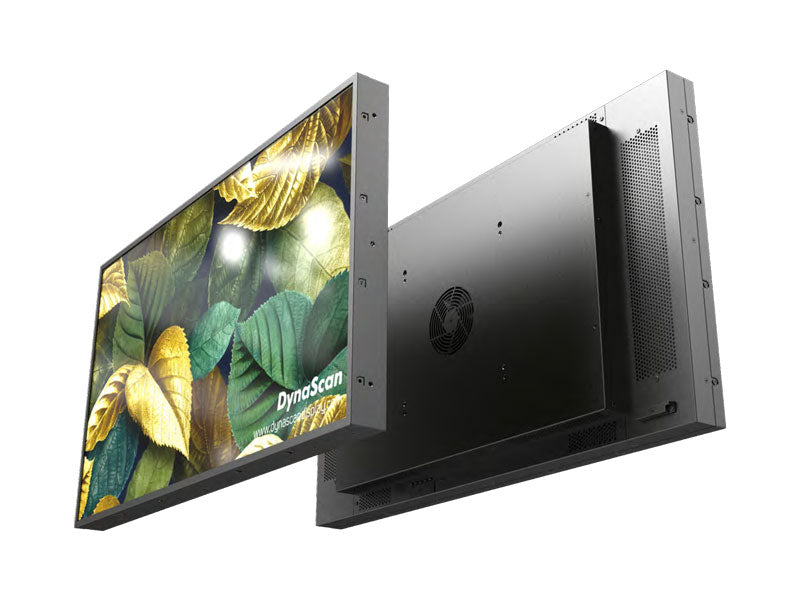

The DS323LT4 is a 32-inch professional high-brightness LCD with a brightness rating of 2500 nits. The display features an LED backlight for incredible, high-contrast picture quality and low power consumption.
The DS323LT4 features an integrated Android™ based media player with WiFi offering users a complete media platform, allowing playback of local files and USB/SD card media.
SUNLIGHT VIEWABLE IMAGE
24/7 OPERATION
EVEN BEZEL
BUILT-IN MEDIA PLAYER
TRUECOLOR™ CALIBRATED
BLACKENING DEFECT-FREE
Product Highlights
Sunlight viewable 2500 nits brightness, LED-backlit, blackening defect-free in direct sunlight, Android™ 11.0, integrated media player, even bezel, 1920×1080 full HD native resolution, 24/7 operation, TrueColor™ calibrated.
TrueColor™ Calibrated
Each screen is individually color-calibrated to the D65 (6500K) CIE color standard. Not only does this produce a true, natural white, but also accurately reproduces brand colors, skin tones, and colorways.
Auto Brightness Control
Different external lighting conditions require different brightness levels. An onboard light sensor measures the ambient light in the area and automatically adjusts the image accordingly.
Full HD Resolution
With a resolution of 1920 x 1080 Full HD, the DS323LT4 provides a super sharp image for easy-to-read text and incredible detail.
Built-In Media Player
An integrated Android™ based media player with WiFi offers users the freedom to select from the array of various media software solutions on the market or use the bundled DynaScan DSM365 application for local video playback, playlist creation, and content scheduling.
Intelligent Thermal Management
Heat generated by the display is radiated away from high-temperature areas while a sensor continuously monitors the internal temperature to protect the system from overheating with ultra-quiet fans.
| PANEL | |
|---|---|
| LCD Panel Size | 31.55" |
| Native Resolution | 1920 x 1080 |
| Brightness | 2500 nits |
| Color Depth | 10 bits |
| Contrast Ratio | 1300:1 |
| Response Time (Typ.) | 9 ms |
| Viewing Angle | 178° / 178° |
| Light Life Time (Typ.) | 100,000 hrs |
| Blackening Defect Free | Up to 110°C (230°F) |
| POWER | |
|---|---|
| Power Supply | Internal |
| Rated Voltage | 100-240V ~ 50/60HZ |
| Power On Mode (Typ./Max.) | 145 W |
| Power Saving Mode | < 1 W |
| MECHANICAL SPECS | |
|---|---|
| Bezel Width (T/B/L/R) | 8.7 / 8.7 / 8.7 / 8.7 mm |
| Cabinet Color | Black |
| Dimension (LxHxD, w/o stand) | 719.6 x 415.7 x 76.6 mm |
| Monitor Weight | 9.8 kg |
| Orientation | Portrait / Landscape |
| VESA Mounting (LxH) | 200 x 200 mm |
| FEATURE | |
|---|---|
| Language | English |
| Support SNMP (Up to V3.0) | Yes |
| Image Retention Protection | Yes |
| Auto Orientation Sensor | Yes |
| Ambient Light Sensor | Yes |
| Power On/Off Scheduling | Yes |
| OSD Menu Rotation | Yes |
| INPUT | |
|---|---|
| HDMI 2.1 (HDCP 2.2) | x2 (1080p recommended) |
| USB 2.0 | x2 |
| OUTPUT | |
|---|---|
| Audio | x1 |
| EXTERNAL CONTROL | |
|---|---|
| RS-232 | In x1 |
| RJ-45 (LAN) | x1 |
| ETK Port (Thermal) | x1 |
| ESK Port (IR, Ambient) | x1 |
| ENVIRONMENT | |
|---|---|
| Operating Temperature | 0°C~45°C |
| Storage Temperature | -20°C~60°C |
| Humidity | 10%~80% RH Non-condensing |
| INTERNAL PLAYER | |
|---|---|
| Operating System | Android 11.0 |
| Processor | Quad-core A53 |
| Clock Speed | 1.5 GHz |
| Main Memory Interface | DDR4, 2 GB |
| Graphics | Mali G52 |
| Storage | Internal: 8GB eMMC Flash |
| Multimedia | 4K video decoders, 30/60 fps, H.264 /VP9 10bit, MPEG-1/2/4 |
| Wi-Fi Specification | 802.11a/b/g/n/ac (2T2R) |
| ACCESSORIES | |
|---|---|
| Quick Start Guide | Power Cord |
| Remote Control | Batteries |
| IR & Ambient Sensor |
| CERTIFICATION | |
|---|---|
| CE | CB |
| FCC | ETL |
| RCM | RoHS |
| PSE | VCCI |
DynaScan’s warranty obligations are limited to the terms set forth below:
DynaScan warrants its professional LCD display product delivered new to the original purchaser against defects in materials and workmanship for THREE (3) YEARS from the date of original purchase.
If a product is found to be defective in material and workmanship during the Limited Warranty Period, DynaScan will, at its sole option, (a) repair the product at no charge with new or reconditioned parts, or (b) replace the product with a functionally equivalent product. A replacement part or product assumes the remaining warranty of the original part or product, or NINETY (90) DAYS from the date of replacement or repair, whichever provides a longer coverage. When a part or product is replaced, any replacement item becomes your property and the replaced item becomes DynaScan’s property.
| Resource | Download Link |
|---|---|
| Data Sheet | Download |
| User Manual | Download |
